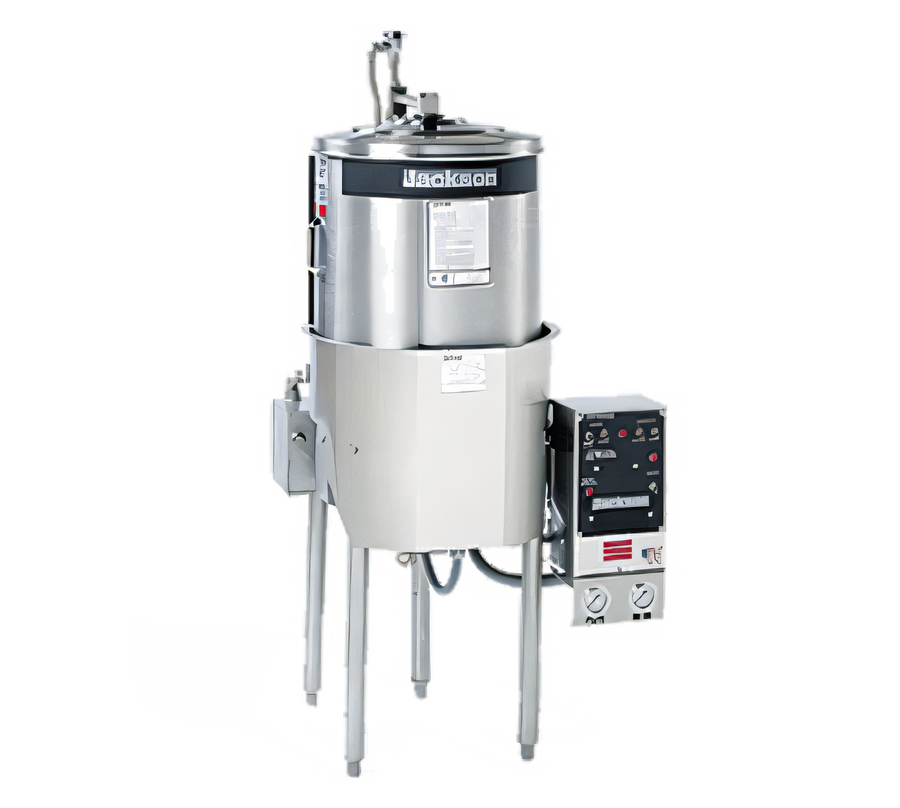

Jackson Model 10 APRB Round High-Temperature Dishwasher
Low-Water-Pressure Edition with 6.5 kW Booster • 45 Racks/HourPurpose-built for locations with low or fluctuating incoming water pressure, the Model 10 APRB pairs Jackson’s legendary round wash chamber with a dedicated ½ HP rinse pump and an internal 6.5 kW booster heater. The result is spotless, fully sanitized ware in just 72 seconds—without relying on the facility’s water pressure to get there.
Performance & Design Highlights
- Built-in 6.5 kW booster heater raises 140 °F inlet water to a 180 °F sanitizing rinse.
- ½ HP rinse pump maintains proper flow when line pressure is < 15 PSI—ideal for wells or remote sites.
- Exclusive counter-rotating wash arms ensure 360° coverage inside the round tank.
- Automatic or manual cycle start for true one-button operation or continuous wash mode.
- Sips just 1.29 gal of water per rack (≈58 gal/hr) to help control utility costs.
- Heavy-gauge, all-stainless-steel cabinet, tank and legs for years of corrosion-free service.
- Low-water protection on the electric wash tank heater safeguards components.
- External vacuum breaker protects potable supply lines.
- Comes standard with three 17 ½″ round racks (dish, combination, and 4-compartment flatware).
- Certified cETLus & NSF for food-service sanitation.
Specifications
| Capacity | 45 racks/hr | 450 dishes/hr | 1,215 glasses/hr |
|---|---|
| Water Usage | 1.29 gal per rack | 58 gal per hour |
| Cycle Time | 72 sec total – 60 sec wash / 10 sec rinse / 2 sec dwell |
| Operating Temps | Wash 150 °F min | Rinse 180 °F min |
| Tank Capacities | Wash 4.5 gal | Booster 3 gal |
| Pumps | Wash ½ HP, 70 GPM | Rinse ½ HP |
| Heaters | Wash tank 0.75 kW | Booster 6.5 kW |
| Water Connection | ½″ IPS, 140 °F minimum, 15-25 PSI flow pressure |
| Drain Connection | 1 ½″ IPS | Gravity, 20 ½″ outlet height |
| Interior Clearance | 14″ plate / tray height |
| Dimensions (H-W-D) | 58 ¼″ × 35 ½″ × 24 ¼″ |
| Shipping Weight | ≈185 lb |
| Electrical (select) |
208 V/60 Hz/1 ph 43.4 A 208 V/60 Hz/3 ph 30.2 A 220 V/60 Hz/1 ph 41.8 A 220 V/60 Hz/3 ph 29.2 A |
| Certifications | cETLus | NSF |
Warranty & Support
- 1-Year limited parts & labor warranty (U.S. & Canada).
- Nationwide network of Jackson Authorized Service Agencies.
- Quick, factory-direct parts availability.
Need additional racks or accessories? Ask about peg, combination, 12-compartment glass, and 6-compartment silverware racks compatible with this machine.
Overall Dimensions:
35.5"W x 24.25"D x 58.25"HProduct Weight:
185.0 lbCertifications & Compliance
