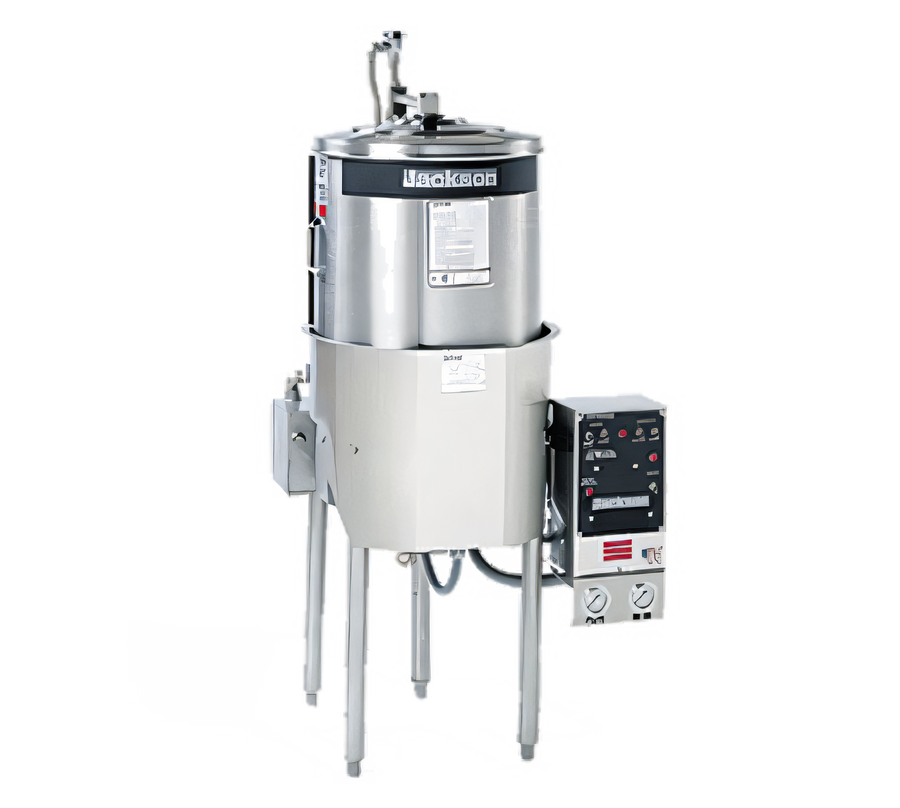

Jackson Model 10AB High-Temp Round Rack Dishwasher
Built-in 6.5 kW booster · 45 racks/hr · Single-tank designEngineered for demanding food-service operations, the Jackson Model 10AB combines a powerful ½ hp wash pump, a 6.5 kW booster heater and Jackson’s exclusive 360° counter-rotating wash arms to deliver spotless, NSF-approved results—cycle after cycle.
Why You’ll Love It
- Integrated 6.5 kW booster heater elevates 140 °F inlet water to a 180 °F sanitizing rinse.
- Round chamber with counter-rotating wash arms provides complete spray coverage.
- Only 1.29 gal of water per rack—save on utilities without slowing production.
- Automatic 72-second cycle with optional manual controls for extra flexibility.
- All-stainless-steel tank, legs & exterior for superior durability and easy cleaning.
- External vacuum breaker & built-in pressure regulator protect the potable water line.
- Ships with three 17.5″ round racks: dish, combination, and 4-compartment silverware.
Performance at a Glance
| Production Capacity | 45 racks / 450 dishes / 1,215 glasses per hour |
|---|---|
| Cycle Breakdown | 60 s wash • 10 s rinse • 2 s dwell (72 s total) |
| Water Consumption | 1.29 gal per rack (≈ 58 gal per hour) |
| Wash Tank | 4.5 gal, 0.75 kW electric heat with low-water protection |
| Booster Heater | 6.5 kW, 3 gal tank |
| Wash Pump Motor | ½ hp (70 gpm) |
| Operating Temps | Wash 150 °F min · Rinse 180 °F min |
| Flow Pressure | 15 – 25 psi @ 7.8 gpm |
Electrical Requirements (Total Amps)
| 208 V / 60 Hz / 1 Φ | 38.8 A |
|---|---|
| 208 V / 60 Hz / 3 Φ | 25.6 A |
| 220 V / 60 Hz / 1 Φ | 37.2 A |
| 220 V / 60 Hz / 3 Φ | 24.6 A |
Dimensions & Connections
| Overall (H × W × D) | 58.25″ × 27.50″ × 24.25″ |
|---|---|
| Inside Clearance | 17.25″ plate clearance |
| Table Height | 34″ |
| Water Inlet | ½″ IPS – 140 °F minimum |
| Drain Connection | 1½″ IPS – 20.5″ from floor |
| Shipping Weight | 185 lb |
Certifications & Warranty
- cETLus & NSF listed for sanitation and electrical safety.
- One-year limited parts & labor warranty (registration required).
Specifications are subject to change without notice. Refer to the installation manual for full utility, clearance and setup requirements.
Overall Dimensions:
27.5"W x 24.25"D x 58.25"HProduct Weight:
185.0 lbCertifications & Compliance
