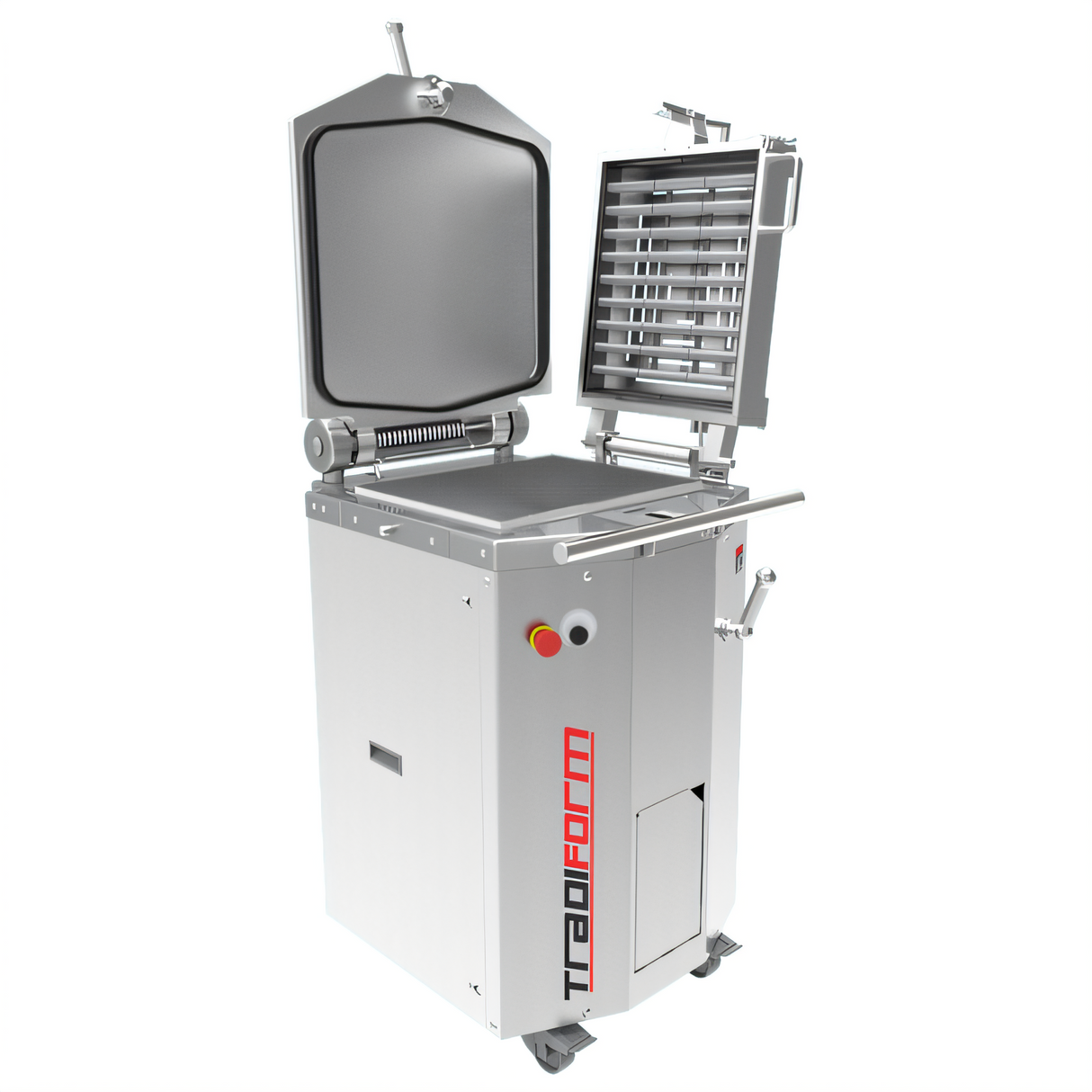

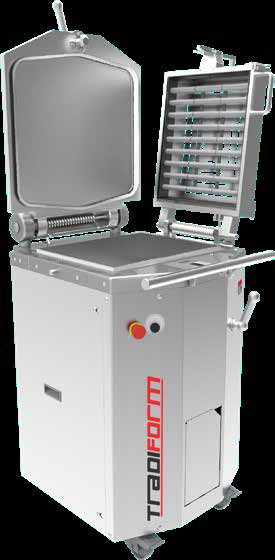

JAC TRADIFORM Automatic Hydraulic Dough Divider-Moulder, 20-Portion Floor Model

Grids Sold Separately; Side Frame and Pressure Plate Included

Built for fast, consistent dough dividing and molding, TRADIFORM combines automatic hydraulic operation with quick grid changes and durable stainless steel construction.

  • Automatic hydraulic floor model for consistent dough dividing and molding.
  • 20-piece output with a 5.3 to 33.5 oz portion range.
  • 42 lb dough capacity supports a wide range of dough applications.
  • Click & Cut quick grid changing system speeds changeovers; grids are sold separately.
  • Stainless steel tank, knives, and exterior with an Easy Clean cast iron head.
  • Adjustable pressure, flour splash prevention, and automatic knife retraction help improve results and cleanup.
  • Casters with two locking brakes make the heavy unit easier to position and secure.

Overall Dimensions:

39.4"W x 31.9"D x 65.0"H

Product Weight:

800.0 lb

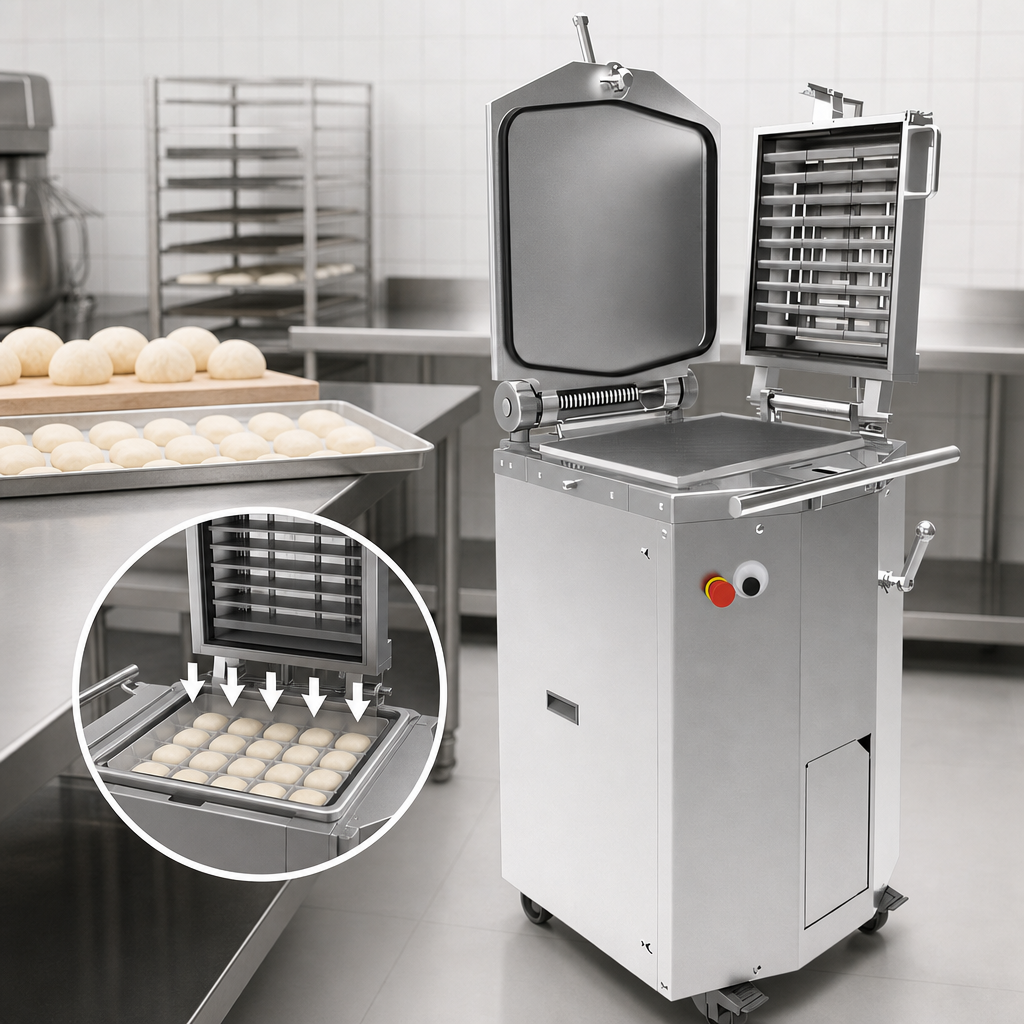

Automatic Hydraulic Operation

Automates the dividing and molding cycle for consistent output with less manual effort.

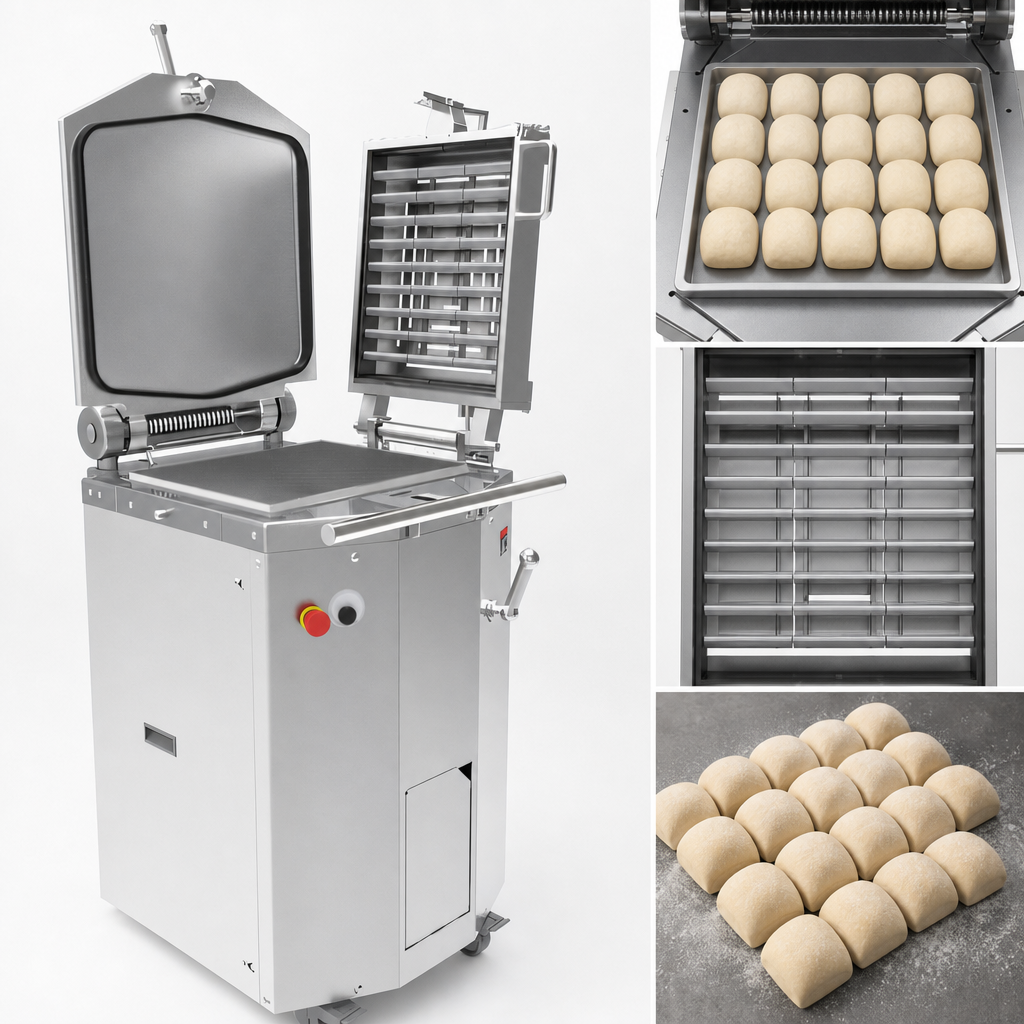

20-Piece Division

Configured to divide dough into 20 portions per cycle.

Wide Portion Range

Handles dough pieces from 5.3 to 33.5 oz.

Adjustable Pressure

Lets the operator fine-tune pressure to help prevent de-gassing and suit different dough types.

Click & Cut Quick Grid Changing System

Ergonomic quick-change grid system for faster changeovers; grids are sold separately.

Stainless Steel Construction

Stainless steel tank, knives, and exterior support durability and easier cleaning.

Easy Clean Cast Iron Head

Cast iron head is treated for easier release and improved non-stick performance over time.

Automatic Knife Retraction

Knife retraction is automatic for easier maintenance and cleaning.

Flour Splash Prevention System

Helps reduce flour dispersal around the machine during operation.

Included Side Frame and Pressure Plate

Supplied with the side frame and tamping plate, but without cutting/forming grids.

Locking Casters

Equipped with casters, including two locking casters for stability.

Type Dough Divider-Moulder
Style Automatic Hydraulic
Installation Type Floor Model
Capacity 42 Pounds
Portion Count 20
Portion Size 5.3 to 33.5 Ounces
Material Stainless Steel
Voltage 208 Volts
Amps 11.0 Amps
Watts 1.8 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L15-20
Selling Unit Each
Units Per Case 1
Shipping Width 40 Inches
Shipping Depth 32 Inches
Shipping Height 65 Inches
Shipping Weight 800 Pounds

Certifications & Compliance

Warranty & Protection

5 years parts, 1 year labor.

Documents

PDF Cutsheet PDF Download PDF Grid catalog PDF Download PDF Video PDF Download PDF Product page PDF Download

Frequently Asked Questions

No. It is sold without grids, but the side frame and pressure plate are included.
It is configured for 20 portions per cycle.
The machine handles dough pieces from 5.3 to 33.5 oz.
It requires 208V, 60 Hz, 3-phase power, draws 11.0 amps, and uses a NEMA L15-20 plug.
The warranty is 5 years on parts excluding wear items, with 1 year labor coverage.
It includes automatic knife retraction and an Easy Clean treated cast iron head for easier maintenance.
