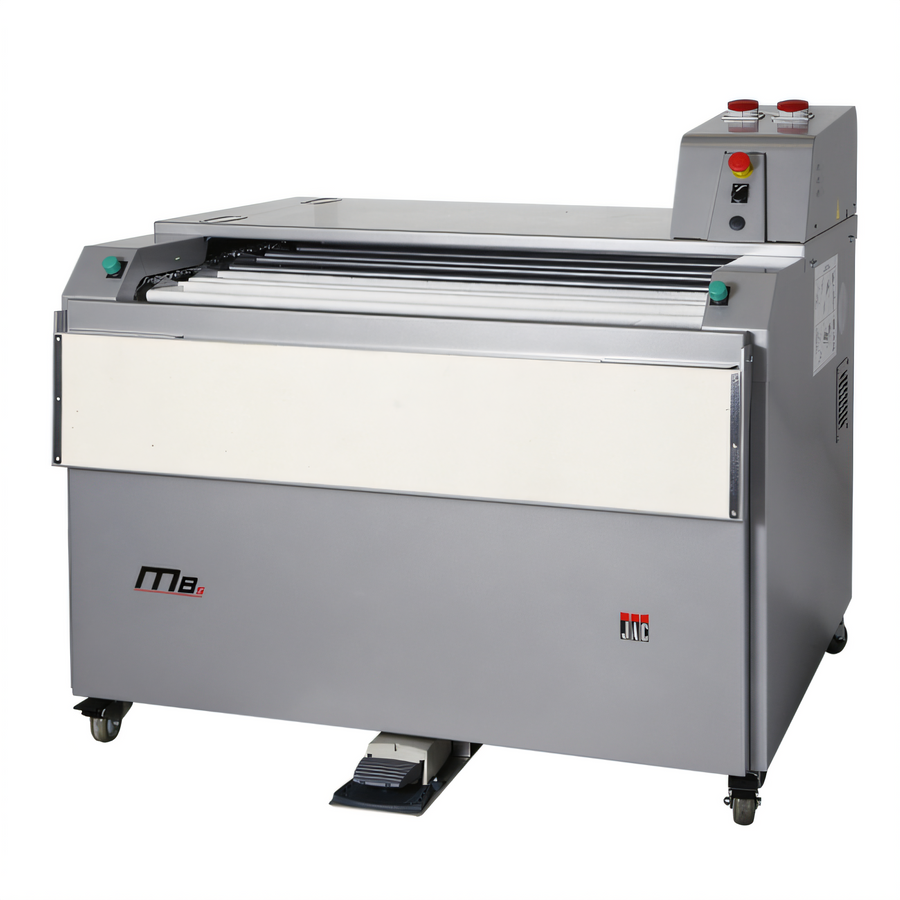

JAC Machines MB-S Intermediate Resting Proofer, 104-Dough-Piece Capacity, 26 Troughs

SKU: MB-S
$10,240.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Italian Restaurant Supply New Arrivals

JAC Machines MB-S Intermediate Resting Proofer, 104-Dough-Piece Capacity, 26 Troughs

Compact Floor Model, 208V/3-Phase, 26 Synthetic Felt Troughs

This compact intermediate resting proofer keeps dough handling gentle while delivering a 104-piece capacity for efficient bakery production.

  • Holds up to 104 dough pieces in 26 troughs for efficient resting and proofing.
  • Synthetic felt troughs are designed to protect dough structure during handling.
  • Bronze ring gear wheel helps reduce friction and extend service life.
  • Built-in sockets support moulder and divider connections for streamlined workflow.
  • Runs on 208V, 60 Hz, 3-phase power with a NEMA L15-20 plug.
  • Compact floor-model footprint fits production areas without sacrificing capacity.
  • Backed by a 5-year parts warranty and 1-year labor warranty.

Overall Dimensions:

51.6"W x 44.0"D x 47.5"H

Product Weight:

600.0 lb

104-Dough-Piece Capacity

Maximum capacity is 104 dough pieces at the 33.5 oz. size across 26 troughs.

Synthetic Felt Troughs

Troughs are designed for gentle dough handling to help preserve dough structure.

Bronze Ring Gear Wheel

Reduces friction and helps extend the service life of the drive system.

Moulder and Divider Sockets

Includes sockets for connecting a moulder and divider to support a more efficient production line.

Simple Controls

Straightforward controls are designed for easy, ergonomic operation.

Compact Footprint

Space-saving cabinet dimensions make it suitable for production areas with limited room.

Power Requirements

Configured for 208V, 60 Hz, 3-phase operation with a 0.25 kW motor and 1.32-amp draw.

Type Proofer
Style Intermediate Resting
Installation Type Floor Model
Capacity 104 Dough Pieces
Controls Simple
Voltage 208 Volts
Amps 1.32 Amps
Watts 0.25 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA L15-20
Shipping Width 52 Inches
Shipping Depth 44 Inches
Shipping Height 48 Inches
Shipping Weight 600 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

5-year parts warranty and 1-year labor warranty.

Documents

PDF Cutsheet PDF Download PDF Product page PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It has a maximum capacity of 104 dough pieces at the 33.5 oz. size, using 26 troughs. Capacities are approximate and can vary with dough size and handling.
The unit operates on 208V, 60 Hz, 3-phase power and draws 1.32 amps with a 0.25 kW motor. It uses a NEMA L15-20 plug.
The MB-S uses 41.7 inch by 5.5 inch troughs.
Yes, it includes sockets for connecting a moulder and divider.
The product is covered by a 5-year parts warranty excluding wear items and a 1-year labor warranty.
Yes. Optional accessories include a foot control, folding rounding tray, germicidal UV lamp with protection and air extractor, monofilament troughs, and water-repellent troughs.
