ITV Ice Makers

ICE QUEEN IQ 1300R Modular Granular Ice Machine, 1,430 lb. per Day, Split System

SKU: IQ 1300R
$5,961.94
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Cooking Equipment Countertop Cooking Equipment Equipment Ice Machines Ice Makers & Bins ITV Ice Makers New Arrivals Restaurant Equipment

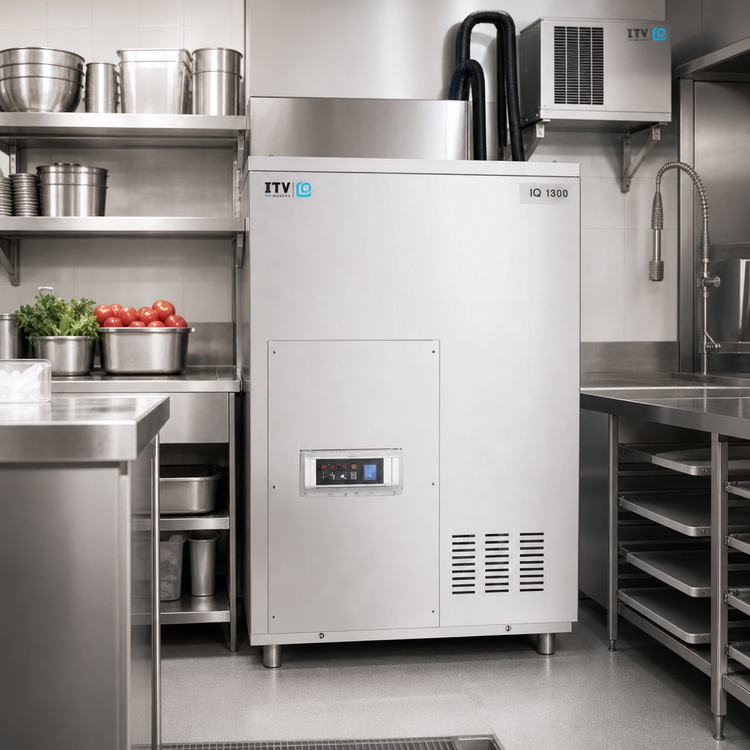

ICE QUEEN IQ 1300R Modular Granular Ice Machine, 1,430 lb. per Day, Split System

208-230V, 3-Phase, Air Cooled, Remote Condenser Not Included

A high-output modular ice machine head that delivers up to 1,430 lb. of granular ice per day with durable 304 stainless steel construction and an easy-service split-system design.

  • Modular split-system ice machine head designed for remote condenser applications.
  • Produces up to 1,430 lb. of wet granular ice per 24 hours.
  • AISI 304 stainless steel body with a coated stainless steel auger for durability.
  • Electromechanical control system with thermostat control for straightforward operation.
  • Evaporator design eliminates gaskets and seals to simplify service and maintenance.
  • Front ventilation, easy access for service, and bottom ice discharge improve usability.

Overall Dimensions:

20.63"W x 16.13"D x 32.13"H

Product Weight:

141.0 lb

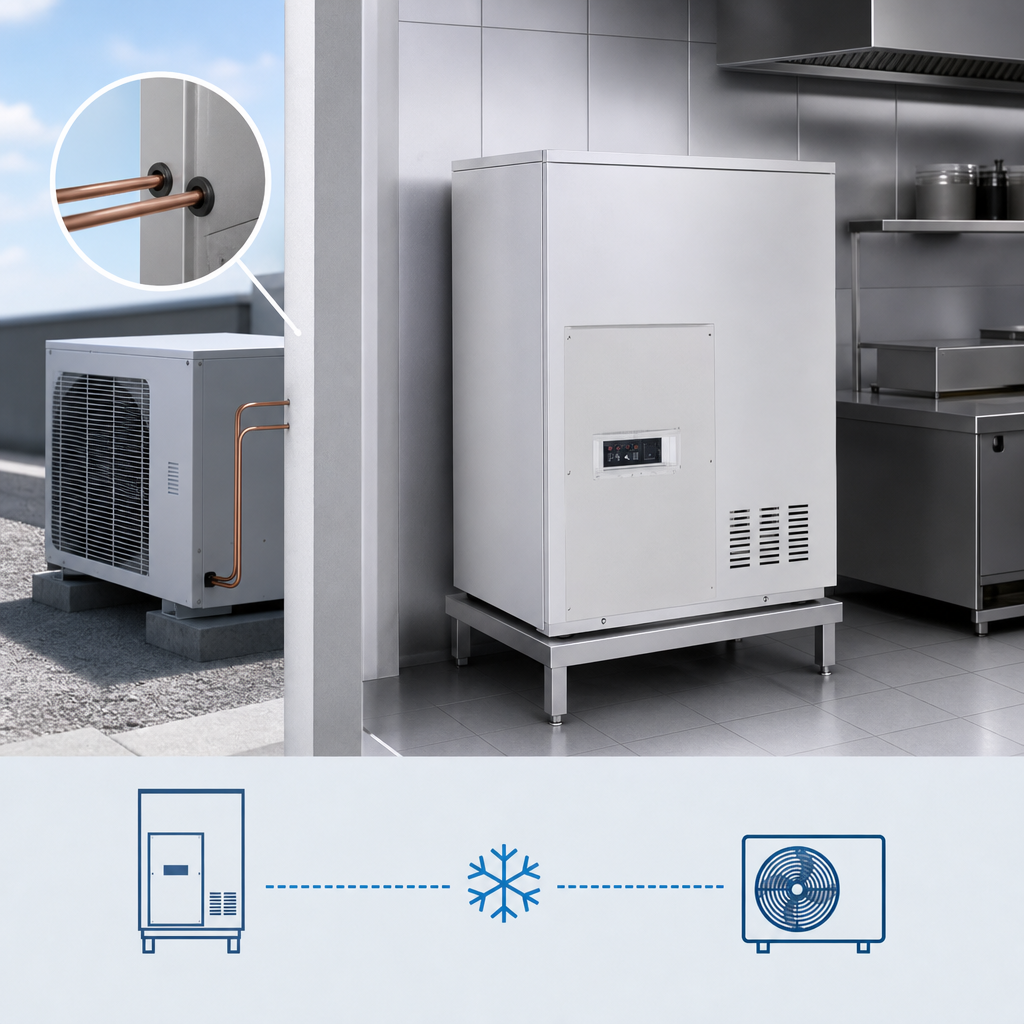

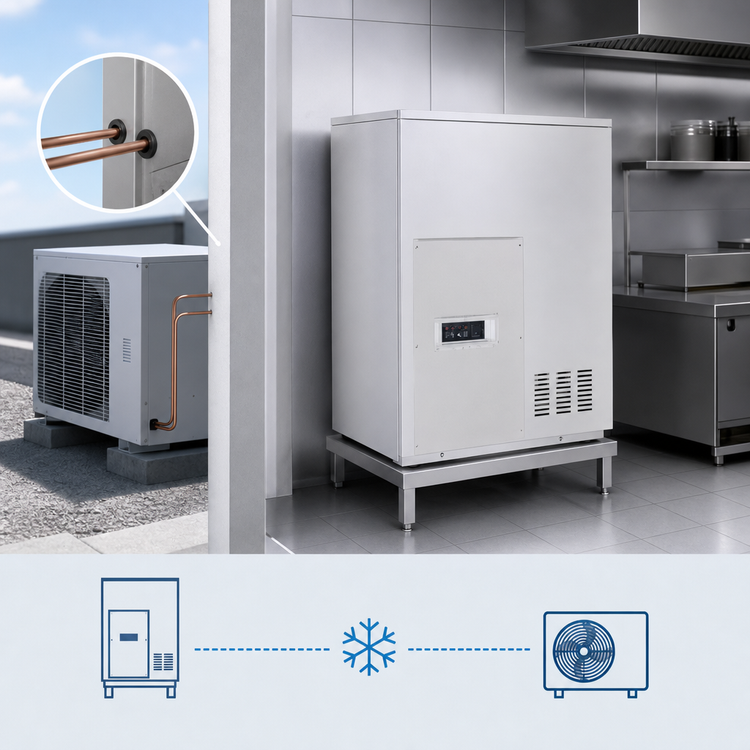

Split System Design

Built for a remote condenser setup; condenser is not included.

Split System Design

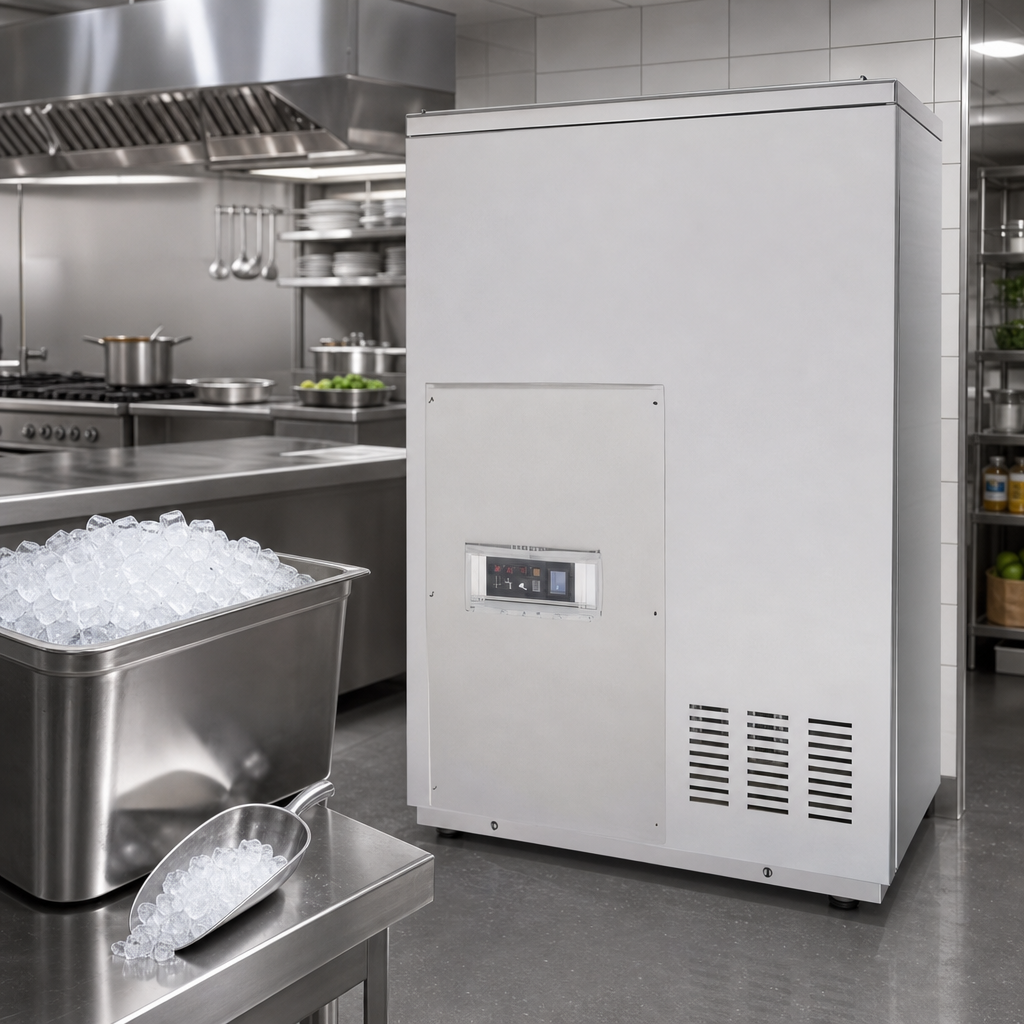

High Daily Output

Produces up to 1,430 lb. of ice per 24 hours.

High Daily Output

304 Stainless Steel Body

AISI 304 stainless steel construction provides durability and corrosion resistance.

Stainless Steel Auger

Resilient coated auger is designed to help maximize service life.

Electromechanical Controls

Simple electromechanical control system with thermostat control.

Seal-Free Evaporator

Evaporator is designed without gaskets or seals for easier servicing.

Service-Friendly Layout

Front ventilation and easy access support installation and maintenance.

Bottom Ice Discharge

Ice drops out through an opening on the bottom of the unit, aided by a powerful speed reducer on top.

Wet Granular Ice

Produces wet granular ice with approximately 25% residual water content.

Type Modular Ice Machine
Style Granular Ice
Cooling Air Cooled
Refrigeration Type Remote
Controls Electromechanical
Capacity 1,430 lb. per 24 Hours
BTU 11,600 BTU/h
Material 304 Stainless Steel
Refrigerant Type R404A
Voltage 208-230 Volts
Hertz 60 Hz
Phase 3-Phase
Shipping Width 21 Inches
Shipping Depth 17 Inches
Shipping Height 33 Inches
Shipping Weight 141 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

3 years parts and labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It produces wet granular ice with approximately 25% residual water content.
No. The remote condenser is not included.
The unit requires 208-230V, 60 Hz, 3-phase power.
The cutsheet rates it at up to 1,430 lb. per 24 hours.
The cutsheet lists a 3-year parts and labor warranty, plus 2 additional years on the compressor and evaporator.
