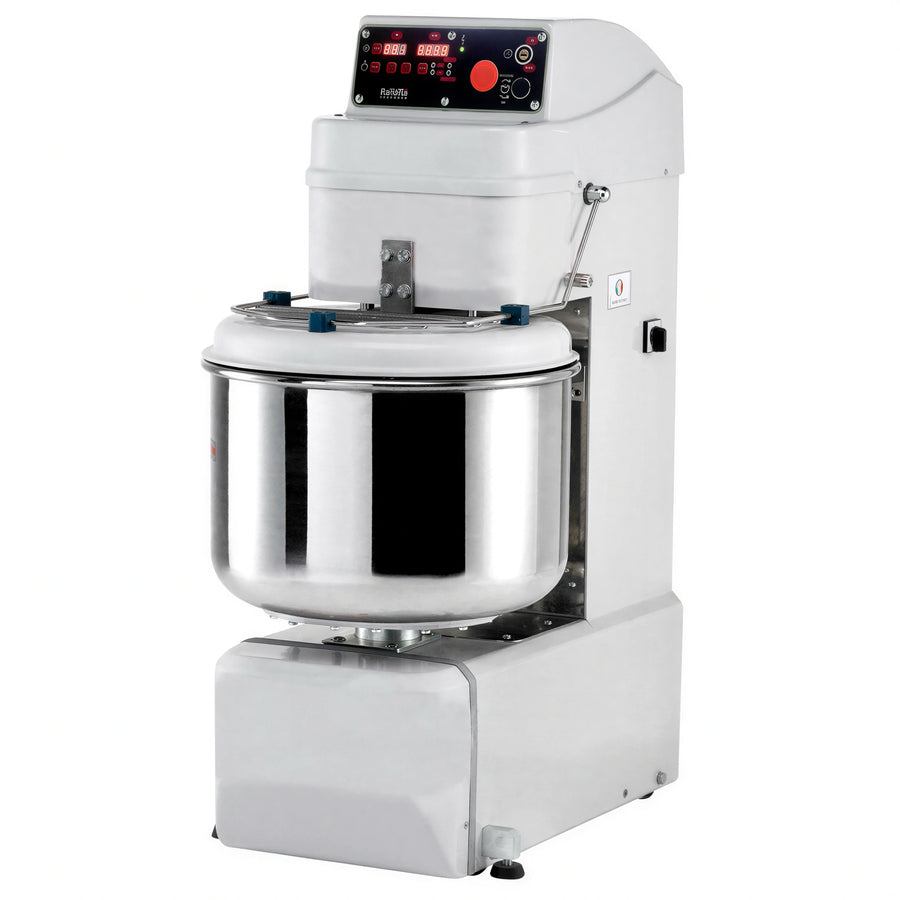

Italiana FoodTech, Inc. Gold Line IGM80 Spiral Dough Mixer, 176 lb Capacity, 2-Speed, Programmable Controls

SKU: IGM80
$36,240.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The IGM80 Gold Line spiral dough mixer provides a 176 lb finished dough capacity at 60% hydration, with two working speeds and programmable digital controls.

It includes separate timers for first and second speed, up to 10 custom mixing settings, independent motors for the dough hook and bowl rotation, and clockwise/counter-clockwise bowl rotation control.

  • 140 qt (130 L) bowl capacity and 110 lb (50 kg) flour capacity
  • Stainless steel mixing components and a reinforced spiral
  • Safety cage, pulse feature, and four caster wheels
  • 220 V, 60 Hz, 3-phase electrical specification with 16 A and 3.7 kW

Overall Dimensions:

27.95"W x 44.88"D x 51.57"H

Product Weight:

727.65 lb

Two-speed mixing

Provides two working speeds for the bowl and spiral.

Programmable digital controls

Includes a digital controller, separate first- and second-speed timers, and up to 10 custom mixing settings.

Independent motors

Uses one motor for the dough hook and one motor for bowl rotation.

Bowl rotation control

Supports clockwise/counter-clockwise bowl rotation with forward and reverse rotation control.

Mixing components

Features stainless steel mixing components and a reinforced spiral.

Safety cage

Allows easier ingredient addition during mixing.

Pulse feature

Specified for dough removal and cleaning.

Mobility

Equipped with four caster wheels.

Related Searches

Best Sellers Commercial Mixers Commercial Ranges Equipment Food Preparation Equipment Italiana FoodTech, Inc. Mixers New Arrivals Restaurant Equipment Spiral Dough Mixers Spiral Dough Mixers
Finished dough capacity 176 lb at 60% hydration
Flour capacity 110 lb / 50 kg
Bowl capacity 140 qt / 130 L
Speed 2-speed
Controls Programmable digital controller
Timers 2: first-speed timer and second-speed timer
Custom mixing settings Up to 10
Motors 2 independent motors: dough hook and bowl rotation
Bowl rotation Clockwise/counter-clockwise; forward and reverse rotation control
Mixing components Stainless steel
Spiral Reinforced
Safety cage Allows easier ingredient addition during mixing
Pulse feature For dough removal and cleaning
Caster wheels 4
Motor power 5 HP / 3.7 kW
Voltage 220 V
Frequency 60 Hz
Phase 3-phase
Amperage 16 A
Bowl type Fixed
Housing construction Painted
Attachments Bowl, bowl guard, dough hook

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is specified for 176 lb of finished dough at 60% hydration, with a listed flour capacity of 110 lb (50 kg).
It has a programmable digital controller, separate first- and second-speed timers, and storage for up to 10 custom mixing settings.
The specifications list 220 V, 60 Hz, 3-phase service, 16 A, and 3.7 kW.
Yes. One independent motor is specified for the dough hook and one for bowl rotation.
The listed dimensions are 27.95 in wide, 44.88 in deep, and 51.57 in high, with a product weight of 727.65 lb.
