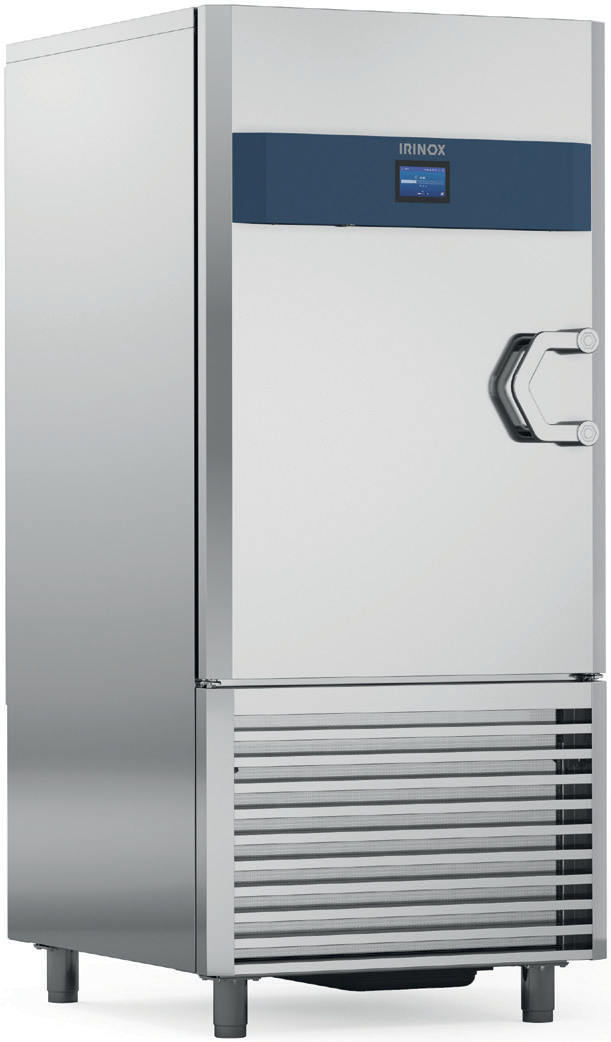

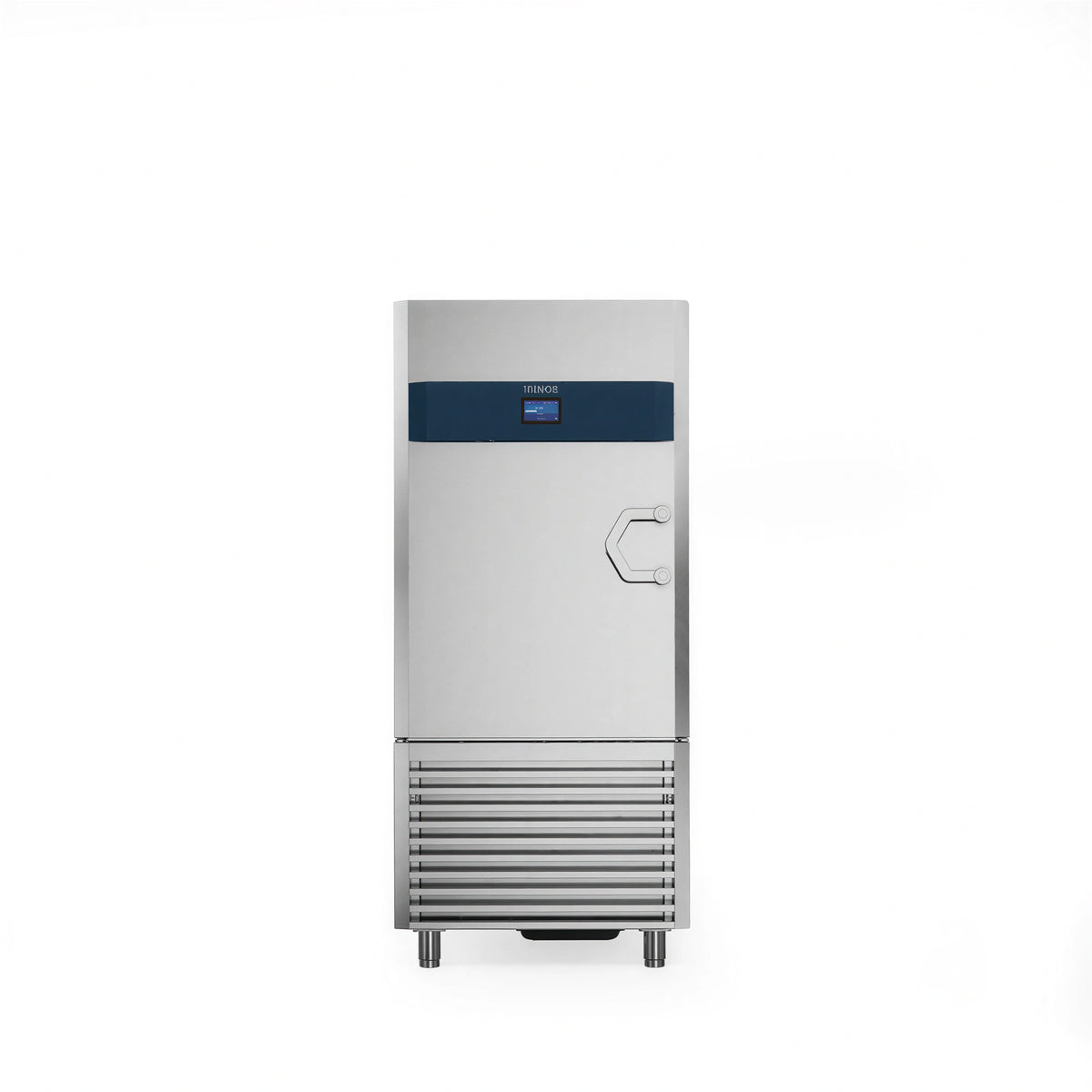

Irinox EasyFresh® NEXT EASYFRESH NEXT LL Reach-In Blast Chiller/Shock Freezer, 14 Sheet Pan/28 Steam Pan Capacity
- Blast chiller/shock freezer capacity
- 14 18 in x 26 in sheet pans or 28 12 in x 20 in x 2.5 in steam table pans; pans not included
- Blast chill performance
- 194°F to 37°F; 145 lb in approximately 90 minutes
- Shock freeze performance
- 194°F to 0°F; 145 lb in approximately 4 hours
- Standard chilling and freezing modes
- 4
- Holding
- Automatic cold and frozen holding
- Controls
- Touch pad controls
Specifications
Description
The EASYFRESH NEXT LL is a reach-in blast chiller and shock freezer with capacity for 14 18 in x 26 in sheet pans or 28 12 in x 20 in x 2.5 in steam table pans. Pans are not included.
It is specified to blast chill 145 lb from 194°F to 37°F in approximately 90 minutes and shock freeze 145 lb from 194°F to 0°F in approximately 4 hours. The stated tests were carried out in compliance with Irinox procedures using 2 in thick beef.
- Controls: Touch pad controls, four standard chilling and freezing modes, automatic cold and frozen holding, and a temperature probe.
- Construction: 304 stainless steel internal and external material, six stainless steel wire shelves, and stainless steel adjustable legs.
- Refrigeration: Self-contained air-cooled condensing unit using R290 propane refrigerant.
- Data: USB HACCP data transfer.
- Installation details: Left-hinged standard door and cord supplied without a plug; L6-50P NEMA is suggested.
Overall Dimensions:
40.0"W x 49.0"D x 88.0"HProduct Weight:
890.0 lbBlast chilling
Specified to reduce 145 lb from 194°F to 37°F in approximately 90 minutes.
Shock freezing
Specified to reduce 145 lb from 194°F to 0°F in approximately 4 hours.
Pan capacity
Accommodates 14 18 in x 26 in sheet pans or 28 12 in x 20 in x 2.5 in steam table pans; pans are not included.
HACCP data transfer
Provides USB HACCP data transfer.
Cold and frozen holding
Provides automatic cold and frozen holding.
Controls and probe
Uses touch pad controls, four standard chilling and freezing modes, and a temperature probe.
Refrigeration system
Uses a self-contained air-cooled condensing unit with R290 propane refrigerant.
Stainless steel construction
Features 304 stainless steel internal and external material.
Shelving
Includes six stainless steel wire shelves.
Door and power connection
The standard door is hinged left. The unit comes with a cord and no plug; L6-50P NEMA is suggested.
