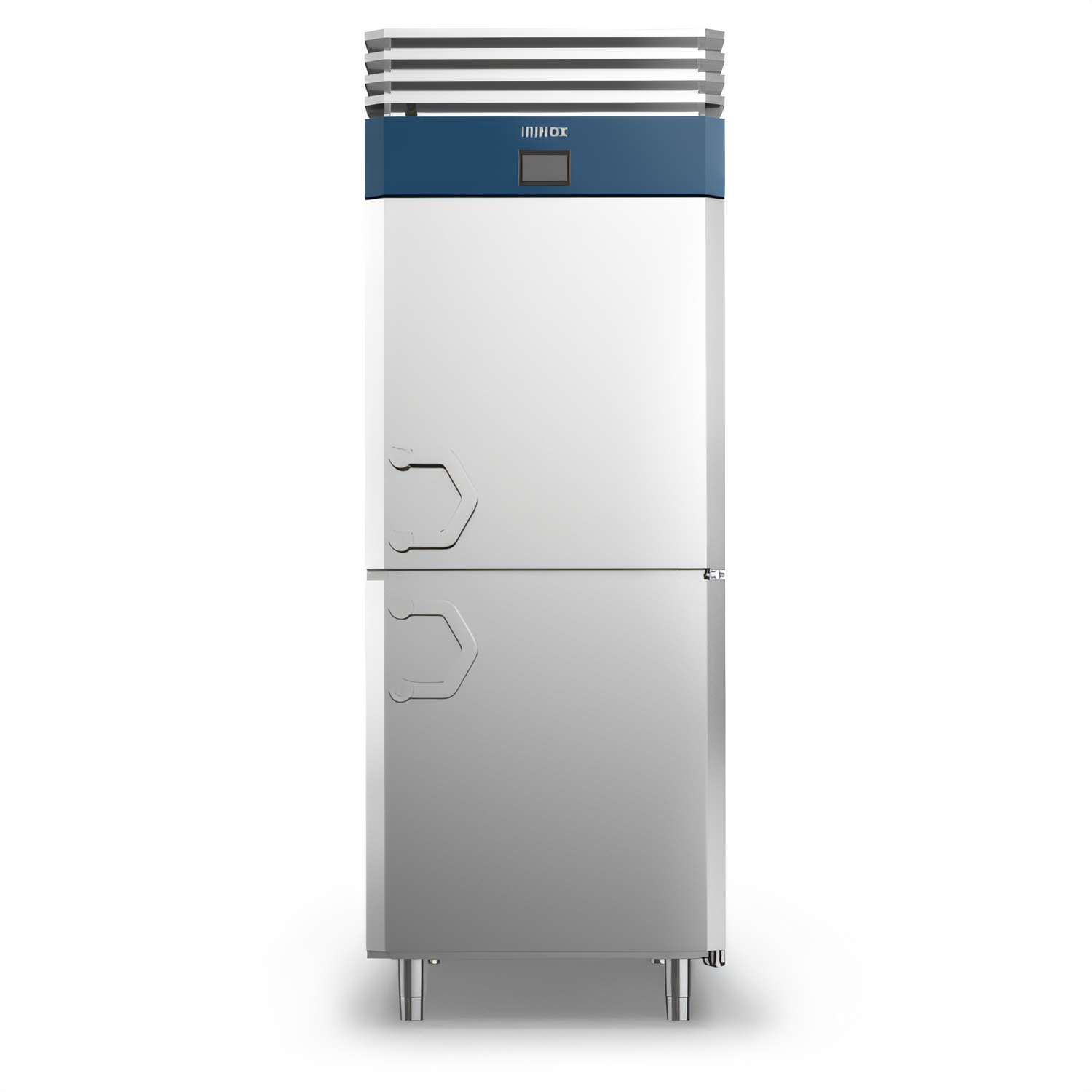

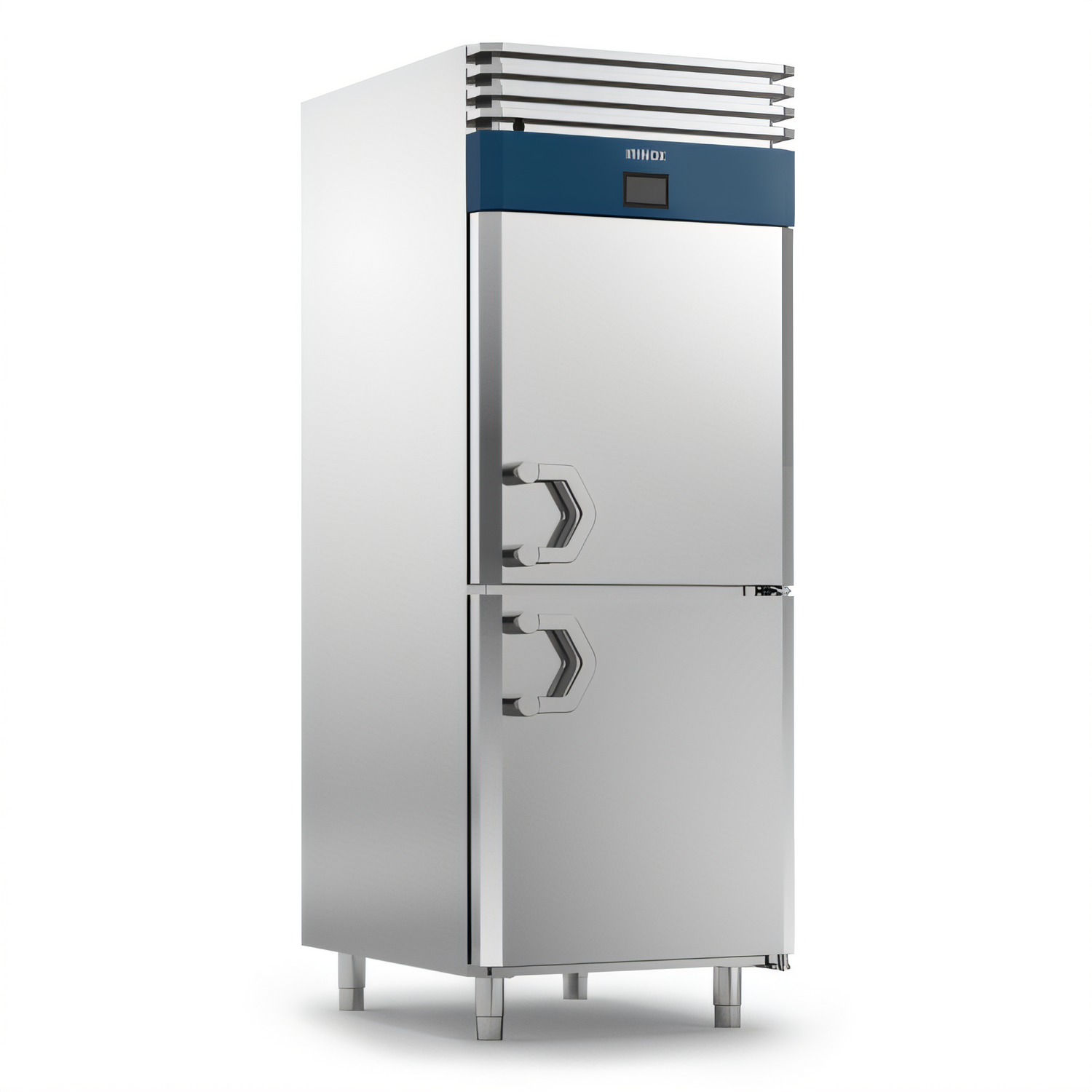

Irinox CP Next Up 2-Section Double-Door Refrigerated Holding Cabinet

Self-Contained Air-Cooled, Stainless Steel, +23°F to +59°F

Keep prepared foods stable and service-ready with precise temperature and humidity control, self-contained cooling, and FreshCloud remote monitoring.

  • Maintains holding temperatures from +23°F to +59°F with 6 selectable humidity levels.
  • Double-door, 2-section cabinet with self-contained air-cooled refrigeration.
  • Holds up to 37 full-size trays or 74 half-size trays at 1 3/8-inch spacing.
  • FreshCloud connectivity, Wi-Fi/Ethernet, and USB HACCP export simplify monitoring and recordkeeping.
  • All-stainless construction, LED lighting, and slow-closing doors support daily commercial use.
  • Includes stainless steel wire shelves, tray slides, and adjustable feet for setup flexibility.

Overall Dimensions:

31.25"W x 43.63"D x 87.13"H

Product Weight:

463.0 lb

Up Temperature Range

Maintains cabinet temperatures from +23°F to +59°F for chilled holding applications.

Humidity Management

Selectable humidity levels from 40% to 95% RH help preserve product texture and appearance.

FreshCloud Connectivity

Wi-Fi/Ethernet connectivity supports remote monitoring, push notifications, usage statistics, and HACCP data backup through the app.

USB HACCP Download Port

Built-in USB port allows HACCP data export.

Self-Contained Air-Cooled Refrigeration

Integrated condensing unit simplifies installation and uses R290 natural refrigerant.

Adaptive Hot Gas Defrost

Adaptive defrost system helps avoid sudden storage-temperature changes.

Capacitive Touchscreen Interface

4.3-inch color touchscreen with buzzer provides easy control and status viewing.

304 Stainless Steel Cabinet

AISI 304 stainless steel inside and out for durability and easy cleaning.

Magnetic Slow-Closing Double Doors

Doors close gently and include a 130° stop for easier loading and unloading.

Internal LED Lighting

Double LED light bars illuminate the cabinet interior.

Tray and Shelf Package

Includes 20 pairs of tray slides, stainless steel pan supports, and 10 stainless steel wire shelves.

Adjustable Feet

Four stainless steel feet adjust from 6 inches to 7 7/8 inches for leveling.

Type Holding Cabinet
Style Double Door
Compartments 2
Installation Type Floor Model
Temperature Range +23°F to +59°F
Controls Capacitive Touchscreen
Pan Capacity 37 18 x 26 Inch Trays or 74 18 x 13 Inch Trays at 1 3/8 Inch Spacing; 26 18 x 26 Inch Trays or 52 18 x 13 Inch Trays at 2 Inch Spacing
Material 304 Stainless Steel
Interior Finish Stainless Steel
Finish All Stainless Steel
Refrigeration Type Self-Contained Air-Cooled
Refrigerant Type R290
Voltage 208 Volts
Hertz 60 Hz
Shipping Width 32 Inches
Shipping Depth 44 Inches
Shipping Height 88 Inches
Shipping Weight 463 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2 years parts and labor; 5 years compressor.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Up operating mode maintains temperatures from +23°F to +59°F.
It holds 37 full-size (18" x 26") trays or 74 half-size (18" x 13") trays at 1 3/8-inch spacing, and 26 full-size or 52 half-size trays at 2-inch spacing.
Yes. Humidity can be set to 6 levels, from 40% to 95% RH, when the cabinet temperature is above 32°F.
Yes. FreshCloud connectivity supports remote monitoring, push notifications, usage statistics, and HACCP data backup through the app.
The unit includes a 2-year parts and labor warranty and a 5-year compressor warranty, subject to the installation/start-up reporting requirements in the warranty terms.
