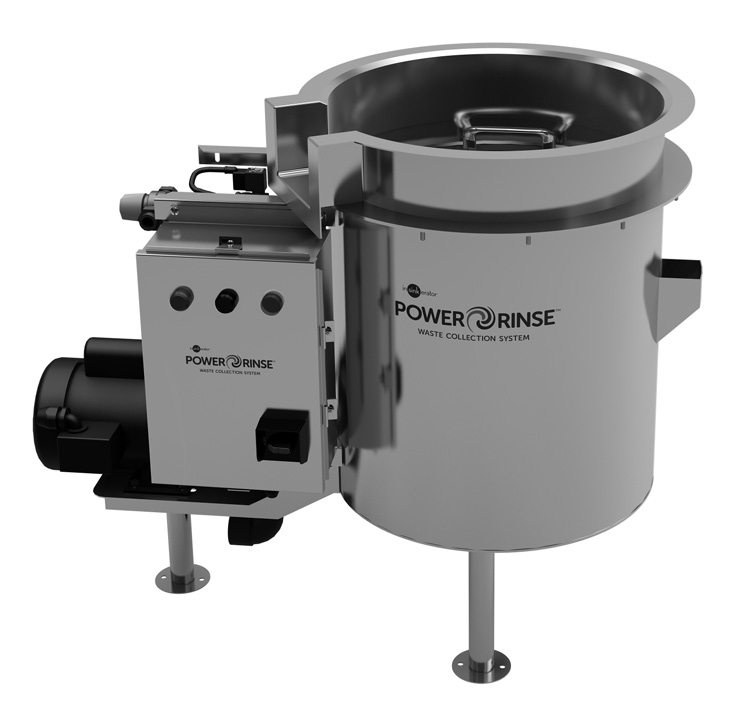

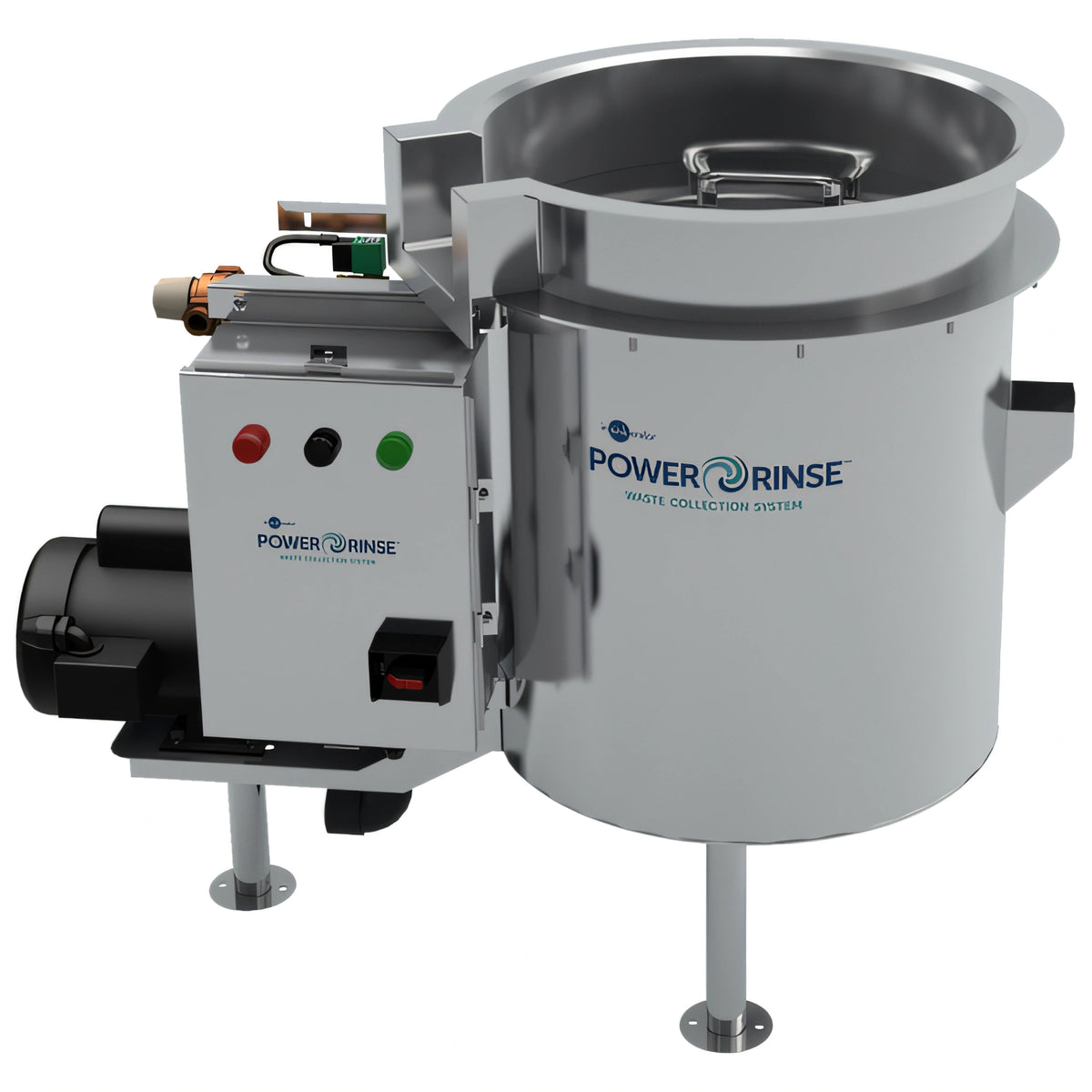

InSinkErator PowerRinse Trough Food Waste Collection System

Complete package with pre-plumbed, pre-wired base assembly and up to 70 GPM recirculation

Built for large dish rooms, this trough-style system streamlines pre-rinsing and scrapping while using just 1 GPM of fresh water per hour.

  • Trough-style food waste collection system for large, high-volume commercial kitchens.
  • Uses only 1 GPM of fresh water per hour while recirculating up to 70 GPM.
  • Pre-plumbed and pre-wired base assembly helps simplify installation.
  • Dry-start protection and a 1/4" inlet screen help protect the pump.
  • Integrated air gap and check valves support a cleaner plumbing setup.
  • Stainless steel construction and flanged feet improve durability and stability.

Overall Dimensions:

29.5"W x 39.0"D x 48.0"H

Product Weight:

165.0 lb

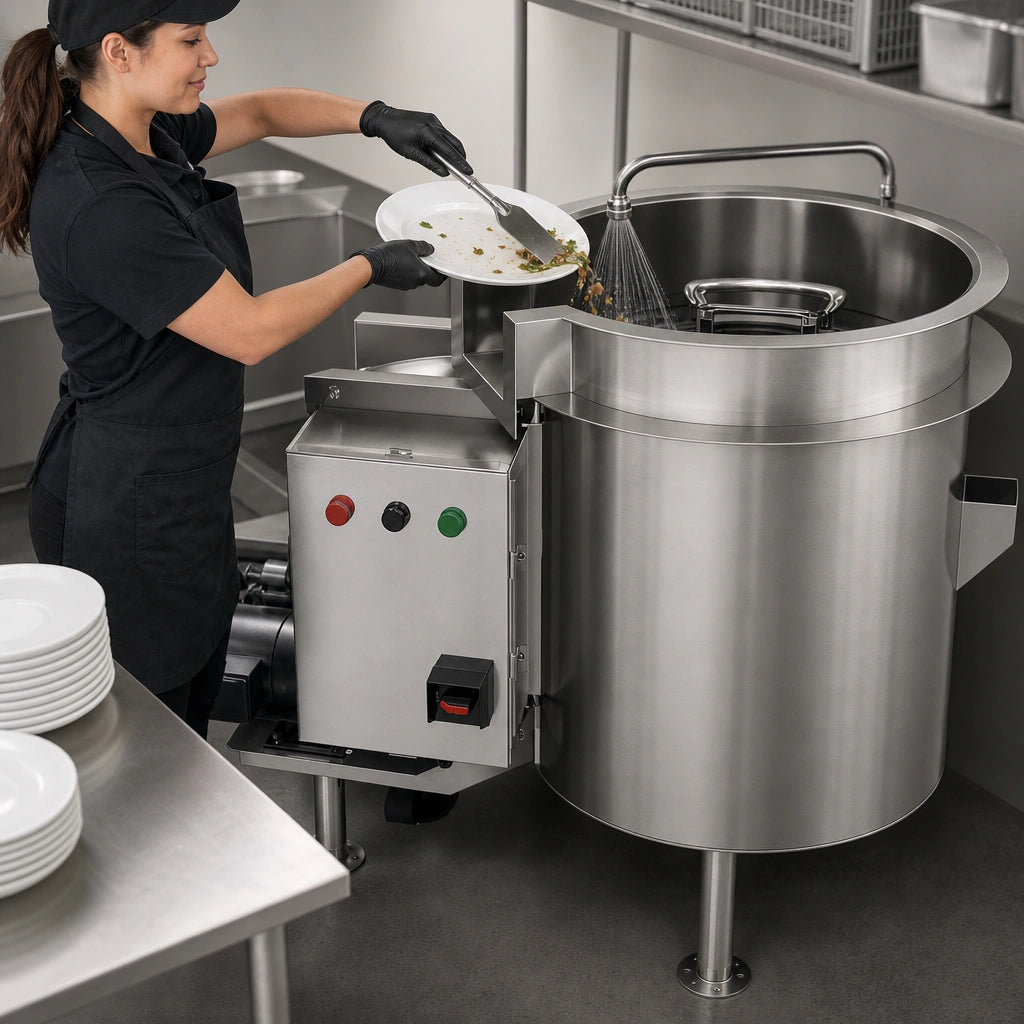

Pre-Rinse and Scrapping in One Step

Helps staff clear dishes faster while collecting solids without grinding.

High Recirculation Flow

Capable of recirculating water up to 70 GPM for powerful pre-rinse performance.

Low Fresh Water Use

Operating cycle requires only 1 GPM of fresh water per hour.

Dry-Start Pump Protection

3/4 HP pump is safeguarded by dry-operation protection and a 1/4" inlet screen.

Adjustable Timed Run

Built-in shutoff timer is factory set at 20 minutes and can be manually shut off.

Corrosion-Resistant Construction

Tray, base assembly, basket cover, pump housing, and pump impeller are stainless steel.

Integrated Air Gap

Built-in air gap helps simplify installation and eliminates the need for a vacuum breaker.

Easy-Clean Components

Scrap basket, tray, and other components are designed for simple cleaning, and the basket may be run through a dishwasher.

Type Food Waste Collection System
Style Trough
Installation Type Built-In
Controls Adjustable Timer
Capacity 70 GPM Recirculated Water Flow
Material Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch NPT
Drain Connection Size 2 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 39 Inches
Shipping Height 48 Inches
Shipping Weight 165 lb.

Warranty & Protection

1-year limited warranty; on-site parts and labor referenced in product literature.

Documents

PDF Cutsheet PDF Download PDF Installation & manual PDF Download PDF Owner's manual french PDF Download PDF Terms and conditions PDF Download PDF Warranty PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It requires only 1 GPM (3.79 LPM) of fresh water per hour during the operating cycle.
The trough model can recirculate water up to 70 GPM (264.98 LPM).
Yes. The base assembly comes pre-plumbed and pre-wired with the control, solenoid, and pump.
It uses 1/2" NPT hot and cold water inlets and a 2" drain discharge; additional trough plumbing is required for installation.
Available electrical configurations include 110-120V 1-phase 8.2 amps, 208/220-240V 1-phase 3.0/4.1 amps, 208/220-240V 3-phase 3.2/3.0 amps, and 460-480V 3-phase 1.5 amps.
The product is covered by a 1-year limited warranty, with on-site parts and labor referenced in the product literature.
