Key specifications
- Phase
- 3-Phase
- Dimensions
- 9.88"W × 6.75"D × 15.75"H
- Type
- Disposer Control Center
- Material
- Stainless Steel
- Enclosure Rating
- NEMA 4
- Controls
- Automatic Reverse, Start/Stop Push Buttons
Spec sheet

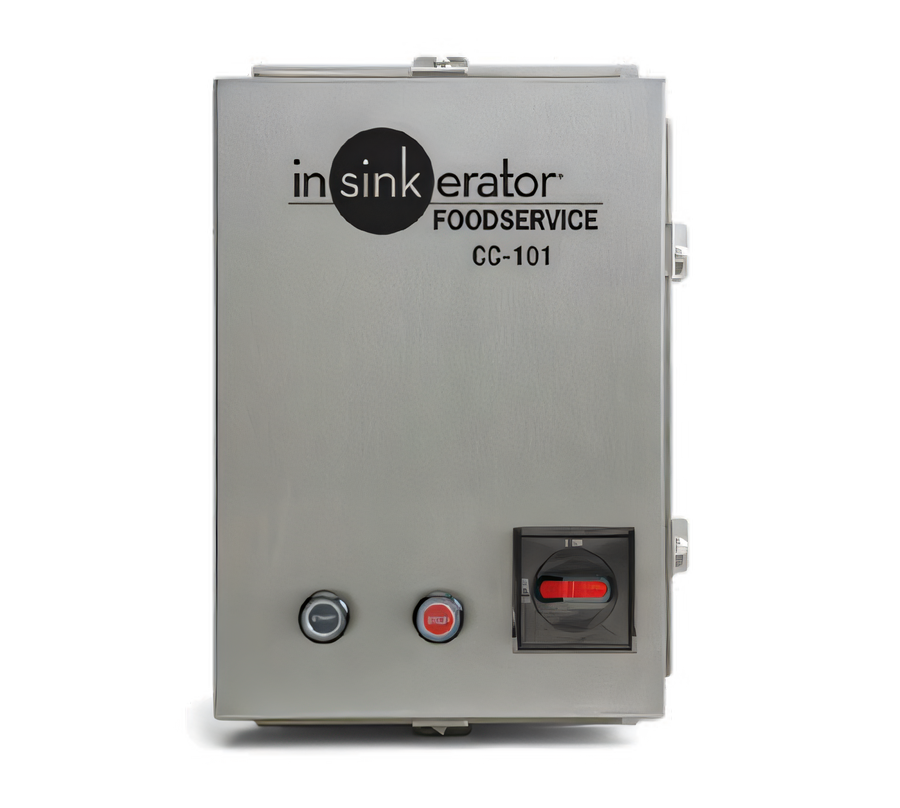

InSinkErator CC101K-8 Foodservice Disposer Control Center, Automatic Reverse, Push-Button, NEMA 4 Stainless Steel, 380-460V 3-Phase
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The InSinkErator CC101K-8 foodservice disposer control center combines automatic reverse with start/stop push-button control in a stainless steel NEMA 4 enclosure.
- Electrical: 380-460 Volts, 50/60 Hz, 3-Phase.
- Automatic reverse: Reverses motor direction at each startup, with a delay that prevents reversal while the motor is in motion.
- Control functions: Includes automatic drop-out after power loss, a disconnect switch with front-cover interlock, and selectable timed or continuous run.
- Post-water flush: Adjustable timer runs water automatically for up to 10 minutes after the disposer shuts off.
Overall Dimensions:
9.88"W x 6.75"D x 15.75"HProduct Weight:
29.1 lbAutomatic Reverse
Reverses direction of the motor at each startup; a reversing delay prevents reversal while the motor is in motion.
Start/Stop Push Buttons
Provides push-button controls for starting and stopping operation.
Automatic Drop-Out System
Disengages power lines after a power loss; the disposer must be restarted.
Disconnect Switch
Disconnects electrical power beyond the switch for service and interlocks with the front cover.
Post-Water Flush
An adjustable timer allows water to run automatically for up to 10 minutes after the disposer is shut off.
Run Mode Selection
Can be set for timed or continuous run; timed run shuts the disposer off automatically after 10 minutes.
Solid-State Control
Operates on 24V and includes diagnostic/function lights, delay timers, a timed-run pin, and reversing control.
NEMA 4 Stainless Steel Enclosure
Stainless steel enclosure with a NEMA 4 rating.
