Key specifications
- Phase
- 3-Phase
- Dimensions
- 9.88"W × 6.75"D × 15.75"H
- Type
- Disposer Control Center
- Style
- Automatic Reverse
- Material
- Stainless Steel
- Controls
- Automatic Reverse; Start/Stop Push Buttons
Spec sheet

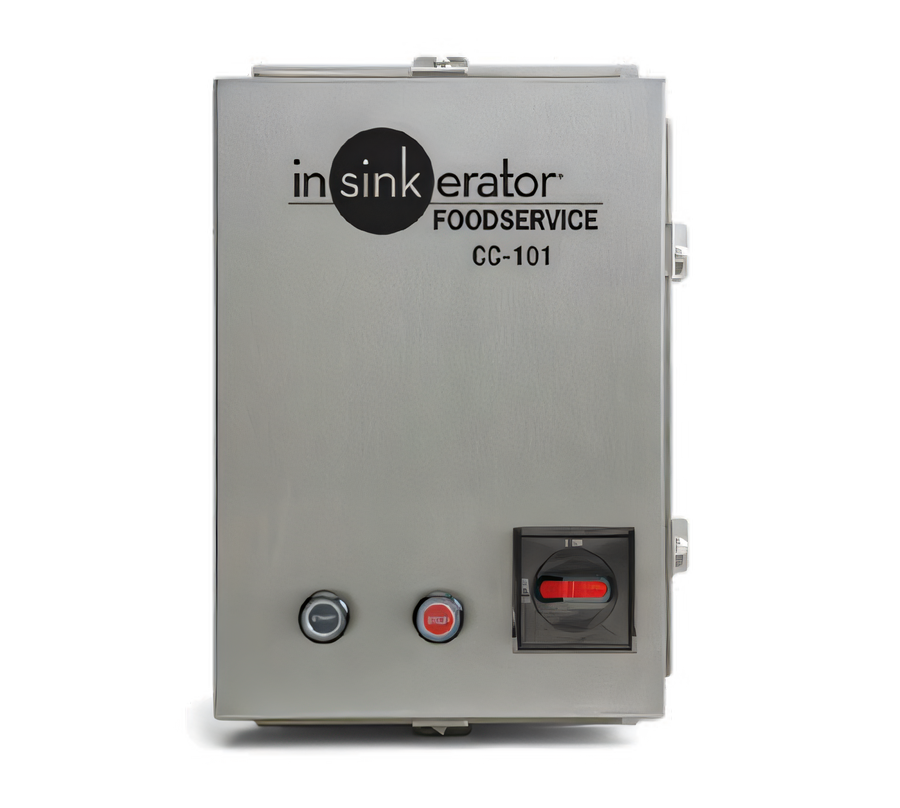

InSinkErator CC101K-7 Foodservice Disposer Control Center, Automatic Reverse, Start/Stop Buttons, NEMA 4 Stainless Steel, 208-240V 3-Phase
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
InSinkErator CC101K-7 is a foodservice disposer control center with automatic reverse and start/stop push buttons.
- Stainless steel enclosure with a NEMA 4 rating
- 208/240 Volt, 3-phase, 50/60 Hz operation
- Solid-state control with automatic drop-out after power loss
- Adjustable post-water flush timer and timed or continuous run selection
Overall Dimensions:
9.88"W x 6.75"D x 15.75"HProduct Weight:
70.0 lbAutomatic Reverse
Reverses disposer motor direction at each startup; a reversing delay prevents reversal while the motor is in motion.
Start/Stop Push Buttons
Provides start and stop push-button controls.
NEMA 4 Stainless Steel Enclosure
Uses a stainless steel enclosure with a NEMA 4 rating.
Automatic Drop-Out System
Automatically disengages power lines after a power loss; the disposer must be restarted.
Disconnect Switch
Disconnects electrical power beyond the switch for service and interlocks with the front cover.
Solid-State Control
Operates on 24V and includes a printed circuit board with diagnostic and function lights, delay timers, timed-run pin, and reversing control.
Post-Water Flush
An adjustable timer allows water to run automatically for up to 10 minutes after the disposer is shut off.
Timed or Continuous Run
Can be selected for timed or continuous operation; timed run shuts off the disposer after 10 minutes.
