Key specifications
- Phase
- 1-Phase
- Dimensions
- 9.88"W × 6.75"D × 15.75"H
- Type
- Disposer Control Center
- Style
- Automatic Reversing
- Material
- Stainless Steel
- Enclosure Rating
- NEMA 4
Spec sheet

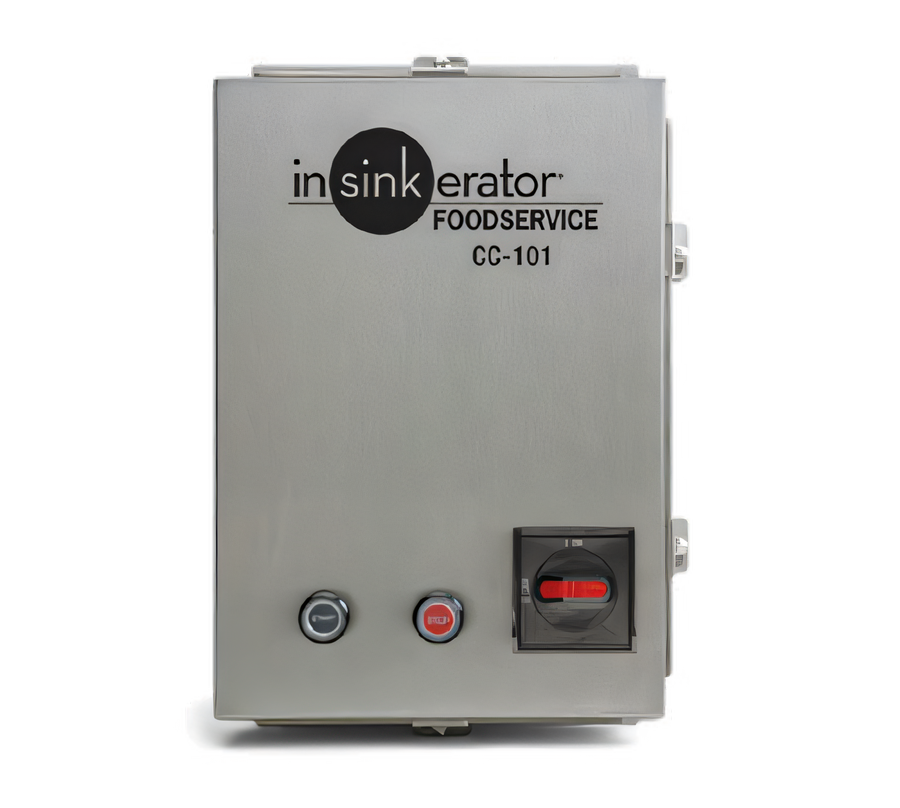

InSinkErator CC101K-5 Automatic Reverse Disposer Control Center, Start/Stop Buttons, 120V 1-Phase, NEMA 4 Stainless Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The CC101K-5 disposer control center provides automatic reversing action and start/stop push-button control in a NEMA 4 stainless steel enclosure. It operates at 120 volts, 50/60 Hz, and single phase.
- Reverses disposer motor direction at each startup.
- Includes a reversing delay that prevents reversal while the motor is running.
- Features automatic power drop-out after a power loss, requiring the disposer to be restarted.
- Includes a disconnect switch for service and an interlock with the front cover.
- Provides adjustable post-water flushing for up to 10 minutes after shutoff.
- Supports timed-run or continuous-run operation through the printed circuit board.
Overall Dimensions:
9.88"W x 6.75"D x 15.75"HProduct Weight:
29.1 lbAutomatic Reversing
Reverses disposer motor direction at each startup.
Reversing Delay
Prevents the disposer from reversing while the motor is in motion.
Automatic Drop-Out System
Disengages power lines after a power loss; the disposer must be restarted.
Disconnect Switch
Disconnects electrical power beyond the switch for service and interlocks with the front cover.
Post-Water Flush
An adjustable timer allows water to run automatically for up to 10 minutes after the disposer is shut off.
Run Mode Selection
Timed-run or continuous-run operation can be selected on the printed circuit board.
Solid-State Control
Includes a 24-volt solid-state control circuit with diagnostic and function lights, delay timers, a timed-run pin, and reversing control.
Solenoid Valve
A solenoid valve is packed unattached inside the control center carton and provides water flow into the disposer while it operates.
