Key specifications
- Phase
- 3-Phase
- Dimensions
- 9.88"W × 6.75"D × 15.75"H
- Type
- Control Center
- Style
- Load-Sensing
- Material
- Stainless Steel
- Controls
- Automatic Reverse; Start/Stop Push Buttons
Spec sheet

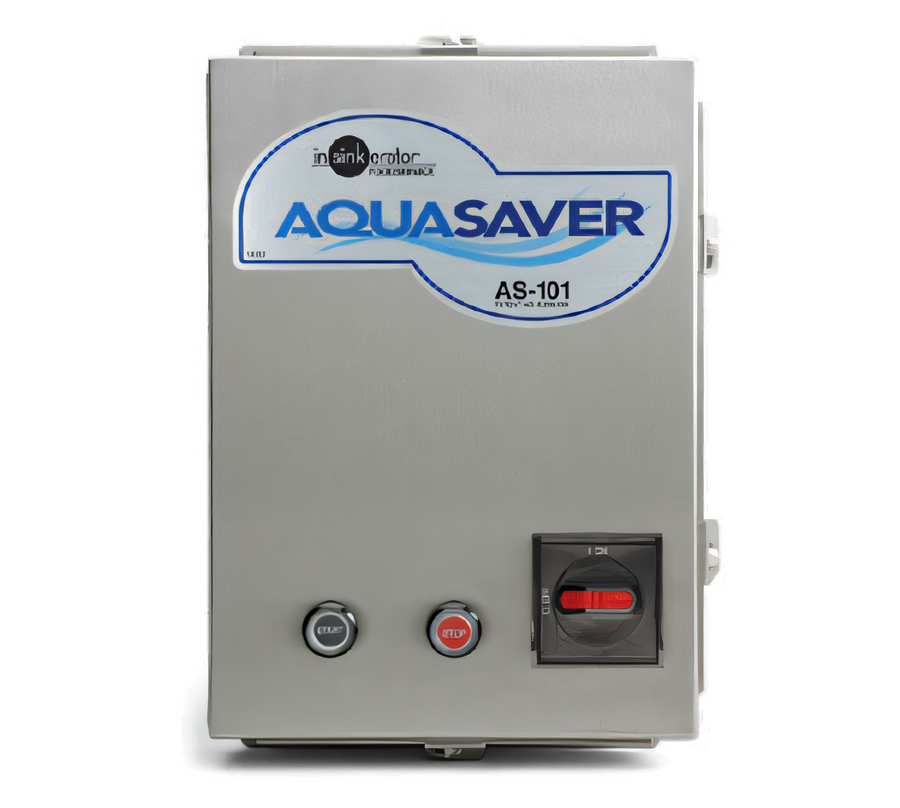

InSinkErator AquaSaver® AS101K-7 Foodservice Disposer Control Center, Load-Sensing, Automatic Reverse, NEMA 4 Stainless Steel, 208-240V 3-Phase
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The InSinkErator AquaSaver® AS101K-7 is a foodservice disposer control center for 208-240V, 50/60 Hz, 3-phase systems. Its load-sensing control regulates water for grinding and non-grinding situations.
- Enclosure: NEMA 4 stainless steel construction.
- Controls: Automatic reverse with start and stop push buttons.
- Run functions: Select timed or continuous run operation.
- Flush function: Adjustable post-water flush timer runs for up to 10 minutes after shutdown.
- Service features: Line disconnect switch and automatic power dropout after power loss.
Overall Dimensions:
9.88"W x 6.75"D x 15.75"HProduct Weight:
29.2 lbLoad Sensing
Senses disposer load and regulates the amount of water used for grinding and non-grinding situations.
Automatic Reverse
Reverses disposer motor direction at each startup, with a delay that prevents reversal while the motor is moving.
Start/Stop Controls
Includes start and stop push buttons.
NEMA 4 Enclosure
Stainless steel enclosure with a NEMA 4 rating.
Post-Water Flush
Adjustable timer runs water automatically for up to 10 minutes after the disposer is shut off.
Timed or Continuous Run
Can be configured for timed run or continuous run operation; timed run shuts off automatically after 10 minutes.
Automatic Power Dropout
Automatically disengages power lines after power loss, requiring the disposer to be restarted.
Service Disconnect
Line disconnect switch disconnects electrical power beyond the switch for service and interlocks with the front cover.
