Key specifications
- Phase
- 1-Phase
- Dimensions
- 9.88"W × 6.75"D × 15.75"H
- Type
- Control Center
- Style
- Water Saving
- Material
- Stainless Steel
- Voltage
- 208-240 Volts
Spec sheet

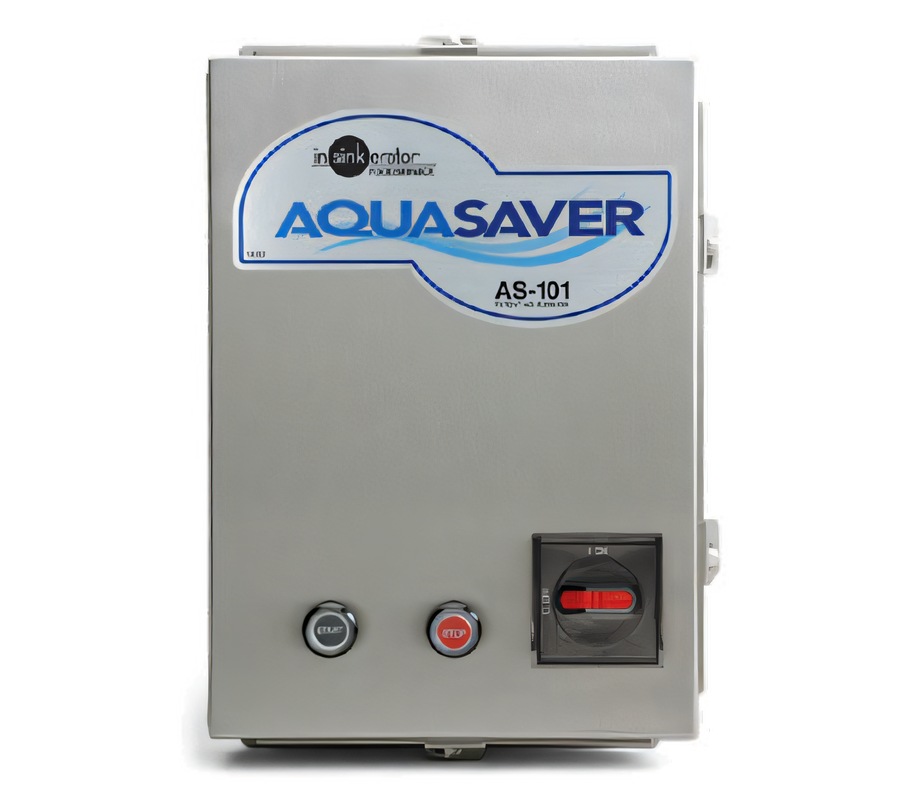

InSinkErator AquaSaver® AS101K-6 Water-Saving Foodservice Disposer Control Center, 208-240V, 1-Phase, Stainless Steel NEMA 4
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The AquaSaver® AS101K-6 control center senses disposer waste loads and regulates water for grinding and non-grinding situations. It provides automatic reversing, start/stop pushbutton control, and a stainless steel NEMA 4 enclosure.
- 208-240V, 50/60 Hz, 1-phase electrical configuration
- Adjustable post-water flush timer for up to 10 minutes
- Timed or continuous run selection
- Two 24V solenoid valves and flow-control valves included
Overall Dimensions:
9.88"W x 6.75"D x 15.75"HProduct Weight:
29.2 lbAquaSaver Water Regulation
Senses the disposer load and regulates the amount of water needed for grinding and non-grinding situations.
Automatic Reversing Control
Reverses motor direction at each startup; the reversing delay prevents reversal while the motor is in motion.
Start/Stop Pushbutton Control
Includes automatic reverse with start and stop pushbuttons.
Post-Water Flush
An adjustable timer allows water to run automatically for up to 10 minutes after the disposer is shut off.
Timed or Continuous Run
Operation can be selected as timed or continuous run; timed operation shuts off automatically after 10 minutes.
Stainless Steel NEMA 4 Enclosure
The enclosure is made of stainless steel and rated NEMA 4.
Solenoid and Flow-Control Valves
Two 24V solenoid valves and flow-control valves are included.
Solid-State Control Circuit
The 24V solid-state control circuit includes diagnostic and function lights, delay timers, and timed-run and reversing controls.
