Key specifications
- Phase
- 1-Phase
- Dimensions
- 9.88"W × 6.75"D × 15.75"H
- Type
- Control Center
- Style
- Water-Saving
- Material
- Stainless Steel
- Controls
- Automatic Reverse, Start/Stop Buttons
Spec sheet

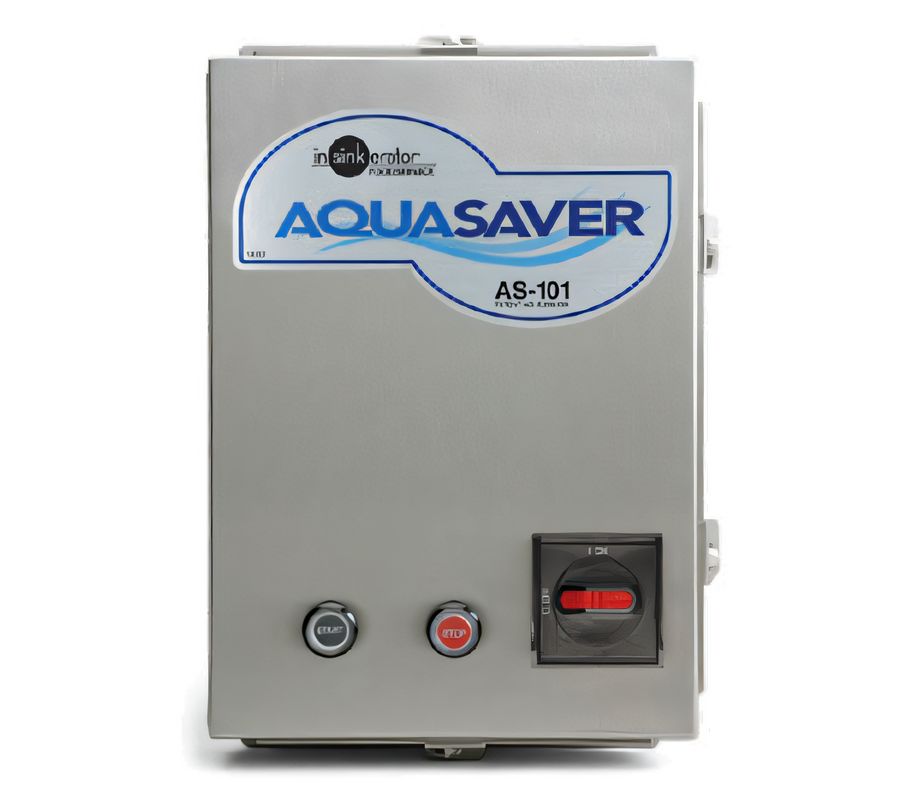

InSinkErator AquaSaver® AS101K-5 Water-Saving Disposer Control Center, Stainless Steel NEMA 4, 120V 1-Phase, Automatic Reverse
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The AquaSaver® AS101K-5 is a water-saving control center for InSinkErator foodservice disposers. It senses waste loads and regulates the amount of water needed for grinding and non-grinding situations.
- Automatic reversing control: Reverses disposer motor direction at each startup and includes a reversing delay.
- Water management: Includes an adjustable post-water flush timer that can run for up to 10 minutes after shutdown.
- Flexible operation: Supports timed or continuous run settings.
- Construction: Stainless steel NEMA 4 enclosure with a line disconnect switch.
The control center operates on 120V, 50/60 Hz, single-phase power.
Overall Dimensions:
9.88"W x 6.75"D x 15.75"HProduct Weight:
29.2 lbWaste-Load Sensing
Senses disposer loads and regulates water for grinding and non-grinding situations.
Automatic Reversing Control
Reverses motor direction at each startup.
Reversing Delay
Prevents reversal while the motor is in motion.
Post-Water Flush
An adjustable timer can run water automatically for up to 10 minutes after the disposer is shut off.
Timed or Continuous Run
The control circuit can be configured for timed or continuous operation; timed run shuts off automatically after 10 minutes.
NEMA 4 Enclosure
Uses a stainless steel enclosure rated NEMA 4.
Line Disconnect Switch
Disconnects electrical power for service and interlocks with the front cover.
Water-Control Valves
Includes two 24V solenoid valves and 1 GPM and 7 GPM flow control valves.
