Insinger TRAC 878 RPW Traywashers Undercounter Dishwashers
Description

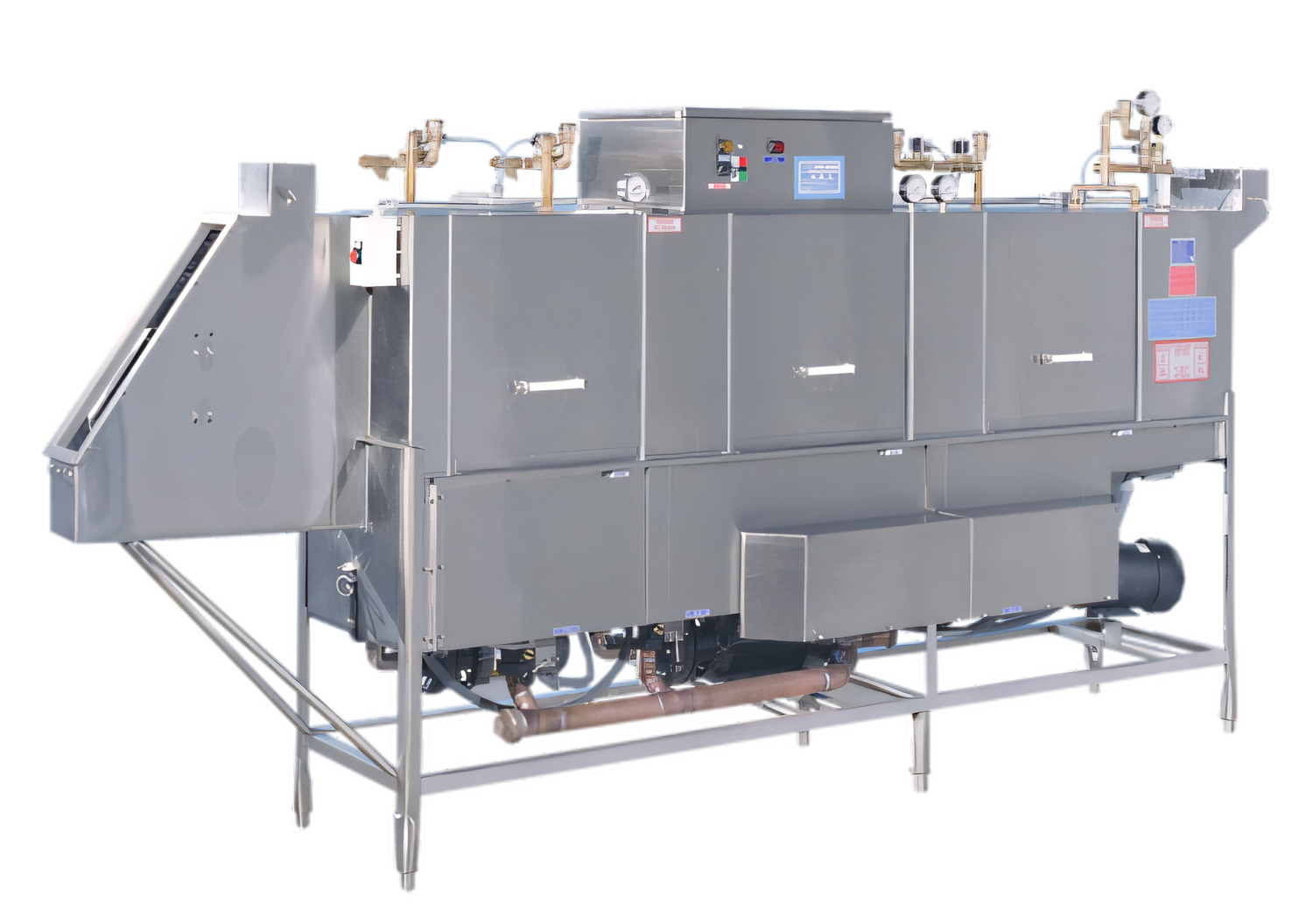

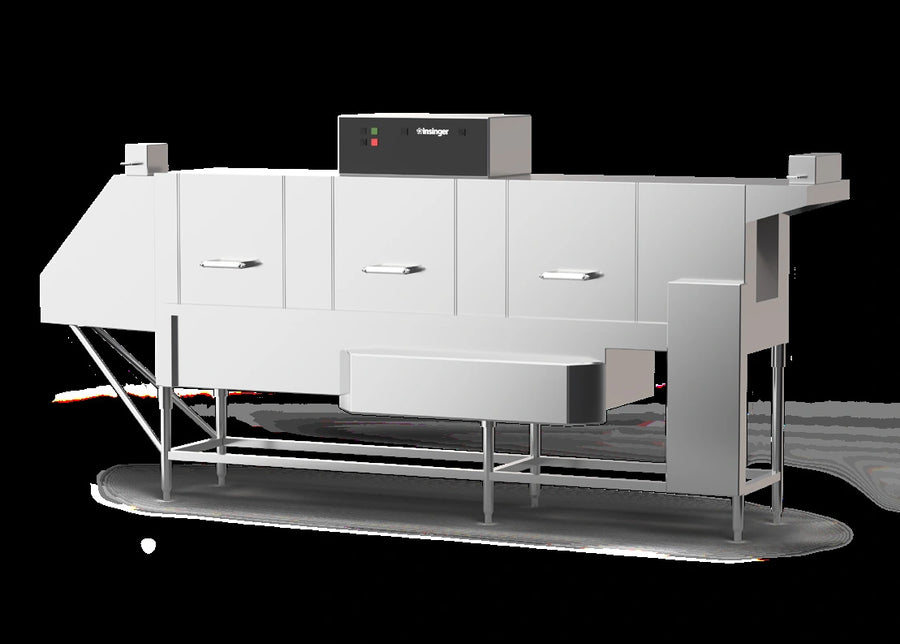

Insinger TRAC 878 Automatic Tray Washer
High-Temperature • Triple-Tank • 878 Trays / HourEngineered for institutions that move hundreds of trays every service, the American-built TRAC 878 delivers NSF-approved sanitization at conveyor speed. Its triple-tank sequencing, rugged 304-stainless construction and automatic tank-fill system slash labor while keeping utilities in check, giving you cleaner trays, faster turnarounds and a safer wash area.
Key Performance Benefits
- Processes up to 878 trays per hour (15″ maximum tray size).
- Triple-tank design (pre-wash, wash, final rinse) removes heavy soil before it can contaminate the wash water.
- High-temperature sanitizing final rinse—no chemical sanitizers required.
- Automatic tank fill with low-water protection for simple, reliable start-up.
- Capillary & in-line thermometers keep operators informed of critical temperatures.
- Door safety switches and drip-proof motors protect staff and extend equipment life.
Built to Last
- All-welded 304 stainless-steel frame, legs, feet and front enclosure panel.
- 15 kW electric immersion heater or steam-injector tank heat (field selectable).
- Top-mounted NEMA 12 control panel—away from moisture and easy to service.
- Simplified scrap screen and manifold clean-out brush speed daily cleanup.
- Vacuum breakers on all incoming water lines safeguard against back-flow.
- Tray unload table included for a smooth pass-through workflow.
Core Specifications
| Rated Capacity | 878 trays/hour |
|---|---|
| Tray Size (max) | 15″ |
| Configuration | Triple tank – Pre-Wash / Wash / Rinse |
| Overall Dimensions | 163″ L × 44″ W × 60″ H |
| Water Consumption | 197 gal/hr @ 20 PSI |
| Wash Tank Capacity | 24.1 gal |
| Tank Heat | 8 kW Wash • 8 kW Rinse (15 kW total), electric or steam |
| Optional Booster | 24 kW (40 °F rise) or 45 kW (70 °F rise) |
| Steam Consumption | 54 lbs/hr @ 20 PSI (steam heat models) |
| Motors | Pre-Wash 0.5 HP • Wash 3 HP • Rinse 2 HP • Conveyor 1/8 HP |
| Electrical (208 V/60/3) | 67.1 A (machine) • 66.7 A (24 kW booster) • 100 A (36 kW booster) |
| Shipping Weight | 1,100 lb |
Popular Factory-Installed Options
- Tray Dryer module for accelerated moisture removal
- Tray Stacker for organized, labor-saving unloading
- Stainless-steel steam coil tank heat
- Electric or steam booster heater
- Insulated hood and doors for quieter, cooler operation
- Security package for correctional facilities
- Chemical sanitizer injector package for low-temperature applications
Certifications
- NSF
- ETL
- AKCL
Warranty
1-year parts & labor warranty from date of installation (15 months from shipment if sooner) when registered with Insinger. See full warranty document for exclusions and service terms.
Specifications subject to change without notice. © Insinger Machine Company.
