Insinger TRAC 321-2 RPW Traywashers Undercounter Dishwashers
Description

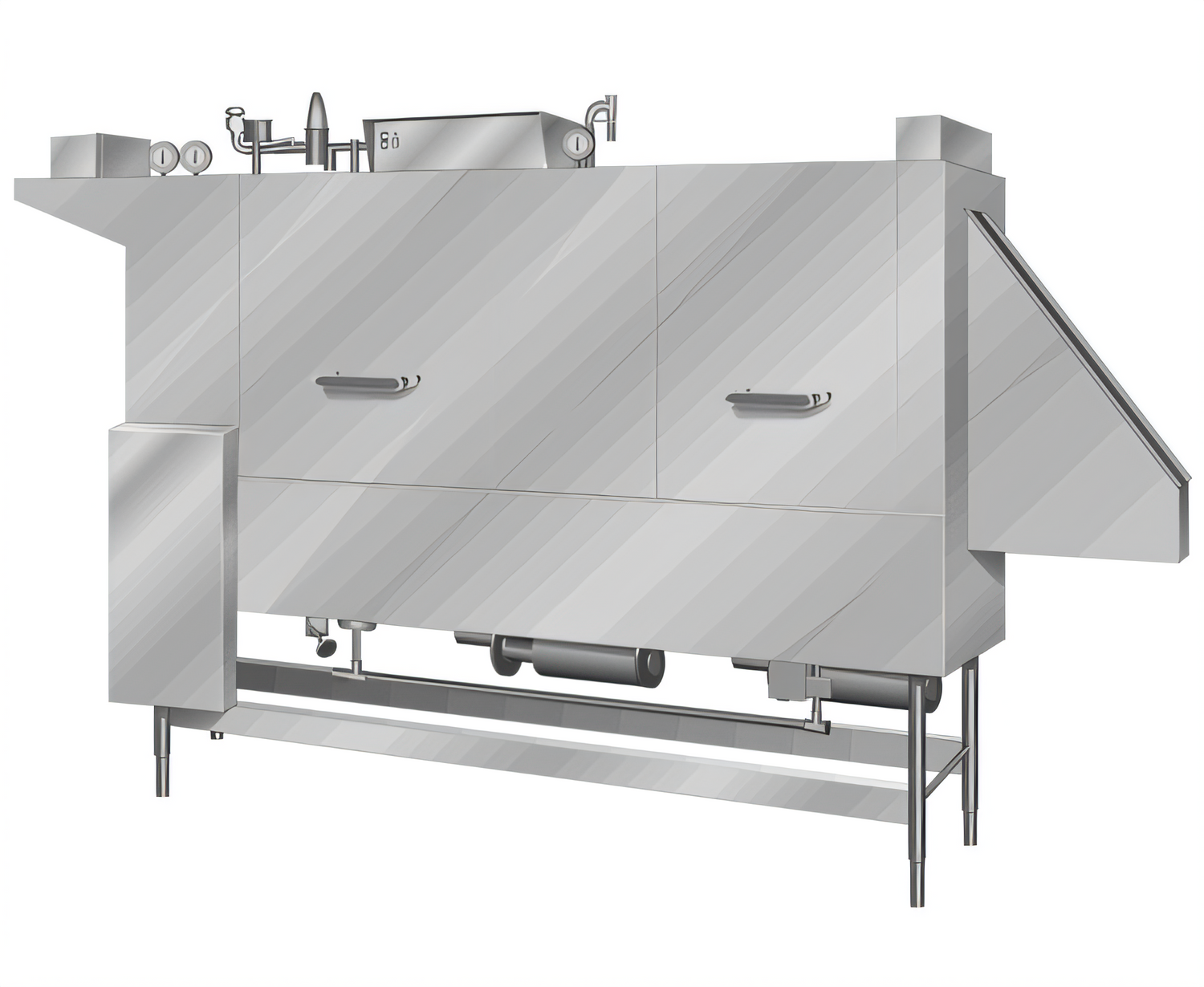

Insinger TRAC 321 RPW Automatic Tray Washer
High-temperature sanitizing • Double-tank pre-wash & wash • 528 trays/hourEngineered and built in the USA, the TRAC 321 RPW powers through up to 528 trays per hour while meeting the toughest food-service sanitation standards. A rugged stainless-steel frame, automatic tank fill and choice of electric or steam heat make this washer the productivity workhorse for any high-volume tray line.
Key Features
- Double-tank configuration with dedicated 0.5 HP pre-wash and 2 HP wash pumps
- High-temp sanitizing final rinse—no chemical sanitizer required
- 15 kW electric immersion heater or steam injector tank heat (field-selectable)
- Automatic tank fill & low-water protection for worry-free start-up
- Capillary thermometers for wash & rinse plus in-line final-rinse thermometer
- Stainless-steel frame, legs & feet with drip-proof motors
- Built-in tray unload table streamlines the clean-side workflow
- Door safety switch & vacuum breaker on all incoming water lines
- Simplified scrap screen and manifold clean-out brush for fast maintenance
- NSF, ETL, AQ & KCL listed
Performance & Utility Data
| Throughput | 528 trays/hour (15" tray) |
|---|---|
| Motors | 0.5 HP pre-wash • 2 HP wash • 1/15 HP conveyor |
| Tank Capacities | 10.3 gal pre-wash • 24.1 gal wash |
| Water Usage | 248 gal/hr @ 20 PSI • Peak drain flow 9 gal/min |
| Heat Options | 15 kW electric immersion or steam injector (54 lbs/hr @ 20 PSI) |
| Electrical (208 V/60/3) | 50.1 A washer only • 75 A w/ 27 kW booster • 125 A w/ 45 kW booster |
| Vent Requirement | Load end 100 CFM • Unload end 300 CFM |
| Dimensions | 139" L × 26" W × 54" H (overall) |
| Shipping Weight | Approx. 800 lb |
Popular Factory Options
- Electric or steam booster heater (27 kW / 45 kW)
- Adjustable-damper vent hoods
- Inspection door & security package
- Insulated hood and door for energy savings
- Tray Dryer and Tray Stacker modules for a fully automated line
- Stainless-steel steam coil tank heat
- Single-point electrical connection
Ideal Applications
- Hospitals & long-term-care facilities
- Correctional institutions
- University & school cafeterias
- Flight kitchens & commissaries
Need an installation drawing or custom configuration? Contact an Insinger specialist at 800-344-4802.
