Insinger TD 321-3 Add-Ons & Accessories Undercounter Dishwashers
Description

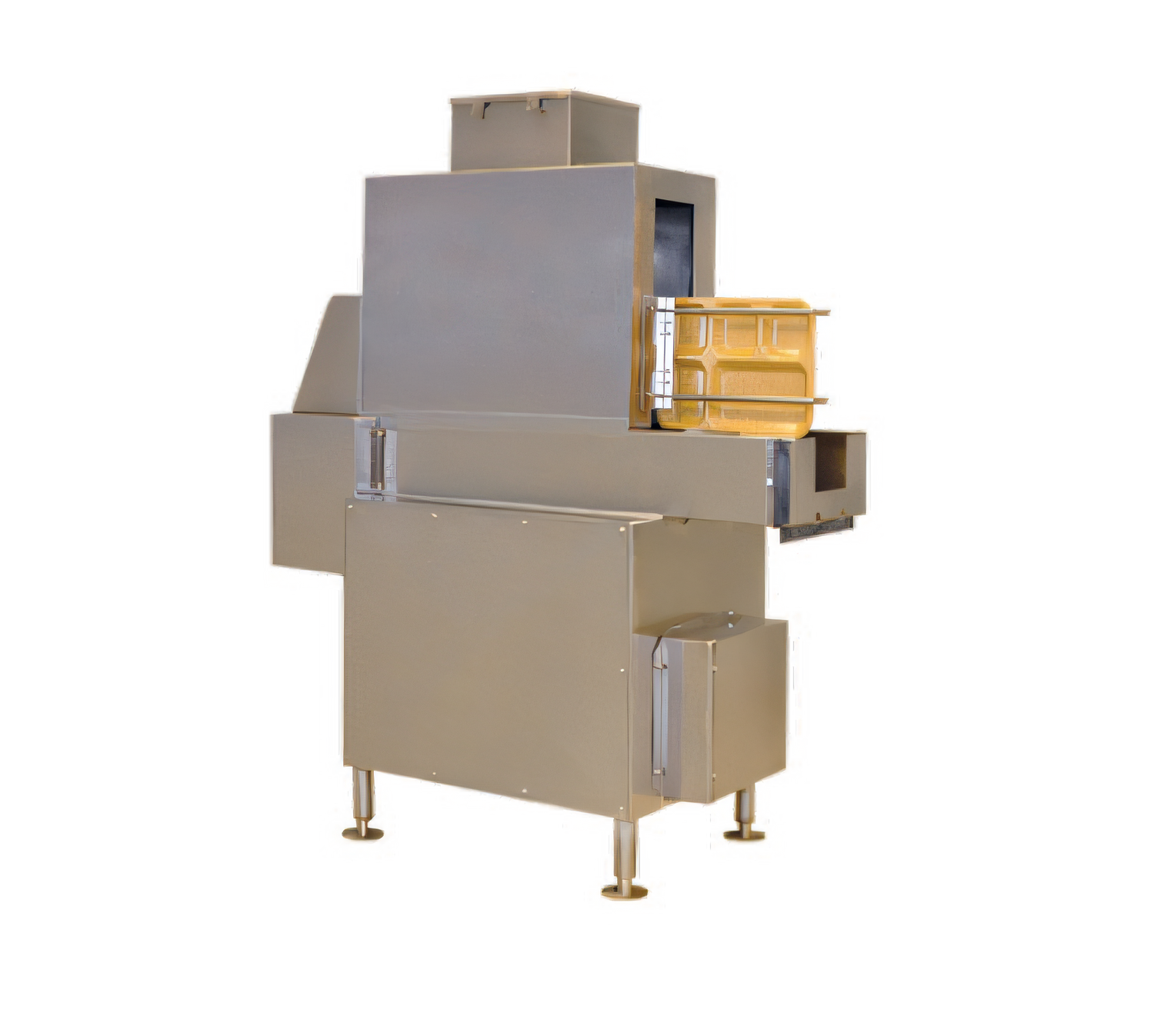

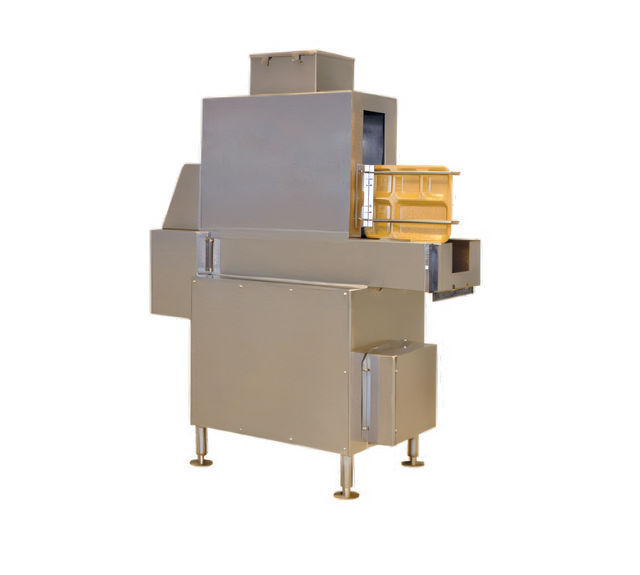

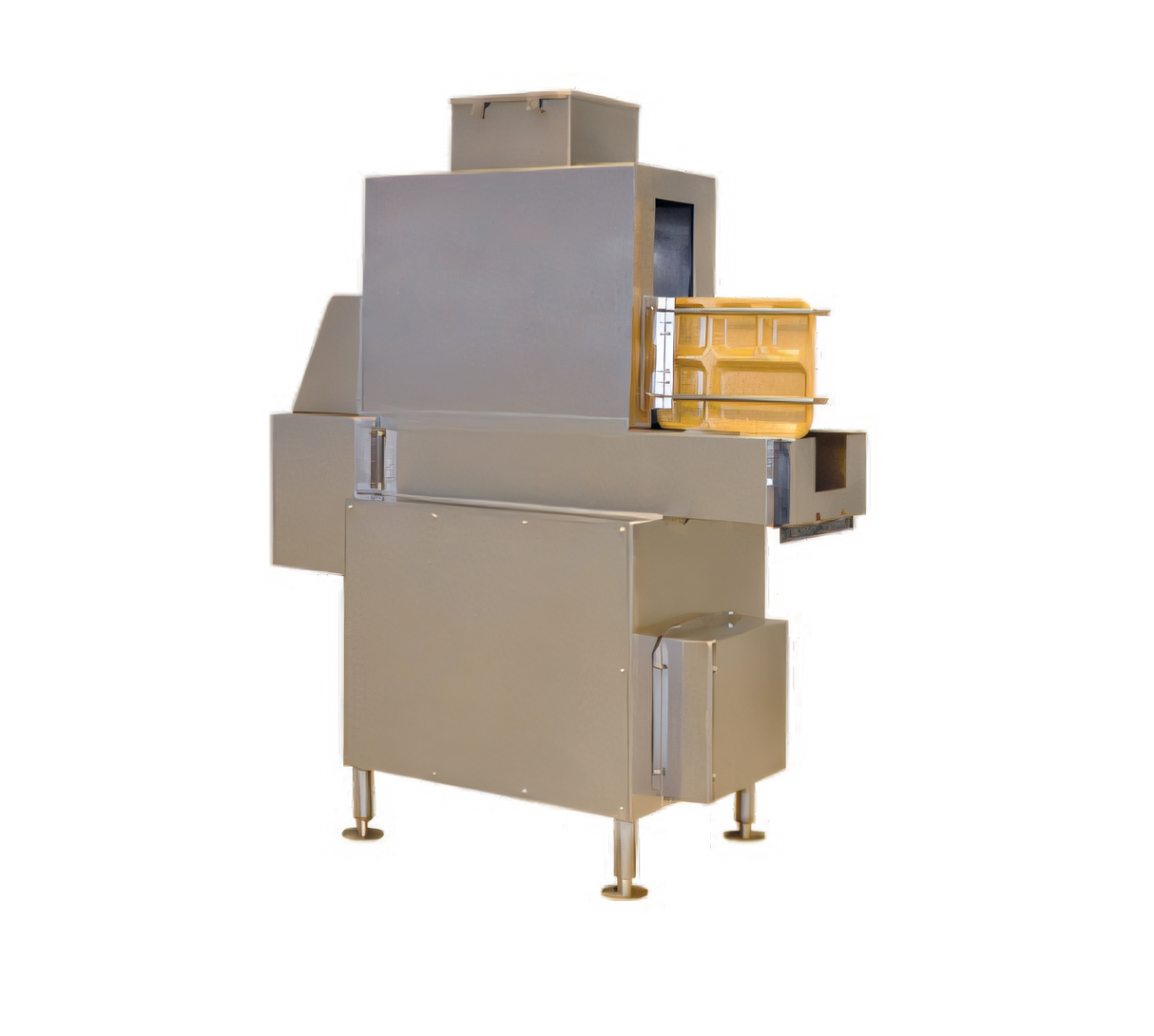

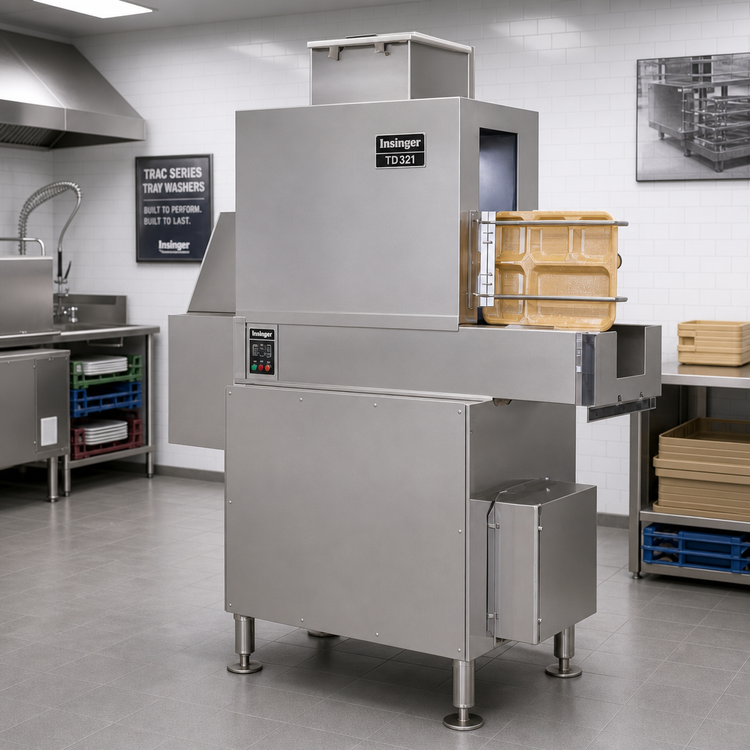

Insinger TD-321 Automatic Tray Dryer
High-efficiency add-on for TRAC 321-2, 321-2 RPW & TRAC 878 tray washersDeliver 99 % dry trays straight out of the washer and back into service. The TD-321 uses Insinger’s patented diagonal Air Wiper to sweep moisture away—no extra racks, no towel-drying, and far less opportunity for bacteria to hide in stacked, wet trays.
Why you’ll love it

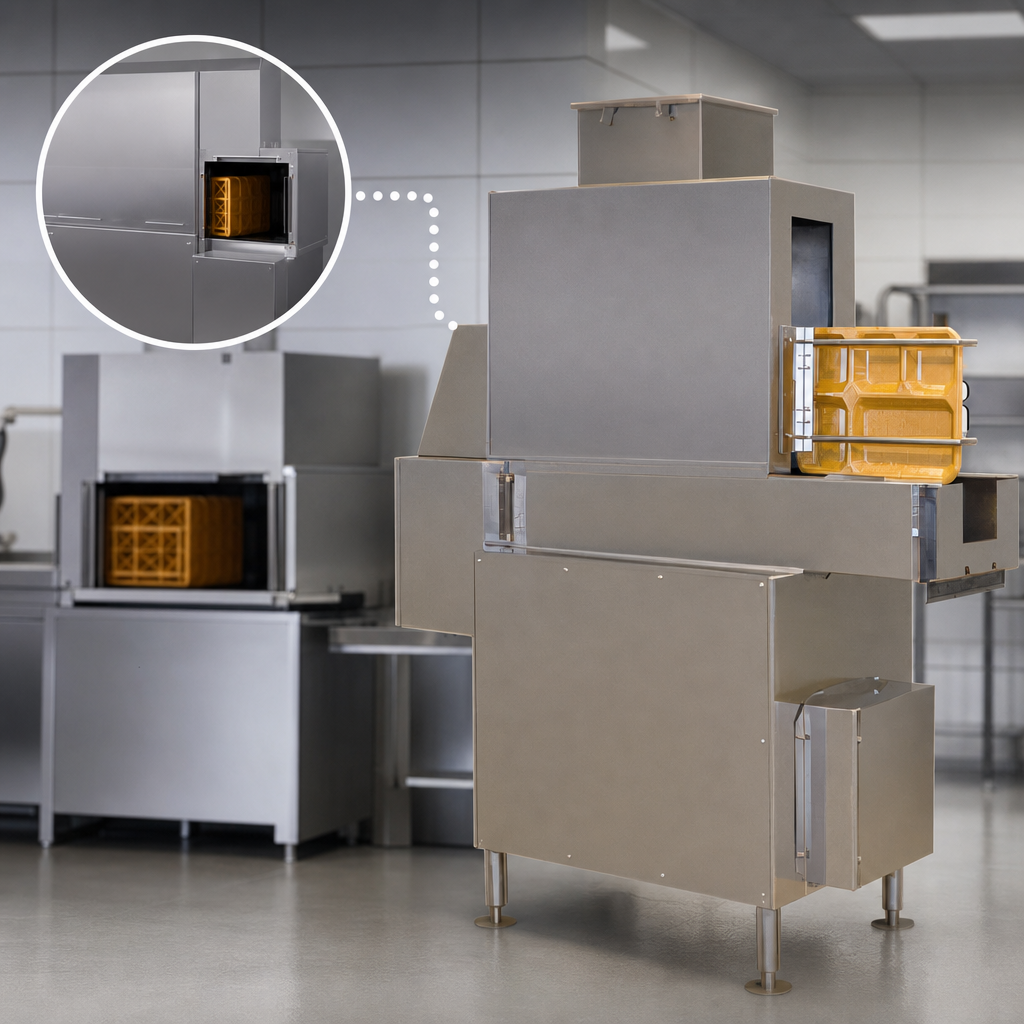

- Automatic conveyor dryer integrates seamlessly with compatible TRAC tray washers.
- Unique Air Wiper design achieves up to 99 % dryness while preventing splash-back.
- Stainless-steel 304 frame, legs & feet—built for years of heavy institutional use.
- Left- or right-hand conveyor travel (specify at order).
- Cleaner, safer floors—eliminates manual rack-air drying.
- NEMA 12 top-mounted control panel keeps electronics protected and accessible.
- Includes SureFire® Start-Up & Check-Out Service from Insinger.
Technical specifications
| Model | TD-321 |
|---|---|
| Compatible washers | TRAC 321-2, TRAC 321-2 RPW, TRAC 878 |
| Tray size capacity | Up to 15 in H; guide rails adjustable 1.5 – 3.7 in W |
| Blower motor | 10 HP regenerative blower |
| Conveyor motor | 1/15 HP direct-drive gear motor with overload release |
| Electrical (add to washer draw) |
208 V/3 PH – 31 A 240 V/3 PH – 28.2 A 380 V/3 PH – 17 A 480 V/3 PH – 14.1 A |
| Construction | 16-gauge type 304 stainless-steel hood & tank; all-welded, seamless |
| Shipping weight | Approx. 700 lb |
| Controls | Top-mounted NEMA 12 cabinet; 24 VAC low-voltage control circuit |
| Drain | Gravity drain back to washer (factory connection provided on joint orders) |
Factory options
- Security package
- Automated tray stacker
Warranty
Covered by Insinger’s limited 1-year parts & labor warranty (from installation) and backed by nationwide service support.
Need a full warewashing solution or installation guidance? Contact our equipment specialists—we’re happy to help design a complete, code-compliant system.
