Insinger SUPER (106") Dishwashers Conveyor Dishwashers
Description

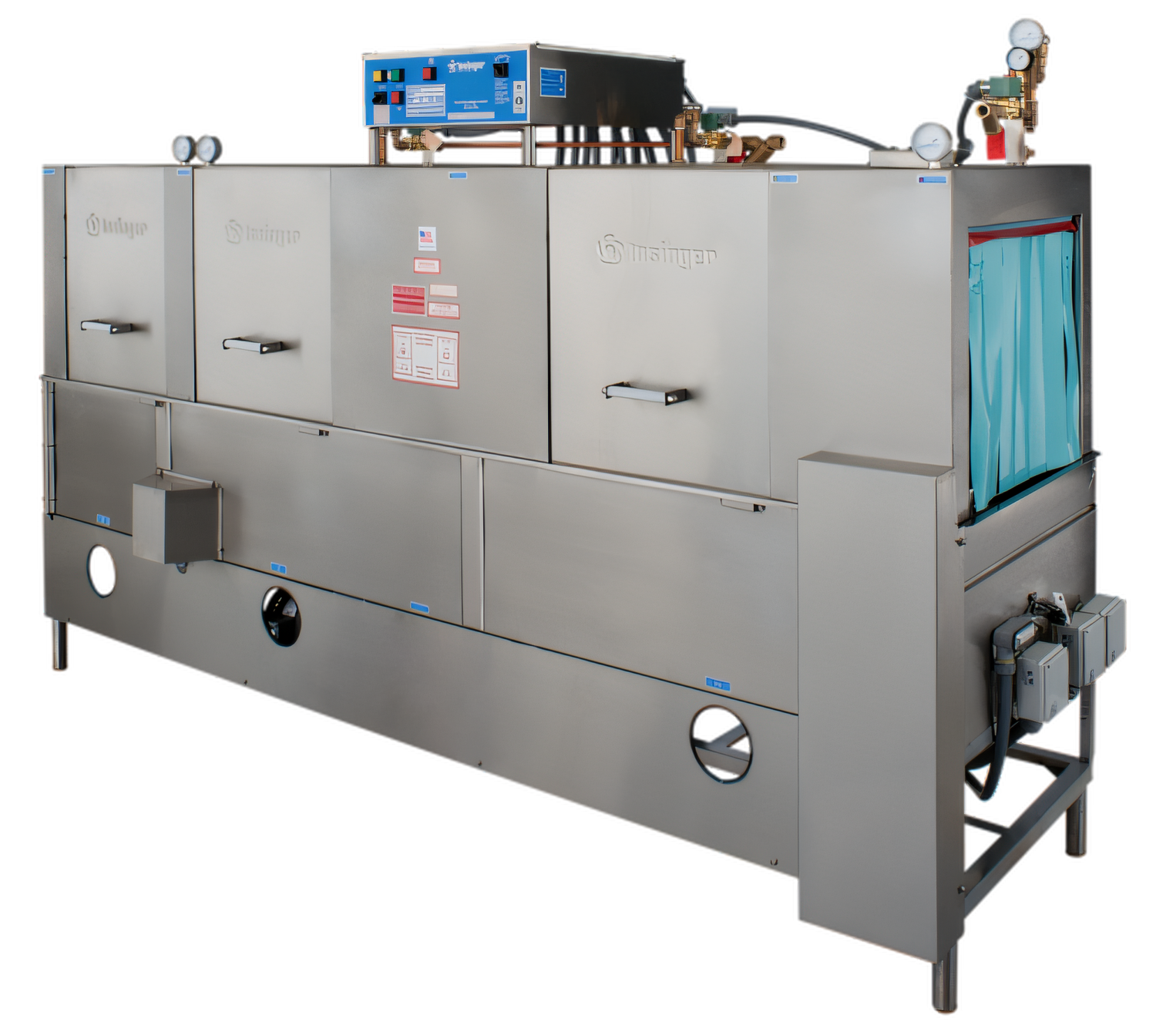

Insinger SUPER (106”) Triple-Tank Rack Conveyor Dishwasher
330 racks/hr | CrossFire® high-temp wash | Made in the USAEngineered for today’s busiest food-service operations, the Insinger SUPER delivers relentless throughput and the lowest water use in its class—just 0.72 gal per rack—while its rugged 304 stainless steel construction stands up to decades of double-shift duty.
Why the SUPER sets the bar
- Blazing throughput: processes up to 330 full-size (20" × 20") racks every hour.

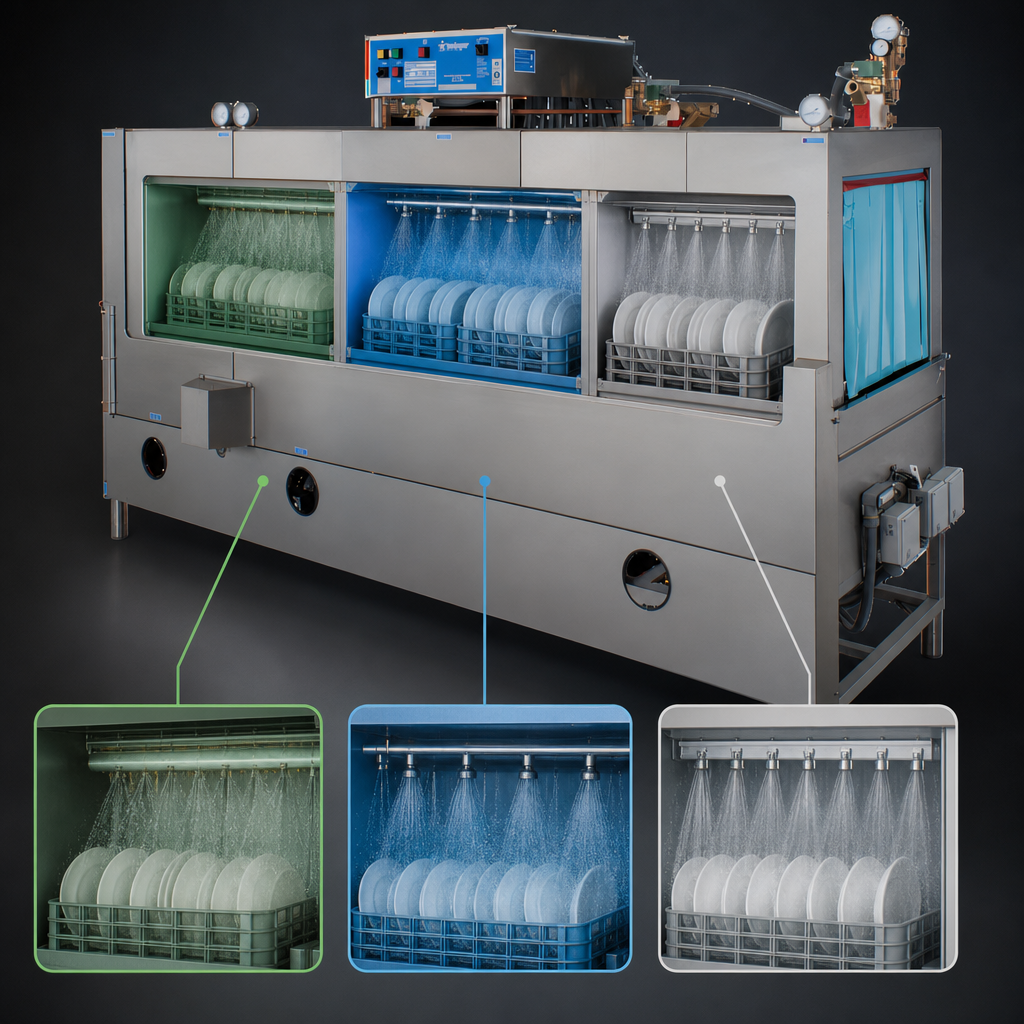

- Triple-tank design: dedicated pre-wash, power wash & final rinse zones slash re-wash rates and save labor.
- CrossFire® wash system: carefully-angled upper & lower jets deliver 360° coverage that scrubs away the most stubborn soils.
- Ultra-low water & energy: only 0.72 gal/rack with built-in capillary thermometers for precision temperature control.

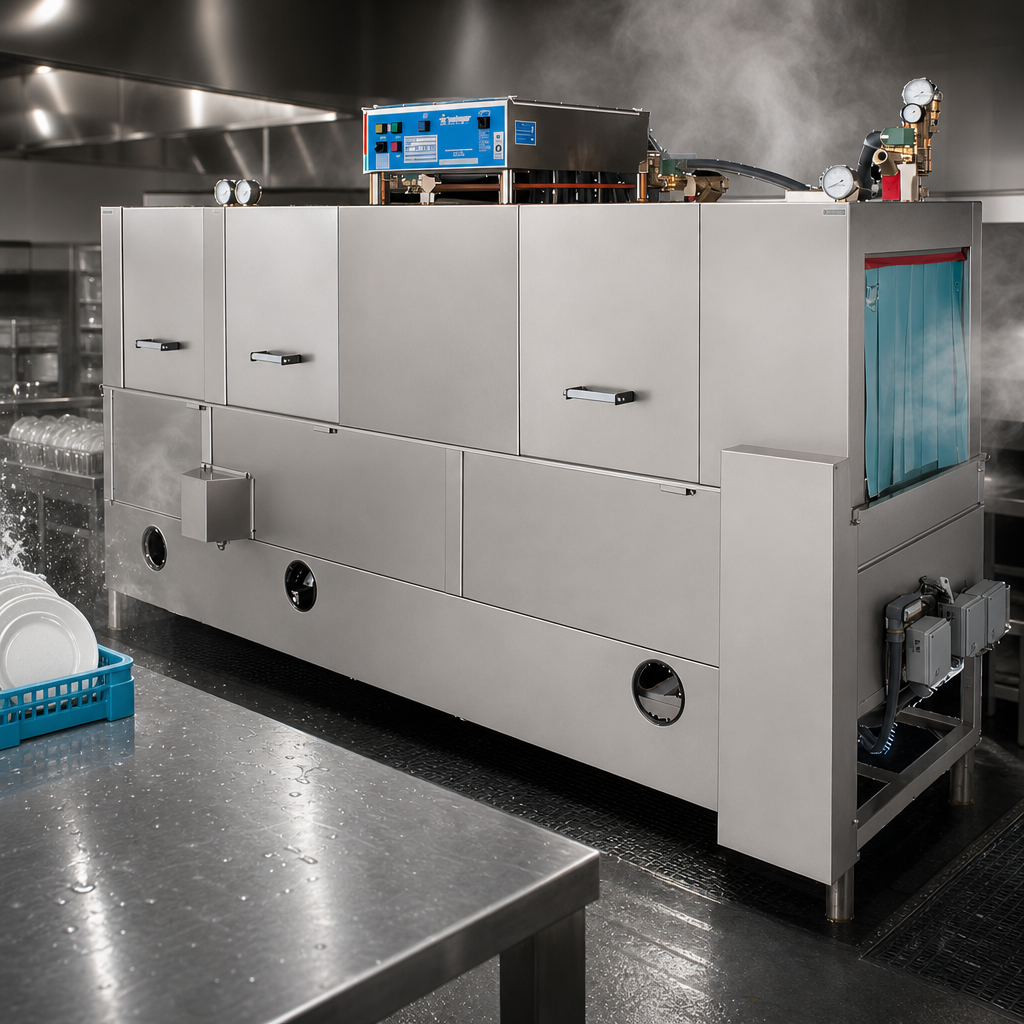

- High-temperature sanitizing — no chemical additives required.*
- Simple start-up: automatic tank fill, low-water protection and a top-mounted NEMA 12 control panel keep crews productive from day one.
- Peace of mind: NSF & ETL listed, backed by Insinger’s SureFire Start-Up & Check-Out service and 1-year parts & labor warranty.
*Booster heater not included; choose electric or steam booster option if local code requires a 180 °F final rinse.
Standard features
- Color-coded curtains & crowned, easy-clean hood
- Capillary thermometers for wash & rinse; in-line thermometer for final rinse
- Vacuum breakers on all incoming water lines
- Timing-belt conveyor drive with door safety switch
- 304 stainless steel frame, legs, feet & front enclosure panel
- Manifold clean-out brush & large inspection door
- Vent fan connection provision & automatic tank fill
- Detergent & rinse-aid connection provisions
Factory-installed options
- Stainless steel steam-coil tank heat or electric immersion tank heat
- 40 °F or 70 °F rise electric/steam booster heater
- End cowls with vent & adjustable dampers
- Power Loader / Power Unloader for true one-touch workflow
- Insulated or extra-high hood, splash guards & security package
Performance at a glance
| Racks per hour | 330 |
|---|---|
| Dishes per hour* | 8,250 |
| Meals served/hr* | 300 – 600 |
| Water use | 0.72 gal per rack (pre-set 110 °F incoming) |
| Tank capacities | Pre-wash 14 gal | Wash 25 gal | Rinse 25 gal |
| Tank heat | 7.5 kW wash | 15 kW rinse (electric) — or steam injector |
| Motors | 1 ½ HP wash | 1 ½ HP rinse | ½ HP pre-wash | ⅙ HP drive |
| Vent requirement | 350 CFM load & unload ends |
| Shipping weight | 1,200 lb (crated) |
*Dishes/meals per hour are estimates based on average rack composition.
Electrical options (select at checkout)
| Voltage & phase | Full load amps – Tank Heat |
|---|---|
| 208 V / 60 Hz / 3 Ph | 101.8 A (electric) | 18.5 A (steam) |
| 240 V / 60 Hz / 3 Ph | 16.8 A (electric & steam) |
| 380 V / 50 Hz / 3 Ph | 55.7 A (electric) | 10.1 A (steam) |
| 480 V / 60 Hz / 3 Ph | 44.5 A (electric) | 8.4 A (steam) |
Warranty
1-year parts & labor from date of installation (15 months from shipment if sooner). Extended & marine warranties also available—see full policy in documentation.
