Insinger SPEEDER (86") Dishwashers Conveyor Dishwashers
Description

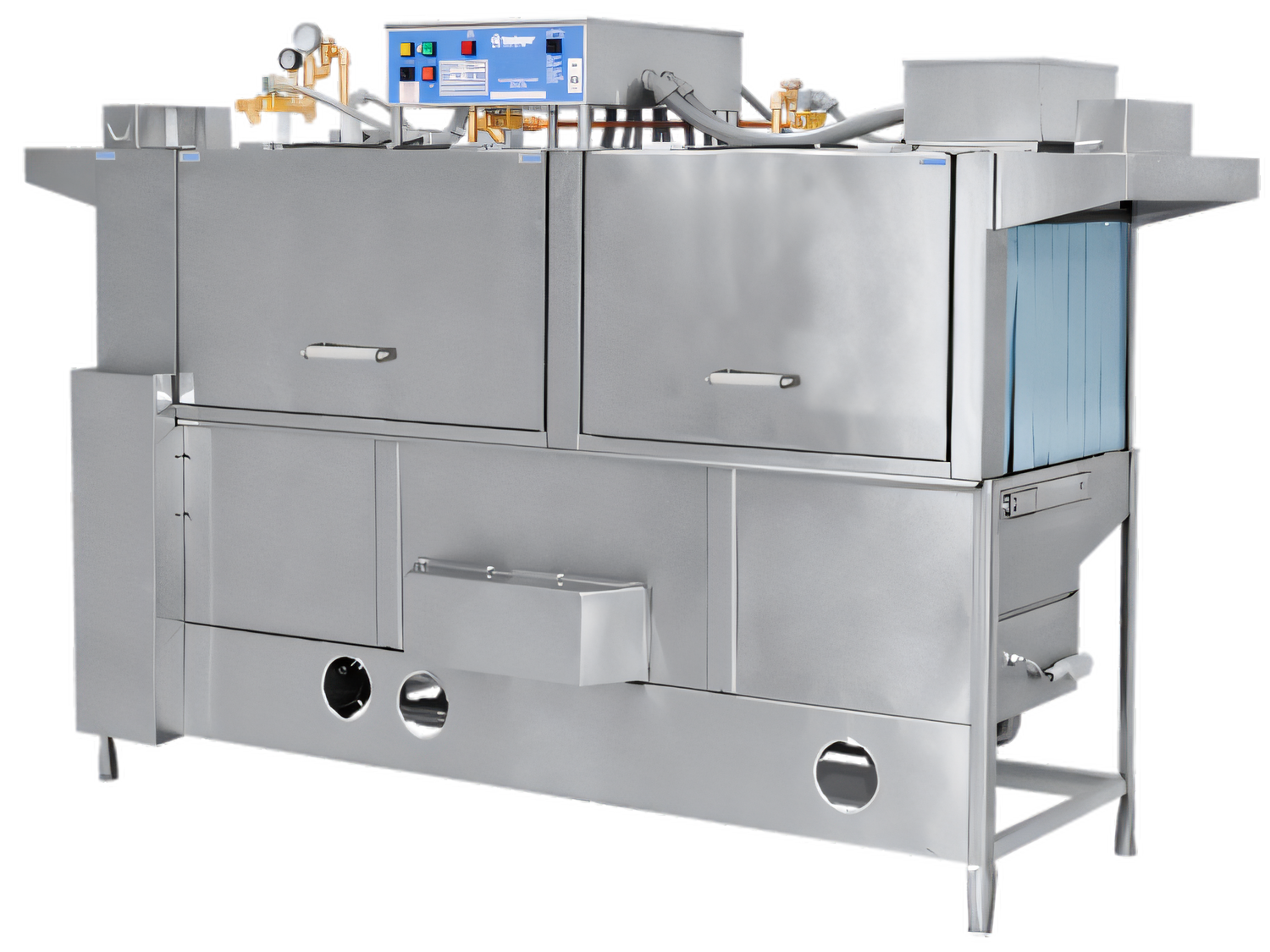

Insinger Speeder 86″ Double-Tank Conveyor Dishwasher
277 racks/hr • CrossFire® wash • Made in USAEngineered for the busiest food-service operations, the Speeder 86″ demolishes soil while moving up to 277 racks per hour through dedicated pre-wash and power-wash sections. With its patented CrossFire® spray pattern, rugged stainless construction and ultra-low 0.52 gal/rack water use, this machine keeps dishes spotless—and costs down.
Key Advantages
- Two-tank design isolates heavy soil in the pre-wash, extending detergent life.
- High-temperature sanitizing without an on-board booster—ideal for electric immersion or steam injector set-ups.
- CrossFire® wash arms blanket ware from every angle for first-pass results.
- Processes up to 6,925 dishes per hour—perfect for 300–600 meal peaks.
- All-stainless frame, legs, feet & panels withstand harsh chemicals and daily abuse.
- Color-coded curtains, crowned hood top and tool-free inspection door simplify cleaning.
- Automatic tank fill, low-water protection and door safety switch safeguard the unit and staff.
- Top-mounted NEMA 12 control panel stays dry and accessible.
Performance & Utility Data
| Rack Capacity | 277 racks/hr (20″ × 20″) |
|---|---|
| Dishes per Hour | 6,925 |
| Water Consumption | 0.52 gal/rack @ 20 psi |
| Wash Tank Capacity | 12 gal |
| Peak Drain Flow | 14 gal/min |
| Water Inlet Temp. | 110 °F |
| Wash Tank Heat | 7.5 kW electric or steam injector |
| Rinse Tank Heat | 15 kW |
| Drive Motor | 1⁄15 HP |
| Wash Motor | 1 HP |
| Rinse Motor | 1 HP |
| Steam Tank Consumption | 81 lbs/hr @ 20 psi |
| Vent Requirement | 350 CFM (load end) / 350 CFM (unload end) |
| Shipping Weight | 1,200 lb |
Standard Features
- Color-coded PVC curtains
- Capillary thermometers for wash & rinse + in-line final-rinse thermometer
- Vacuum breakers on all water lines
- Timing-belt conveyor drive—quiet & low-maintenance
- Manifold clean-out brush included
- Automatic tank fill with low-water shut-off
- Override switch for de-liming
- Standard frame drip-proof motors
Popular Factory Options
- Electric or steam booster heater (40 °F or 70 °F rise)
- Stainless steel steam-coil tank heat
- Single-point electrical connection (with booster)
- End cowls with vent and adjustable dampers
- Stainless steel splash guards
- Power Loader / Power Unloader modules
- Rack limit switch & door-activated drain closers
- Insulated hood & doors for heat retention
NSF & ETL listed. Manufactured in Philadelphia, PA by Insinger Machine Co.
