Insinger ENSIGN 40-2 Dishwashers Conveyor Dishwashers
Description

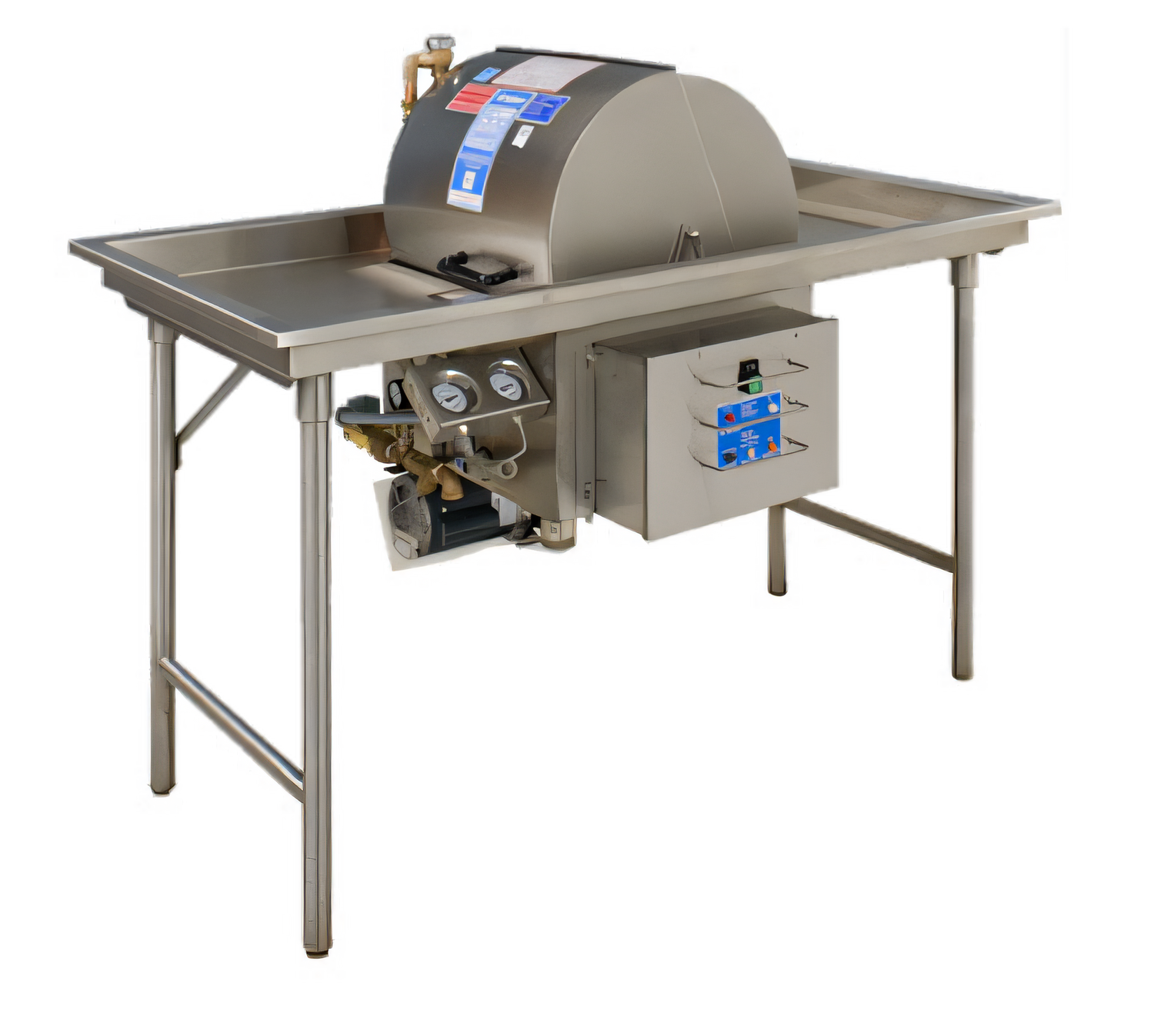

Insinger Ensign 40-2 Counter Type Dishwasher
High-temperature | 43 racks / hour | Made in USAEngineered for compact kitchens that refuse to compromise on throughput or sanitation, the Ensign 40-2 drop-in dishwasher powers through up to 720 dishes per hour while using just 0.75 gallons of water per rack. Built from stainless steel and backed by ETL and NSF listings, this high-temp workhorse delivers reliable, fully automatic performance shift after shift.
Why You’ll Love It
- High-temperature sanitation with dedicated wash & rinse thermometers.
- Handles approximately 43 racks (16" × 16") every hour.
- Only 0.75 gal of fresh water per rack helps reduce utility costs.

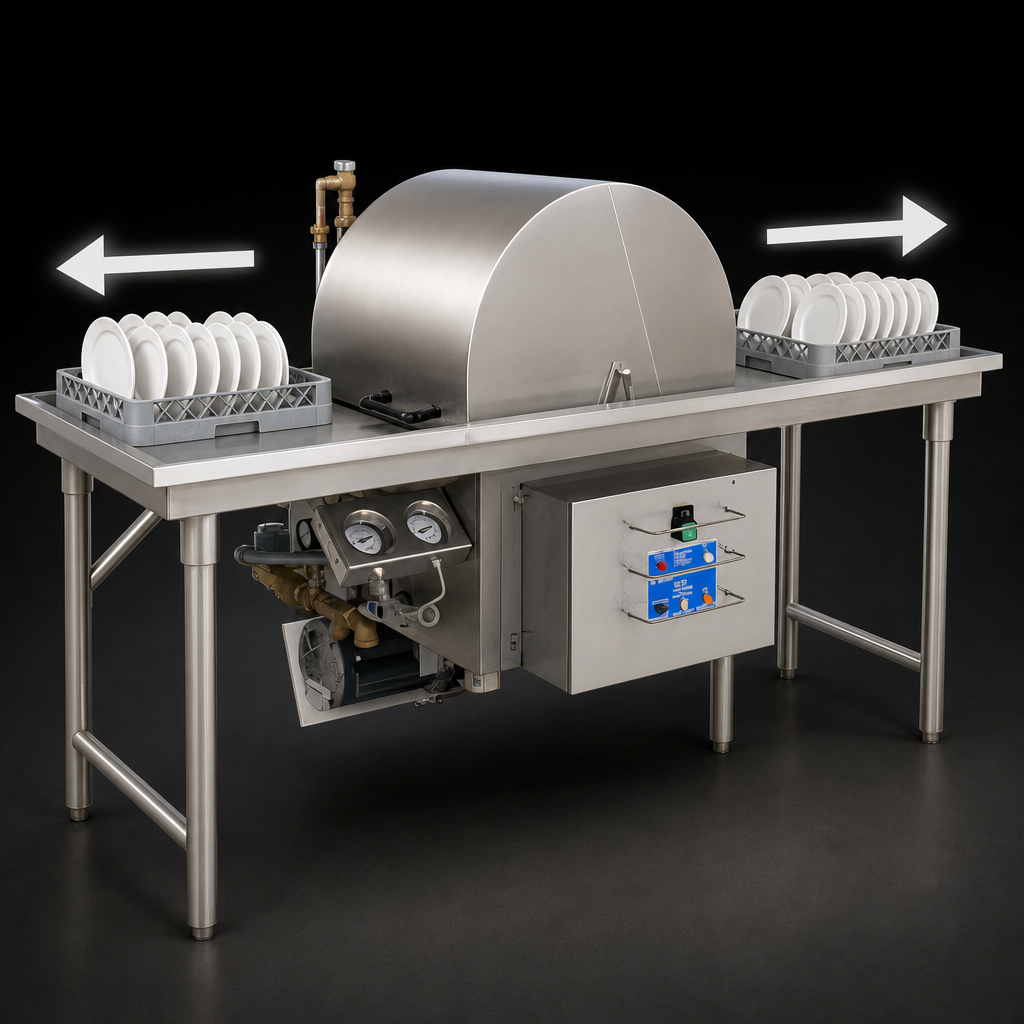

- Space-saving drop-into tabletop design for straight-thru workflows.
- All-stainless-steel construction resists corrosion and simplifies cleanup.
- Electric immersion heater standard; optional stainless-steel steam coil available.
- Single-point electrical connection for motor, controls & tank heat.
- Low-water protection, automatic tank fill & door safety interlock included.
- Side-mounted NEMA 12 control panel keeps electronics protected and accessible.
- NSF & ETLus certified; proudly manufactured in Philadelphia, PA.
Specifications at a Glance
| Racks per Hour | 43 |
|---|---|
| Dishes per Hour | ≈ 720 |
| Rack Size | 16" × 16" |
| Water Usage | 0.75 gal / rack (20 PSI) |
| Wash Tank Capacity | 8.1 gal |
| Wash Tank Heat | 7.5 kW electric immersion (standard) Stainless-steel steam coil (option) |
| Final Rinse | High-temp; external 180 °F booster required (see note) |
| Wash Pump Motor | 1 HP drip-proof |
| Drive Motor | 1/15 HP |
| Electrical (standard) | 208 V / 60 Hz / 1-ph – 15 A Additional voltages available |
| Peak Drain Flow | 9 gal / min |
| Shipping Weight | ≈ 400 lb |
Standard Equipment
- Automatic tank fill with low-water protection
- Thermometers for wash & final rinse
- Vacuum breaker to safeguard potable water line
- Manifold clean-out brush & simplified scrap screen
- Standard frame drip-proof motor
- Door safety switch
Popular Factory Options
- Stainless-steel steam coil tank heat
- 6 kW or 12 kW remote electric booster heater
- Pressure-reducing valve & line strainer
- Totally enclosed motor
- Drain cool-down & scale inhibitor systems
- Plastic 16" × 16" dish or silverware racks
Covered by Insinger’s limited warranty: one (1) year parts & labor from date of installation (15 months from factory shipment when registered). Contact us for complete warranty terms or installation drawings tailored to your layout.
