Insinger CX20VG Dishwashers Undercounter Dishwashers
Description

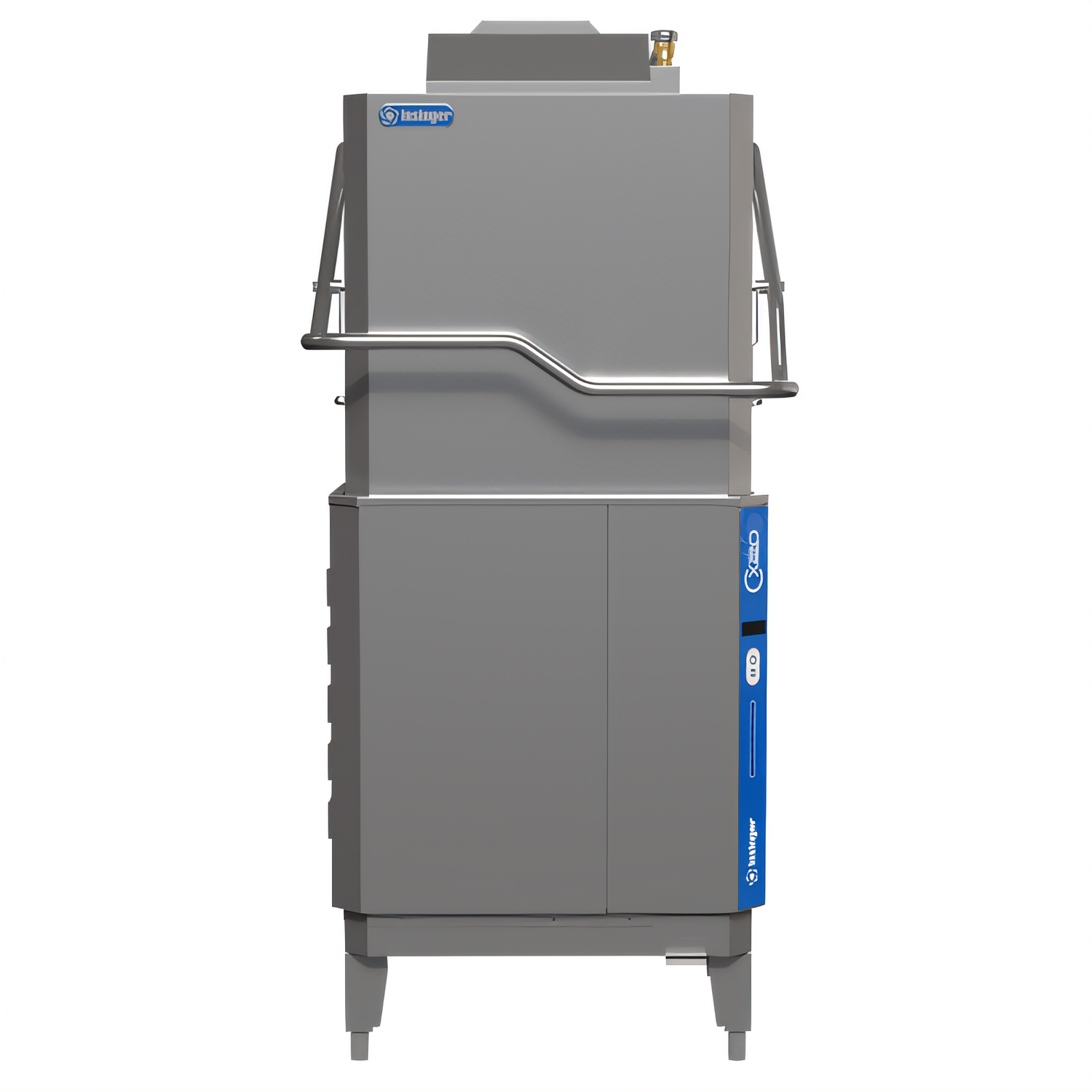

Insinger CX20VG Premier Series Dishwasher
Ventless | High-Temp | 60 Racks / Hr | Made in USAPower through peak service without the added cost of a ventilation hood. The CX20VG combines Insinger’s legendary Quad-Arm Wash System with the optional VaporGuard™ 2.0 condensate removal package, delivering spotless, NSF-sanitized ware while keeping steam and heat out of the kitchen. Built rugged in Philadelphia, this Energy Star® 3.0 door-type unit is field-convertible from straight-thru to corner operation, giving you maximum flexibility in a compact 20" x 20" footprint.
Top reasons operators choose the CX20VG
- Ventless savings – VaporGuard™ 2.0 eliminates the need for a Type II hood and removes up to 12,720 BTU/h of heat & moisture.

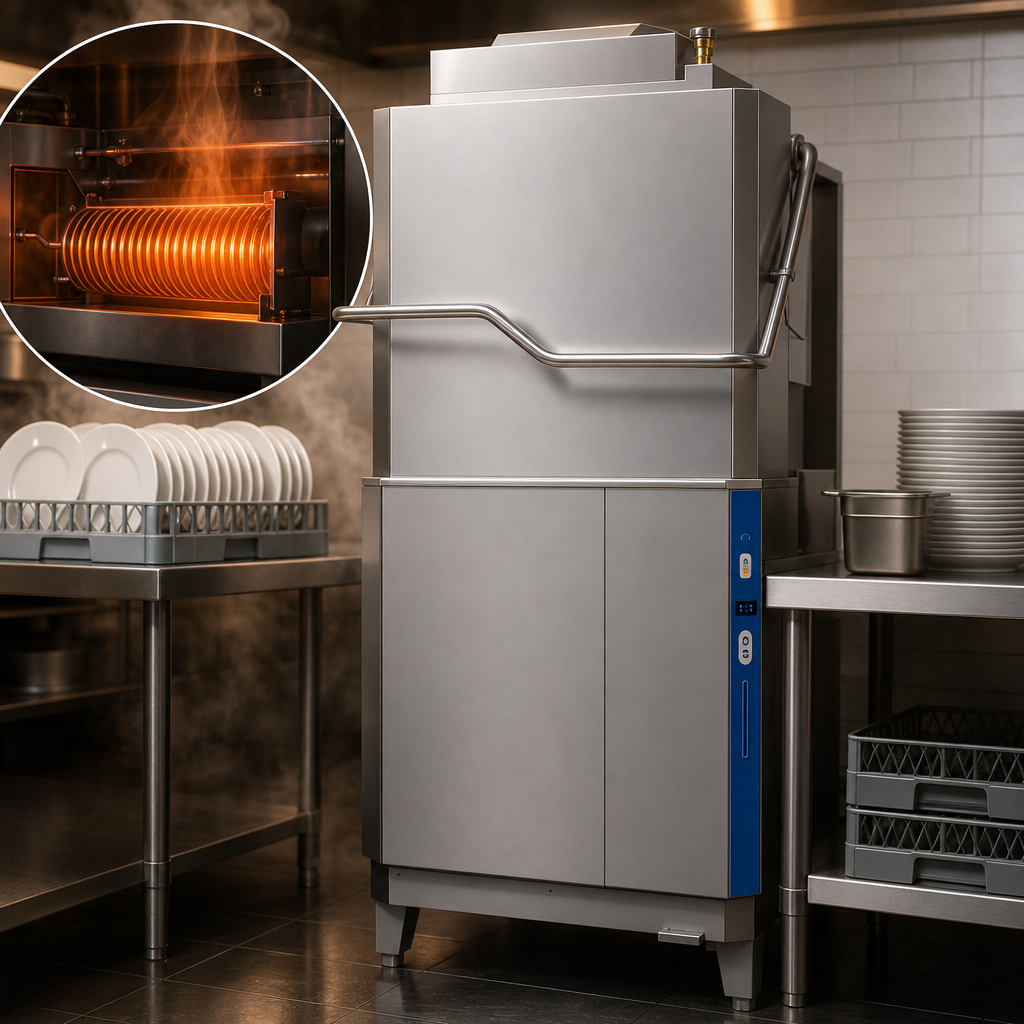

- High-temperature sanitizing – Built-in HeatCore booster rises incoming 110 °F water to a 180 °F final rinse.
- Quad-Arm Wash System – Four stainless arms blast dishes from every angle for fewer rewashes.
- RackAware™ sensing – Automatically starts the cycle when a rack is detected and prevents “empty” wash cycles.
- Low water & energy use – Just 0.65 gal of fresh water per rack and Energy Star® 3.0 certification.
- Operator-friendly – Easy-glide door, foot-operated drain pedal, and de-lime program streamline daily tasks.
- Built to last – All-304 stainless frame, legs & oversized scrap screens with IP67 waterproof controls.

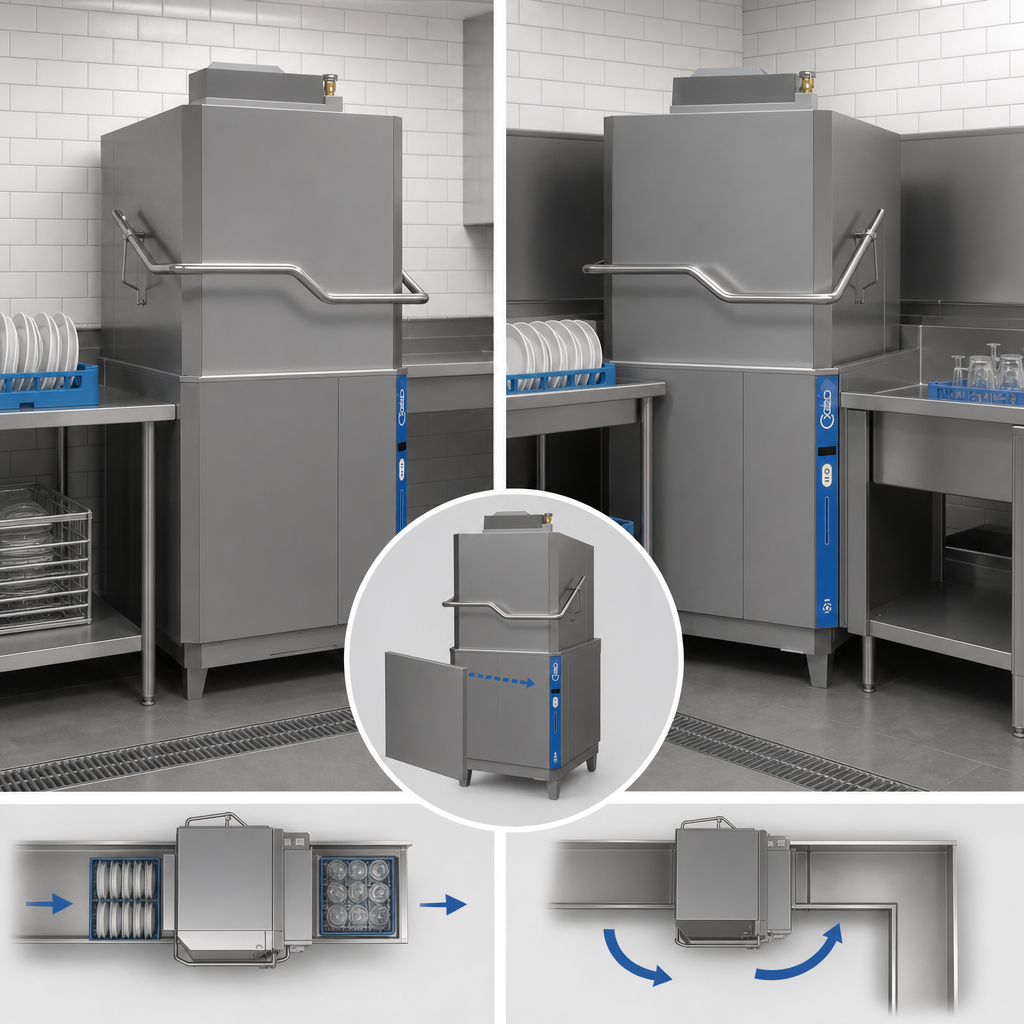

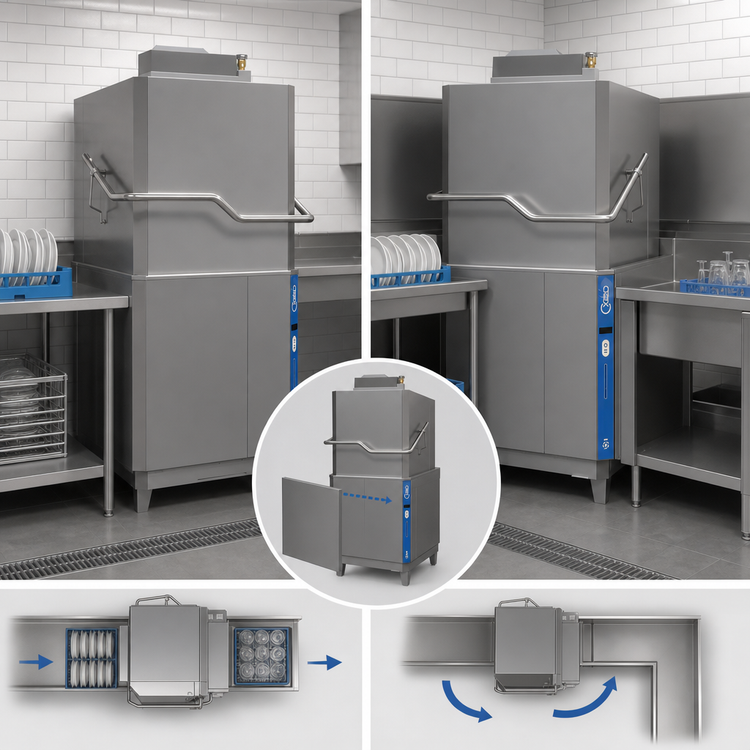

- Field flexibility – Straight-thru design converts to corner with a false-panel kit (optional).
- Made in the USA – NSF, ETLus & AQ listed, backed by a 1-year parts & labor warranty.
Performance at a glance
| Wash Capacity | 60 racks / hour (≈ 1,500 dishes) |
|---|---|
| Rack Size | 20" × 20" |
| Cycle Times | 60 s (Standard) • 120 s (Extended) • 210 s (Heavy) |
| Water Use | 0.65 gal per rack |
| Wash Tank | 17.5 gal, 9 kW electric immersion or steam injector heat |
| Booster | Integrated 9 kW HeatCore, 2.3 gal capacity |
| Wash Motor | 1.5 HP |
| Electrical (Single-Point) | 208 V/3 Ø | 54 A • 240 V/3 Ø | 48 A • 480 V/3 Ø | 24 A |
| Ventless Heat Load | 8,224 BTU/h sensible • 4,046 BTU/h latent |
| Shipping Weight | ≈ 500 lb |
| Certifications | NSF • ETLus • Energy Star® 3.0 |
Included features
- Built-in drain quench / cool-down system
- Oversized stainless scrap screens
- Low-water protection & door safety switch
- Detergent & rinse-aid connection provisions
- Hinged dish-rack supports & dish-rack guides (nest & lock)
- Water-tight IP67 electronic control board with swing-out access panel
Popular options
- False-panel corner conversion kit
- Ergo-grip door handle or gas-spring assisted hood
- External steam booster or single/dual-point electrical hookups
- Security package with anti-vandal stainless buttons
- Flanged feet & plastic 20" × 20" racks
Capacities based on factory test conditions. Electrical amperage will vary by voltage and option package. Always consult the installation manual and a licensed professional to verify utility requirements for your site.
