Insinger CX20HVG Dishwashers Undercounter Dishwashers
Description

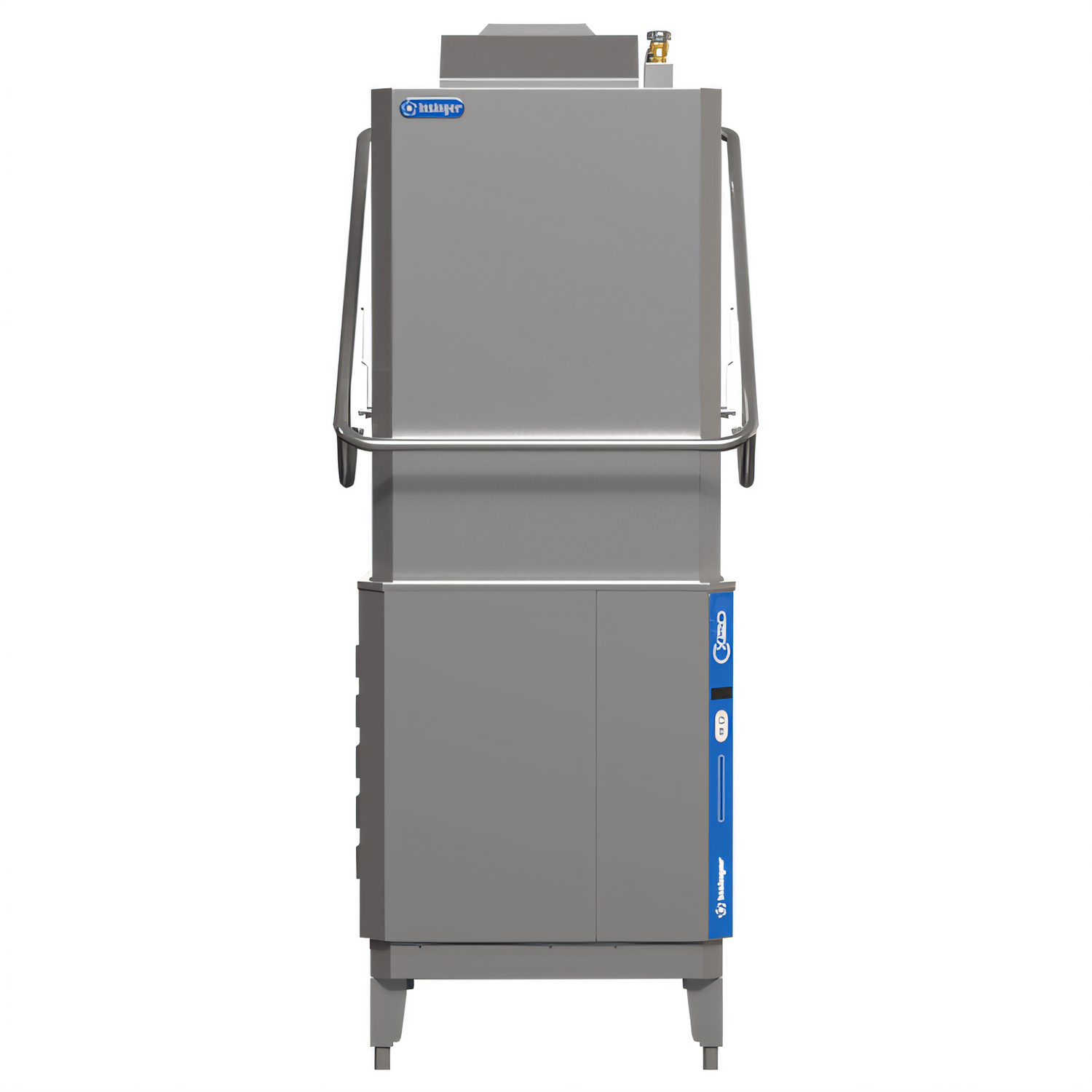

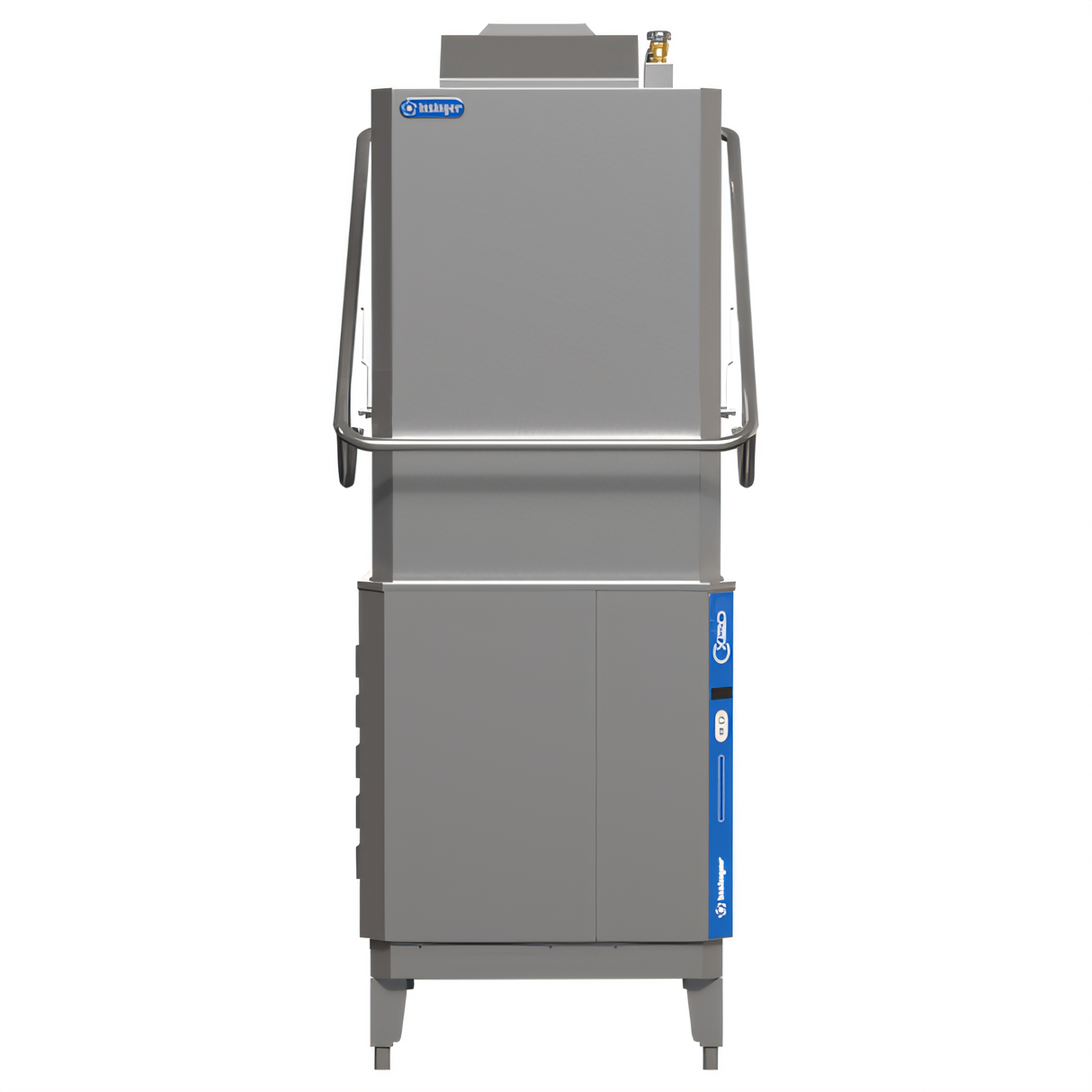

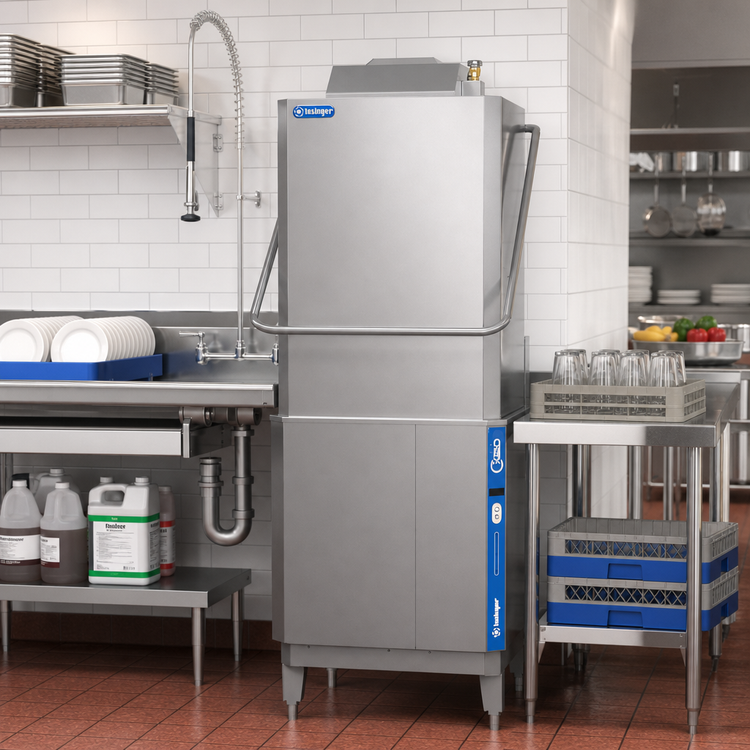

Insinger CX20HVG Premier Series High-Temp Ventless Door-Type Dishwasher
VaporGuard™ 2.0 condensate removal | 60 racks per hour | Made in the USABuilt for the busiest commercial kitchens, the CX20HVG delivers high-temperature sanitizing power without the need for a direct vent. Its extra-high hood, built-in HeatCore booster and energy-saving VaporGuard™ 2.0 system let you tackle full-size sheet pans, plates and utensils in record time—while using just 0.65 gallons of water per rack.
Highlights
- Extra-high hood fits 20 × 20 in. racks and full-size sheet pans.

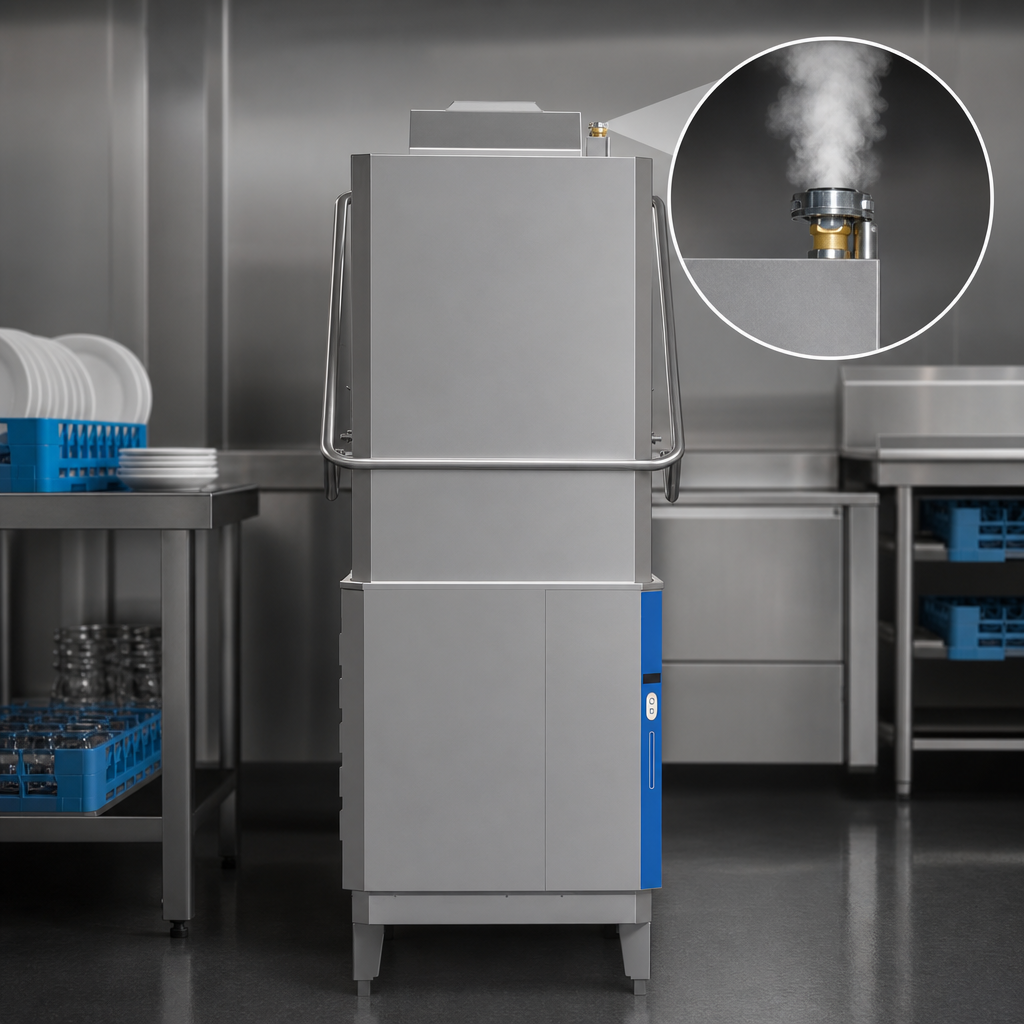

- VaporGuard™ 2.0 ventless technology captures steam and condensate—no hood connection required.
- Quad-Arm wash system provides complete 360° coverage for consistent, NSF-approved sanitizing.

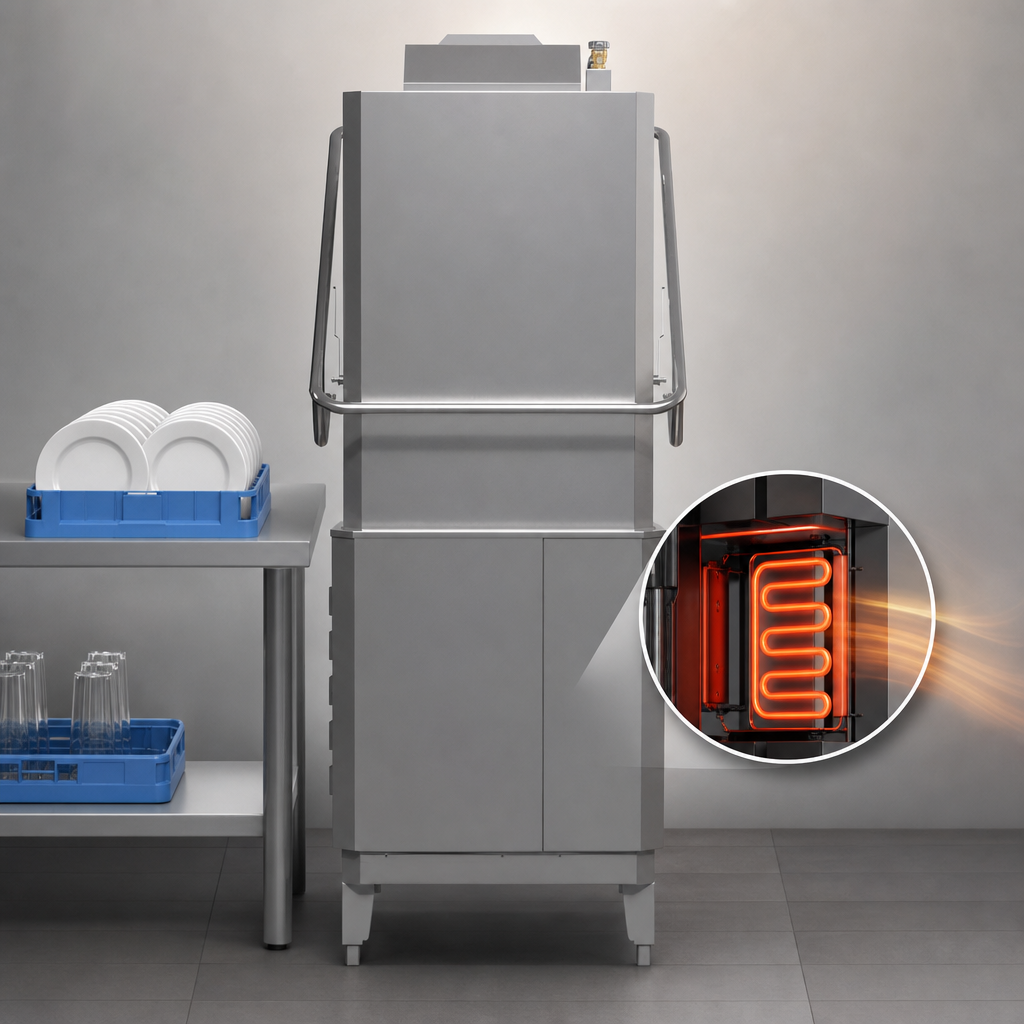

- Built-in HeatCore booster elevates incoming 110 °F water to 180 °F rinse temperature.
- Drain quench / cool-down system protects floor drains and plumbing.
- RackAware™ sensor starts the cycle automatically when a rack is loaded, saving time and utilities.
- 1.5 HP wash motor • Oversized scrap screens • Foot-operated drain pedal.
- Energy Star® 3.0 certified for reduced water, energy and chemical consumption.
- 304 stainless-steel frame, hood, legs and feet resist corrosion in harsh dish-room environments.
- Straight-thru design is field-convertible to corner operation with optional false panel.
Performance & Capacity
| Racks per hour | 60 |
|---|---|
| Dishes per hour | Up to 1,500 |
| Cycle times | 60 / 120 / 210 sec (Standard / Extended / Heavy) |
| Water use | 0.65 gal / rack |
| Incoming water temp. | 110 °F |
| Wash tank capacity | 17.5 gal |
| Wash motor | 1.5 HP |
| Tank heat | 9 kW electric (steam injector option available) |
| Booster heat | 9 kW built-in HeatCore |
| Electrical | 208-240 V / 1- or 3-phase — single- or dual-point connection |
| Peak drain flow | 35 gal / min |
| Shipping weight | 500 lb |
| Certifications | NSF, ETL Sanitation, ETLus, Energy Star 3.0 |
Operator-First Design Details
- Easy-glide hood with optional gas springs reduces operator fatigue.
- Waterproof IP67 touch-proof control board with stainless-steel anti-vandal buttons.
- Swing-out control panel and hinged dish rack support speed up cleaning and service.
- De-lime program, detergent connection provision and low-water protection simplify maintenance.
- Door safety switch prevents accidental operation when the hood is open.
Popular Options & Accessories
- False panel kit for corner installation
- External steam booster (for steam-heated facilities)
- Flanged or adjustable feet
- Security package for high-risk environments
- Plastic 20 × 20 in. warewashing racks
Need a custom spec drawing or have installation questions? Call Insinger Sales at 800-344-4802.
Proudly engineered and manufactured in Philadelphia, PA.
