Insinger CX20H Dishwashers Dishwashers
Description

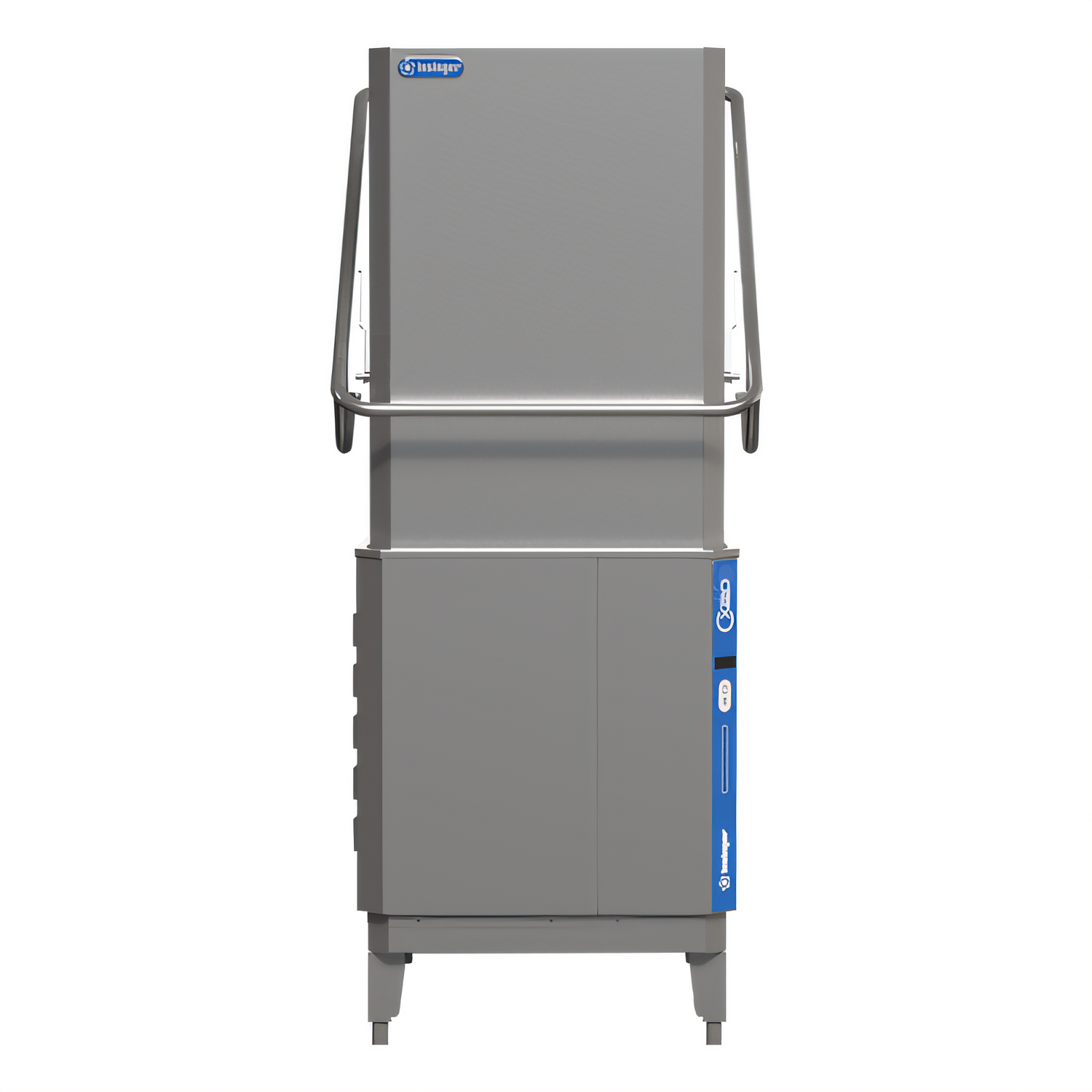

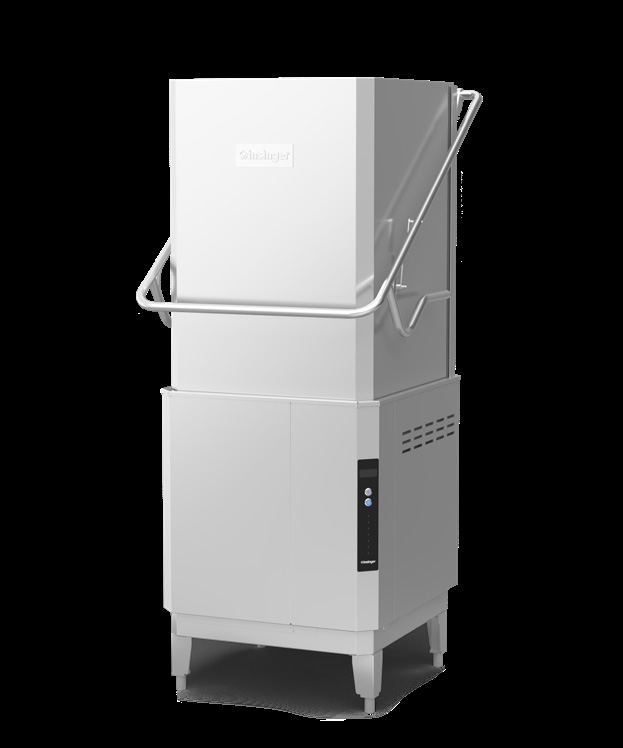

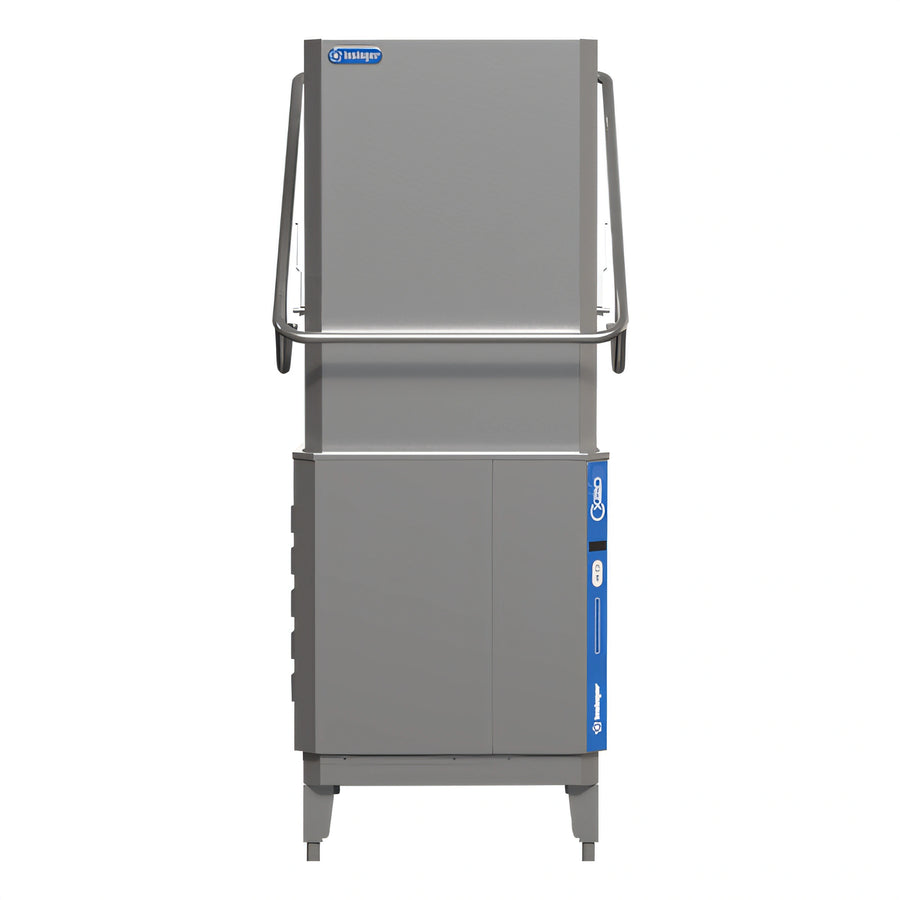

Insinger CX20H Premier Series Door-Type Dishwasher
60 racks/hour • Built-In HeatCore™ booster • Made in the USAGive your dishroom the speed and sanitation it deserves with Insinger’s CX20H. Engineered for busy kitchens that refuse to compromise on efficiency, this extra-high hood, high-temperature dishwasher powers through up to 1,500 dishes or 2,400 meals per hour while fitting full-size sheet pans and preserving valuable floor space. Rugged 304 stainless-steel construction, intuitive automatic controls and Energy Star 3.0 certification make it the smart, sustainable choice for restaurants, hotels, schools and healthcare facilities alike.
Key Features
- Extra-high hood handles sheet pans, stock pots and tall wares with ease.
- Quad-Arm Wash System delivers complete 360° coverage for spotless results.

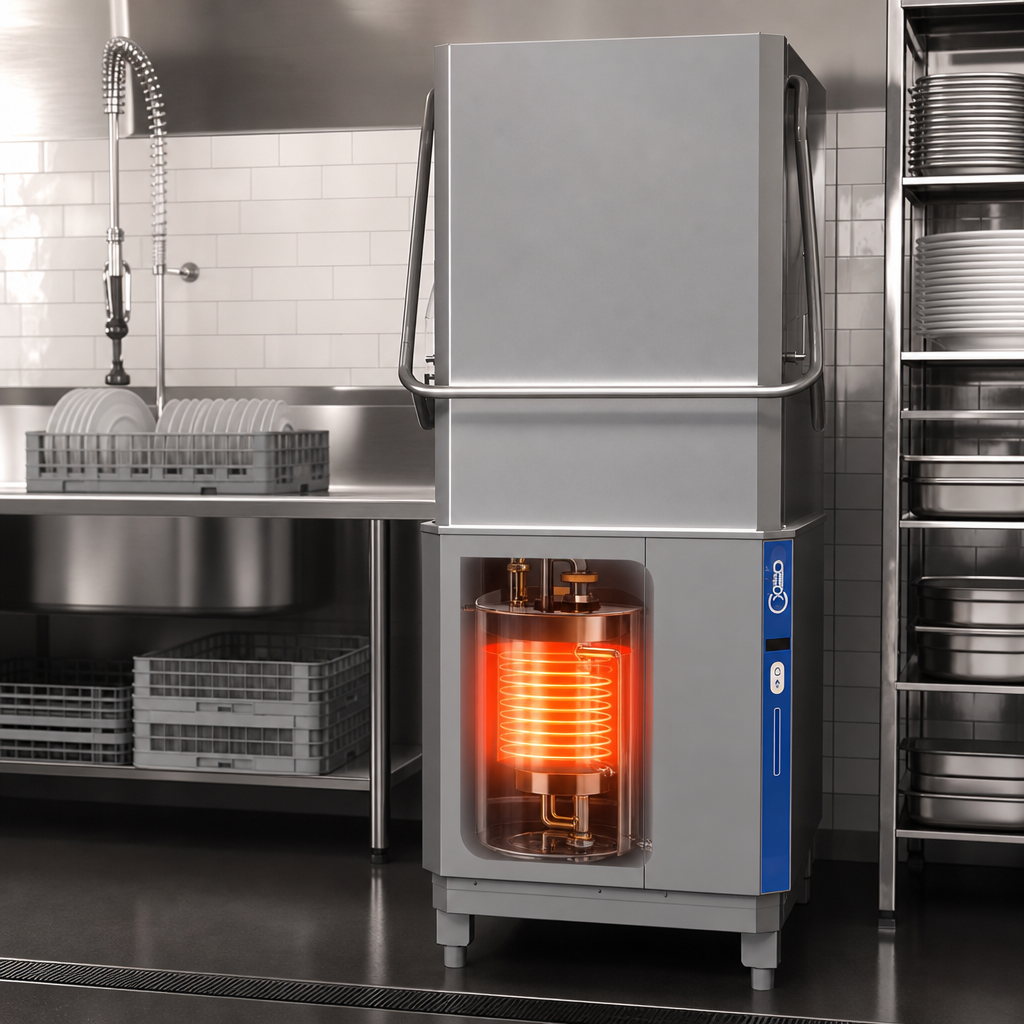

- Built-In 9 kW HeatCore™ booster achieves NSF-required 180 °F final-rinse temperatures.
- Straight-thru design (field-convertible to corner with optional false panel) maximizes workflow flexibility.
- RackAware™ rack-sensing technology starts the cycle automatically—no buttons to push.
- Oversized stainless-steel strainers keep food soil out of the wash tank, extending detergent life.
- Foot-operated drain pedal for safe, hands-free tank emptying.
- 1.5 HP wash motor backed by a rugged stainless-steel frame, legs and adjustable feet.
- Low-water protection, door safety switch & IP67 waterproof controls protect both operator and machine.
- NSF, ETLus & Energy Star 3.0 certified – proven sanitation and lower utility costs.
Performance & Utility Specs

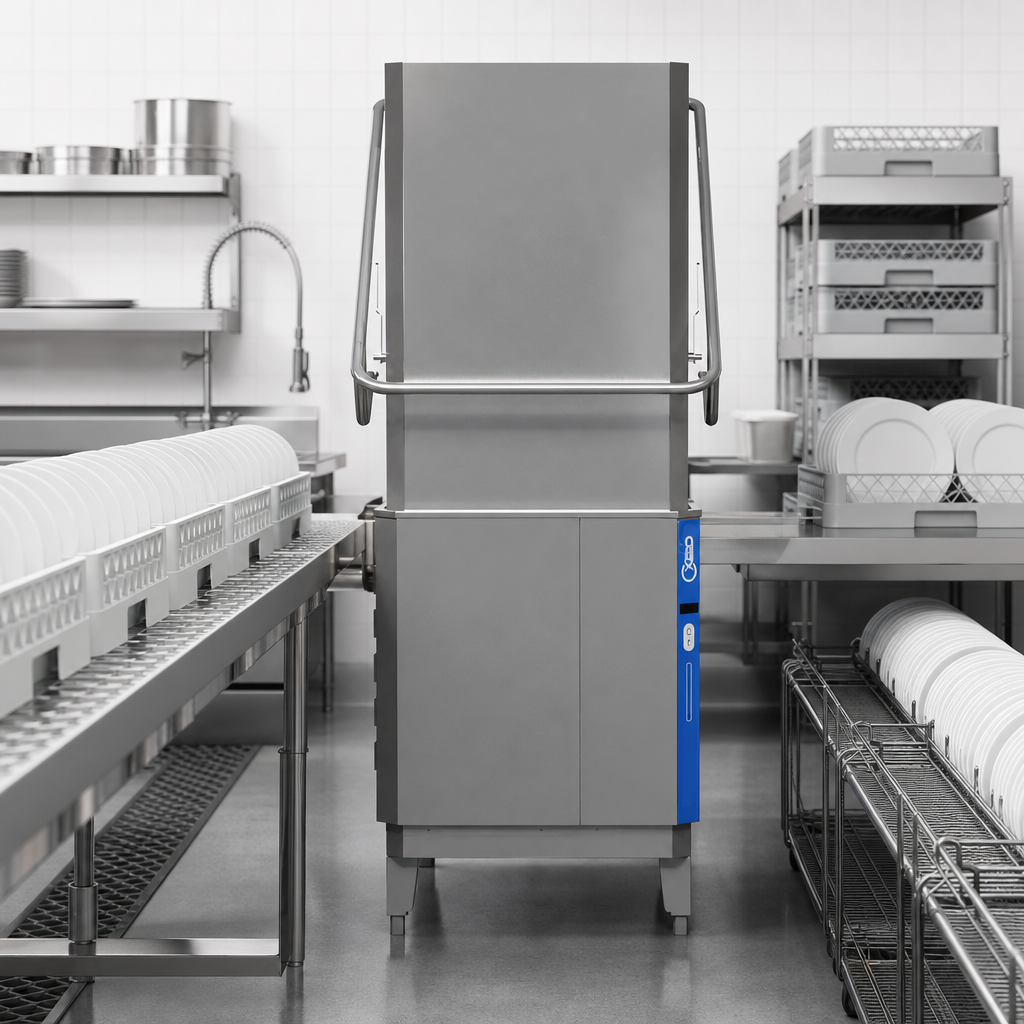

| Throughput | 60 racks / 1,500 dishes / 2,400 meal pieces per hour |
|---|---|
| Cycle Times | 59 s (Standard) • 90 s (Extended) • 180 s (Heavy) |
| Wash Motor | 1.5 HP |
| Wash Tank Capacity | 17.5 gal |
| Water Consumption | 0.65 gal per rack @ 20 PSI |
| Built-In Booster | 9 kW, 2.3 gal capacity (180 °F final rinse) |
| Incoming Water Temp | 110 °F minimum |
| Peak Drain Flow | 35 gal/min |
| Electrical (Single-Point) | 208/60/3 – 54 A • 240/60/3 – 47.8 A • 480/60/3 – 23.8 A |
| Electrical (Dual-Point) | 208/60/3 – 30 A wash / 25 A booster | 240/60/3 – 26.1 A / 21.7 A |
| Heat Source (Tank) | Electric immersion (standard) or steam coil (option) |
| Shipping Weight | ≈ 500 lb |
| Certifications | NSF, ETLus, Energy Star 3.0 |
| Warranty | 1-Year limited parts & labor (see warranty card for details) |
Included with Your CX20H
- (1) Stainless steel scrap screen set
- (1) Standard 20" × 20" combination rack
- User/installation manual & warranty registration card
Popular Factory Options
- False panel conversion kit (corner installation)
- External steam booster or drain-quench system
- Gas springs for easy-lift door hood
- Security package with anti-vandal buttons
- Plastic or specialty racks
Need help configuring utilities or selecting options? Our foodservice experts are ready to assist—just ask!
