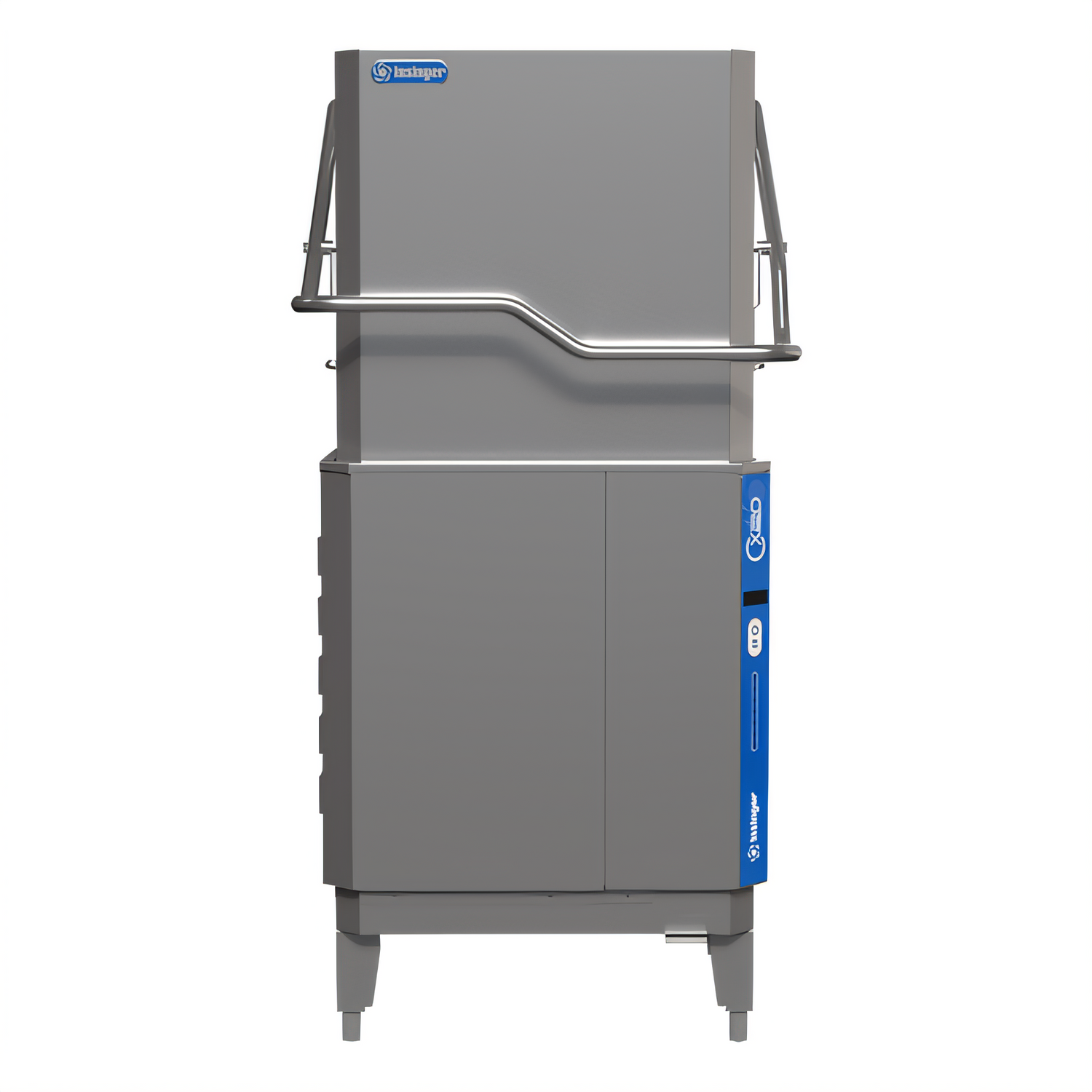

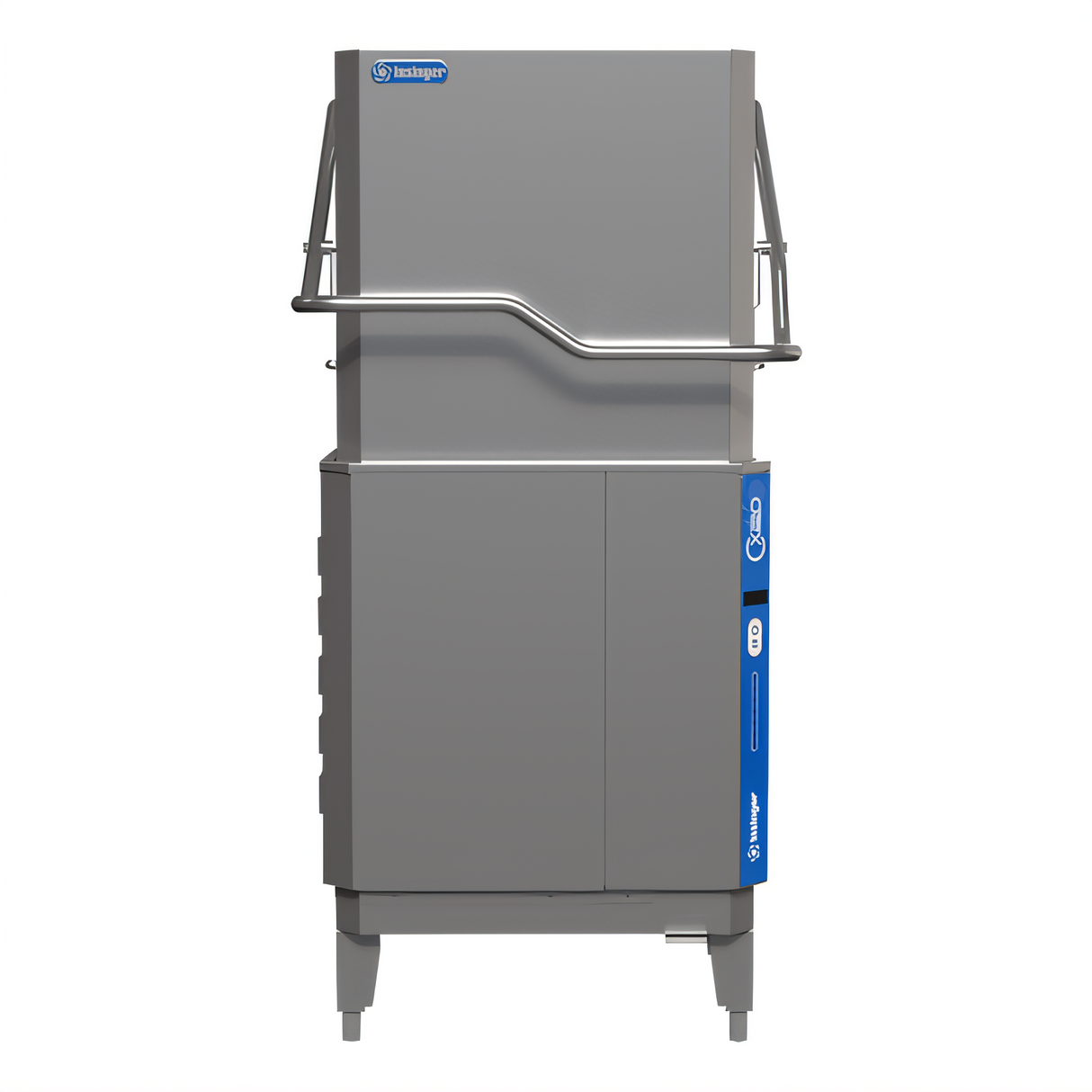

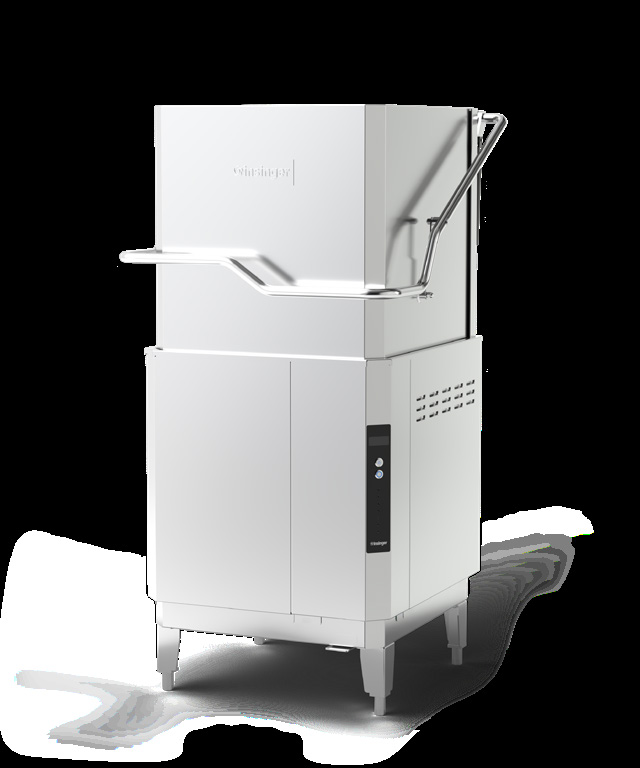

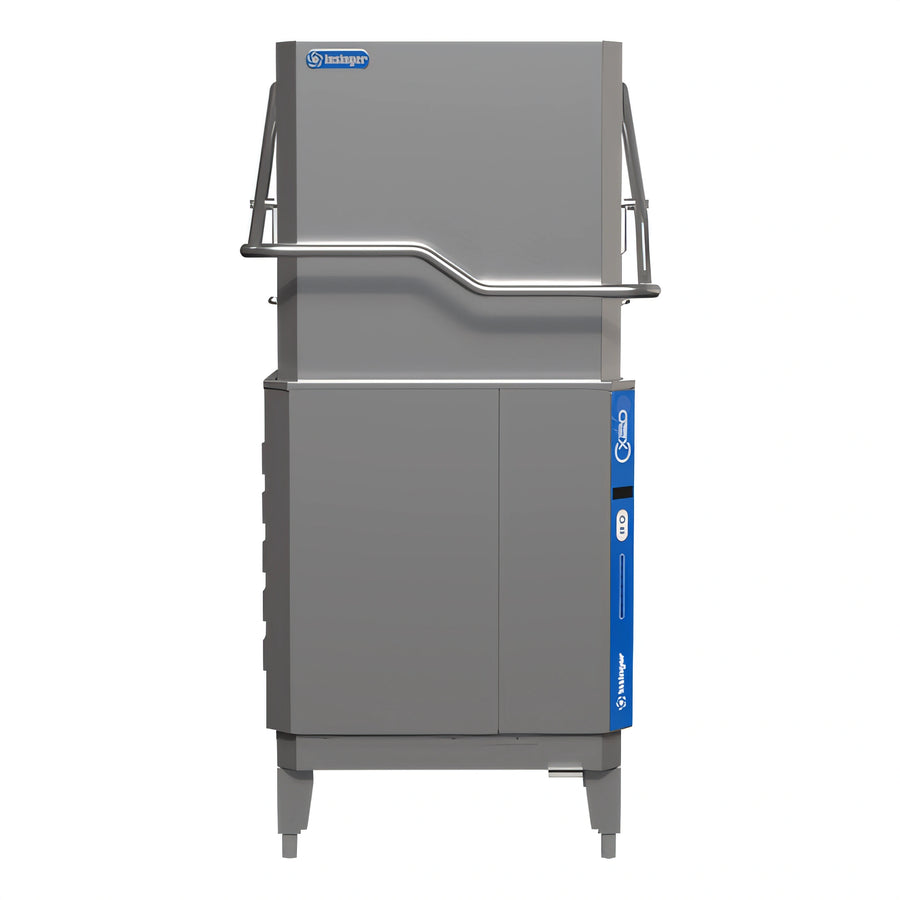

Insinger CX20 Premier Series High-Temp Door Type Dishwasher

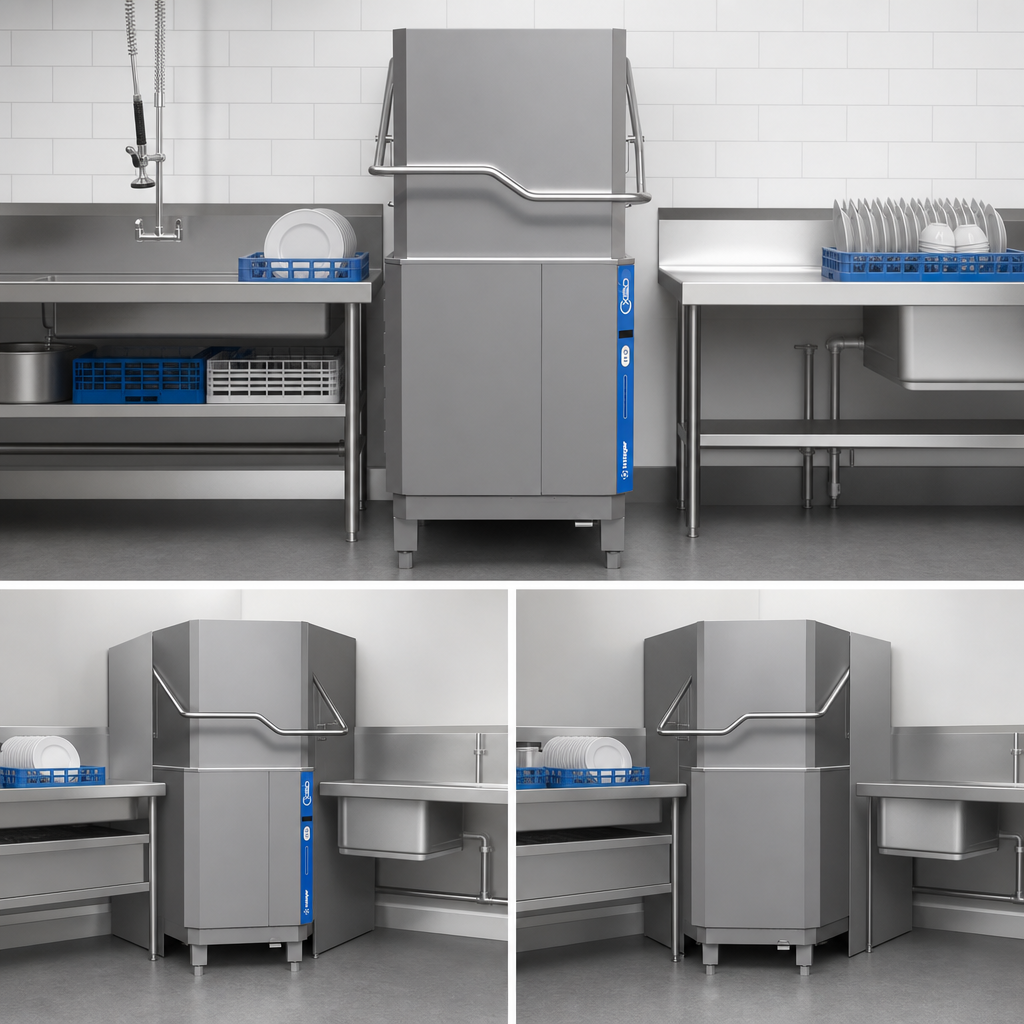

60 Racks/hr • Built-In HeatCore Booster • NSF & ETLus • Made in USABuilt for the fastest commercial kitchens, the Insinger CX20 powers through up to 60 racks every hour while using just 0.65 gal of water per load. Its compact straight-thru footprint can be field-converted to a corner unit, giving you unmatched flexibility without sacrificing performance.
Why You’ll Love It
- Quad-Arm Wash System attacks every dish from multiple angles for a spotless finish.

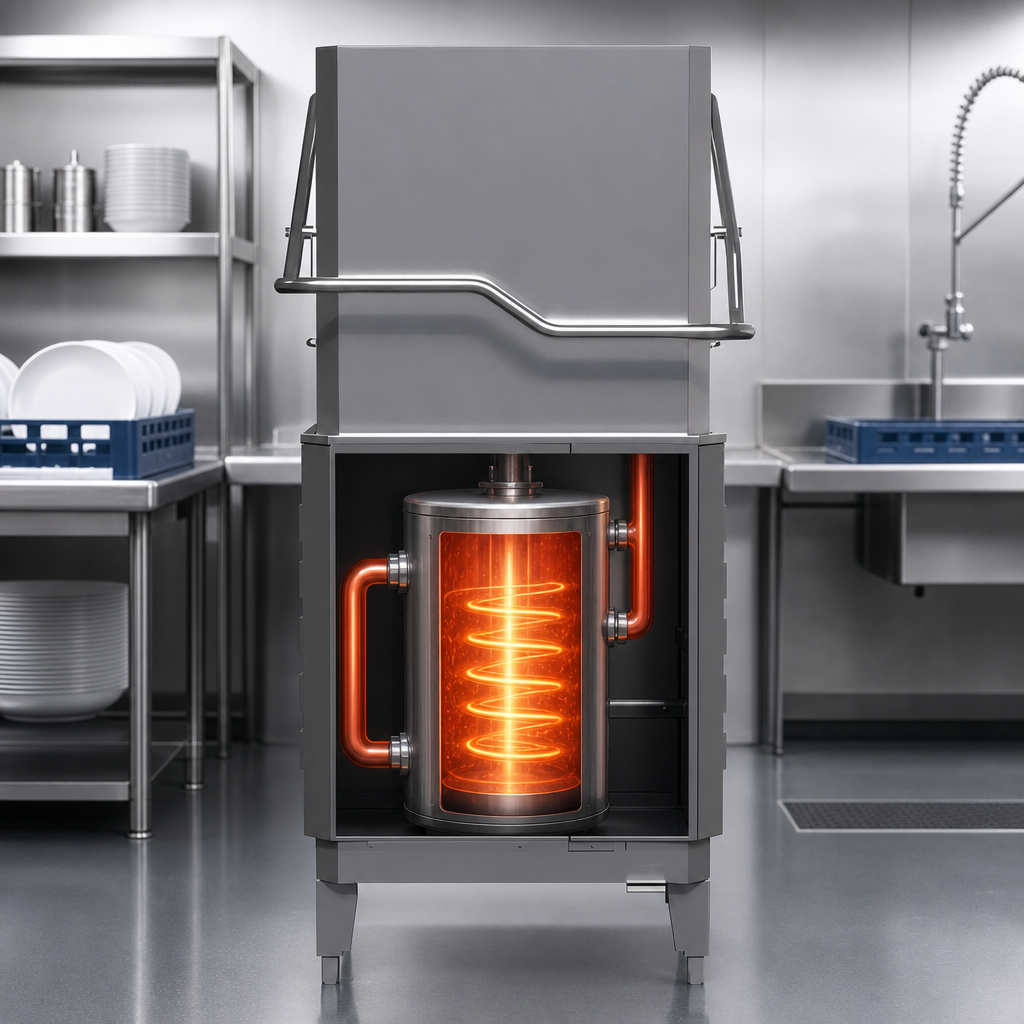

- HeatCore booster delivers a 180 °F sanitizing rinse—no external heater required.
- RackAware™ sensing starts the cycle automatically, boosting throughput & saving labor.
- Oversized scrap screens and front-mounted wash tank simplify clean-out.
- 304 stainless steel frame, legs & feet stand up to years of abuse.
- Foot-operated drain pedal keeps hands away from hot water.
- IP67 waterproof control board with anti-vandal stainless buttons.
- Energy Star 3.0 certified for lower utilities and greener operations.
Performance & Specifications
| Racks per hour | 60 (20" × 20") |
|---|---|
| Cycle times | Standard 59 s • Extended 90 s • Heavy 180 s |
| Water usage | 0.65 gal/rack @ 20 psi, 110 °F inlet |
| Wash tank capacity | 17.5 gal |
| Booster capacity / heat | 2.3 gal • 9 kW electric immersion (steam coil optional) |
| Wash motor | 1.5 HP |
| Electrical (single point) | 208 V/60/1 96 A • 208 V/60/3 54 A • 240 V/60/1 84 A • 240 V/60/3 47.8 A • 480 V/60/3 23.8 A |
| Peak drain flow | 35 gal/min |
| Shipping weight | ≈ 500 lb |
Standard Features
- Ergo-grip, easy-glide door with gas springs
- Energy-conservation drain overflow
- Low-water protection & door safety switch
- Programmable de-lime cycle & detergent hookup
- Single- or dual-point electrical connection
- Hinged dish-rack support; guides nest & lock
Popular Options
- False panel kit for corner installation
- External steam booster
- Flanged feet or full security package
- Drain quench system
- 20" × 20" plastic racks
Need a detailed installation drawing or electrical spec? Contact us or call Insinger Sales at 800-344-4802.
