Insinger CADET Dishwashers Undercounter Dishwashers

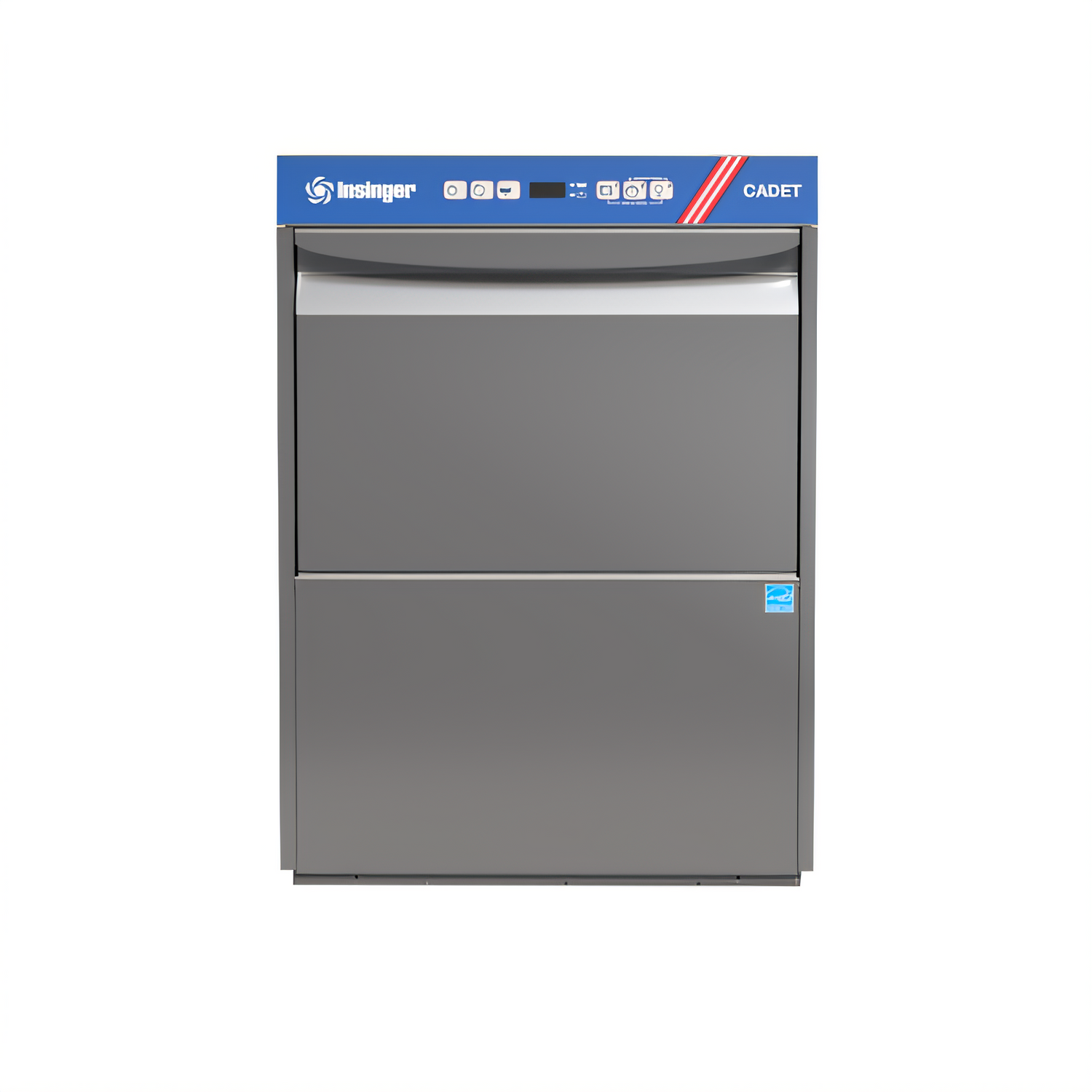

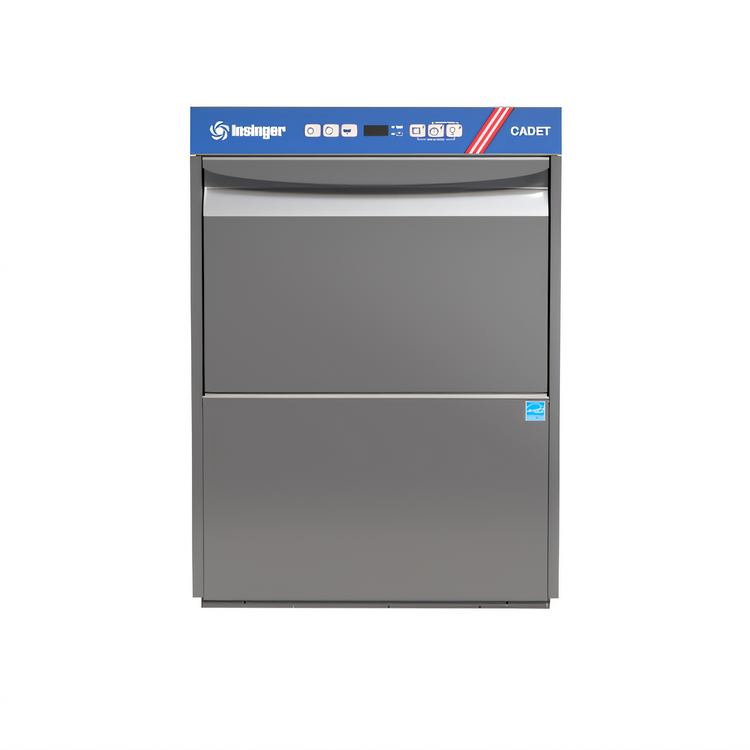

Insinger CADET High-Temp Undercounter Dishwasher

Give your kitchen the speed and sparkle it demands in less than 24 inches of floor space. The Insinger Cadet delivers high-temperature sanitation, whisper-quiet operation and industry-leading water savings—using just 0.8 gallons per rack—while its rugged stainless-steel body stands up to the busiest back-of-house.

Key Features

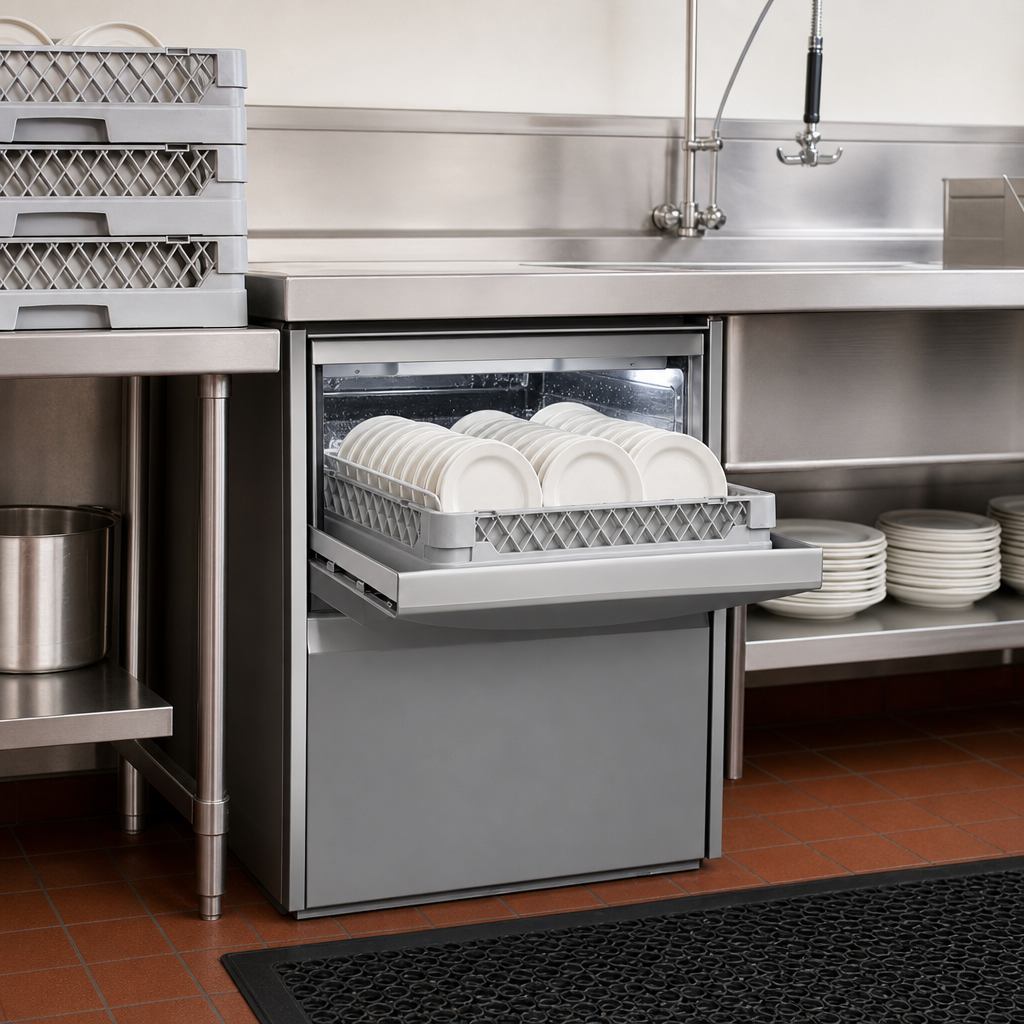

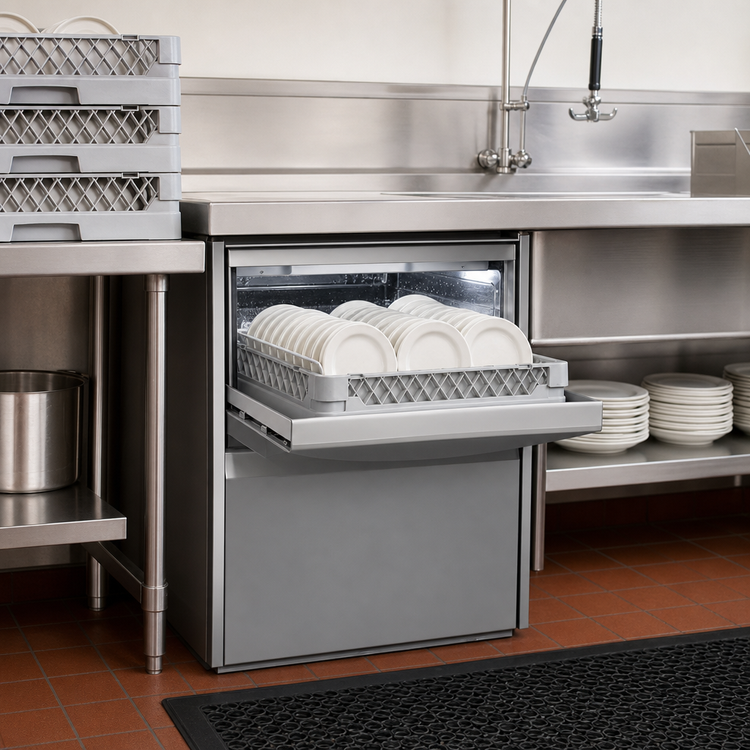

• Throughput: 30 standard 20 × 20 in racks (≈ 750 dishes) per hour
• High-temp final rinse via 6.0 kW built-in booster & dedicated rinse pump
• Uses only 0.8 gal (3 L) of fresh water per rack—cuts utility costs & sewer fees

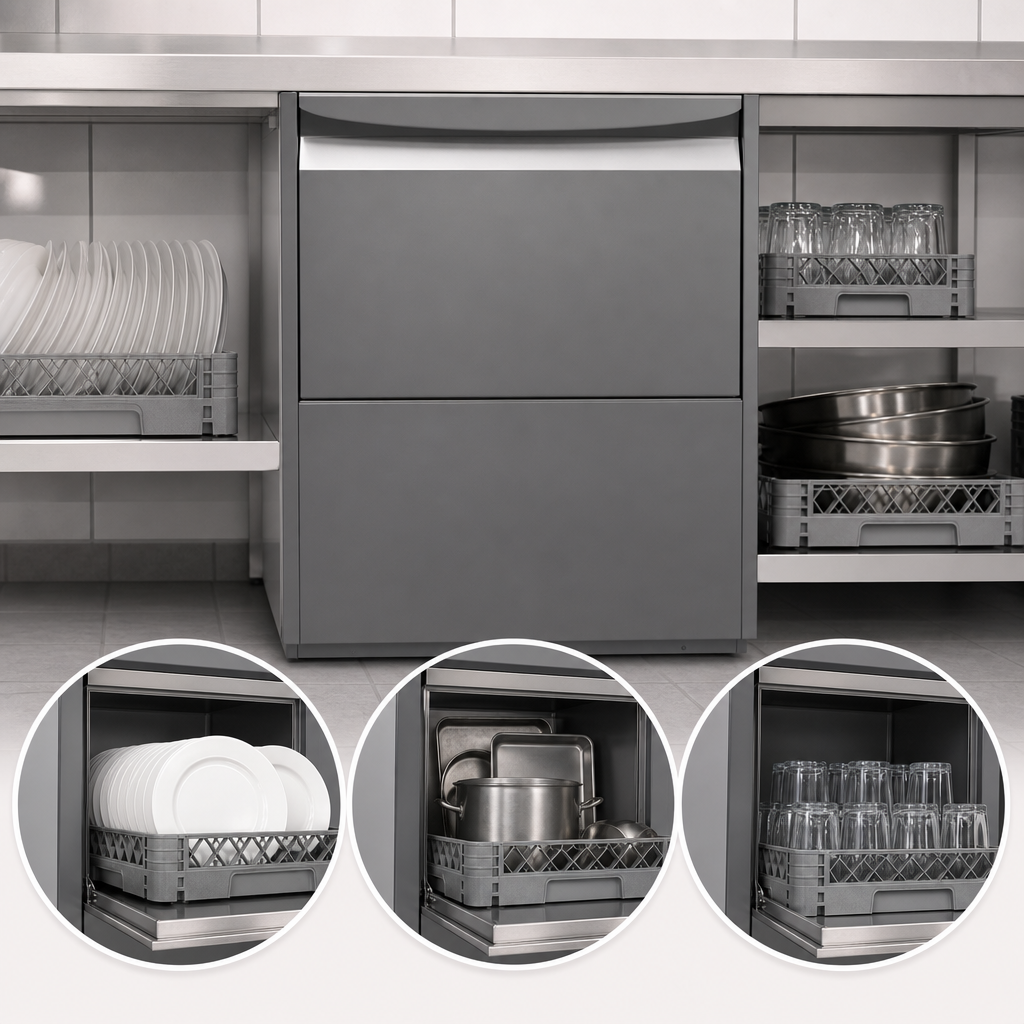

• Three optimized cycles:
  • Dishware – 120 s • Cookware – 240 s • Glassware – 130 s
• Electronic PCB with temperature display, LED status lamps & self-diagnostics
• Built-in detergent & rinse-aid dispensers with EZ Prime system
• Timed de-lime cycle and single-step drain/clean mode simplify maintenance
• Field-convertible to 208 V 1-ph (33 A) or 208 V 3-ph (20 A) with included jumpers
• 1 HP wash motor driving revolving interchangeable stainless wash/rinse arms
• 13 ³⁄₁₆ in door opening fits larger plates, sheet pans & mixing bowls
• Sound-suppression lined panels keep noise levels guest-friendly
• 304 stainless-steel interior & exterior for maximum corrosion resistance
• Comes ready to use with:
  (1) plate rack, (1) cup rack, (1) glass rack & (2) cutlery cups
• Certifications: ETLus, NSF, ENERGY STAR® 3.0

Specification Highlights

Looking for an installation drawing, drain-quench system or stacking stand? Contact us and we’ll configure the Cadet to fit your exact application.

Warranty

Backed by Insinger’s 1-year parts & labor warranty (12 months from installation or 15 months from shipment, whichever occurs first).
