Insinger ADMIRAL VG (66") Dishwashers Conveyor Dishwashers
Description

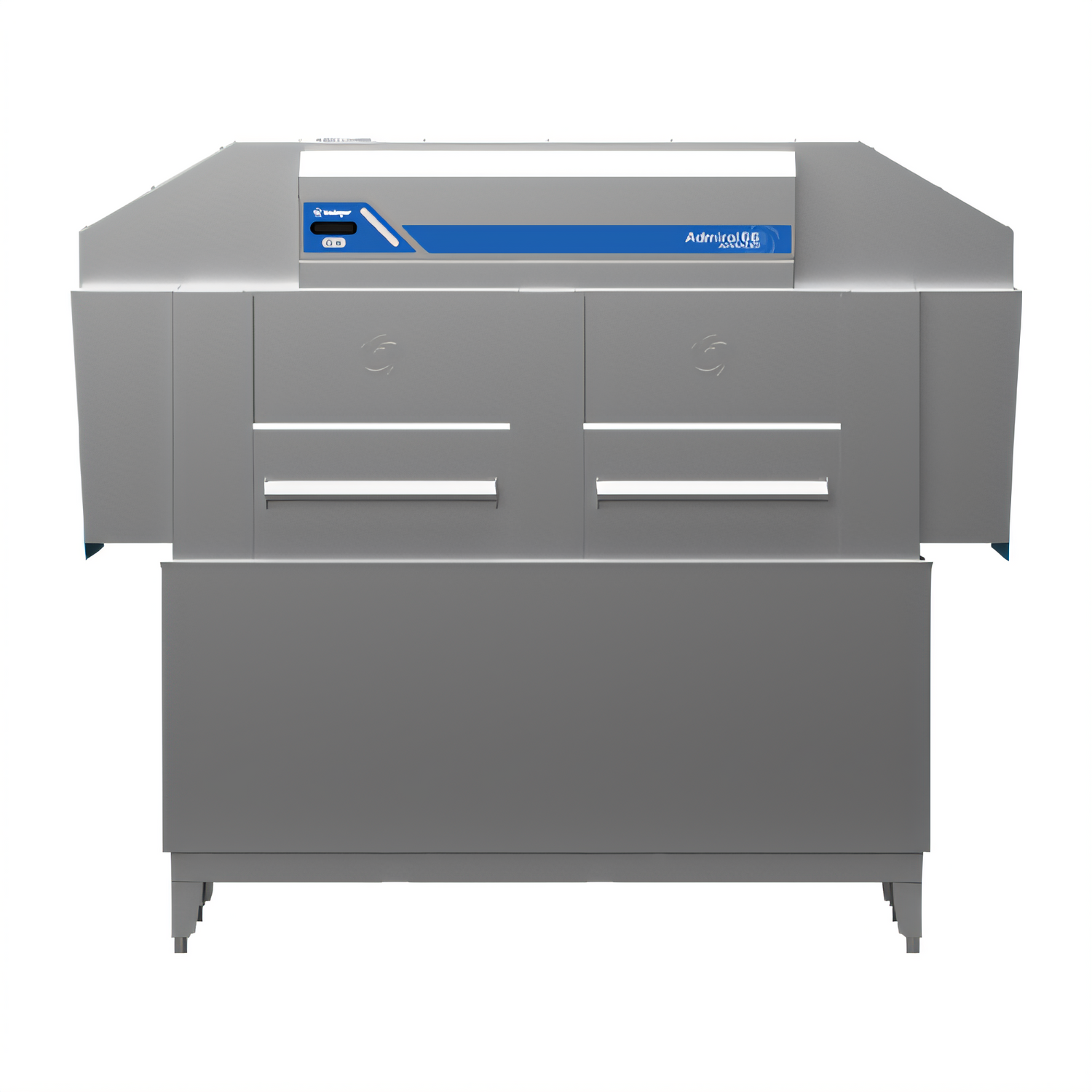

Admiral VG (66") Single-Tank Rack Conveyor Dishwasher
with optional VaporGuard™ Ventless System & Dual HeatCore™ BoostersTackle peak-hour rushes without breaking a sweat. Engineered and built in Philadelphia, the Insinger Admiral VG powers through up to 234 racks per hour while sipping just 0.63 gal of fresh water per rack. Its CrossFire™ wash technology, VFD-controlled conveyor, and stainless-steel construction deliver the speed, sanitation, and durability busy commercial kitchens demand— all in an ENERGY STAR®-qualified package.
Key Advantages

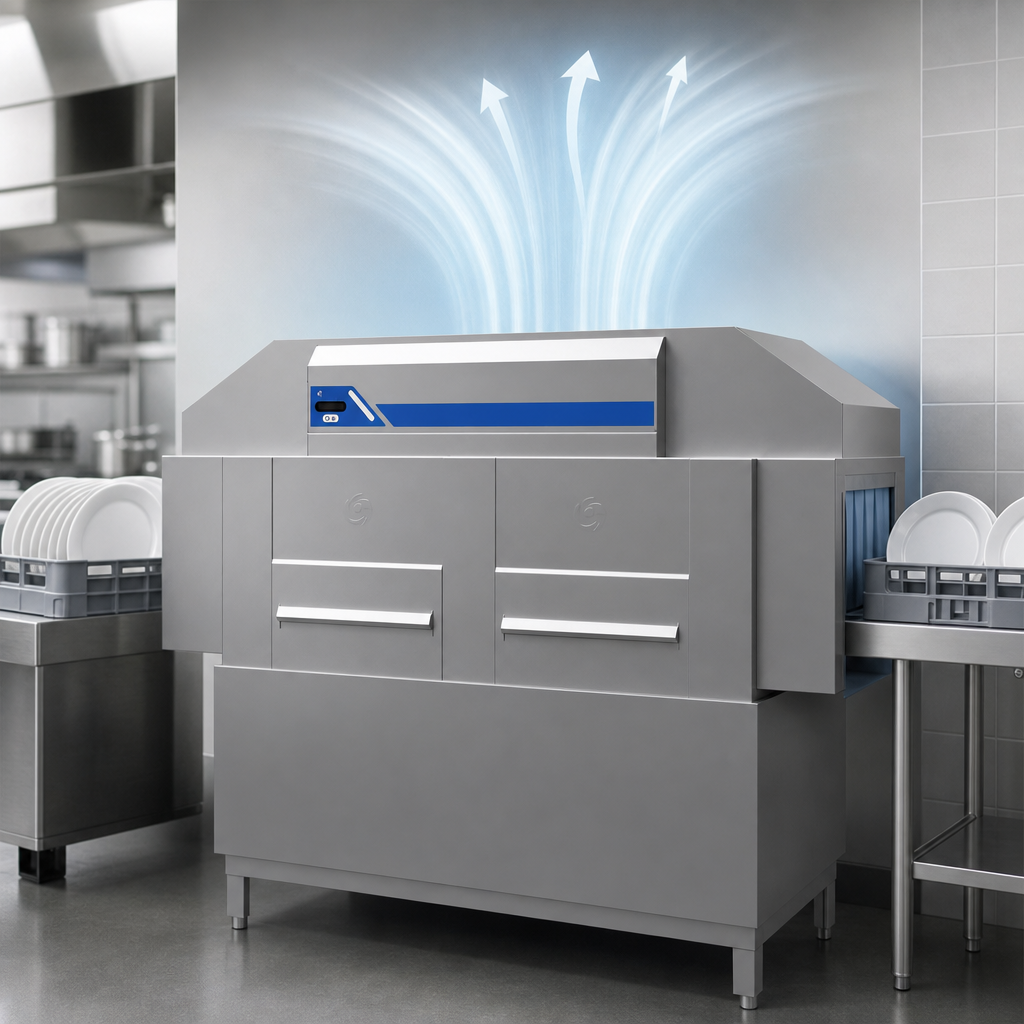

- VaporGuard™ ventless option removes steam at the source—no costly hood needed.

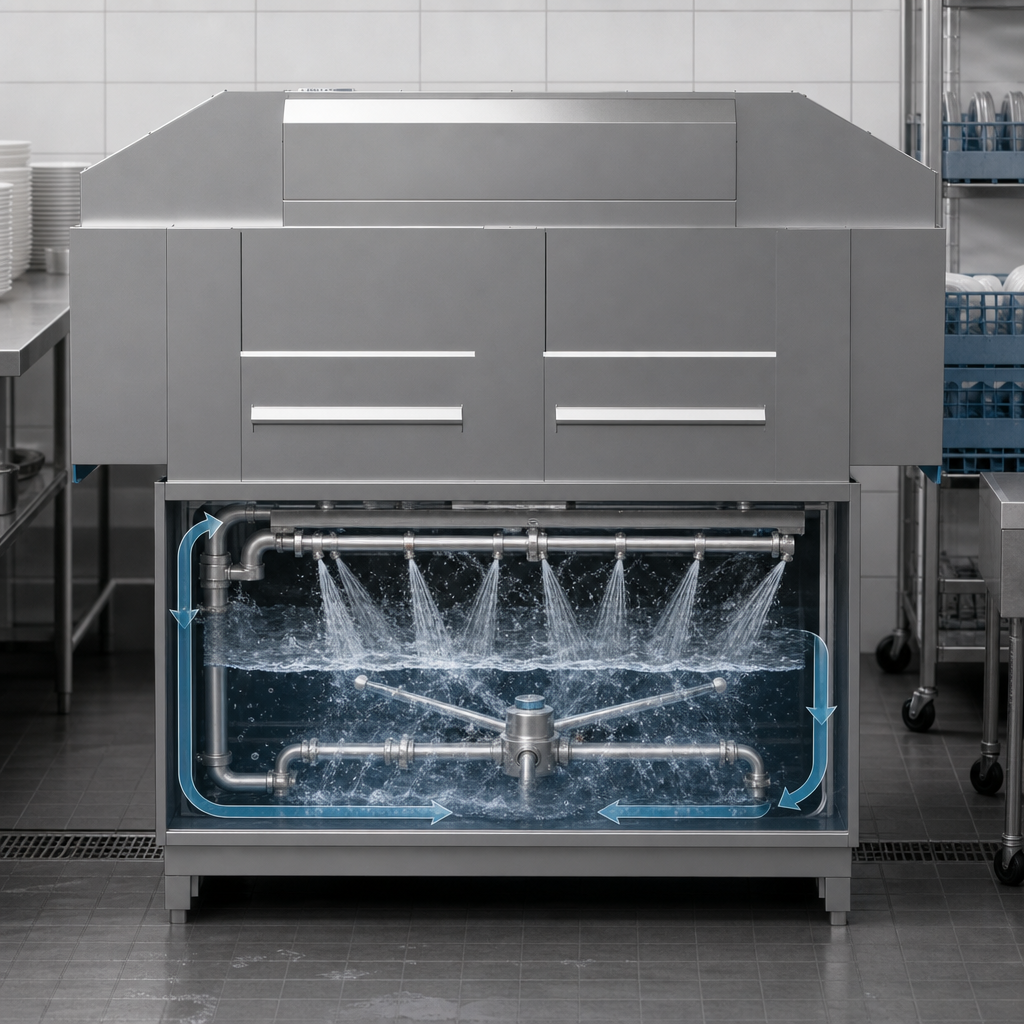

- CrossFire™ Wash System blasts all four sides of the rack for unbeatable soil removal.
- Dual HeatCore™ built-in boosters guarantee a 180 °F final rinse for NSF sanitation.
- SureFire factory start-up & check-out service included at no extra charge.
- Made in the USA with rugged 304 stainless-steel tanks, frame, and panels.
- ETLus & NSF listed for safety and performance compliance.
Throughput & Efficiency
- Up to 234 racks/hr (20" × 20") — roughly 5,225 dishes every hour.
- Recirculating pre-wash, wash, and fresh-water final rinse for lower utility costs.
- Water use: only 0.63 gal per rack @ 20 PSI.
- Built-in drain cool-down protects PVC plumbing and operators.
- Optional Heat & Energy Saving Transfer (HEST) system for additional heat recovery.
Built for Real-World Kitchens
- Telescoping doors and color-coded curtains make daily cleaning fast & intuitive.
- Secure, tethered wash-arm end caps—never lose another plug down the drain.
- Elevated, top-mounted controls stay dry and within easy reach.
- VFD-controlled continuous-drive conveyor for smooth, jam-free rack movement.
- Low-water protection and door safety switches safeguard the machine and staff.
Included Standard Features
- Automatic tank fill & override switch for de-liming
- 304 stainless-steel construction throughout
- Standard frame drip-proof motors
- Detergent & chemical connection provisions
- End-caps/pipe plugs secured to prevent loss
Popular Factory Options
- VaporGuard™ ventless condensation removal (recommended)
- Single-point electrical connection kit
- Electric or steam-coil tank heat alternatives
- Power Loader / Power Unloader modules
- Security package & rack-limit switch
Technical Specifications
| Racks per Hour | Up to 234 racks (20" × 20") |
|---|---|
| Dishes per Hour | Approx. 5,225 dishes |
| Fresh-Water Use | 0.63 gal/rack @ 20 PSI |
| Water Inlet Temp. | 110 °F minimum |
| Tank Capacities | Pre-wash 19.9 gal | Wash 33.75 gal |
| Heat Load (Total) | 16,232 BTU/hr |
| Electrical (Dual-Point) | 208 V/60/3 – 57.5 A | 240 V/60/3 – 50.8 A | 480 V/60/3 – 26 A |
| Booster Heat | 29.4 kW (Dual HeatCore™) |
| Motors | Wash 2 HP | Drive 1⁄15 HP (VFD) |
| Shipping Weight | ≈ 950 lb |
| Certifications | ENERGY STAR®, ETLus, NSF, Made in USA |
Need a full set-up? Contact our team for custom tabling, loaders/unloaders, corner configurations, and utility connection drawings.
