Insinger ADMIRAL (44") Dishwashers Conveyor Dishwashers
Description

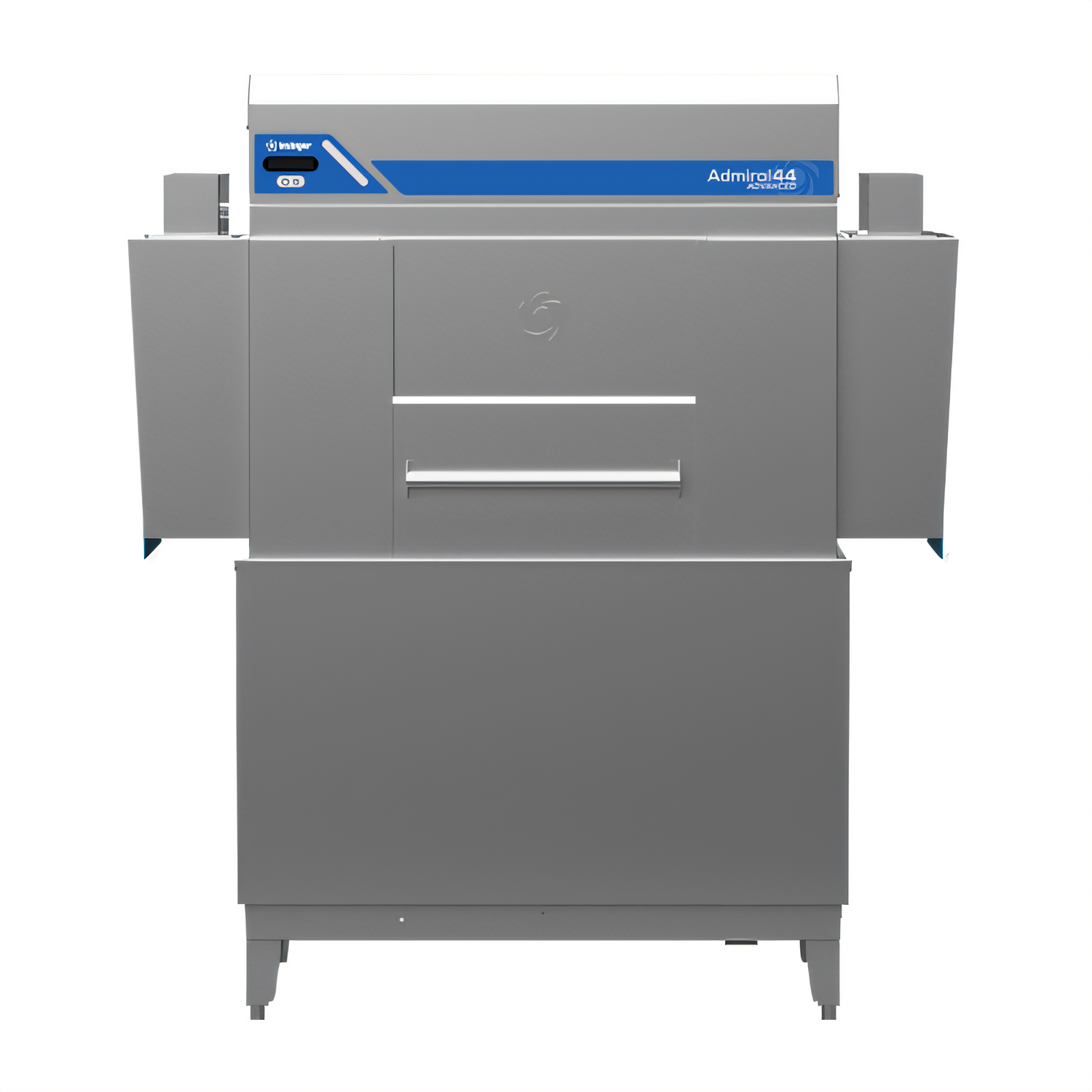

Insinger Admiral 44" Single-Tank Rack Conveyor Dishwasher
High-volume performance • 20" × 20" racks • ENERGY STAR® qualifiedDesigned, engineered and built in Philadelphia, the Admiral 44" delivers powerhouse cleaning for busy hotels, hospitals, schools and QSR kitchens while sipping just 0.63 gallons of water per rack. A dual built-in HeatCore booster and Insinger’s patented CrossFire Wash System combine to blast through up to 233 racks (≈5,825 dishes) every single hour— all in a compact, single-tank footprint that fits most 44" conveyor openings.
Why you’ll love the Admiral 44"

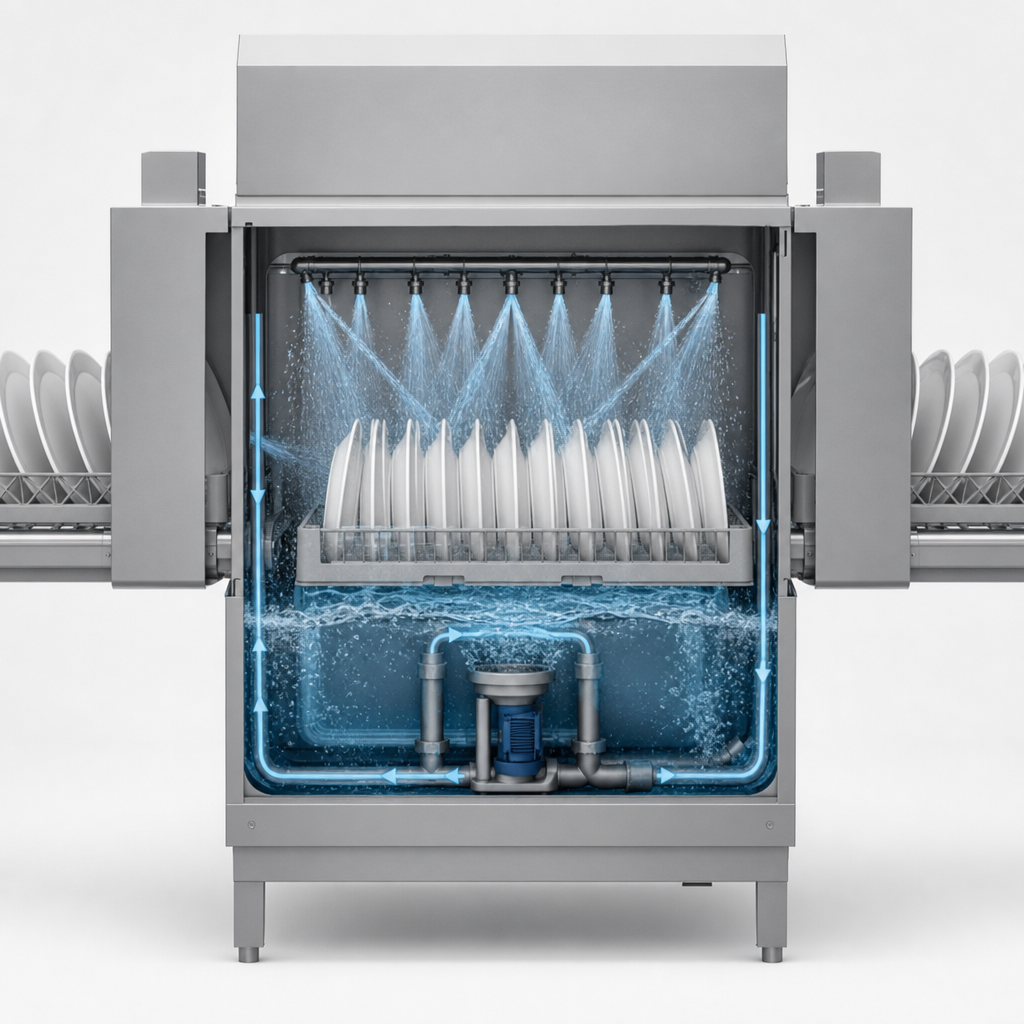

- CrossFire Wash System—multiple high-velocity V-jets attack food soil from every angle for spotless results.
- Ultra-low water & energy use—only 0.63 gal/rack and ENERGY STAR® certification help slash utility bills and qualify for rebates.

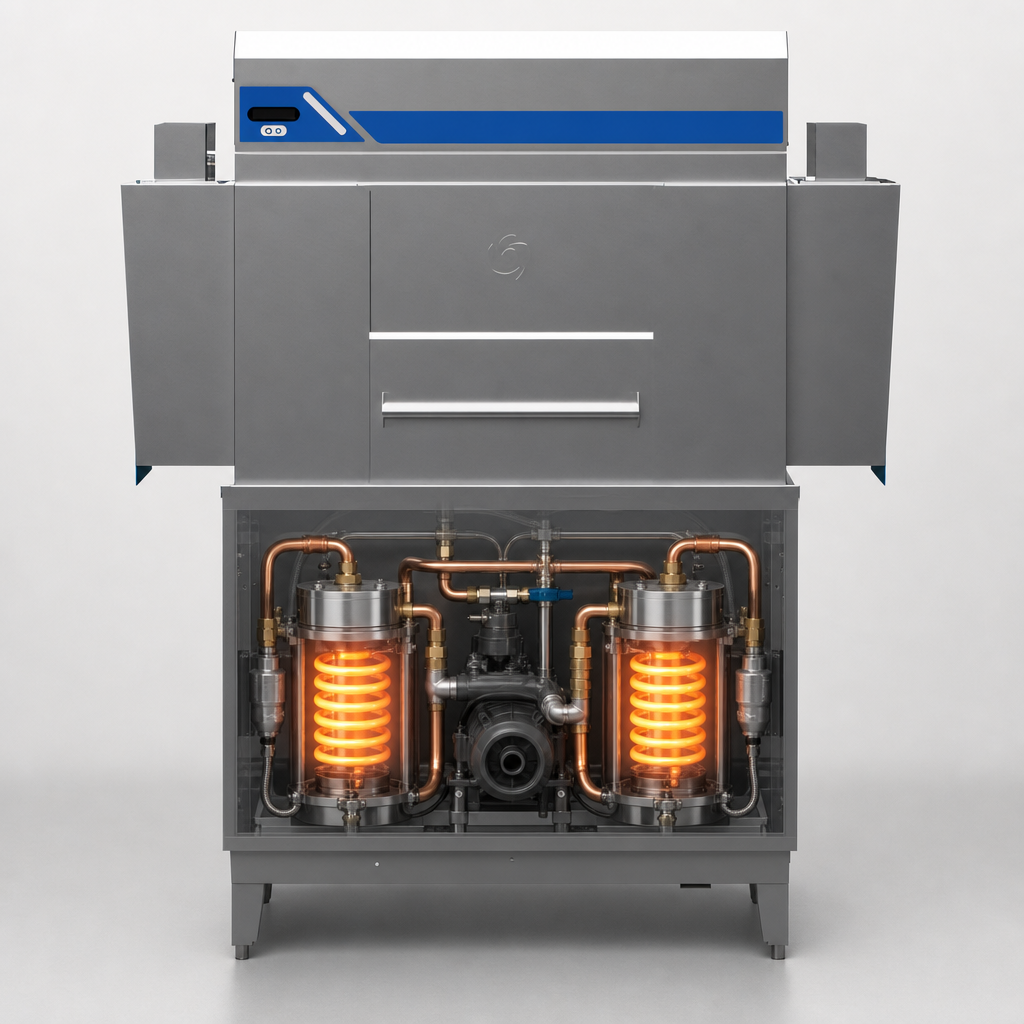

- Dual integrated HeatCore™ boosters raise rinse water to 180 °F for NSF-approved sanitizing—no external booster required.
- VFD-controlled continuous conveyor ensures smooth rack movement and gentle dish handling.
- Operator-first design—telescoping doors, color-coded curtains and tool-free, secured wash-arm end caps speed up daily cleaning.
- S/S 304 stainless steel construction, drip-proof motors and door safety switches stand up to years of heavy use.
- Made in the USA with ETLus, NSF & AQ certifications for worry-free code compliance.
Performance & utilities
| Rack capacity | 233 racks/hour (20" × 20") |
|---|---|
| Dishes per hour | ≈ 5,825 |
| Water use | 0.63 gal / rack @ 20 PSI |
| Wash tank capacity | 33.75 gal (recirculating) |
| Booster heat | 29.4 kW (dual built-in) |
| Tank heat | 18 kW electric (standard) |
| Electrical (dual-point) |
208 V/60/3 Ø – 56.5 A / 81.6 A 240 V/60/3 Ø – 49.8 A / 70.7 A 480 V/60/3 Ø – 25.0 A / 35.4 A |
| Vent requirement | 350 CFM (load) & 350 CFM (unload) |
| Dimensions (L × W × H) | 44" × 25" × 59" (overall, with doors closed) |
| Shipping weight | 750 lb |
Standard equipment
- Automatic tank fill & low-water protection
- Elevated, top-mounted NEMA 4 control panel
- Detergent and rinse-aid connection provisions
- Dual-point electrical connection with factory-installed vent-fan wiring
- Override switch for de-liming
- SureFire™ factory start-up & check-out service
Popular factory options
- Heat & Energy Saving Transfer (HEST) system
- Steam-coil or gas tank heat
- Power Loader / Power Unloader
- Single-point electrical connection kit
- Security package & rack limit switch
Certifications & warranty
- ETLus & ETLc listed
- NSF & AQ (Marine) certified
- ENERGY STAR® rated
- 1-year parts & labor limited warranty (18 months for marine applications)
Need help planning your dishroom layout or sizing ventilation? Contact our foodservice experts—your purchase includes complimentary CAD/REVIT files and utility rough-ins.
