Infrico USA

Infrico USA IMD-ERV36IIGD Back Bar Cooler, 1 Glass Swing Door, Stainless Steel, 36-1/4"W x 23-3/4"D x 34-1/2"H

SKU: IMD-ERV36IIGD
$4,207.55
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Back-Bar & Bottle Cooling Equipment Back-Bar Refrigerators Bar & Beverage Refrigeration Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators Infrico USA New Arrivals Refrigeration & Ice Restaurant Equipment

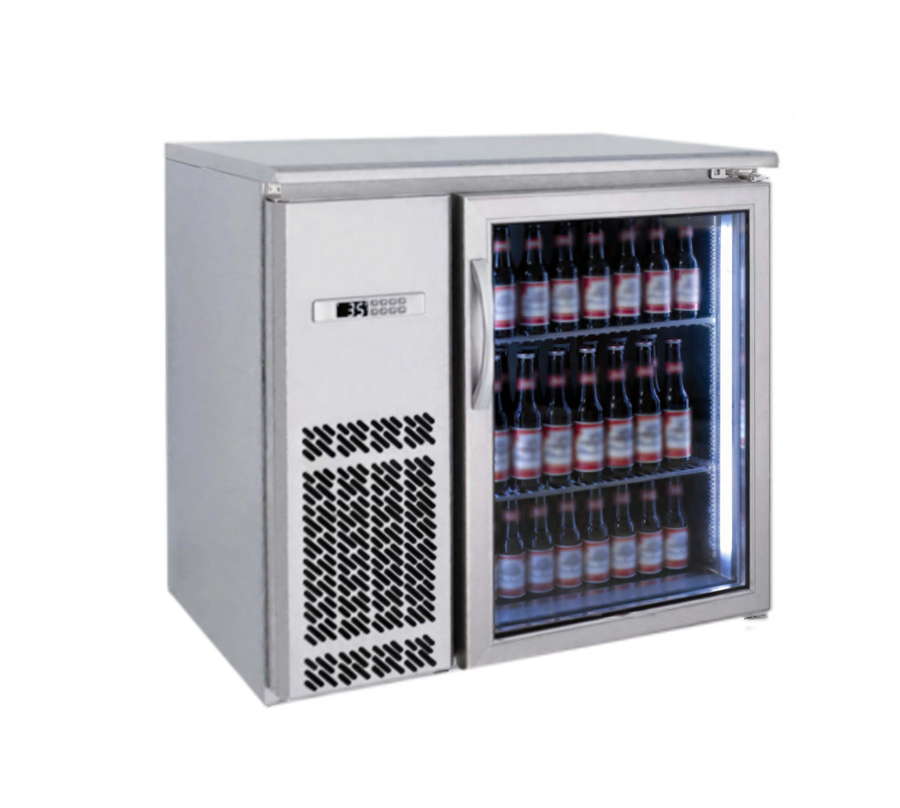

The Infrico USA IMD-ERV36IIGD is a one-section back bar cooler with 5.72 cu. ft. of capacity, a stainless steel cabinet, and one hinged thermopane double-glass door with a lock.

  • Self-contained, side-mounted refrigeration with front-breathing airflow
  • Digital temperature control, automatic defrost, and LED interior lighting
  • Two plastic-coated wire shelves and adjustable levelling feet
  • R290 refrigerant and a non-electric condensate pan

Overall Dimensions:

36.25"W x 23.75"D x 34.5"H

Product Weight:

290.0 lb

Thermopane glass door

The single hinged door uses thermopane double glass, includes a lock, and has a self-closing system with a stay-open feature.

Stainless steel construction

The interior and exterior use AISI 430 stainless steel, with a stainless steel top.

Storage shelving

Includes two plastic-coated wire shelves with removable shelf brackets for cleaning.

Temperature control

A digital temperature controller supports a specified operating range of 33°F to 38°F.

Front-breathing refrigeration

The self-contained refrigeration system is side mounted and designed for front-breathing airflow.

LED interior lighting

LED lighting illuminates the cooler interior.

Automatic defrost

The refrigeration system includes automatic defrost and a non-electric condensate pan.

R290 refrigeration system

Uses R290 refrigerant with a 1/5 HP compressor.

Capacity 5.72 cu. ft.
Temperature Range 33°F to 38°F (0°C to +4°C)
Door Configuration 1 hinged thermopane double-glass door
Door Features Self-closing system, stay-open feature, triple-chamber snap-in gasket, and door lock
Door Opening 19-5/8 in. W x 26-7/8 in. H
Shelves 2 plastic-coated wire shelves
Refrigeration Location Self-contained, side mounted
Airflow Front breathing
Temperature Control Digital temperature controller
Defrost Automatic
Interior Lighting LED
Interior and Exterior Material AISI 430 stainless steel
Top Material Stainless steel
Refrigerant R290
Compressor 1/5 HP
Electrical Connection 115 V, 1 phase, 60 Hz
Plug NEMA 5-15P
Required Breaker 15 A
Condensate Management Non-electric condensate pan
Refrigeration Capacity 867 Btu/h at 14°F (254 W at -10°C)
Insulation CFC-free polyurethane insulation; low GWP and zero ODP effect

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

For products shipped on or after February 1, 2024, the warranty provides 5 years on parts and labor plus an additional 7-year warranty on the compressor, parts only.

Documents

PDF Cutsheet PDF Download PDF Freight program PDF Download PDF Warranty announcement 2023 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The specified temperature range is 33°F to 38°F (0°C to +4°C).
The cooler includes two plastic-coated wire shelves.
Yes. The single hinged thermopane double-glass door includes a door lock.
The product measures 36.25 in. wide by 23.75 in. deep by 34.5 in. high and weighs 290 lb.
The specified connection is 115 V, single phase, 60 Hz with a NEMA 5-15P plug; 15 A breakers are required.
