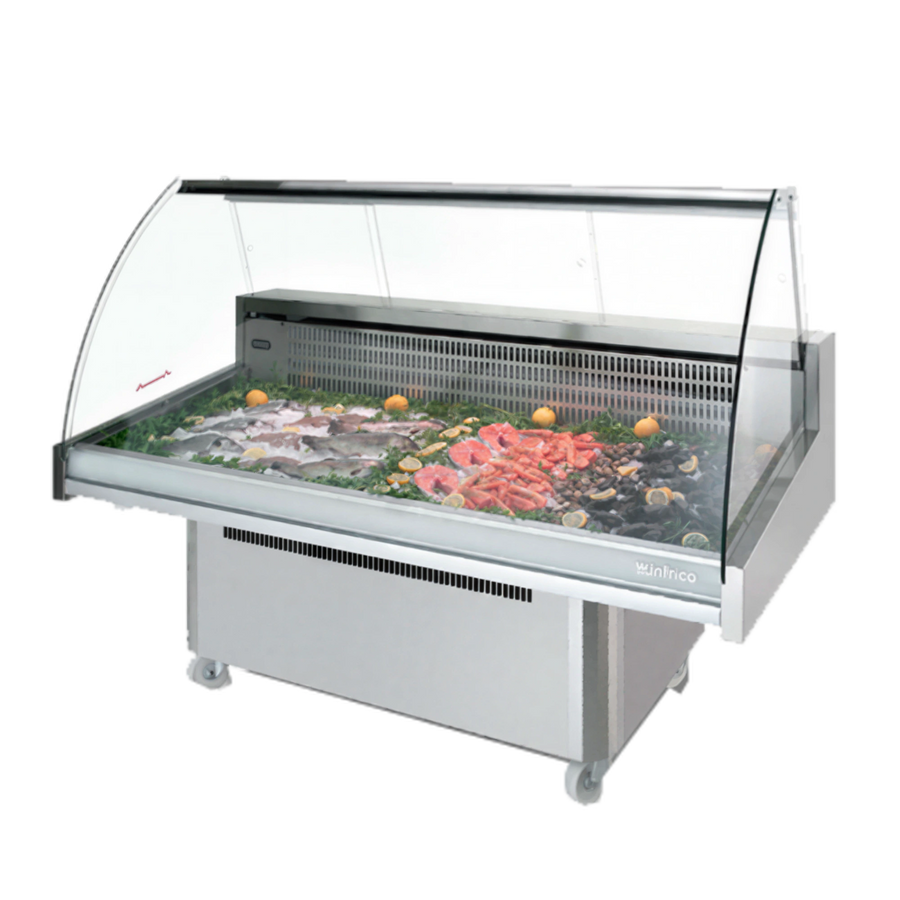

Infrico USA IDC-VML18 Refrigerated Fish Display Case, 77"W, Curved Tempered Glass, Stainless Steel

SKU: IDC-VML18
$6,730.02
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Infrico USA IDC-VML18 is a refrigerated fish display case measuring 77 inches wide, with 12.81 cu. ft. capacity and curved tempered front glass with a lift-up system.

  • Self-contained refrigeration uses a static evaporator with gravity coil and cold plate on the bottom.
  • Features include a digital controller, rear sliding windows, internal drain, and LED lighting.
  • The cabinet has 300 series stainless steel interior and exterior surfaces, with a stainless steel worktop on the back.
  • The case has a 38 lb. ice load capacity and 7/8 HP refrigeration power.

Overall Dimensions:

77.0"W x 35.44"D x 52.56"H

Product Weight:

540.0 lb

Refrigerated fish display

Refrigerated fish display case with 12.81 cu. ft. capacity and self-contained refrigeration.

Curved tempered front glass

Curved tempered front glass with a lift-up system.

Static evaporator and cold plate

Static evaporator with gravity coil and cold plate refrigeration system on the bottom.

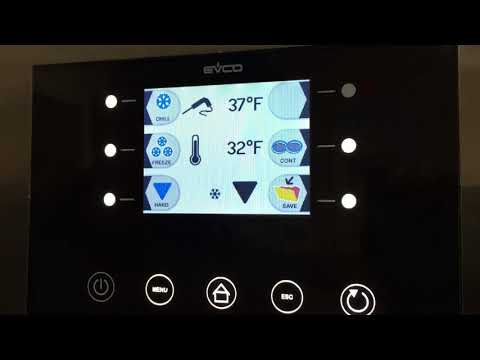

Digital controller

Digital controller for temperature and defrost regulation.

Rear sliding windows

Sliding windows are provided at the rear of the case.

Stainless steel construction

300 series stainless steel interior and exterior with a stainless steel worktop on the back.

LED lighting

Interior LED lighting.

Internal drain

Internal drain for the display case.

Ice load capacity

Rated for a 38 lb. ice load.

Related Searches

Best Sellers Display Refrigeration Food Displays & Merchandisers Infrico USA New Arrivals Refrigerated Deli, Bakery & Sushi Cases Refrigerated Display Case Equipment Refrigerated Display Cases Refrigeration & Ice Restaurant Equipment
Case Type Refrigerated fish display case
Capacity 12.81 cu. ft.
Width 77 in.
Depth 35.44 in.
Height 52.56 in.
Front Glass Curved tempered glass with lift-up system
Refrigeration System Self-contained; static evaporator with gravity coil and cold plate on bottom
Temperature Control Digital controller
Rear Access Sliding windows
Ice Load Capacity 38 lb.
Interior Finish 300 series stainless steel
Exterior Finish 300 series stainless steel
Worktop Stainless steel, back
Drain Internal
Lighting LED
Refrigeration Power 7/8 HP
Electrical Connection 115 V / 1 ph / 60 Hz
Defrost Manual
Refrigerant R134a
Condensation System Ventilated

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

For products in the Infrico USA line shipped on or after February 1, 2024, the supplied warranty sheet states 5-year parts and labor coverage plus an additional 7-year compressor-parts warranty.

Documents

PDF Cutsheet PDF Download PDF Freight program PDF Download PDF Warranty announcement 2023 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The listed capacity is 12.81 cu. ft.
The case is 77 in. wide, 35.44 in. deep, and 52.56 in. high.
It uses curved tempered front glass with a lift-up system.
It uses self-contained refrigeration with a static evaporator, gravity coil, and cold plate system on the bottom.
The cutsheet specifies 115 V, 1 phase, 60 Hz, with a NEMA 5-20P plug.
The ice load capacity is 38 lb.
The listed certifications are cETLus and ETL-Sanitation.
