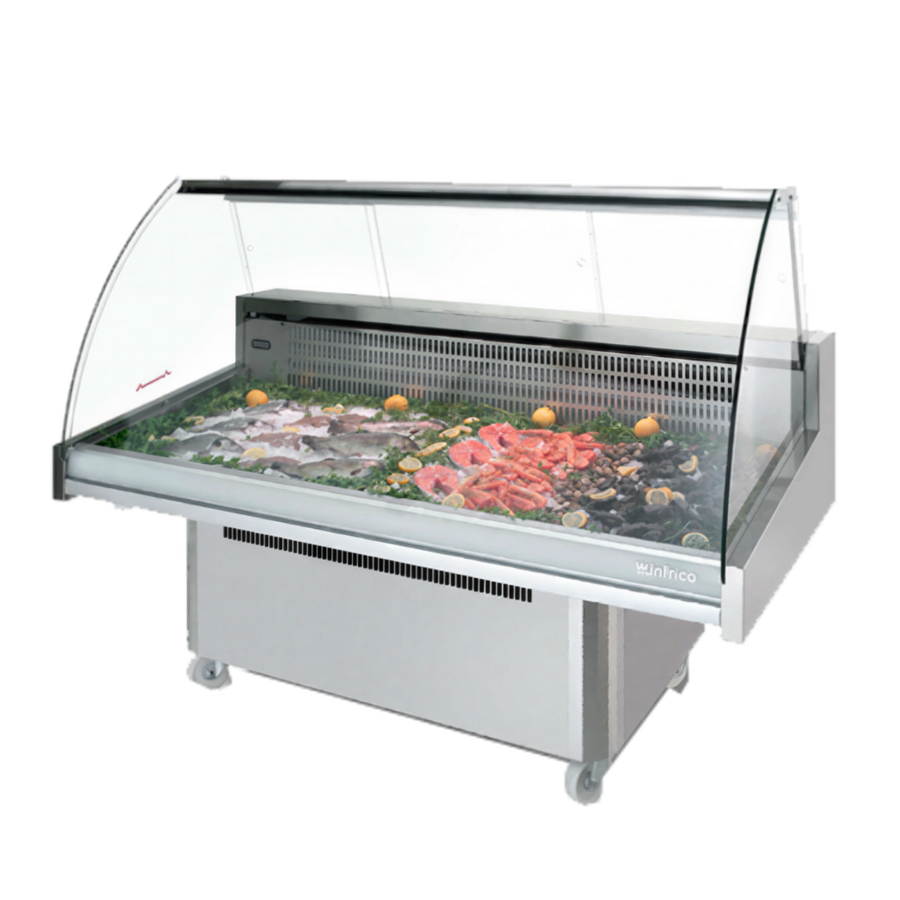

Infrico USA IDC-VML15 Refrigerated Fish Display Case, 64-5/8"W, Curved Tempered Glass, Stainless Steel

SKU: IDC-VML15
$6,496.25
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Display Refrigeration Food Displays & Merchandisers Infrico USA New Arrivals Refrigerated Deli, Bakery & Sushi Cases Refrigerated Display Case Equipment Refrigerated Display Cases Refrigeration & Ice Restaurant Equipment

The Infrico USA IDC-VML15 is a refrigerated fish display case with 8.4 cu. ft. of capacity, curved tempered front glass with a lift-up system, and rear sliding windows.

It features a digital controller, LED lighting, stainless steel interior and exterior construction, an internal drain, and a static evaporator with gravity coil and cold plate refrigeration system on the bottom.

  • 32 lb. ice load capacity
  • Stainless steel rear worktop
  • Self-contained refrigeration
  • 115 V electrical connection with NEMA 5-20P plug

Overall Dimensions:

64.63"W x 35.44"D x 52.56"H

Product Weight:

485.0 lb

Curved tempered front glass

The front glass is curved, tempered, and equipped with a lift-up system.

Refrigerated fish display

The case uses self-contained refrigeration with a static evaporator, gravity coil, and cold plate system on the bottom.

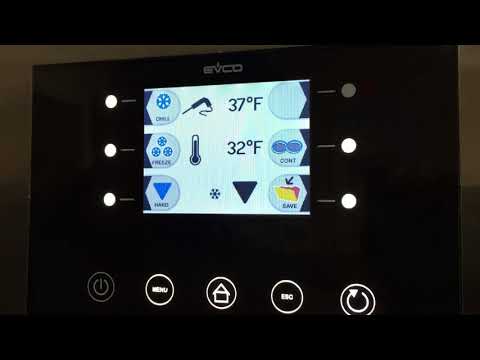

Digital controller

Temperature and defrost are regulated by a digital controller.

Stainless steel construction

The interior and exterior use 300 series stainless steel, with a stainless steel worktop on the back.

LED interior lighting

Interior LED lighting illuminates the display cabinet.

Rear sliding windows

Rear sliding windows provide access to the display case.

Internal drain

An internal drain supports evacuation of cleaning liquids.

Ice load capacity

The display case supports a 32 lb. ice load capacity.

Product type Refrigerated fish display case
Series VML Malaga Series
Width 64.63 in
Depth 35.44 in
Height 52.56 in
Capacity 8.4 cu. ft.
Ice load capacity 32 lb.
Temperature range 30°F to 34°F (-1°C to +1°C)
Refrigerant R134a
Compressor power 1/2 HP
Electrical connection 115 V / 1 ph / 60 Hz
Current 7.6 A
Refrigeration system Static evaporator with gravity coil and cold plate on the bottom
Condensation system Ventilated
Defrost Manual
Controller Digital
Front glass Curved tempered glass with lift-up system
Rear access Sliding rear windows
Interior finish 300 series stainless steel
Exterior finish 300 series stainless steel
Worktop Stainless steel worktop on the back
Lighting LED
Drain Internal drain
Plug NEMA 5-20P
Insulation CFC-free polyurethane, foamed in place
Refrigeration capacity 4122 Btu/h at 14°F / 1208 W at -10°C
Standards compliance UL 471 and NSF 7

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

For units shipped on or after February 1, 2024, Infrico USA provides a 5-year warranty on parts and labor plus an additional 7-year warranty on the compressor, parts only.

Documents

PDF Cutsheet PDF Download PDF Freight program PDF Download PDF Warranty announcement 2023 PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The IDC-VML15 has an 8.4 cu. ft. capacity.
The case is 64.63 in. wide, 35.44 in. deep, and 52.56 in. high.
It uses curved tempered front glass with a lift-up system.
The ice load capacity is 32 lb.
It requires 115 V / 1 ph / 60 Hz power and includes a NEMA 5-20P plug.
It uses a static evaporator with gravity coil and cold plate refrigeration on the bottom, with self-contained refrigeration.
Yes. The case includes LED interior lighting.
