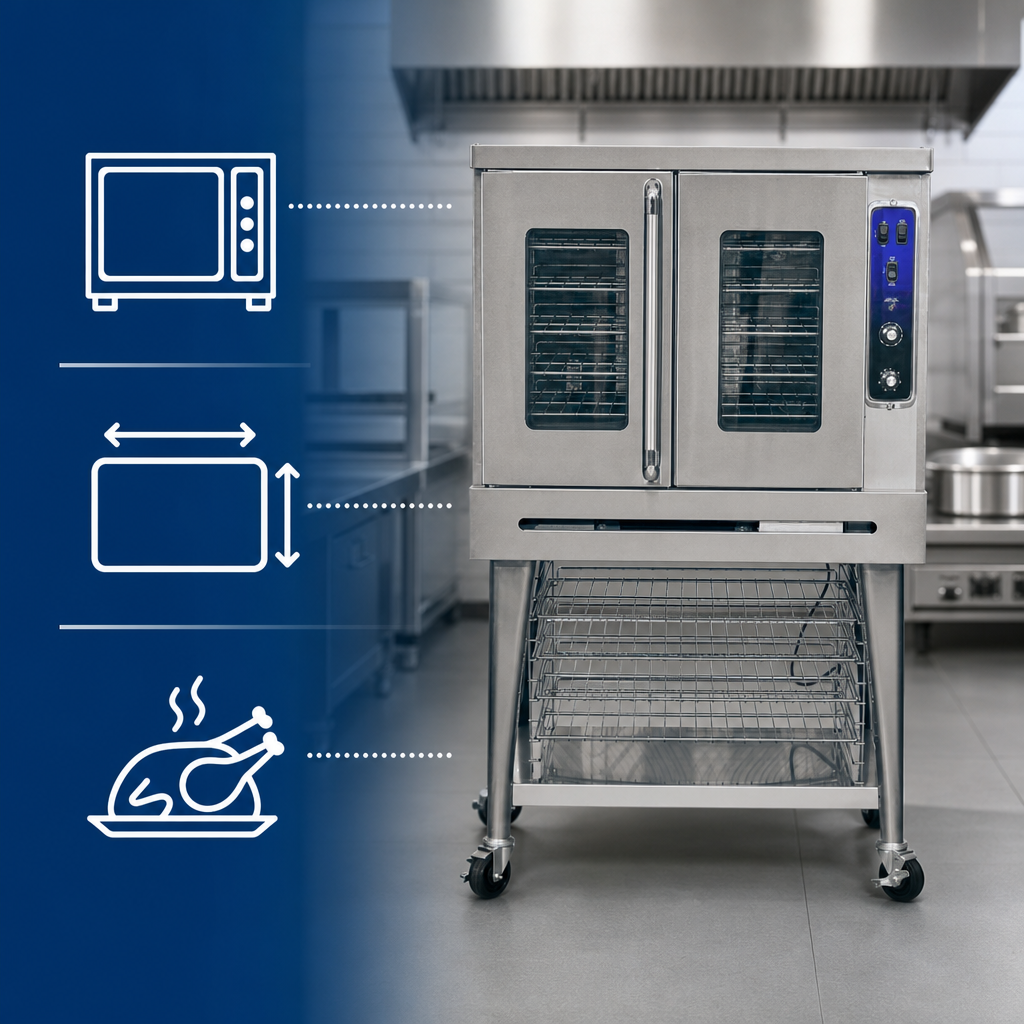

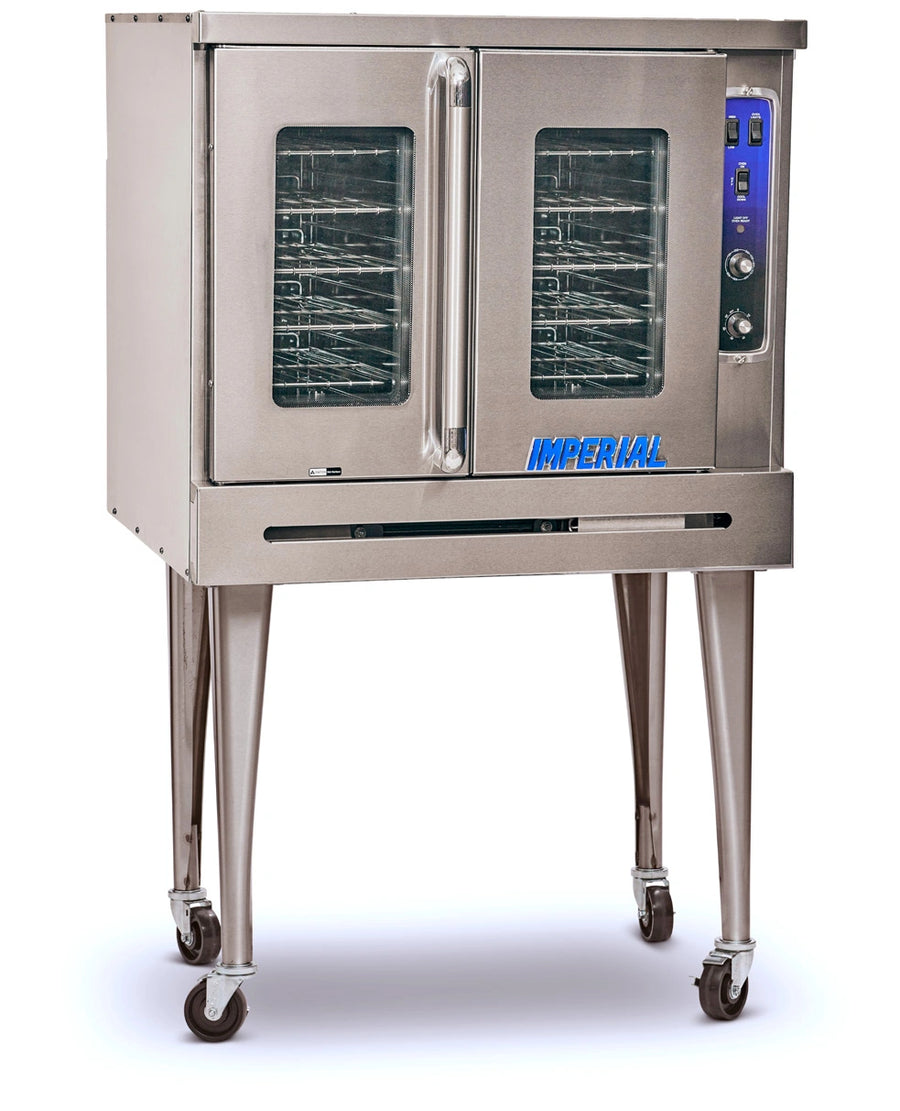

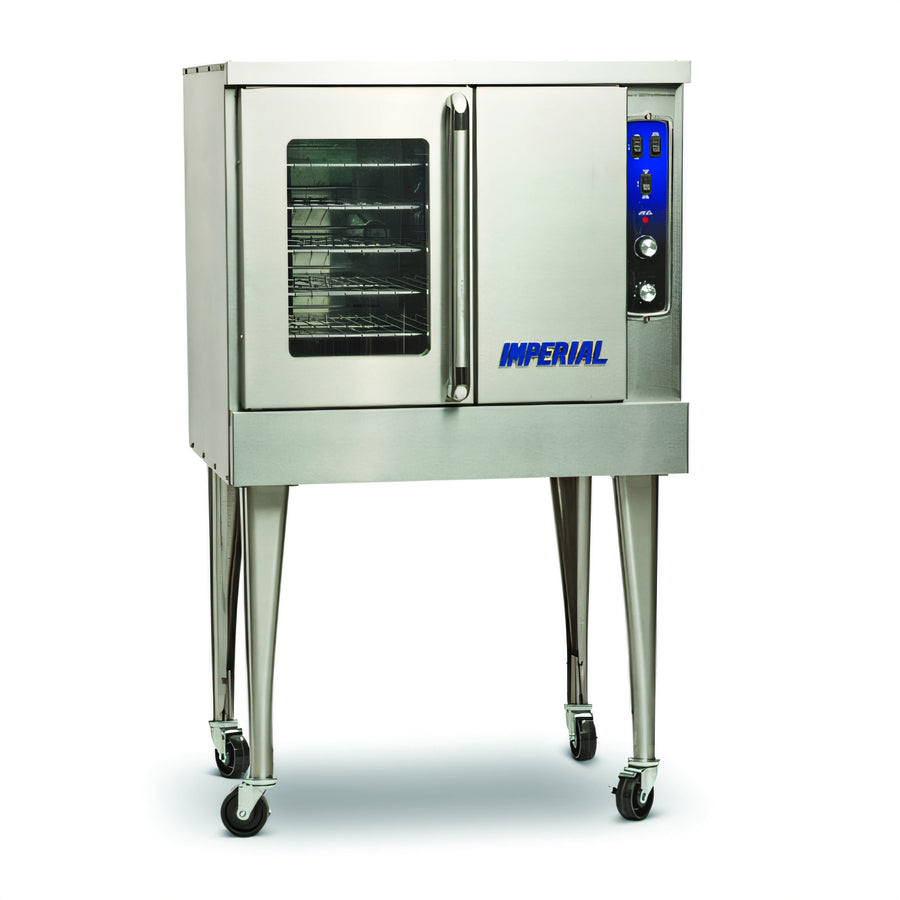

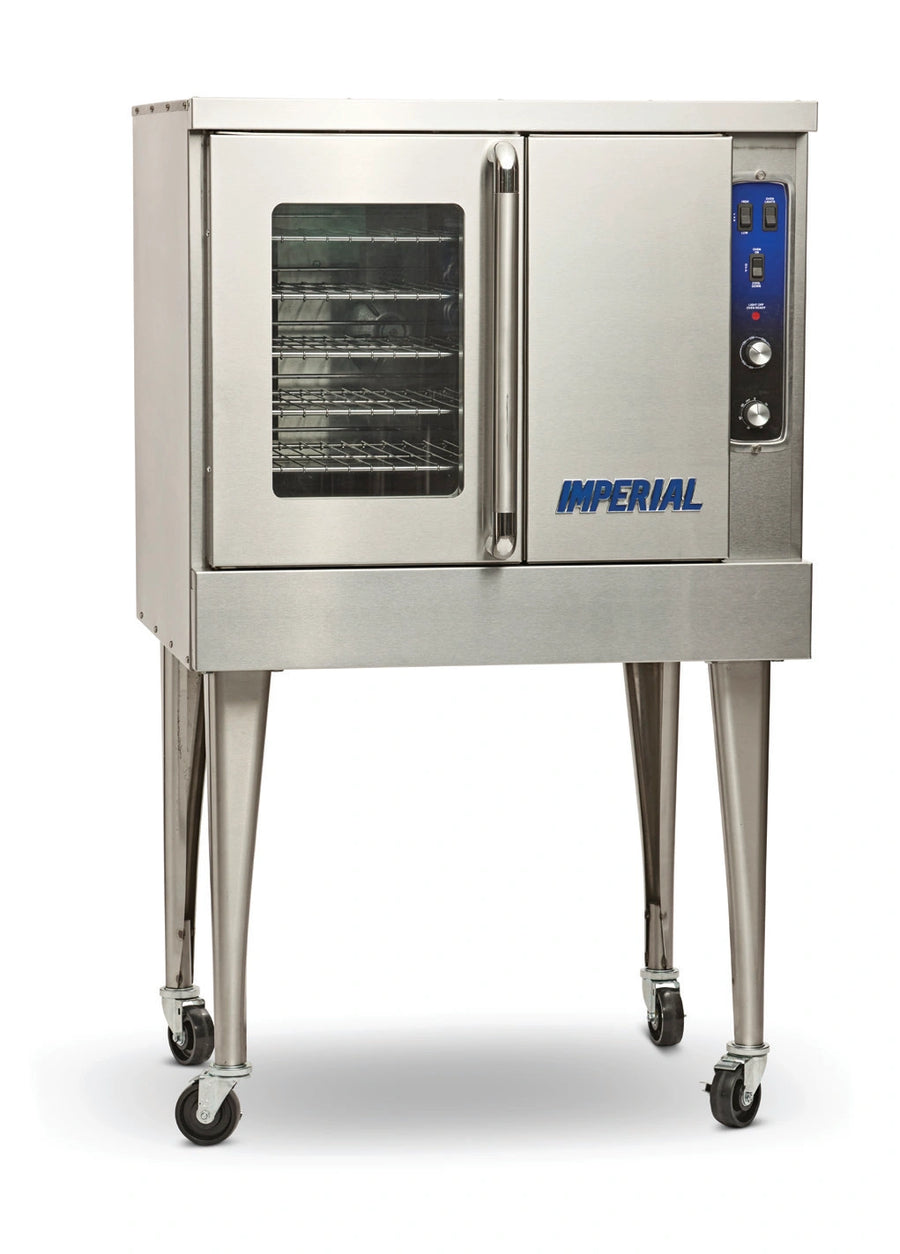

Imperial PCVG-1 Gas Convection Oven – Single Deck (Quick Ship)
70,000 BTU • Manual Controls • Ships in 1–2 Business DaysGet reliable, even baking in a hurry. The Imperial PCVG-1 delivers 70,000 BTU of consistent heat, a rugged ½ HP two-speed fan, and the durability of an all-stainless exterior—ready to leave our warehouse within 48 hours.
Why You’ll Love It
- One-hand, dual 60/40 doors open together for fast, ergonomic loading.
- Large, dual-pane window & two interior lights offer a clear view of every batch.

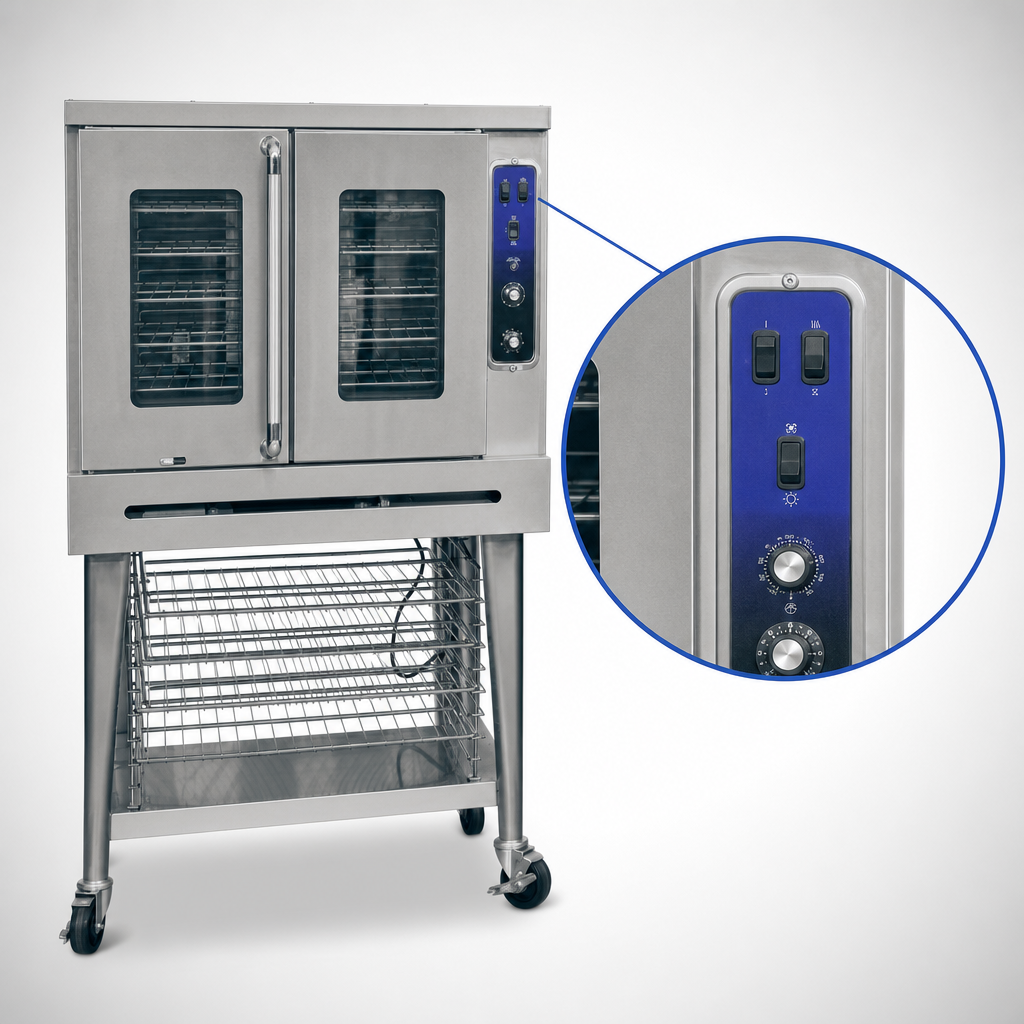

- Manual precision – independent time & temperature knobs, 60-minute audible timer, and a snap-action thermostat (150 – 500 °F).
- 2-speed ½ HP fan (roast or bake) moves heat evenly across all rack positions.
- Five chrome racks & 10 positions maximize capacity for trays, sheet pans, or hotel pans.
- Porcelainized interior with coved corners wipes clean in seconds.
- Stainless steel front, sides, doors, top & 6" legs stand up to heavy commercial use.
- Certified safe & compliant – cETLus, NSF, CE, CSA Flame & STAR listed.
Technical Specifications
| Model | PCVG-1 (Standard Depth) |
|---|---|
| Heat Source | Natural or LP Gas, 70,000 BTU / 21 kW |
| Controls | Manual time & temp, 2-speed fan switch, 60 min timer with buzzer |
| Motor | ½ HP, two-speed |
| Capacity | (5) full-size racks, 10 rack positions |
| Interior Finish | Porcelainized steel, coved corners |
| Exterior Finish | Stainless steel front, sides, doors, top & legs |
| Electrical | 120 V / 1-Ph / 50–60 Hz, 9 A |
| Gas Connection | ¾" NPT, 5.0" W.C. Natural • 10.0" W.C. LP |
| Dimensions (W × D × H) | 38" × 41-½" × 64" (with legs) |
| Shipping Weight | ≈ 521 lb / 236 kg |
| Certifications | cETLus, NSF, CE, CSA Flame, CSA Star |
| Warranty | 1 year parts & labor (Imperial) |
Need it now? This Middleby Essentials item leaves our dock in just 1–2 business days—perfect for tight project timelines or emergency replacements.
Preserve cash flow with fixed monthly payments—apply for equipment financing in minutes.
Important: Professional installation and a level, non-combustible floor or 2-¼" curb overhang are required. Follow all local codes. Warranty service must be performed by an authorized Imperial service agency.
$5,978.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Fast-ship Imperial (Middleby) gas convection oven — 1-deck, dual-door, 5-rack porcelain interior, 70,000 BTU, stainless steel, NSF certified.
Manufacturer
Imperial (Middleby)
Certifications
NSF, CE, cETLus, CSA Star, CSA Flame
Height
64.0in
Width
38.0in
Depth
41.5in
Shipping Weight
521.0lbs
Base
casters
Exterior Finish
stainless steel front & sides
Deck Qty
1 deck
Interior Finish
porcelain interior
Control Type
thermostatic controls
Capacity per Compartment
5 pan capacity, per compartment
Size
full/standard size
Type
standard
Specifications
(QUICK SHIP) (MIDDLEBY ESSENTIALS ITEM) Convection Oven, gas, (1) deck, manual controls, (2) speed fan motor, dual open 50/50 doors, window, (5) racks, interior lights, porcelain interior, stainless steel front, sides, doors, top & legs, 120v/50/60/1-ph, 9.0 amps, 1/2 HP, 70,000 BTU, cETLus, NSF, CE, CSA Flame, CSA Star (Ships within 1-2 days)
