Imperial (Middleby) MSQ-60 Wood/Charcoal Grills
Description

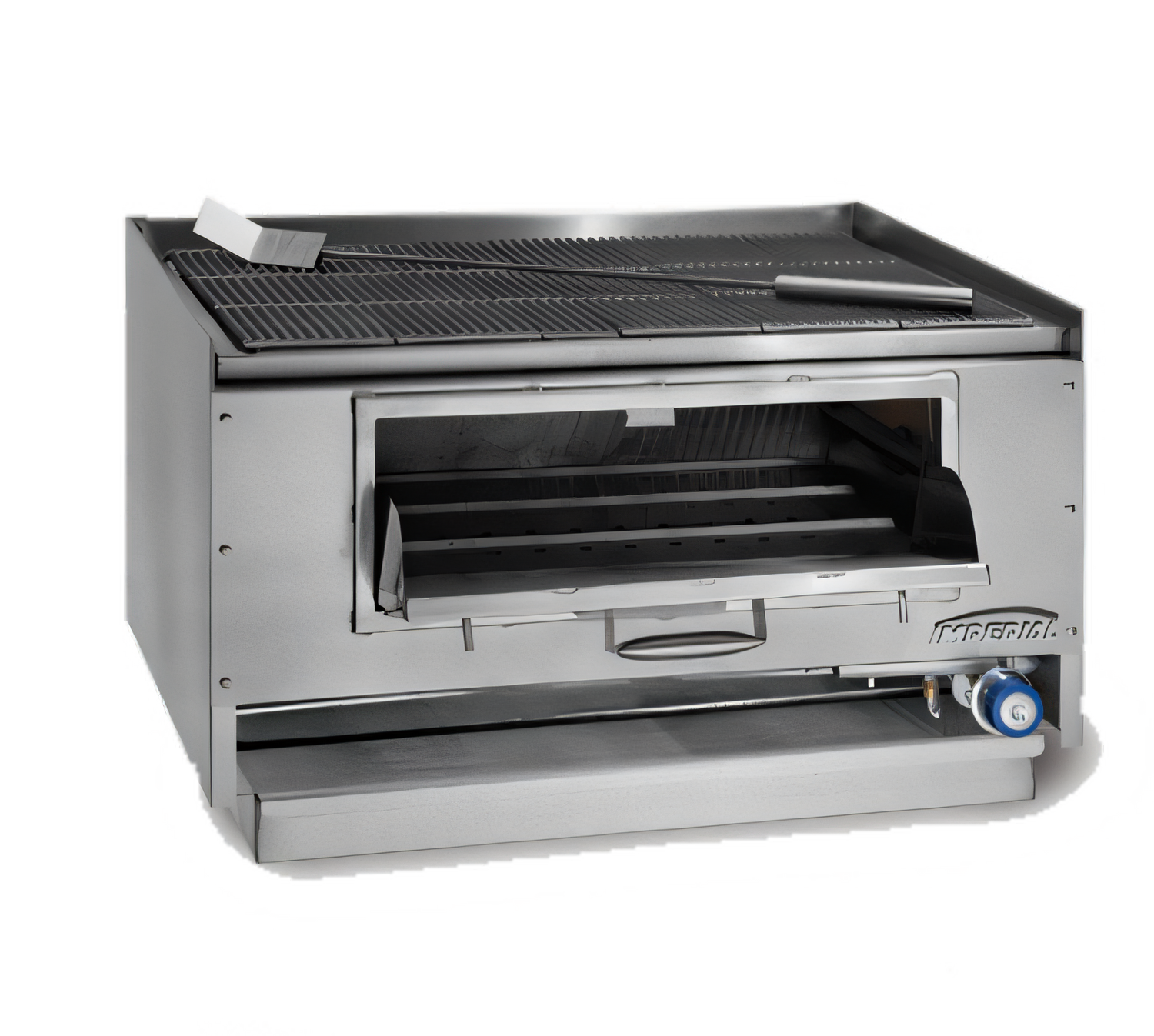

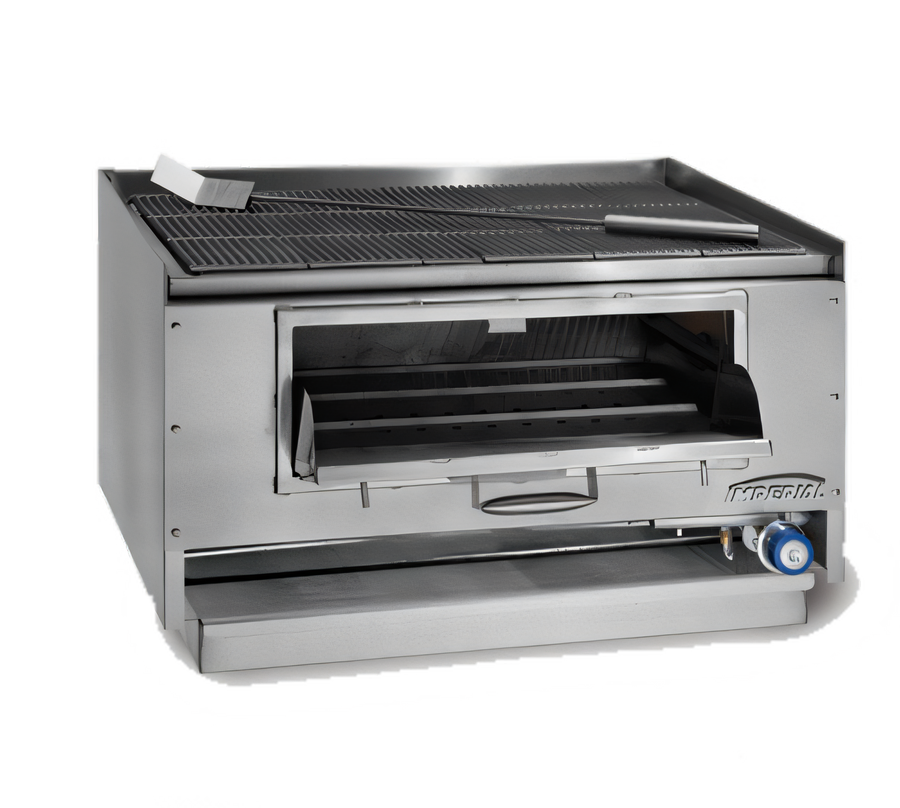

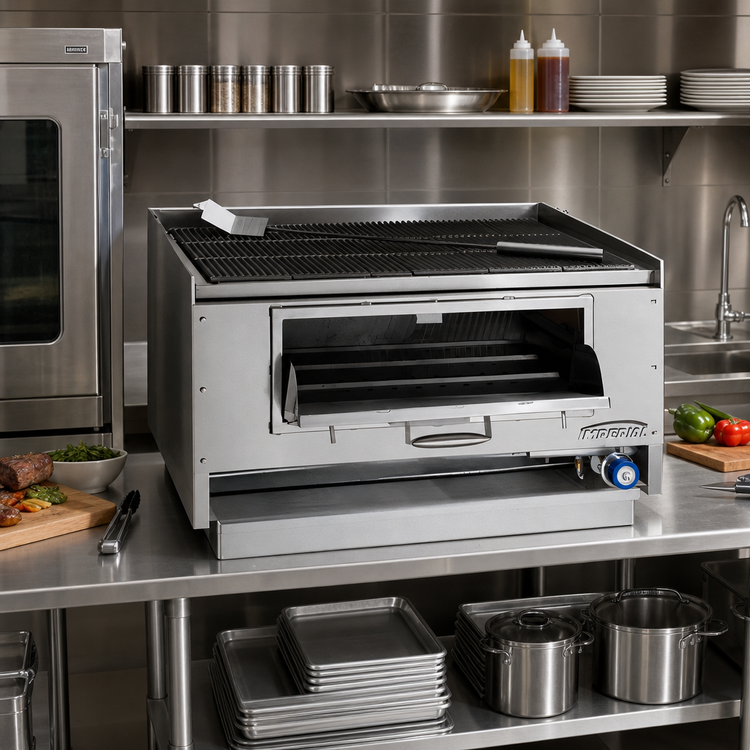

Imperial MSQ-60 Mesquite Wood Broiler – 60" Countertop
40,000 BTU • Natural or Propane Gas • NSF CertifiedGive your guests unmistakable wood-fired flavor with the Imperial MSQ-60 Mesquite Wood Broiler. This 60-inch countertop unit combines a built-in gas log lighter with rugged cast-iron grates, so you can fire up hardwood or charcoal in minutes and keep the heat roaring through the busiest service.
Key Advantages
- Front chute lets staff add wood or charcoal on the fly—no grate removal required.

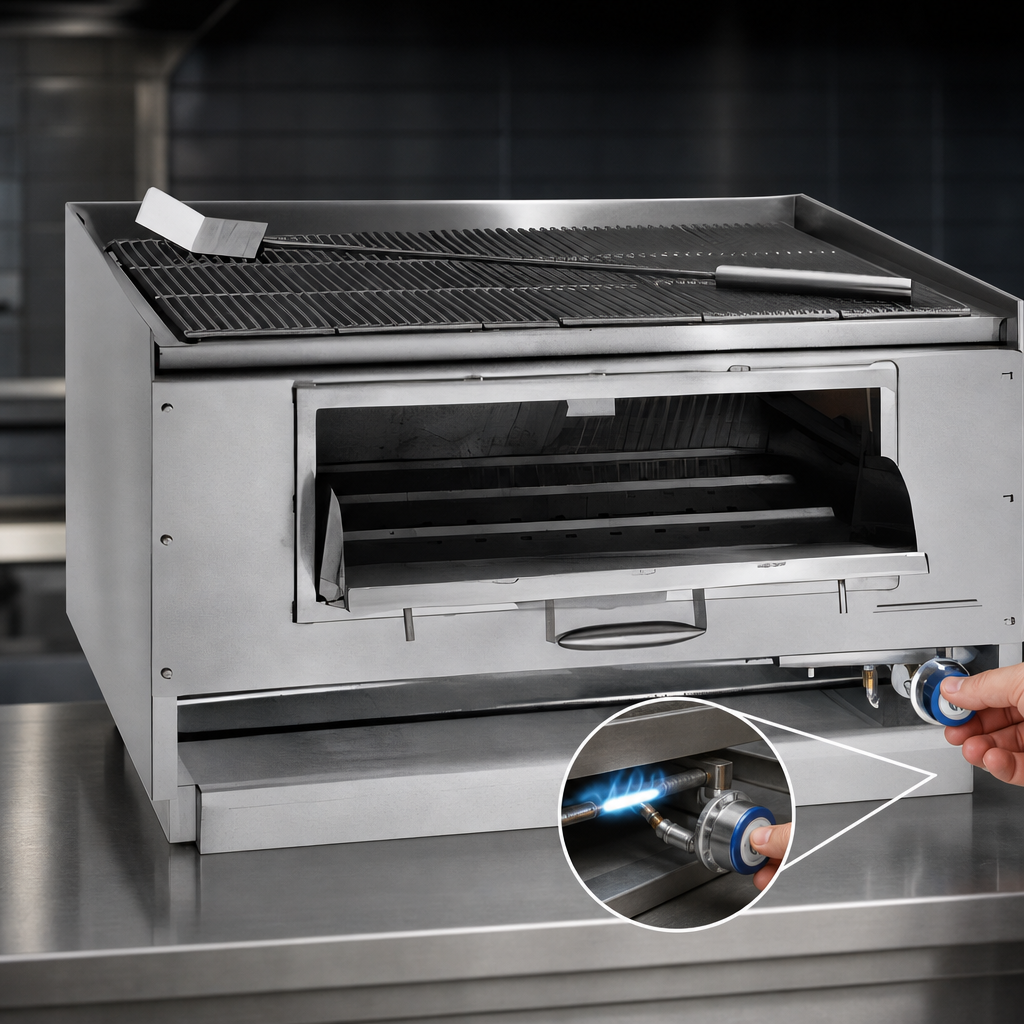

- Integrated gas log lighter eliminates messy lighter fluid and electric starters.
- Two removable 20,000 BTU “I” burners (total 40,000 BTU / 12 kW) for rapid start-up and recovery.

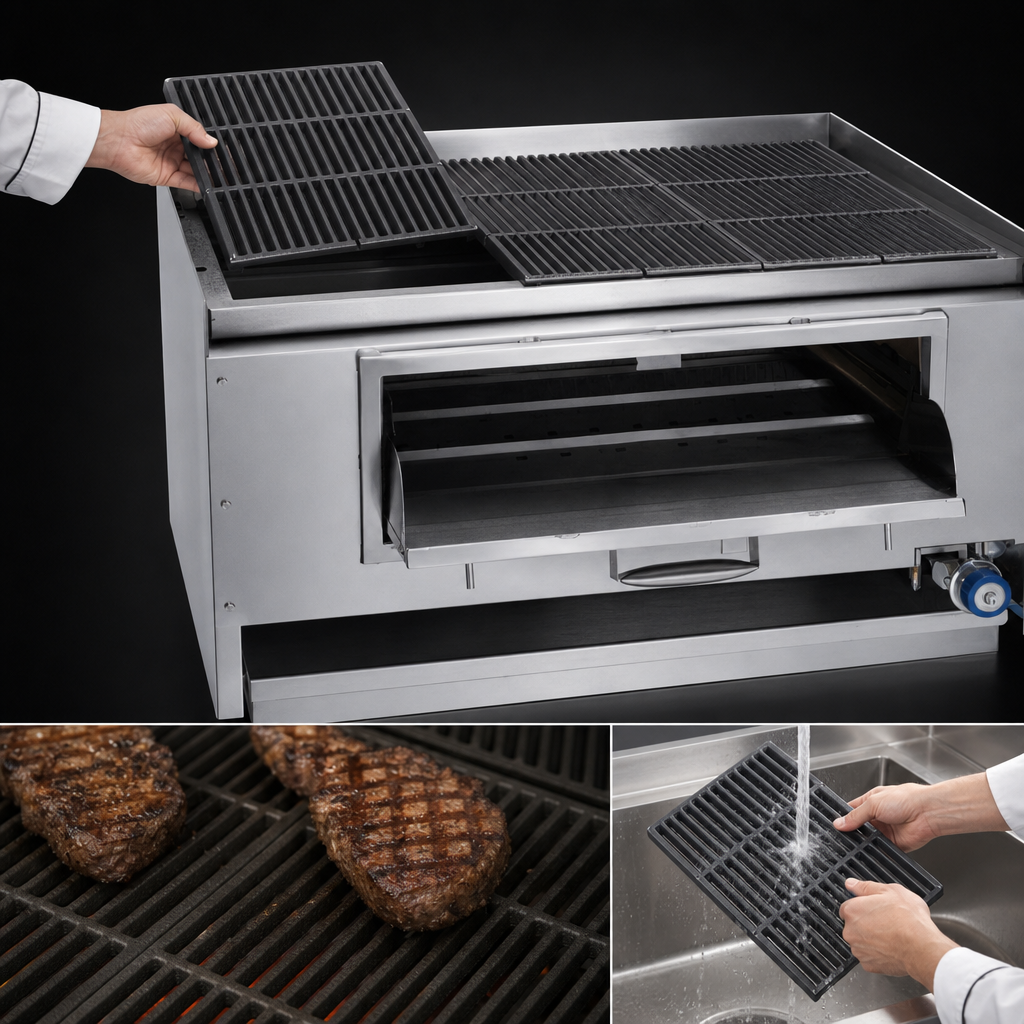

- Heavy-duty 9-bar cast-iron grates (6" × 24" sections) create steakhouse-quality markings and lift out for cleaning.
- Open grate bottom maximizes air flow for hotter fires and lower wood/charcoal consumption.
- Stainless steel front & sides with welded seams withstand daily commercial abuse.
- Fully insulated cooktop conserves energy and keeps exterior surfaces cooler.
- Drip tray captures excess grease to maintain a clean, safe workspace.
- 4" stainless steel adjustable legs for a stable, sanitary countertop installation.
- NSF listed and backed by a 1-year parts & labor warranty.
Built for High-Volume Performance
- Accepts any hardwood or charcoal, giving chefs creative control over smoke profile.
- Control knobs fashioned from cast aluminum with Valox™ heat-protective grips.
- Tool-free burner removal speeds up end-of-shift cleaning and maintenance.
- Optional accessories: stainless steel equipment stands, casters, round-rod chicken grates, quick-disconnect gas hose, and welded-on legs or drip tray.
Technical Specifications
| Model | MSQ-60 |
|---|---|
| Cooking Surface Width | 60" / 1524 mm |
| Depth | 27" / 686 mm |
| Height (with legs) | 23" / 584 mm |
| Burners | 2 × “I” burners, 20,000 BTU each |
| Total Heat Output | 40,000 BTU / 12 kW |
| Gas Connection | 3/4" NPT (rear) |
| Manifold Pressure | 5" W.C. Natural • 10" W.C. LP |
| Shipping Weight | 455 lb / 206 kg |
| Certifications | NSF, ANSI Z83.11/CSA 1.8 (gas restaurant ranges) |
Installation & Clearance
- Legs or an equipment stand are required on non-combustible surfaces.
- Clearance: 0" sides/rear from non-combustible surfaces; 8" (203 mm) from combustible surfaces.
- Always connect to a properly sized, code-approved gas supply with suitable ventilation.
