Imperial (Middleby) MSQ-48 Wood/Charcoal Grills
Description

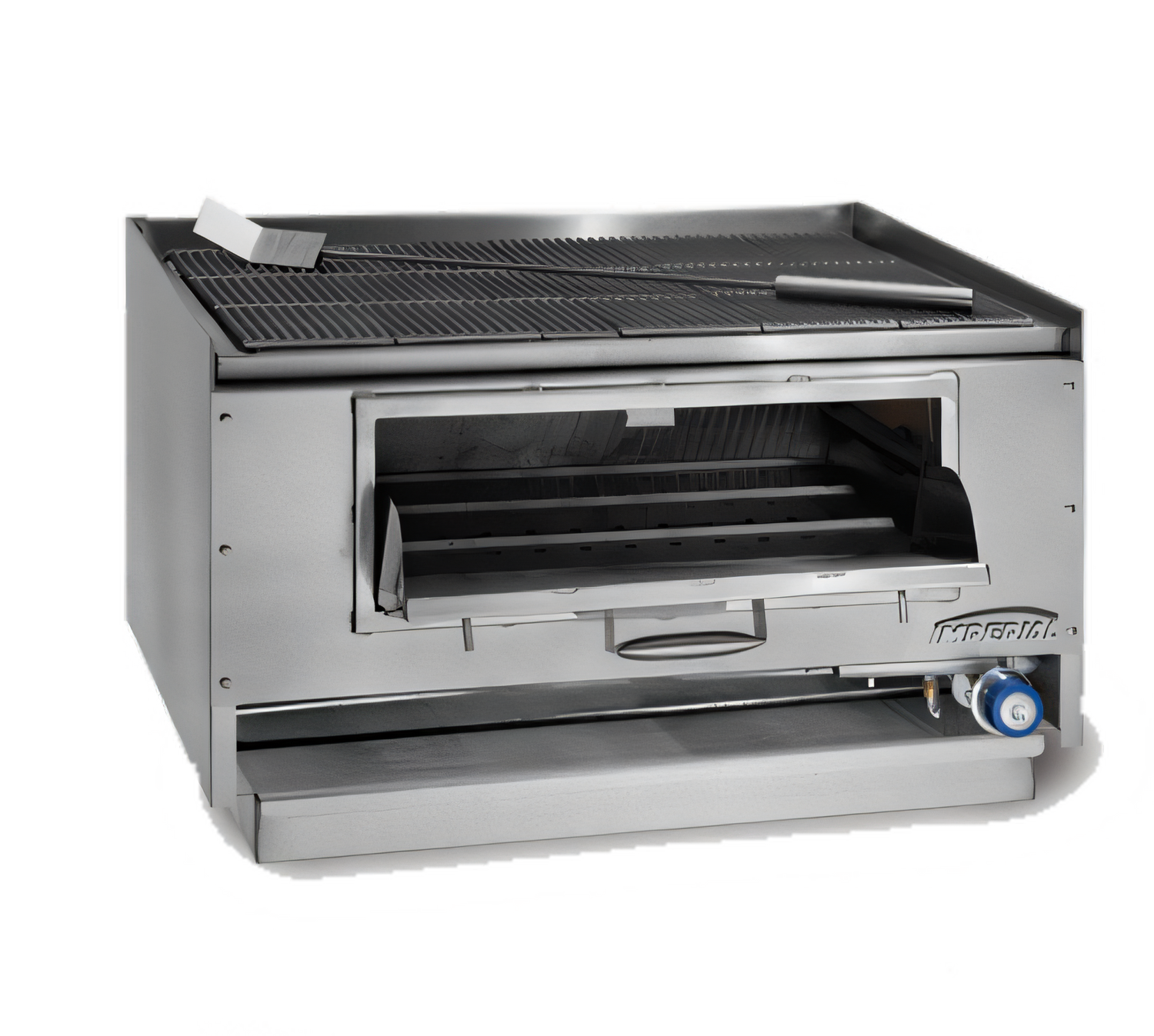

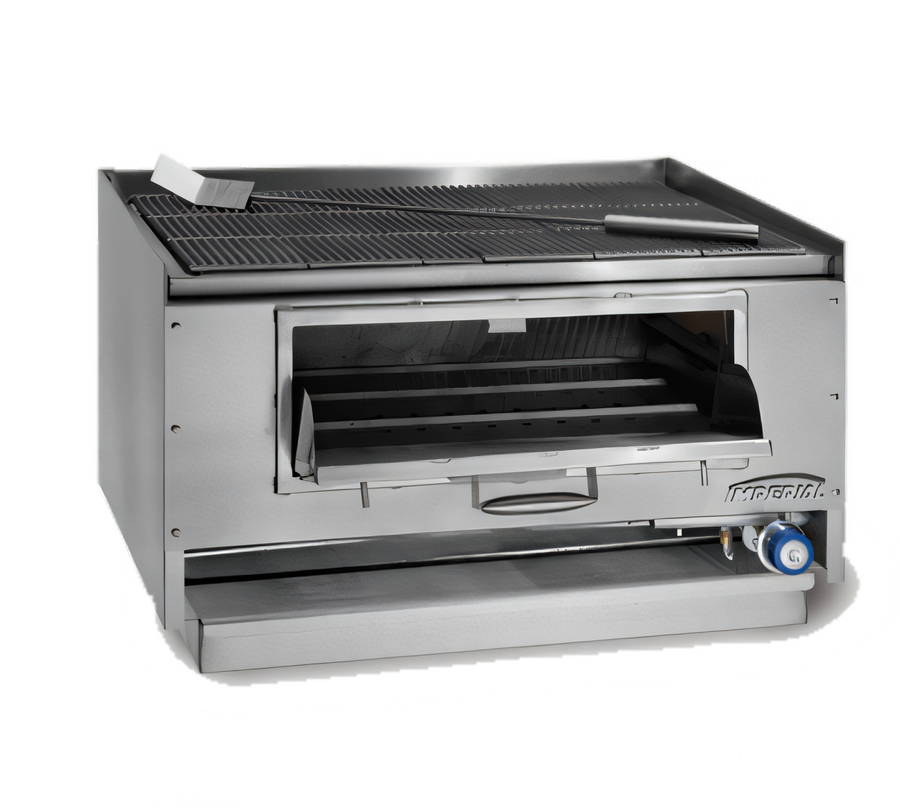

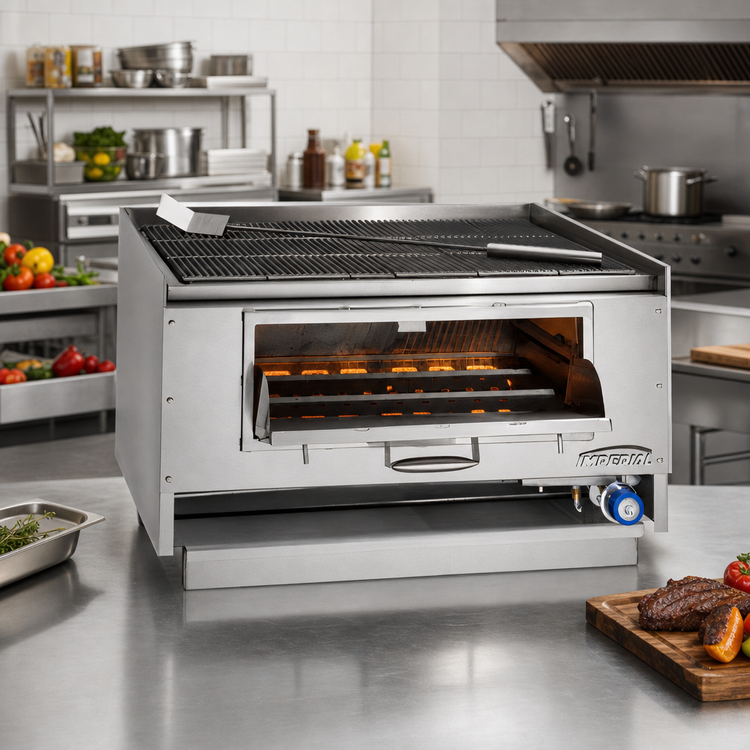

Imperial MSQ-48 Mesquite Wood Broiler – 48″ Countertop
30,000 BTU | Gas-Assisted Wood/Charcoal | NSFCapture the unmistakable flavor of live-fire cooking right on the cookline. Imperial’s MSQ-48 delivers authentic mesquite or charcoal broiling with the speed and control of a built-in gas log lighter, giving steakhouses, taquerias, and bistros a true “flame-kissed” edge.
Key Benefits

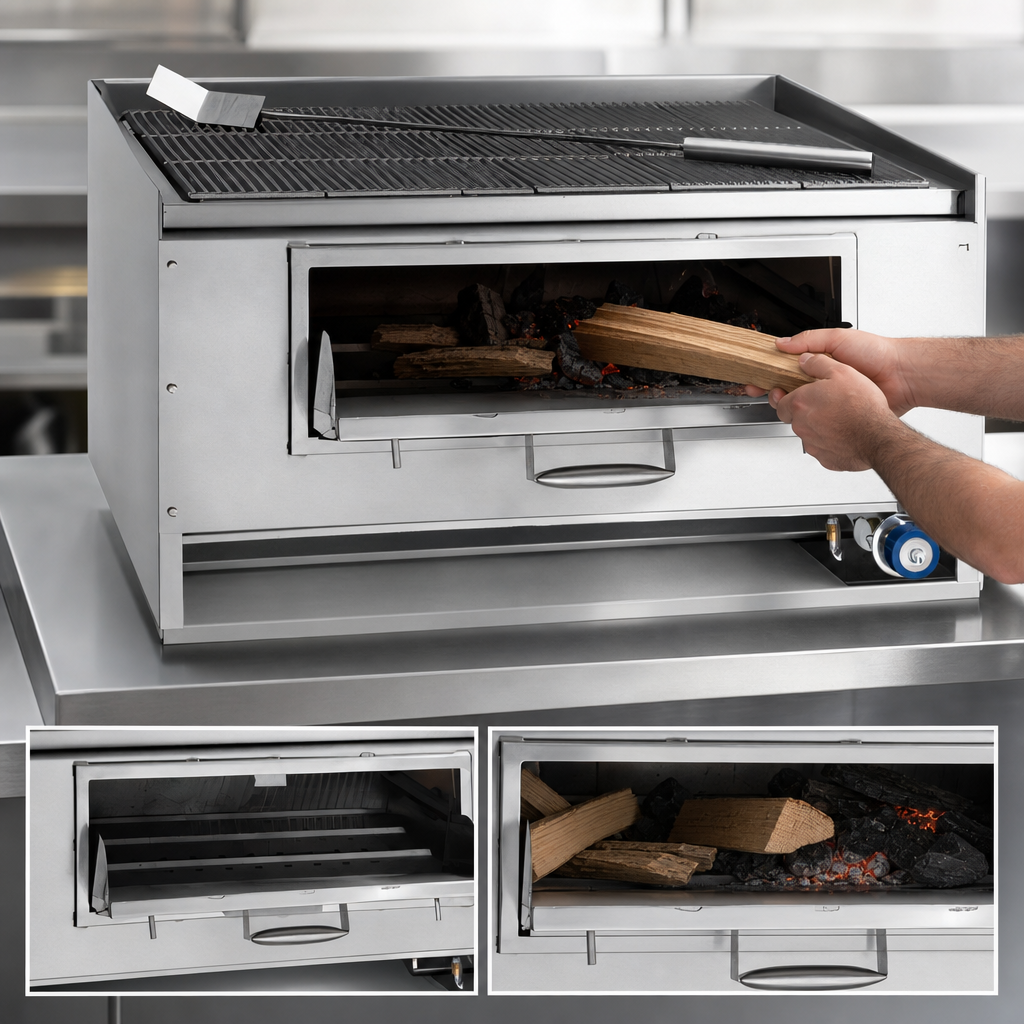

- Front-loading chute lets you add wood or charcoal without removing the grate.

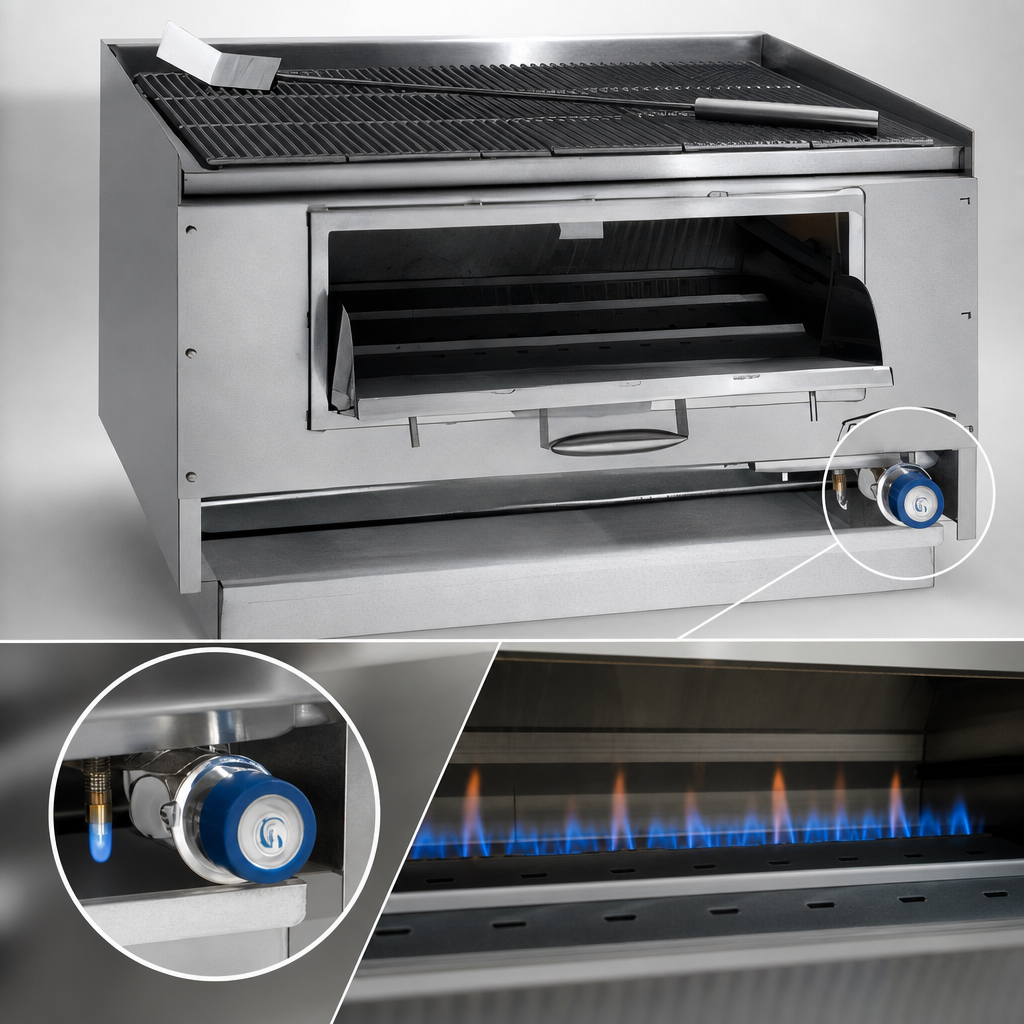

- Integrated “I” burner (30,000 BTU / 9 kW) ignites fuel fast—no starter fluid or electricity required.
- Heavy-duty 9-bar cast-iron grate sections sear perfect grill marks and lift out for cleaning.
- Open bottom design increases airflow for hotter, cleaner combustion and lower fuel costs.
- Fully welded stainless steel front & sides stand up to heavy commercial use and wipe clean easily.
- 4″ stainless steel legs provide sturdy countertop clearance and simple installation.
- Full-width drip tray keeps work surfaces cleaner and safer.
Engineered for the Rush
- 48″ wide cooking surface handles high-volume steaks, chops, seafood, and vegetables.
- Broiler cavity is insulated throughout the cooktop to retain heat and conserve energy.
- Cast-aluminum control knobs feature Valox™ heat-shield grips that stay cool to the touch.
- Tool-less, removable burner simplifies routine maintenance and sanitation.
- Zero clearance to non-combustible surfaces; only 8″ clearance required from combustibles.
Specifications
| Item | Imperial MSQ-48 |
|---|---|
| Model | MSQ-48 |
| Overall Width | 48″ (1219 mm) |
| Overall Depth | 27″ (686 mm) |
| Overall Height | 23″ (584 mm) on 4″ legs |
| Total Input | 30,000 BTU /hr (9 kW) |
| Burner Type | 1 removable “I” burner (gas log lighter) |
| Top Grates | (8) 6″ × 24″ heavy-duty cast-iron, 9-bar sections |
| Fuel | Natural or Propane Gas |
| Gas Connection | 3/4″ NPT, rear |
| Manifold Pressure | Natural 5.0″ W.C. / Propane 10.0″ W.C. |
| Ship Weight | Approx. 405 lb (184 kg) |
| Approvals | NSF |
Options & Accessories (sold separately)
- Stainless steel equipment stand (with or without 6″ casters)
- Round-rod stainless grates for chicken
- Factory-welded stainless steel drip tray and legs
- 3/4″ gas shut-off valve and quick-disconnect hose kit
Warranty & Support
Covered by Imperial’s 1-year parts & labor warranty and backed by a nationwide network of authorized service agencies.
Looking for easy budgeting? Ask about Middleby equipment financing with fast credit decisions and fixed monthly payments.
