Imperial (Middleby)  |  SKU: MSQ-36

Imperial (Middleby) MSQ-36 Wood/Charcoal Grills

$13,802.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts manual Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Charbroilers Charbroilers & Grills Commercial Grills Restaurant Equipment Wood/Charcoal Grills

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

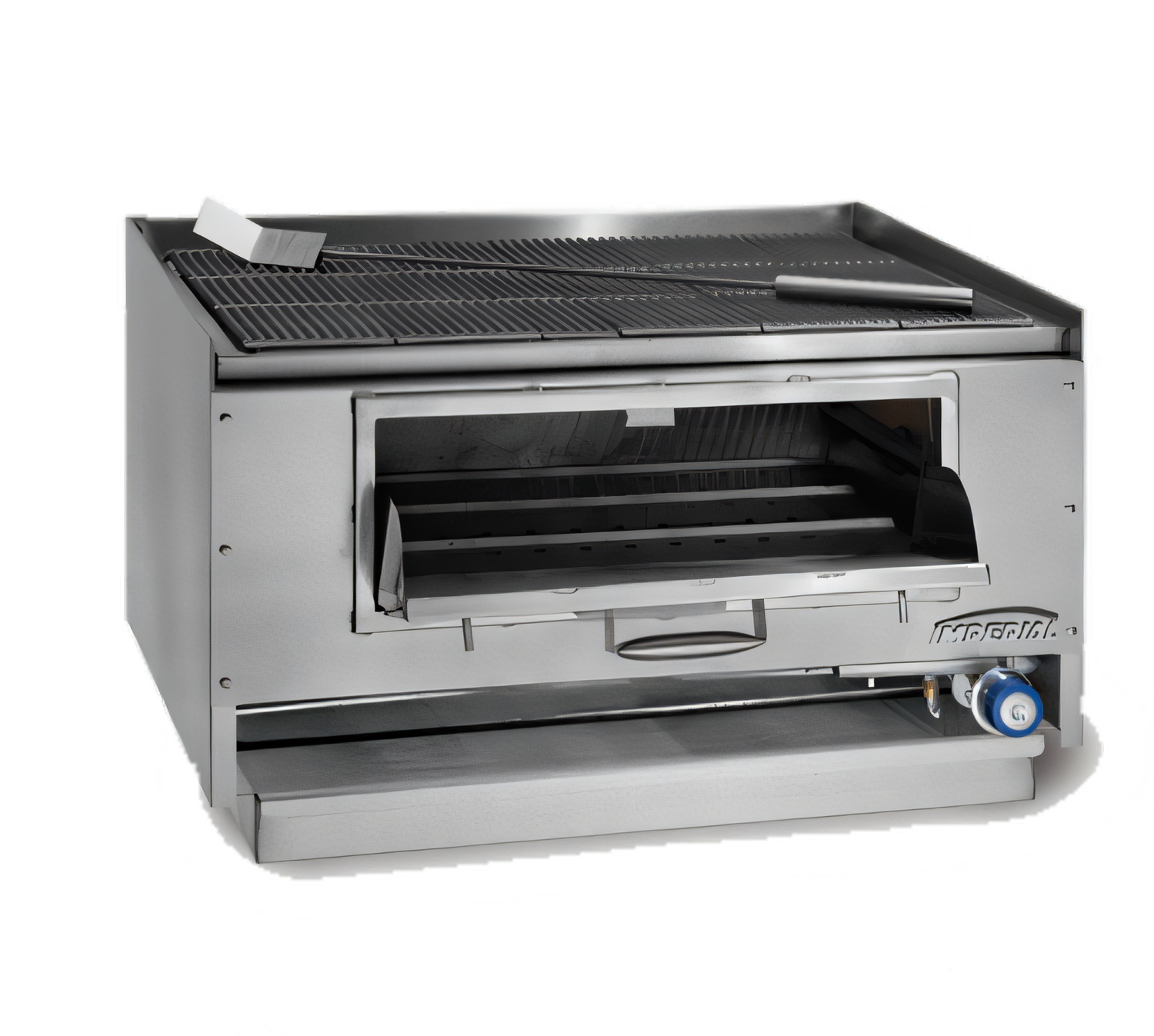

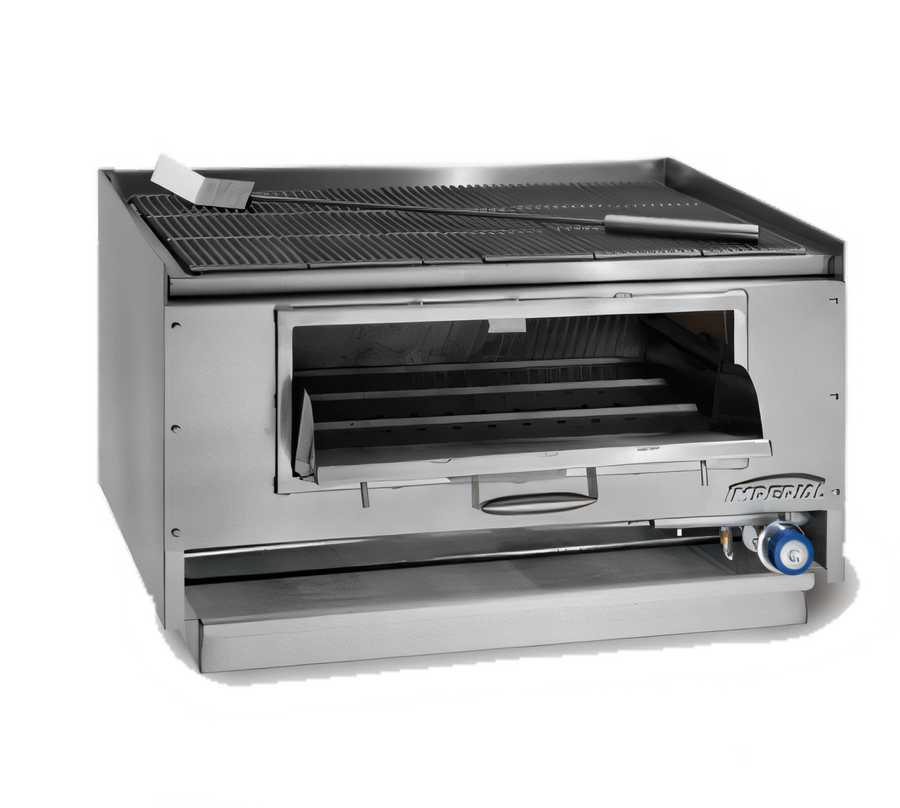

Imperial MSQ-36 Mesquite Wood Broiler | 36" Countertop

Authentic wood-fire flavor with the convenience of built-in gas ignition

Bring steak-house caliber results to your line with Imperial’s NSF-listed MSQ-36 mesquite broiler. A single 25,000 BTU “I” burner jump-starts your hardwood or charcoal, while heavy-duty cast-iron grates deliver the trademark sear guests crave—all in a compact, countertop footprint.

Key Features

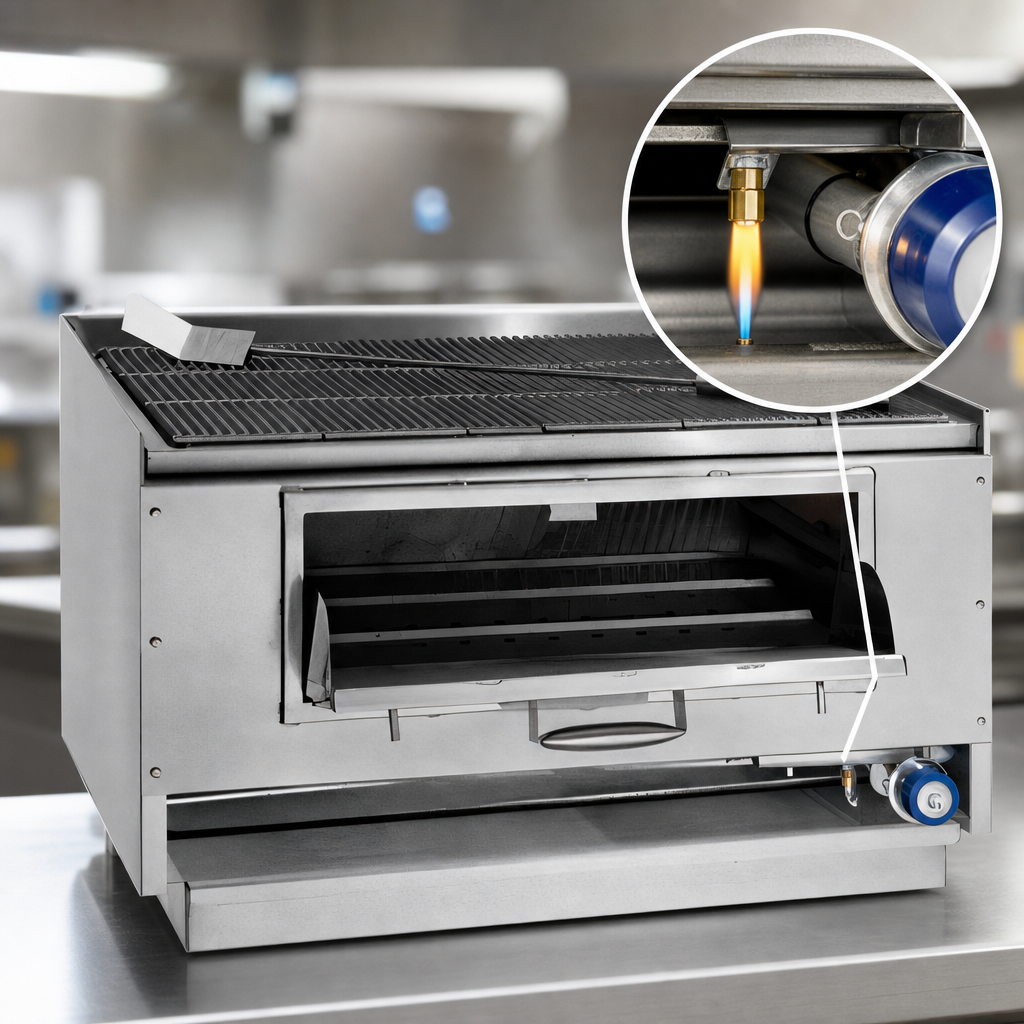

  • Built-in gas log lighter—no external igniters or lighter fluid required.
  • Front chute lets chefs safely load wood or charcoal during service.

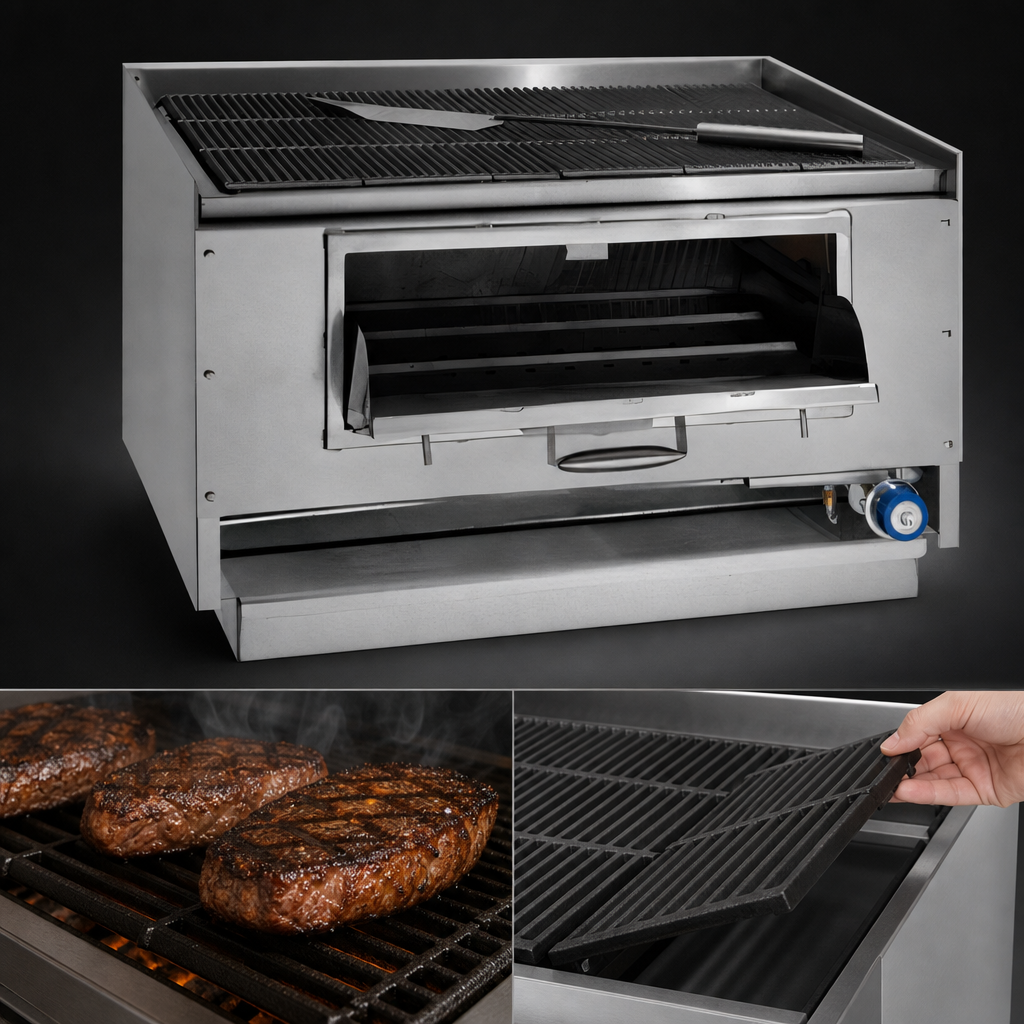

  • Removable 9-bar cast-iron grate sections (6" × 24") for superior heat retention and grill marks.
  • Open grate bottom maximizes air-to-fuel combustion, stretching every log.
  • Stainless-steel front & sides with welded seams for a professional, easy-to-clean finish.
  • 4" stainless-steel legs included for stable, sanitary countertop installation.
  • Cast-aluminum control knob with Valox™ heat-protection grip.
  • Fully insulated cooktop helps conserve energy and keep your kitchen cooler.

At-a-Glance Specifications

Model MSQ-36
Cooking surface width 36 in (914 mm)
Overall dimensions (W × D × H) 36 in × 27 in × 23 in
(914 × 686 × 584 mm)
Heat source 1 × 25,000 BTU (7 kW) “I” burner + solid fuel (wood/charcoal)
Gas type / pressure Natural Gas 5.0" WC | Propane 10.0" WC
Gas connection ¾" NPT (rear, 1 ¾" setback)
Shipping weight 345 lb (157 kg)
Listings NSF, CSA (gas)
Warranty 1-year parts & labor

Popular Options & Accessories

  • Stainless-steel equipment stands (with or without 6" casters)
  • Stainless-steel round-rod grates optimized for chicken
  • Stainless-steel drip tray & 4" legs welded to broiler
  • ¾" gas shut-off valve, quick-disconnect hose
Installation note: Provide 0" clearance to non-combustible surfaces and 8" (203 mm) clearance to combustible surfaces. Legs or an equipment stand are required for all countertop installations.

Need flexible financing? Ask about Middleby Equipment Financing to turn this purchase into affordable monthly payments.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF

Height

18.0in

Width

36.0in

Depth

27.0in

Shipping Weight

345.0lbs

Exterior Finish

all stainless steel exterior

Width (side - side)

25 - 36"

Grid

cast iron grid

Specifications

Mesquite Wood Broiler, 36"W, countertop, removable cast iron 9 bar top grates, built-in gas log lighter, "I" burner, front chute for wood or charcoal, drip tray, stainless steel front & sides, 4" stainless steel legs, 25,000 BTU, 7kW, NSF
