Imperial (Middleby)

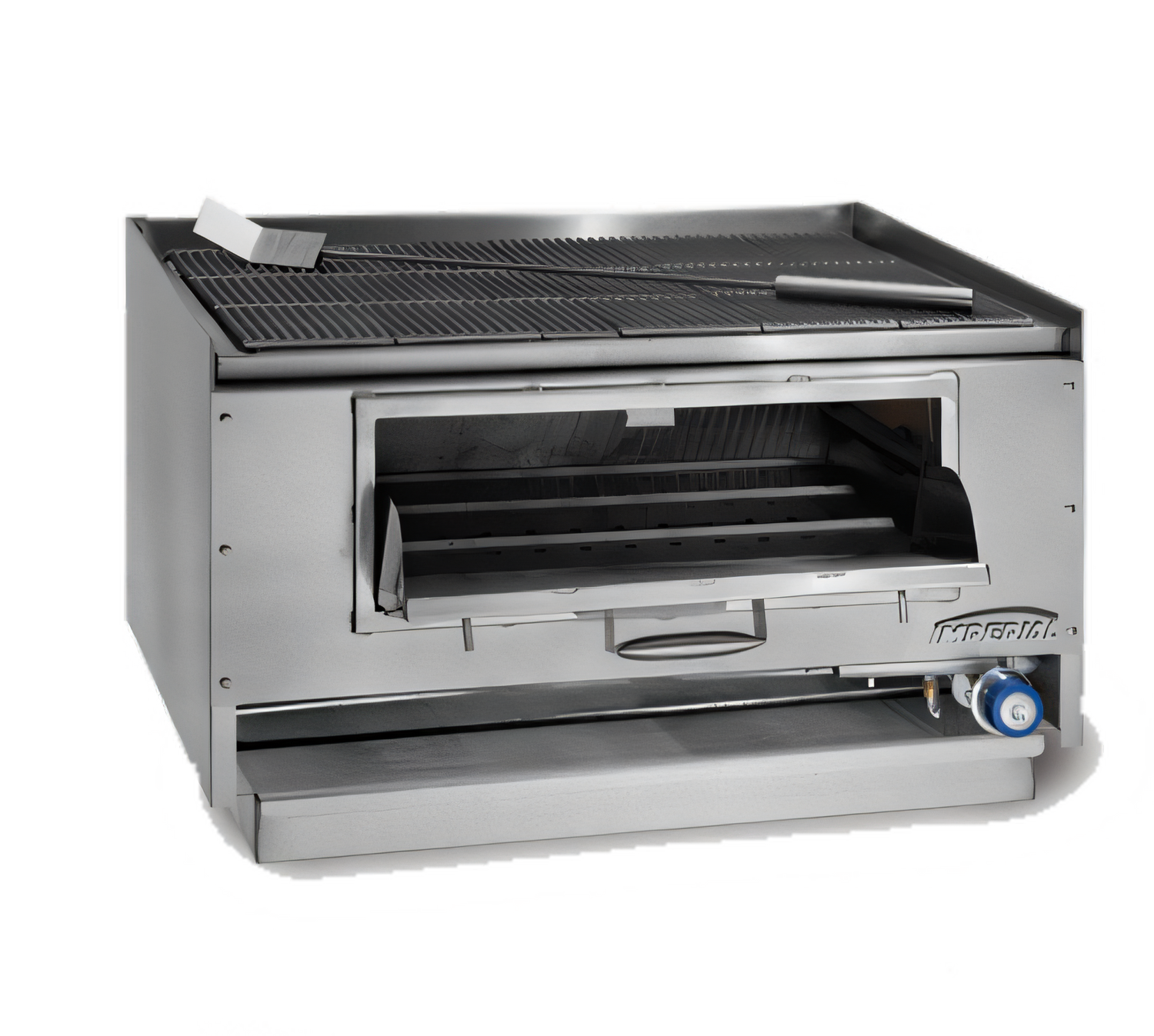

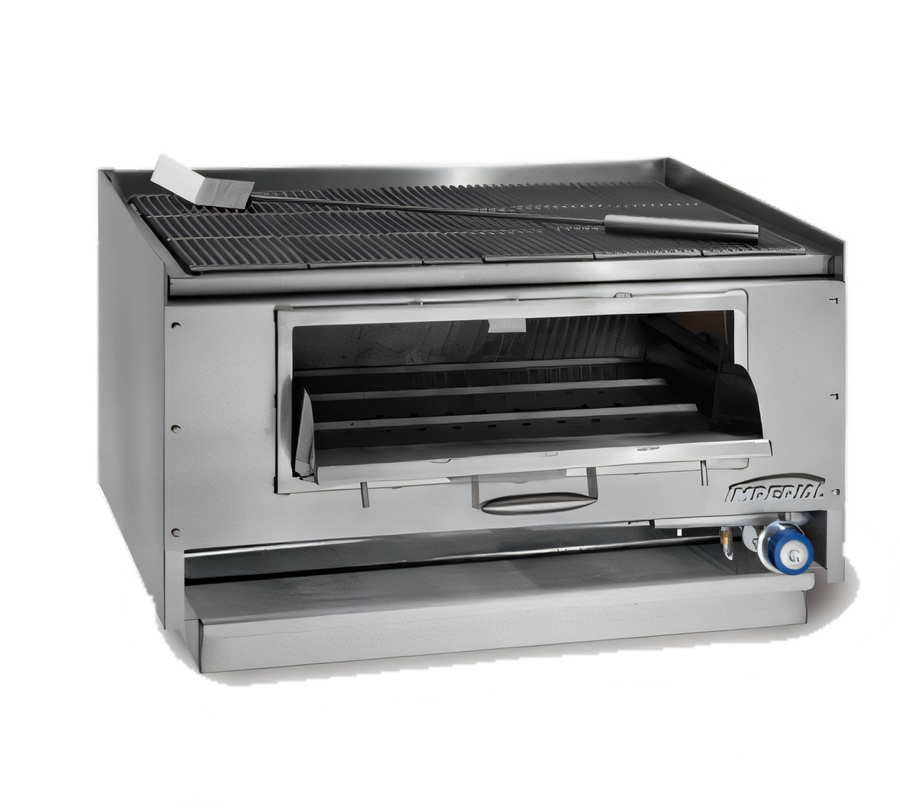

Imperial MSQ-30 30-Inch Countertop Mesquite Wood Broiler with Cast Iron 9-Bar Grates

SKU: MSQ-30
$12,797.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Imperial (Middleby) New Arrivals Restaurant Equipment Wood/Charcoal Grills

Imperial MSQ-30 30-Inch Countertop Mesquite Wood Broiler with Cast Iron 9-Bar Grates

Built-In Gas Log Lighter, Stainless Steel Front and Sides

Bring rich mesquite flavor and fast-start convenience to your grill line with a durable 30-inch countertop broiler built for heavy-duty service.

  • 30-inch countertop mesquite wood broiler for wood or charcoal cooking
  • Built-in gas log lighter and removable I burner help speed up startup
  • Heavy-duty removable cast iron 9-bar grates deliver attractive sear marks
  • Front chute simplifies loading fuel during service
  • Stainless steel front, sides, and welded seams support durability and easy cleaning
  • Includes 4-inch stainless steel legs and a drip tray for installation and cleanup

Overall Dimensions:

30.0"W x 27.0"D x 18.0"H

Product Weight:

290.0 lb

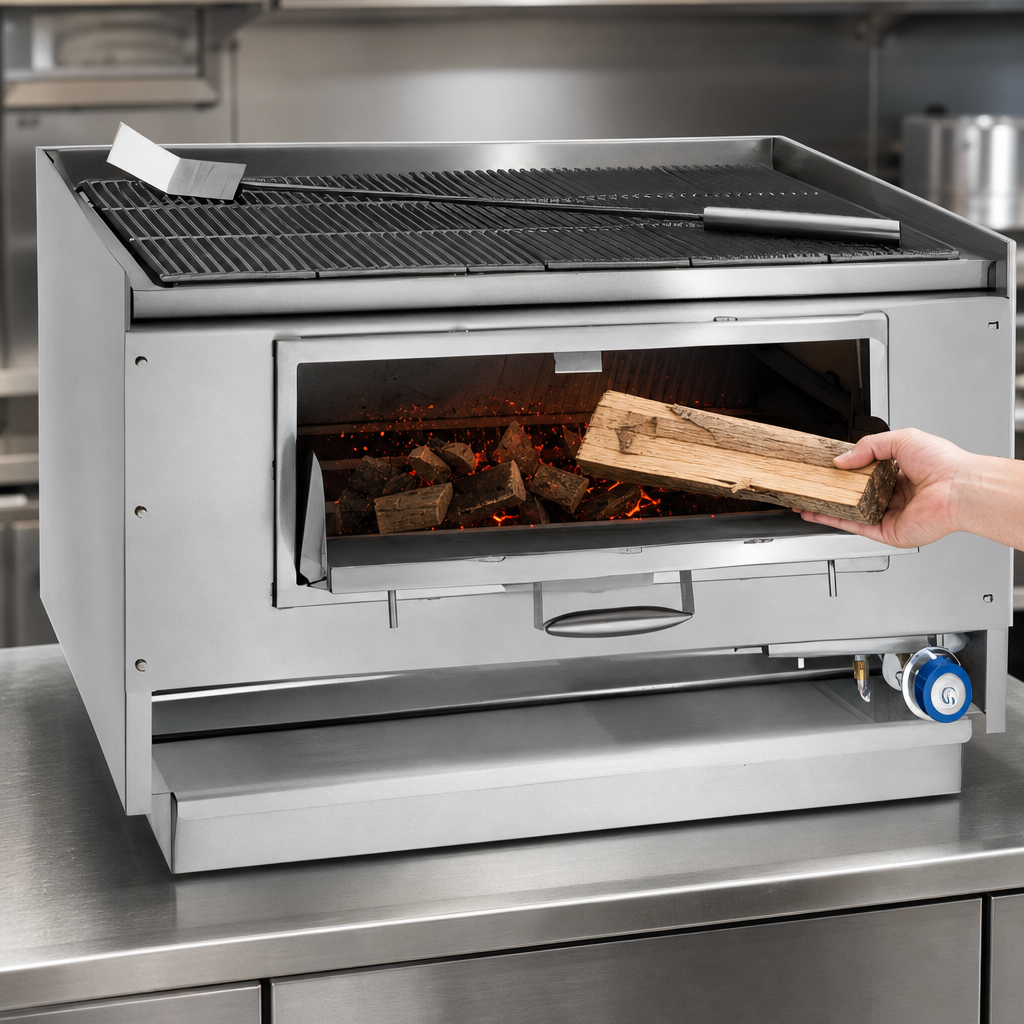

Front Chute Loading

Front chute makes it easy to load wood or charcoal during operation.

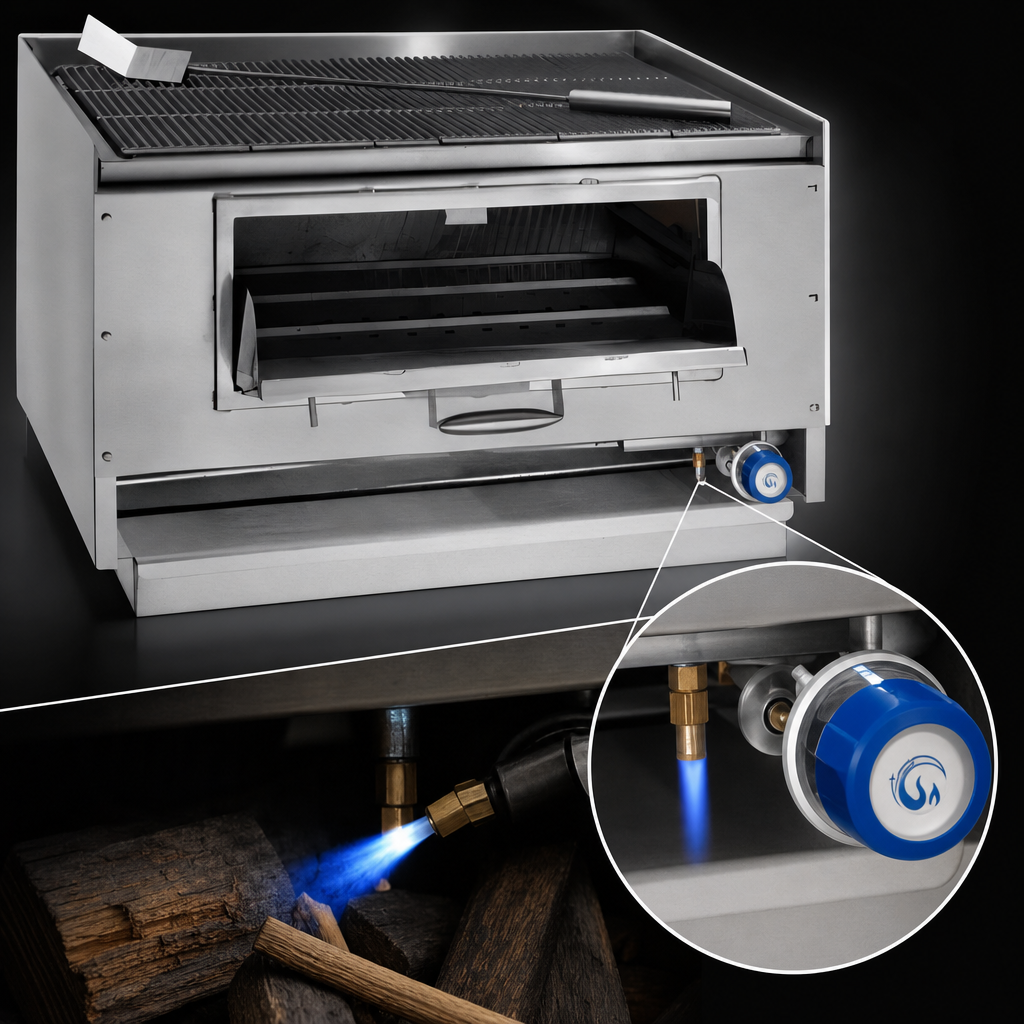

Built-In Gas Log Lighter

Helps ignite the wood or charcoal without lighter fluid or electric starters.

Removable I Burner

One 20,000 BTU burner assists with startup during peak periods and removes for cleaning without tools.

Cast Iron 9-Bar Grate

Heavy-duty removable grate sections are ideal for meat and create attractive grill markings.

Open Grate Bottom

Supports optimized air-to-fuel combustion for efficient burning of wood or charcoal.

Stainless Steel Construction

Stainless steel front and sides with welded, polished seams for a professional look and easier cleaning.

Insulated Cooktop

Insulation throughout the cooktop helps conserve energy during service.

Included Legs and Drip Tray

Supplied with 4-inch stainless steel legs and a drip tray.

Type Charbroiler
Style Mesquite Wood
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel
Controls Manual Knobs
BTU 20,000 BTU
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 5.0 Inches W.C. (Natural Gas) / 10.0 Inches W.C. (Propane)
Shipping Width 32.5 Inches
Shipping Depth 31 Inches
Shipping Height 25 Inches
Shipping Weight 290 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Any type of wood or charcoal may be used. The built-in gas log lighter helps start the fire without lighter fluid or electric starters.
Yes. The heavy-duty cast iron 9-bar grate sections are removable for cleaning.
Yes. The broiler includes 4-inch stainless steel legs.
The broiler uses a 3/4 inch NPT gas inlet.
Legs or a stand are required for non-combustible surfaces. Provide 0 inches clearance from non-combustible surfaces and 8 inches from combustible surfaces.
The warranty is one year parts and labor. Cast iron parts are warranted for 90 days.
