Imperial (Middleby)

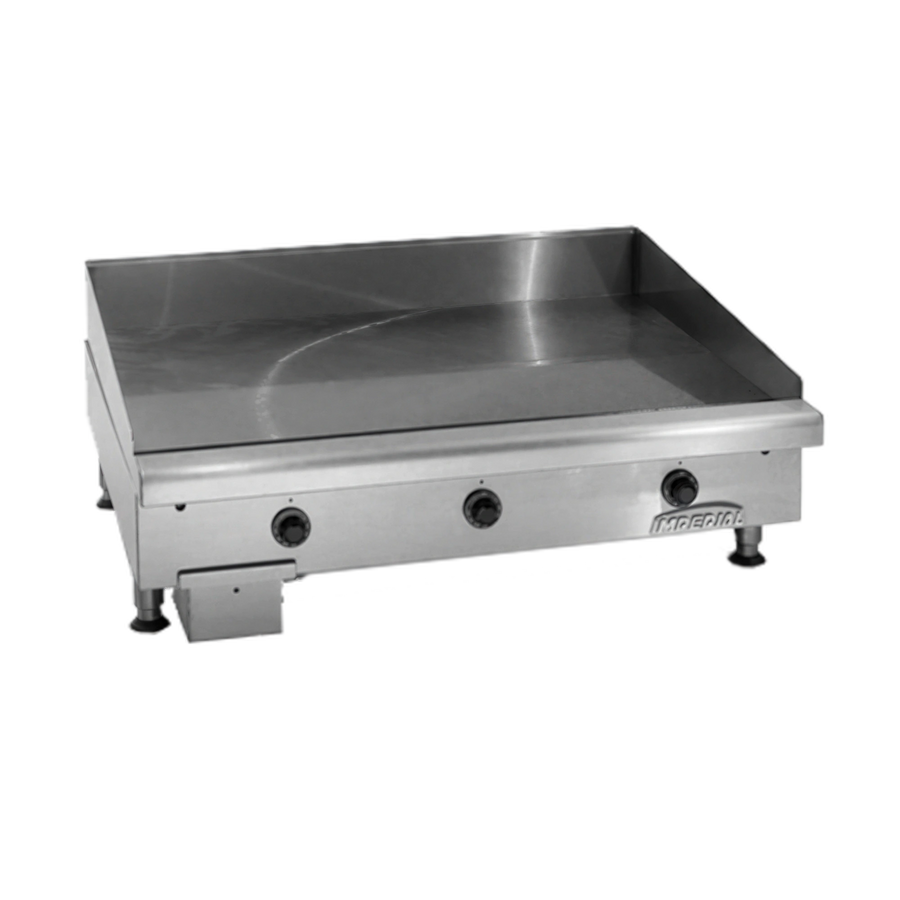

Imperial (Middleby) ITG-72-E-V ITG-72-E-VENTLESS Electric Countertop Griddle, 72" W x 24" D, Smooth Steel Plate, Thermostatic Controls

SKU: ITG-72-E-V
$13,343.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The ITG-72-E-V is an electric countertop griddle compatible with the Wells Ventless Hood. It provides a 72-inch-wide by 24-inch-deep cooking surface with a 3/4-inch smooth polished steel plate and thermostatic controls.

The griddle includes six 4 kW serpentine elements, a 4-inch stainless steel grease gutter, a removable 1-gallon grease can, stainless steel front and sides, a splash guard, a ledge, and 4-inch legs.

  • Maximum temperature: 450°F
  • Total power: 24 kW
  • Use only on non-combustible surfaces; provide 6 inches of clearance from combustible surfaces.

Overall Dimensions:

72.0"W x 31.0"D x 14.0"H

Product Weight:

875.0 lb

Electric countertop operation

Designed for countertop installation and compatible with the Wells Ventless Hood.

Thermostatic controls

Thermostat maintains the selected temperature; maximum temperature is 450°F.

Polished steel griddle plate

The smooth steel plate is 3/4 inch thick and provides a 72-inch-wide by 24-inch-deep cooking surface.

Under-plate heating elements

Six 4 kW serpentine elements are located directly under the griddle plate.

Grease management

A 4-inch stainless steel grease gutter directs grease to a removable 1-gallon grease can with a weep hole.

Stainless steel exterior

Includes a stainless steel front, sides, splash guard, and ledge.

Included legs

Includes 4-inch stainless steel legs.

Related Searches

Best Sellers Commercial Griddles Commercial Griddles Commercial Grills Cooking Equipment Electric Griddles Equipment Griddles & Flat Tops Imperial (Middleby) New Arrivals Restaurant Equipment
Product Type Electric countertop griddle
Ventilation Compatibility Wells Ventless Hood
Control Type Thermostatic
Cooking Surface Width 72 in.
Cooking Surface Depth 24 in.
Griddle Plate Thickness 3/4 in.
Griddle Plate Finish Smooth polished steel
Maximum Temperature 450°F
Number of Heating Elements 6
Heating Element Rating 4 kW each
Total Power 24 kW
Voltage 208 V, 240 V, or 480 V
Phase 1 or 3
Amperage 58 A at 208 V/1 Ph; 34 A at 208 V/3 Ph; 50 A at 240 V/1 Ph; 29 A at 240 V/3 Ph; 15 A at 480 V/3 Ph
Grease Gutter Width 4 in.
Grease Can Capacity 1 gal. (3.8 L)
Exterior Finish Stainless steel front and sides
Leg Height 4 in.
Required Clearance 0 in. from non-combustible surfaces; 6 in. from combustible surfaces
J-Box Requirement Second J-box required for the 72-inch unit

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

One-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface is 72 inches wide by 24 inches deep.
It has a 3/4-inch-thick smooth polished steel plate.
The 24 kW unit supports 208 V, 240 V, or 480 V electrical service with 1- or 3-phase configurations as specified for the model.
Yes. The cutsheet specifies a second J-box for 60-inch and 72-inch units.
Use the griddle only on non-combustible surfaces. Provide 0 inches of clearance from non-combustible surfaces and 6 inches from combustible surfaces.
The unit includes a one-year parts and labor warranty.
