Imperial (Middleby) ISP-J-W-16 Wok Ranges
Description

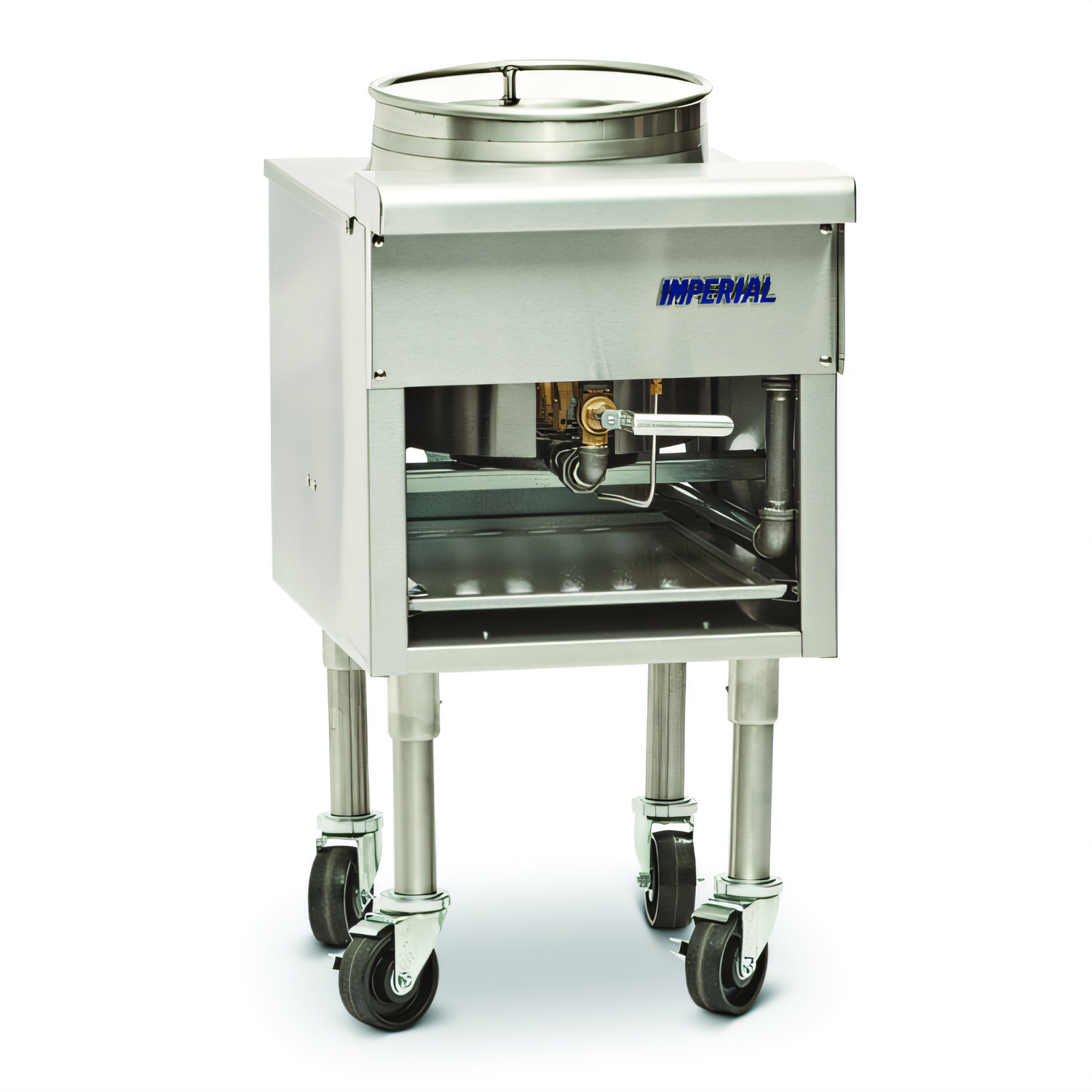

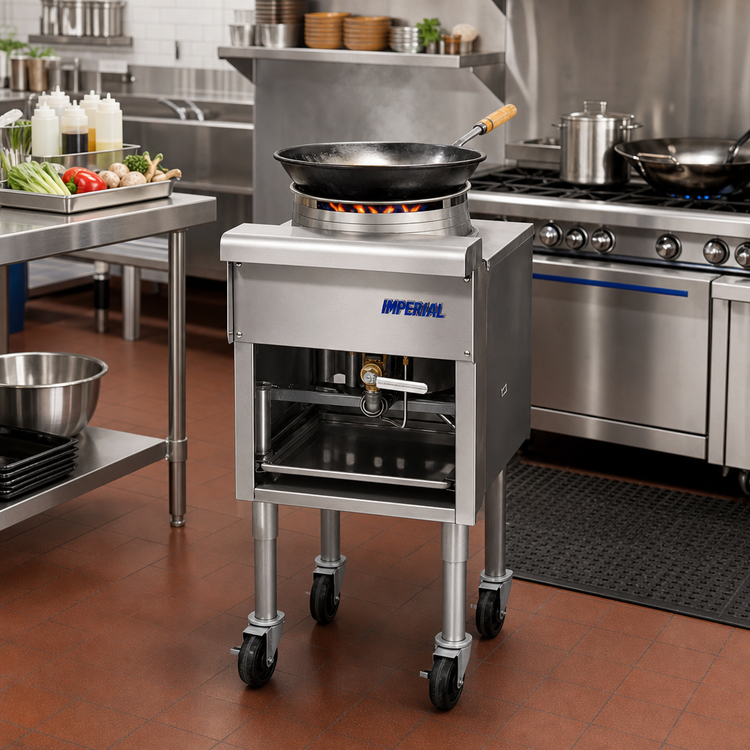

Imperial ISP-J-W-16 Mandarin Wok Range
18" gas wok range • 16" wok opening • 125,000 BTU jet burnerEngineered for high-volume Asian kitchens, the Imperial ISP-J-W-16 delivers an intense 125,000 BTU cone-shaped flame that hugs the wok for rapid stir-fry speeds and consistent searing power. Built with rugged stainless steel and a removable 16" Mandarin-style wok top, this single-burner range brings professional performance to compact footprints.
Why You’ll Love It

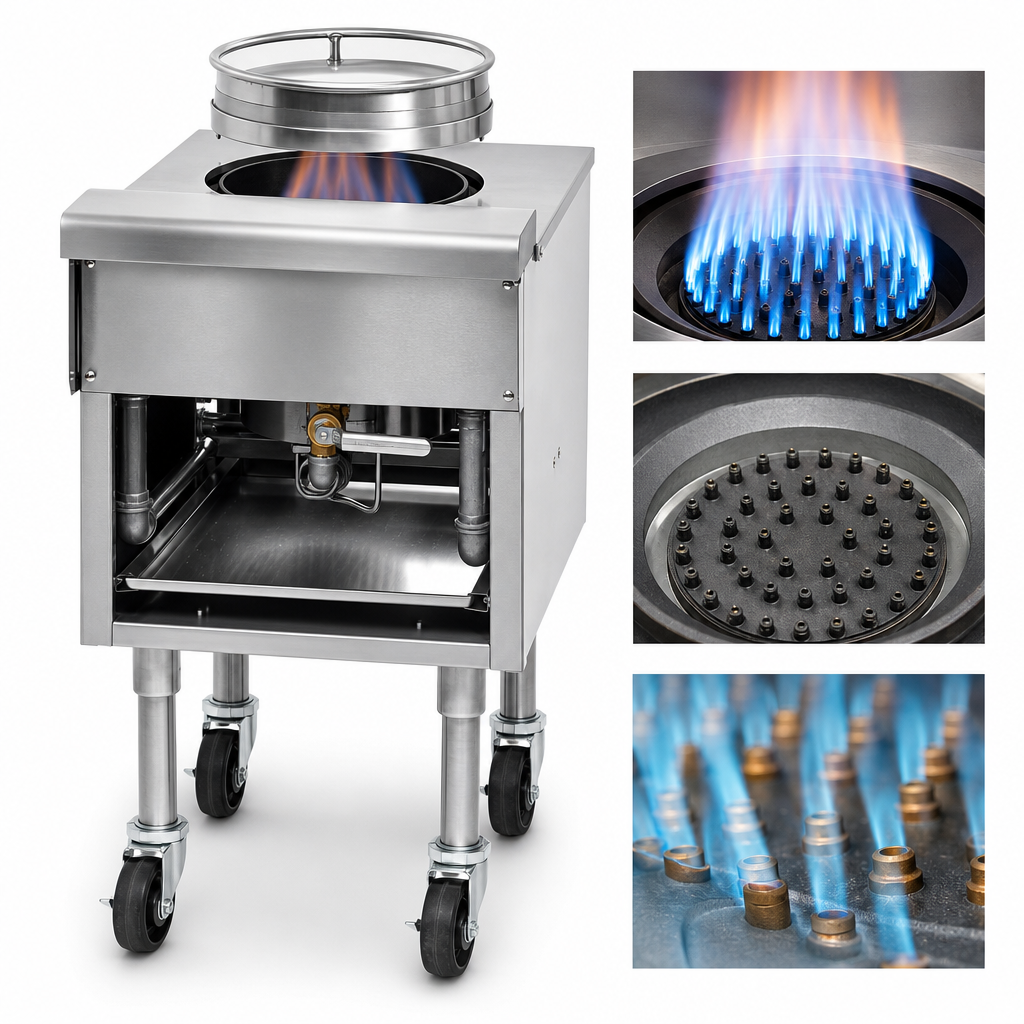

- 18-tip anti-clog jet burner puts out 125,000 BTU (37 kW) of concentrated heat.

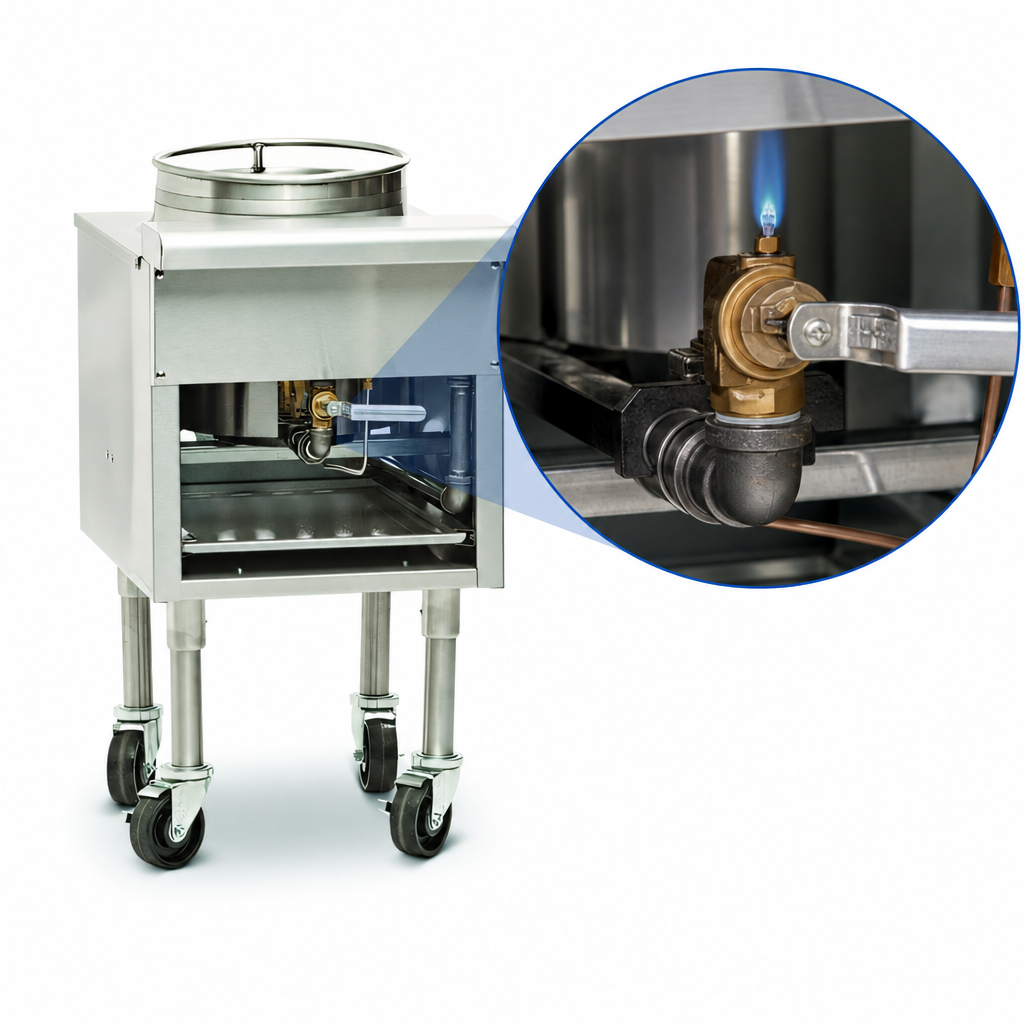

- Continuous pilot & L-shaped gas control valve offer instant ignition and precise flame modulation.
- Mandarin wok top features a gradual slope that minimizes spill-overs and removes tool-free for cleaning.
- 8" welded cylinder intensifies heat directly under the wok for maximum efficiency.
- Full-width drip pan and removable grease can simplify daily clean-up.
- Open front cabinet provides handy storage for utensils or sauces.
- Heavy-duty 12" legs with adjustable feet keep the unit level on any surface.
- ETL-Sanitation & NSF listed for worry-free code compliance.
At-a-Glance Specs
| Model | ISP-J-W-16 (Mandarin Wok Range) |
|---|---|
| Overall Dimensions | 18" W x 21" D x 30" H (457 x 533 x 762 mm) |
| Wok Opening | 16" diameter Mandarin style |
| Burner | 18-tip anti-clog jet burner, continuous pilot |
| Total Output | 125,000 BTU /hr (37 kW) |
| Gas Connection | 3/4" NPT rear, natural or propane |
| Manifold Pressure | Natural 5.0" W.C. • Propane 10.0" W.C. |
| Construction | Stainless steel front & sides, welded 12-ga. steel wok top |
| Certifications | ETL-Sanitation, NSF |
| Warranty | 1-year parts & labor |
Popular Accessories (Sold Separately)
- Quick-disconnect & flexible gas hose kit
- 6" locking caster set (4)
- Additional 13" or 16" stainless steel wok tops
Installation Notes
- 0" clearance from non-combustible surfaces; 6" from combustible side walls.
- For use on non-combustible floors with legs or optional casters.
- Specify altitude if installation exceeds 2,000 ft.
Imperial reserves the right to change specifications without prior notice. See enclosed owner’s manual for full warranty terms, installation requirements and maintenance guidelines.
