Imperial (Middleby)

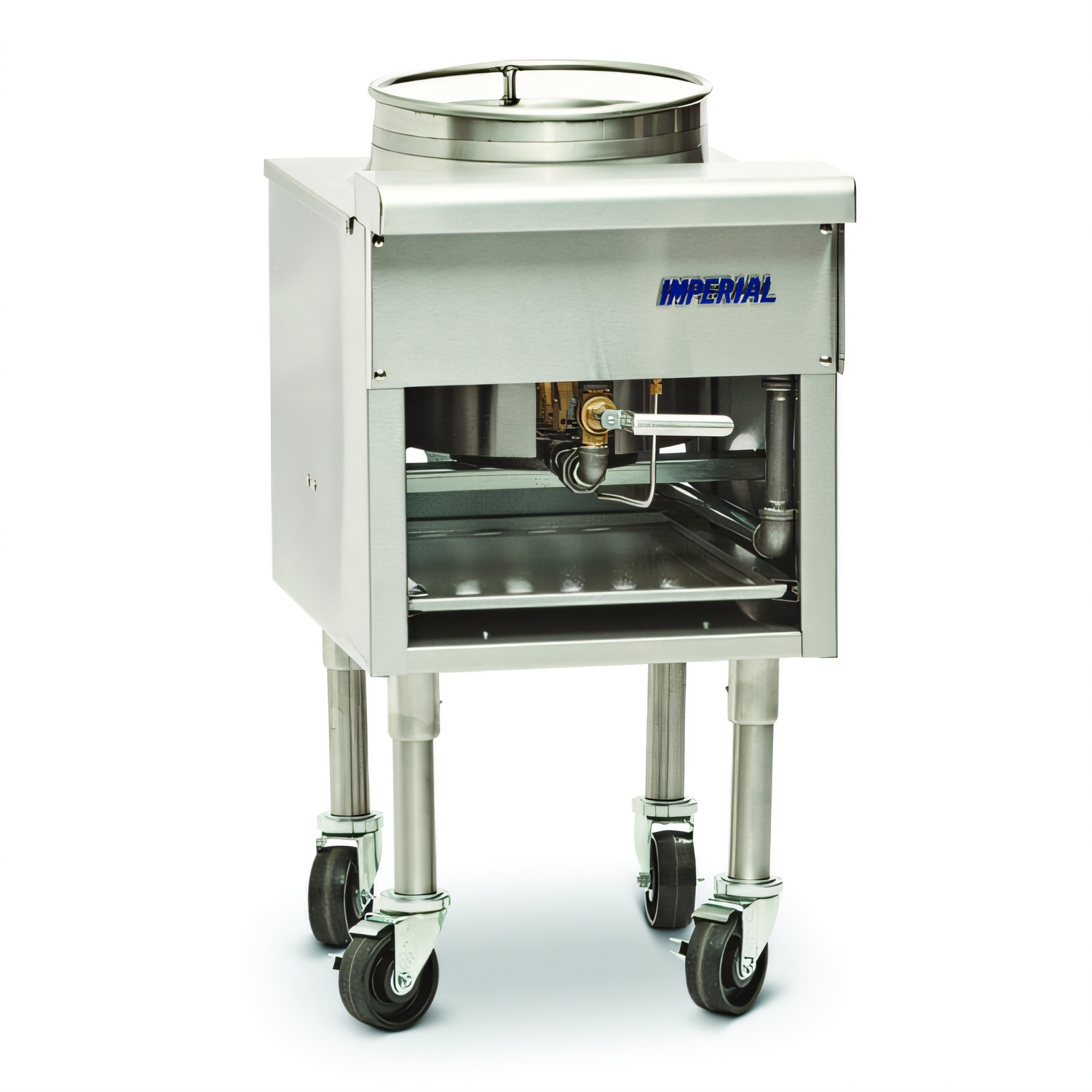

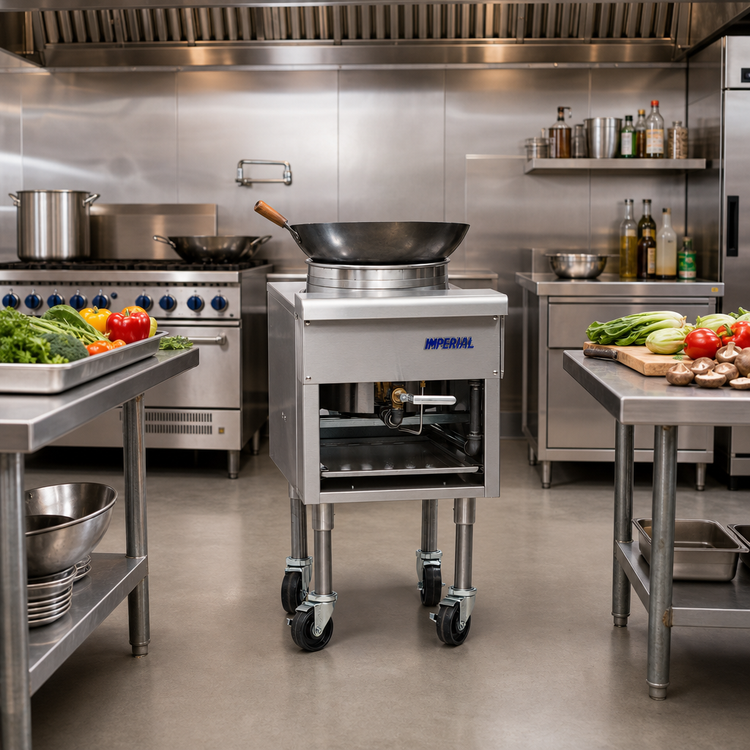

Imperial (Middleby) ISP-J-W-13 18-Inch Floor-Model Mandarin Gas Wok Range with 13-Inch Wok Opening, 125,000 BTU

SKU: ISP-J-W-13
$3,622.00
/each Configurable
Alternative products
ISP-J-W-13 Current product Current
ISPA-18 Loading live product details…
ISPA-18-2 Loading live product details…
ISP-J-SP Loading live product details…
ISP-J-SP-2 Loading live product details…
ISP-18-W Loading live product details…
ISP-J-W-16 Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Cooking Equipment Cooking Equipment Equipment Equipment Imperial (Middleby) New Arrivals Ranges Restaurant Equipment Wok & Stock Pot Range Equipment Wok Ranges Wok Ranges

18 Inch Floor Model Mandarin Gas Wok Range with 13 Inch Wok Opening, 125,000 BTU

Single Anti-Clogging Jet Burner, Continuous Pilot, Stainless Steel Front & Sides

Built for intense wok heat and precise control, this compact floor model packs a 125,000 BTU anti-clogging jet burner into a 13-inch Mandarin wok opening.

  • One anti-clogging jet burner delivers 125,000 BTU (37 kW) of intense cone-shaped heat.
  • Continuous pilot ignition helps keep the burner ready for instant start-up.
  • Mandarin-style 13-inch wok opening is designed to help reduce spill-overs.
  • L-shaped gas control valve provides maximum burner control.
  • Stainless steel front and sides, full-width drip pan, and removable grease can help simplify cleanup.
  • 12-inch legs with adjustable feet support stable floor installation.

Overall Dimensions:

18.0"W x 21.0"D x 30.0"H

Product Weight:

125.0 lb

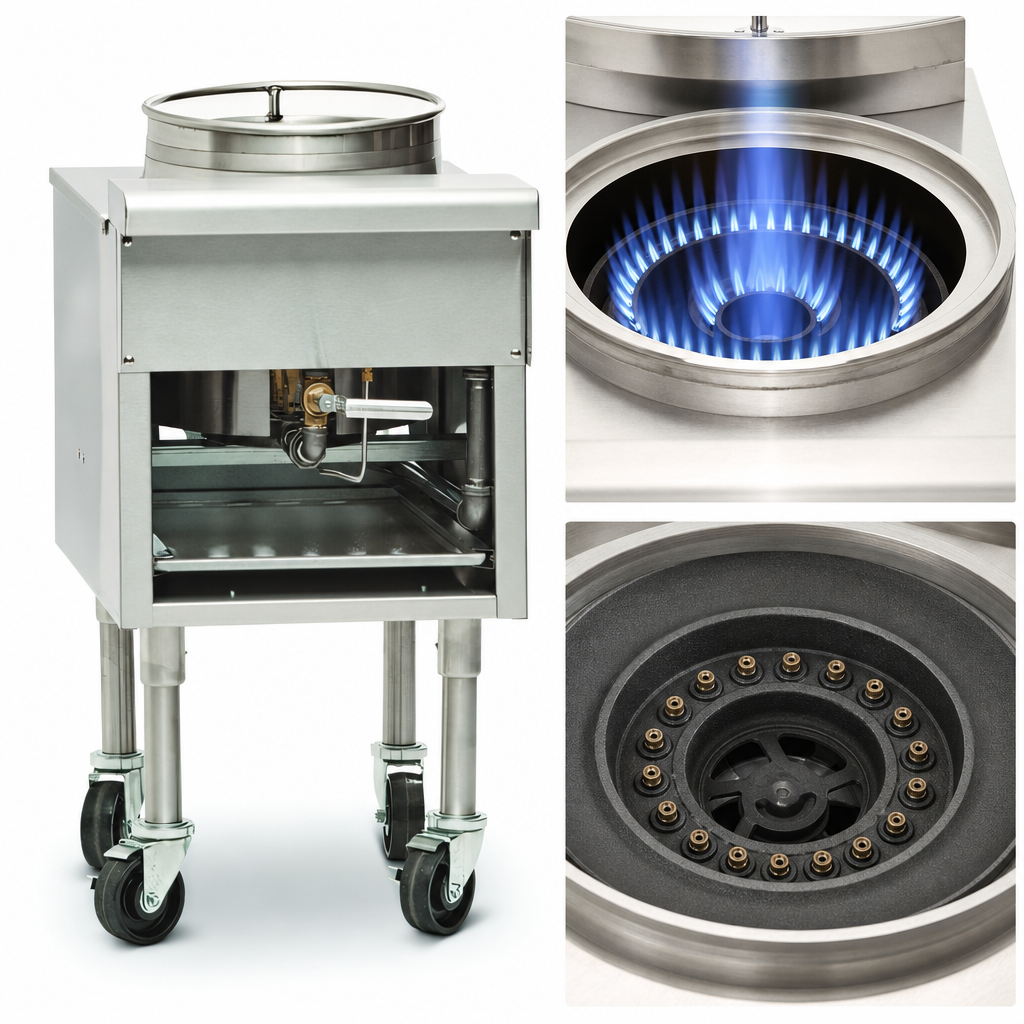

Anti-Clogging Jet Burner

Single 18-tip jet burner produces a cone-shaped flame for high-performance wok cooking.

Anti-Clogging Jet Burner

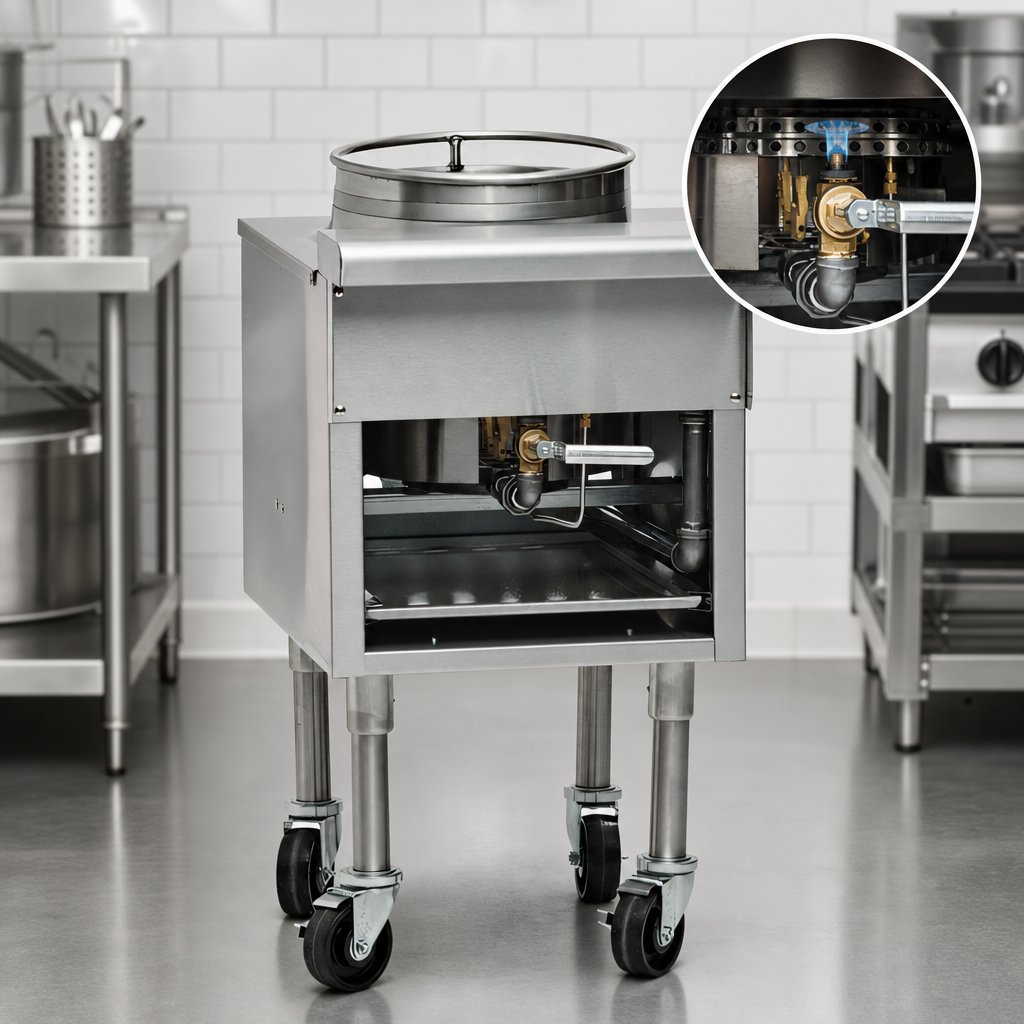

Continuous Pilot

Pilot stays lit for instant ignition and faster start-up.

Continuous Pilot

L-Shaped Gas Control Valve

Designed to provide maximum control over burner output.

Mandarin Wok Design

Gradual slope design helps reduce spill-overs and concentrate heat in the wok opening.

13 Inch Wok Opening

Sized for Mandarin wok cooking applications.

Stainless Steel Front And Sides

Durable exterior with welded and finished seams.

Full-Width Drip Pan And Removable Grease Can

Helps capture drips and makes cleanup easier.

Open Front Cabinet

Provides open access beneath the cooking surface.

Heavy-Duty Legs With Adjustable Feet

12-inch legs help support the unit and allow leveling on uneven floors.

Type Wok Range
Style Mandarin
Installation Type Floor Model
Burner Count 1
Controls L-Shaped Gas Control Valve
Wok Opening 13 Inches
BTU 125,000 BTU
Gas Connection Size 3/4 Inches
Material Stainless Steel
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF History PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has one anti-clogging jet burner.
The burner is rated at 125,000 BTU (37 kW).
Yes. It includes a continuous pilot for instant ignition.
Use only on non-combustible floors with legs or casters. Provide 0 inches clearance from non-combustible side and rear walls, 6 inches minimum from combustible side walls, and 0 inches from a combustible rear wall.
It includes a limited one-year parts and labor warranty.
Available accessories include a 16-inch stainless steel wok top, quick disconnect and flexible gas hose, and 6-inch casters set of 4 with 2 brakes.
