Imperial (Middleby) ISB-36-E Restaurant Series Salamander Broilers
Description

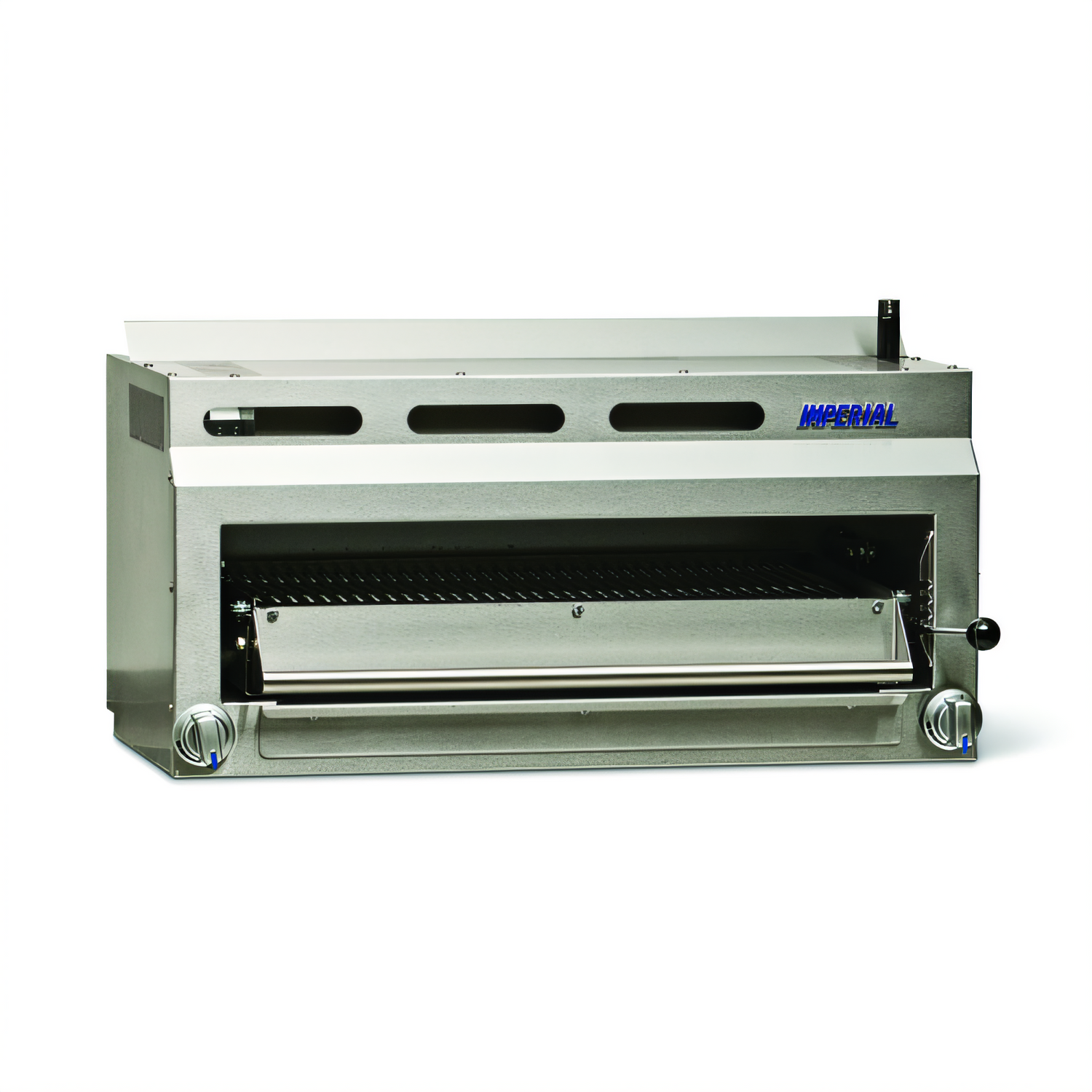

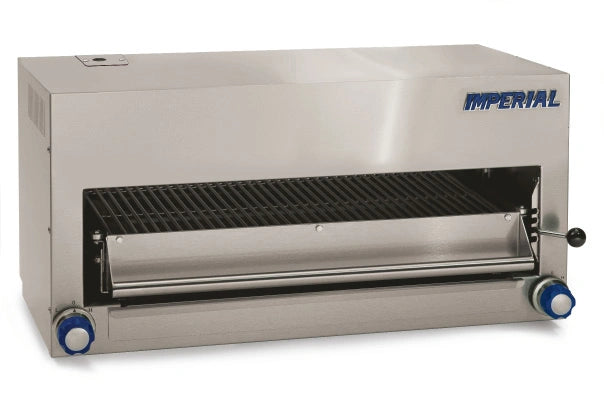

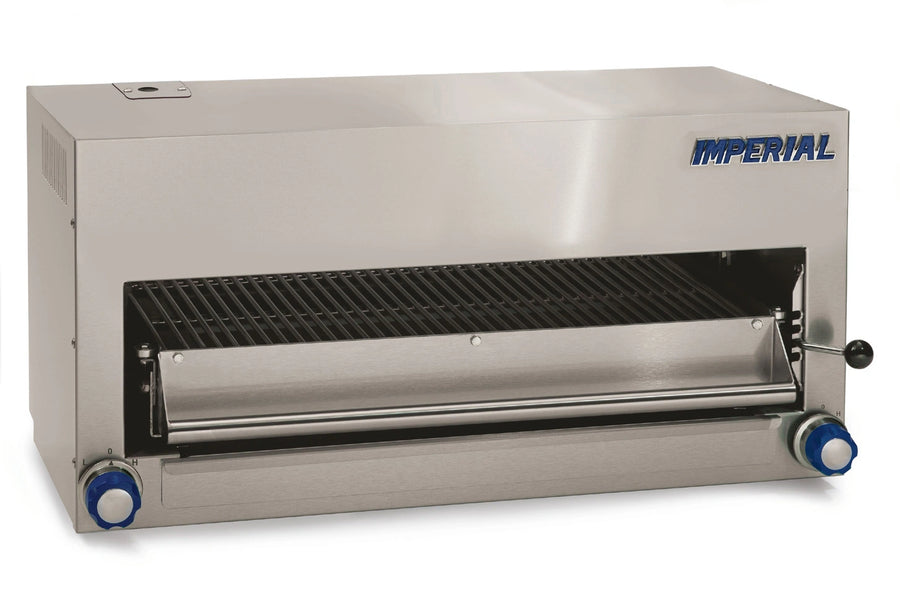

Imperial Restaurant Series 36" Electric Salamander Broiler – Model ISB-36-E
6 kW • Independent Left/Right Zones • Range-Match or Wall-MountFinish plates, melt cheese, or flash-broil steaks in seconds with the power and precision of Imperial’s flagship Restaurant Series electric salamander. Designed to mount directly above IR and IHR ranges—or to stand alone on a wall or countertop—it delivers high-volume performance without an open-flame footprint.
Top Features

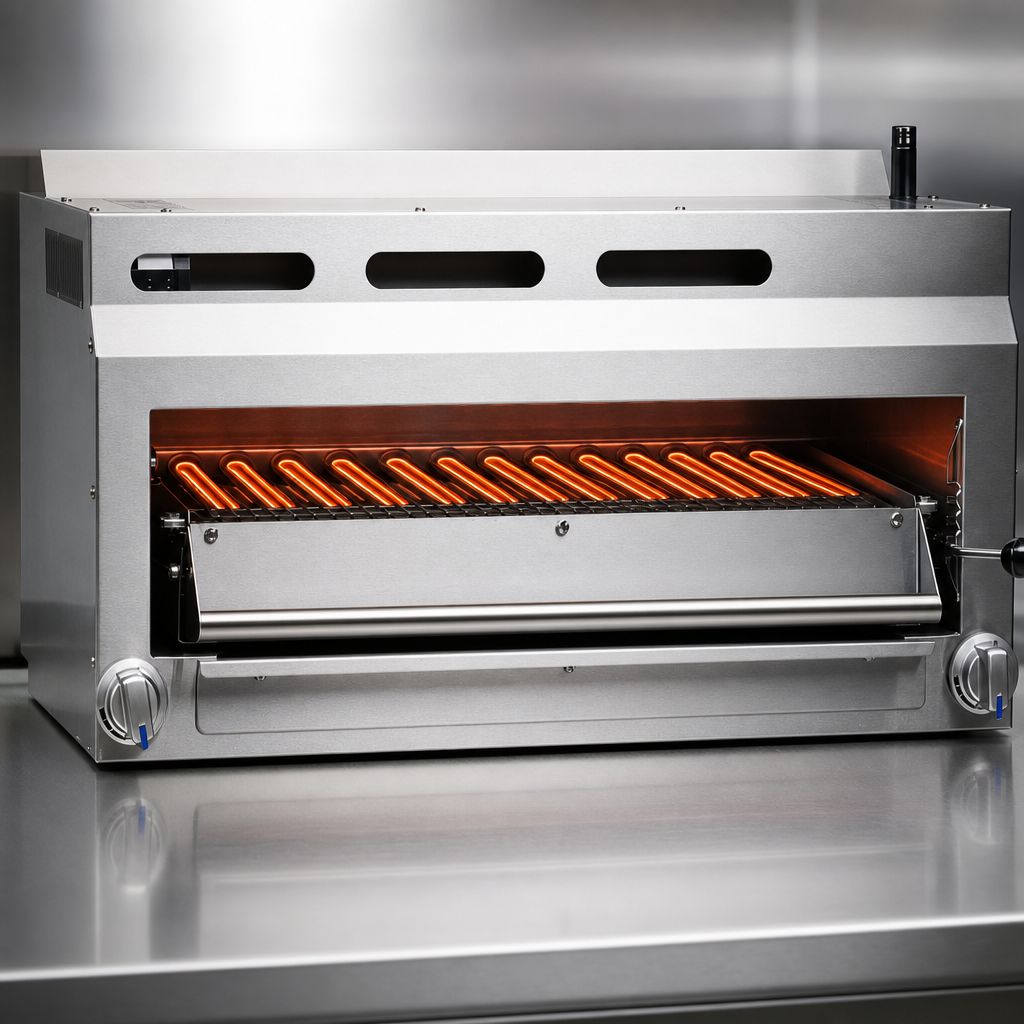

- 6 kW Incoloy Elements – Two 3 kW heating elements provide rapid, even infrared heat.

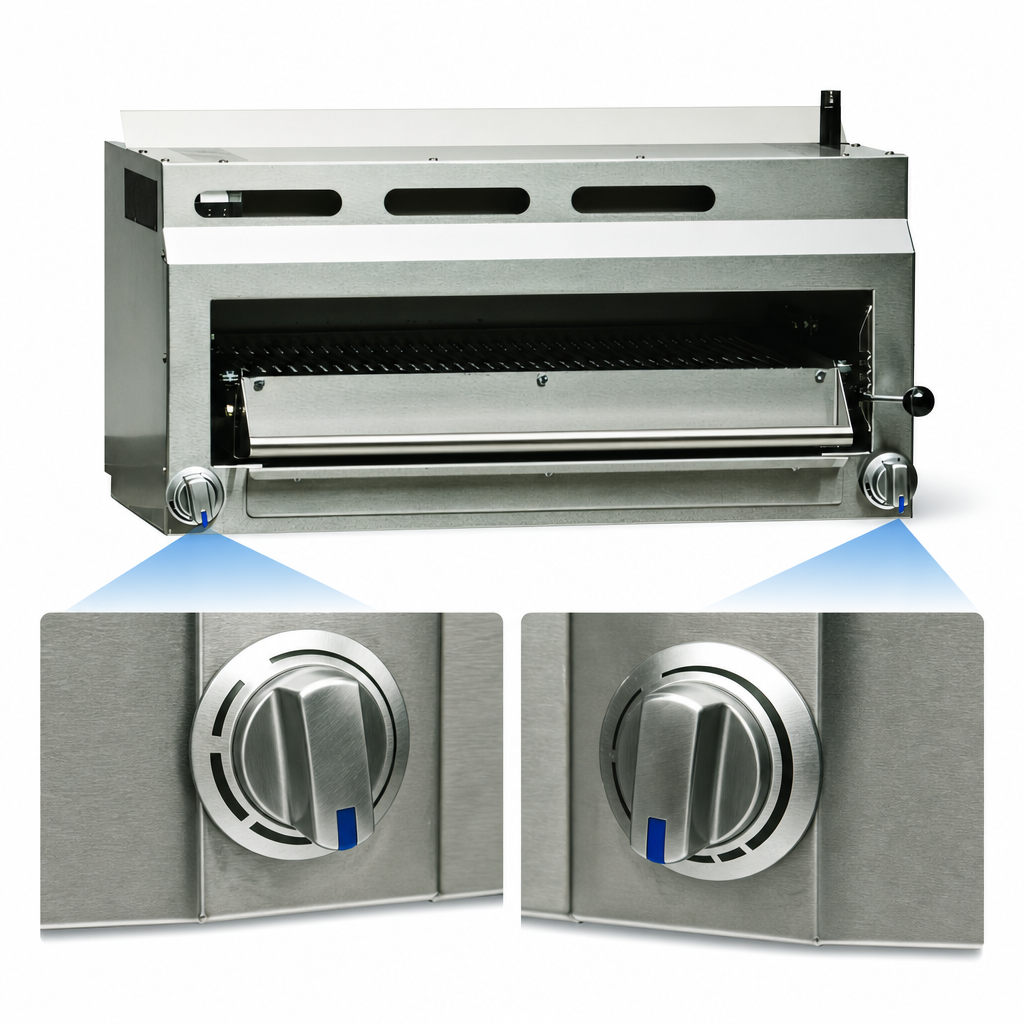

- Independent Zones – Separate left/right controls let you power only the side you need, saving energy during slower periods.
- 4-Position Broiler Carriage – Positive-locking rack lets you dial in perfect caramelization or a simple melt.
- 10" (254 mm) Roll-Out Rack – Spring-balanced cradle glides out for safe, easy loading and unloading.
- Heavy-Duty Chrome Rack & Full-Width Drip Pan – Built for busy kitchens and removable for thorough cleaning.
- Durable Build – Aluminized steel body for superior heat retention with a stainless-steel front, sides, and top.
- Flexible Installation – Mounts on a wall, countertop (optional 4" legs), or directly above an Imperial Restaurant Series range.
- Certified & Backed by Warranty – cETLus & ETL Sanitation listed; covered by Imperial’s 1-year parts & labor warranty.
Technical Specifications
| Model | ISB-36-E |
|---|---|
| Heat Source | Electric – 2 × 3 kW incoloy elements (total 6 kW) |
| Heating Zones | Independent left & right |
| Rack Positions | 4, positive locking |
| Rack Travel | Roll-out 10" (254 mm), spring balanced |
| Internal Broiling Width | 36" (914 mm) |
| Overall Dimensions (W × D × H) | 36" × 17 ¾" × 17 ¼" (914 × 451 × 438 mm) |
| Electrical Options | 208 V / 25 A / 3 ph • 240 V / 22 A / 3 ph • 480 V / 11 A / 3 ph |
| Clearance Requirements | 0" to non-combustible, 8" (203 mm) to combustible surfaces |
| Shipping Weight | 210 lb (95 kg) |
| Certifications | cETLus, ETL Sanitation, CE, Made in USA |
| Warranty | 1 year parts & labor (factory authorized service) |
Installation & Optional Accessories
- Wall mounting kit
- 4" (102 mm) leg kit for countertop use
- Reinforcement channels for range-top installation
Imperial reserves the right to modify specifications without notice. Always refer to the most current installation manual before setting equipment in place.
