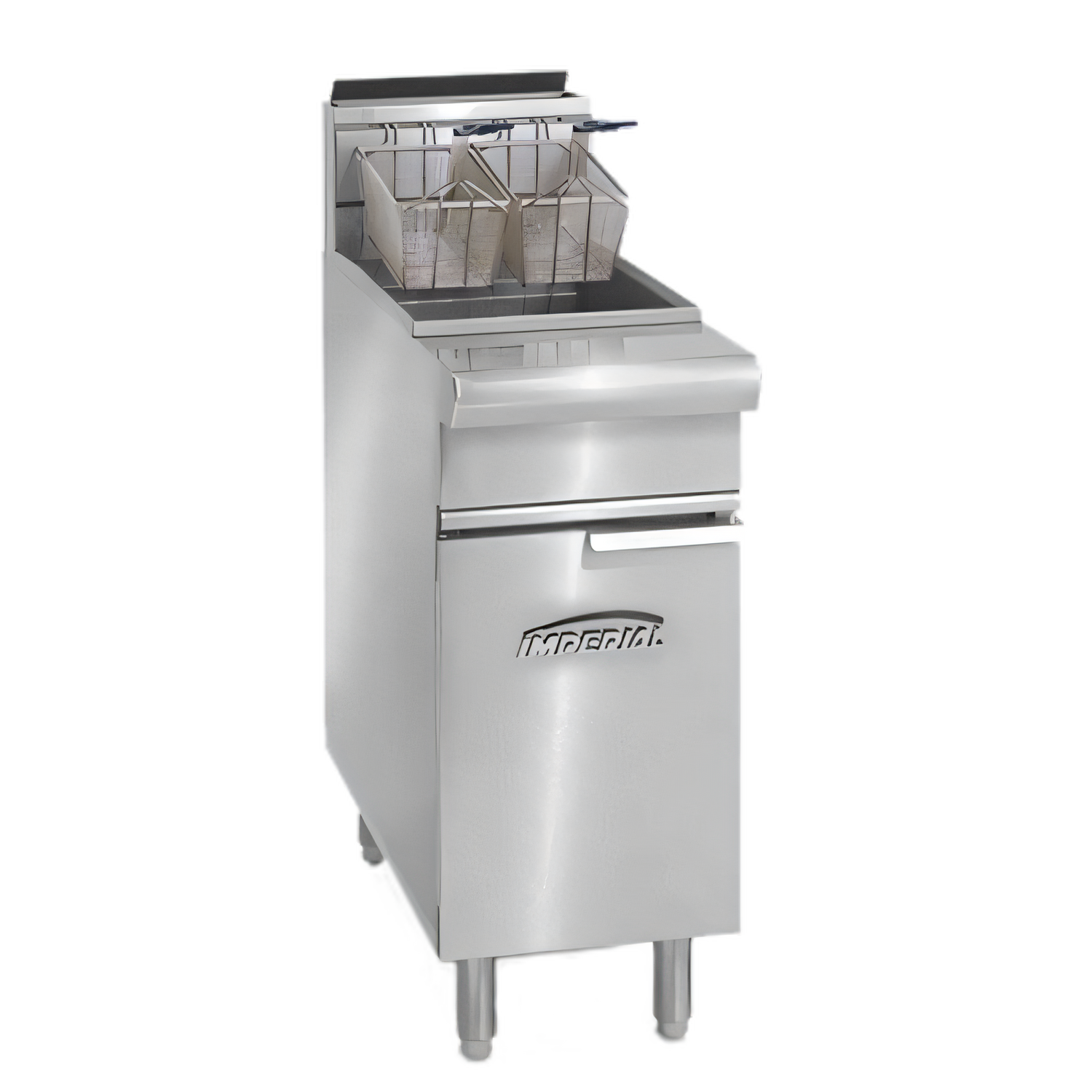

Imperial (Middleby) IRF-75-OP Gas Fryers
Description
Imperial IRF-75-OP Range Match 75 lb Open-Pot Gas Fryer
150,000 BTU • Stainless Steel Frypot • NSF, CE & CSA ListedEngineered for high–volume kitchens that demand speed, consistency and easy cleanup, the Imperial IRF-75-OP delivers a hefty 75 lb (41 L) oil capacity and a powerful 150,000 BTU output in a space-saving 19 ½" wide footprint. Its open-pot design, large cold zone and snap-action thermostat work together to maximise oil life while producing perfectly crisp, evenly cooked food—batch after batch.
Why You’ll Love It
- Rapid recovery: Open-pot burners heat plates outside the frypot for intense, uniform heat transfer.
- Extended oil life: Large cold zone keeps crumbs below the cooking area, reducing taste transfer and carbonisation.
- Precise control: Snap-action thermostat maintains 200 °F – 400 °F (93 °C – 204 °C) without tedious air-shutter adjustments.
- All-stainless exterior: Front, door, sides, frypot & basket hanger resist corrosion and wipe clean fast.
- Leak-free construction: Robotically welded frypot seams virtually eliminate oil seepage.
- Full safety shut-off: 100 % gas shut-off valve protects staff and property.
Included Accessories
- (2) nickel-plated fry baskets with vinyl-coated, heat-protective handles
- Fine mesh wire crumb screen
- Stainless steel basket hanger (removable)
Built for the Rush
- Deep-drawn frypot bottom slopes toward a 1 ¼" full-port drain valve for fast, clog-free draining.
- Plate-mounted 6" stainless steel legs provide rock-solid floor support; optional casters available.
- Full bottom chassis and heat shield protect internal components and controls.
Gas & Installation Info
- Natural or propane gas (specify when ordering)
- Manifold pressure: 4.0" W.C. Natural | 11.0" W.C. Propane
- Connection: ¾" or 1 ¼" NPT rear gas inlet
- 0" clearance from non-combustible surfaces; 6" (152 mm) from combustible surfaces
- Legs or casters required on non-combustible floors, or provide a 2" curb overhang
Specification Sheet
| Model | IRF-75-OP |
|---|---|
| Oil Capacity | 75 lb | 41 L |
| Frying Area | 18" × 18" (457 × 457 mm) |
| Heat Output | 150,000 BTU/hr | 44 kW |
| Thermostat Range | 200 °F – 400 °F (93 °C – 204 °C) |
| Overall Dimensions | 19 ½" W × 38" D × 44 ⅛" H (495 × 965 × 1120 mm) |
| Shipping Weight | 270 lb | 122 kg |
| Certifications | NSF, CE, CSA |
| Warranty | 1-year parts & labor 5-year pro-rated frypot |
