Imperial (Middleby) | SKU:
IRF-75
Imperial (Middleby) IRF-75 Gas Fryers
$9,204.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Imperial (Middleby) IRF-75 Gas Fryers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IRF-75 Gas Fryers
$9,204.00
Unit price
/
Unavailable
Description

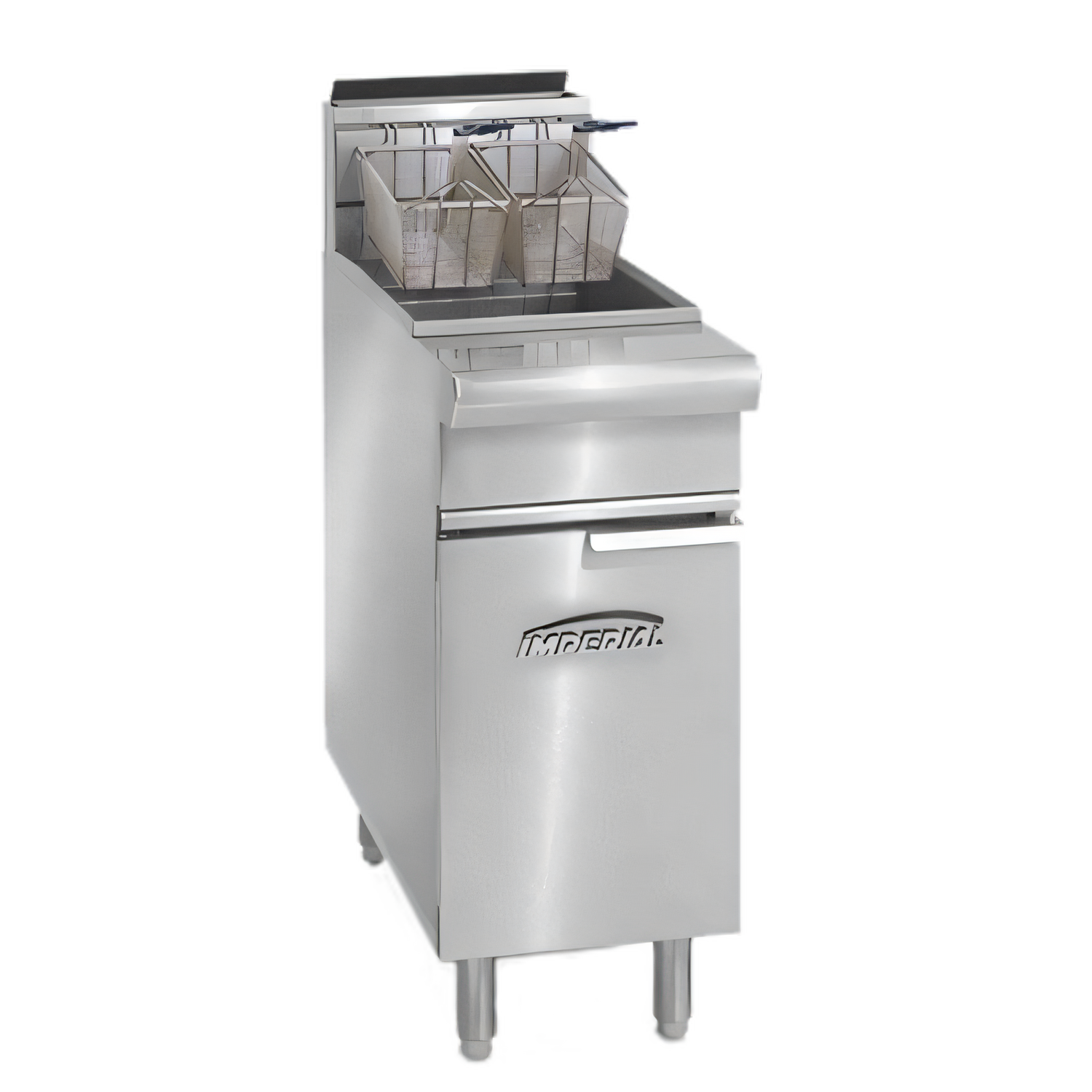

Imperial IRF-75 Restaurant Series Range-Match Gas Fryer

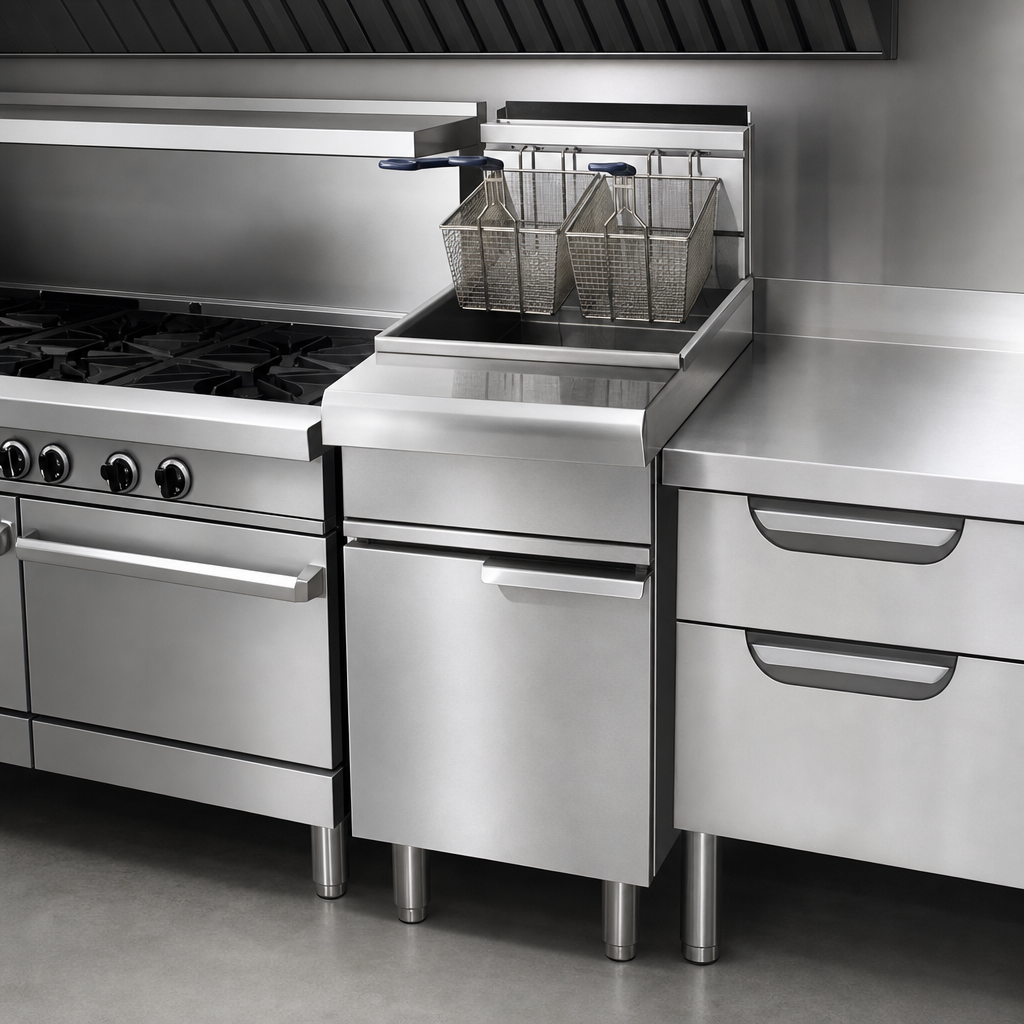

75 lb Oil Capacity • 175,000 BTU • Floor ModelBuilt for serious volume, the Imperial IRF-75 delivers rapid recovery, rock-solid temperature accuracy and long-term durability—perfectly matching the cooking height and profile of Imperial Restaurant Series ranges for a seamless cookline.
Key Performance Benefits
- Massive 18" × 18" frying area holds 75 lb (41 L) of oil for high-volume production.

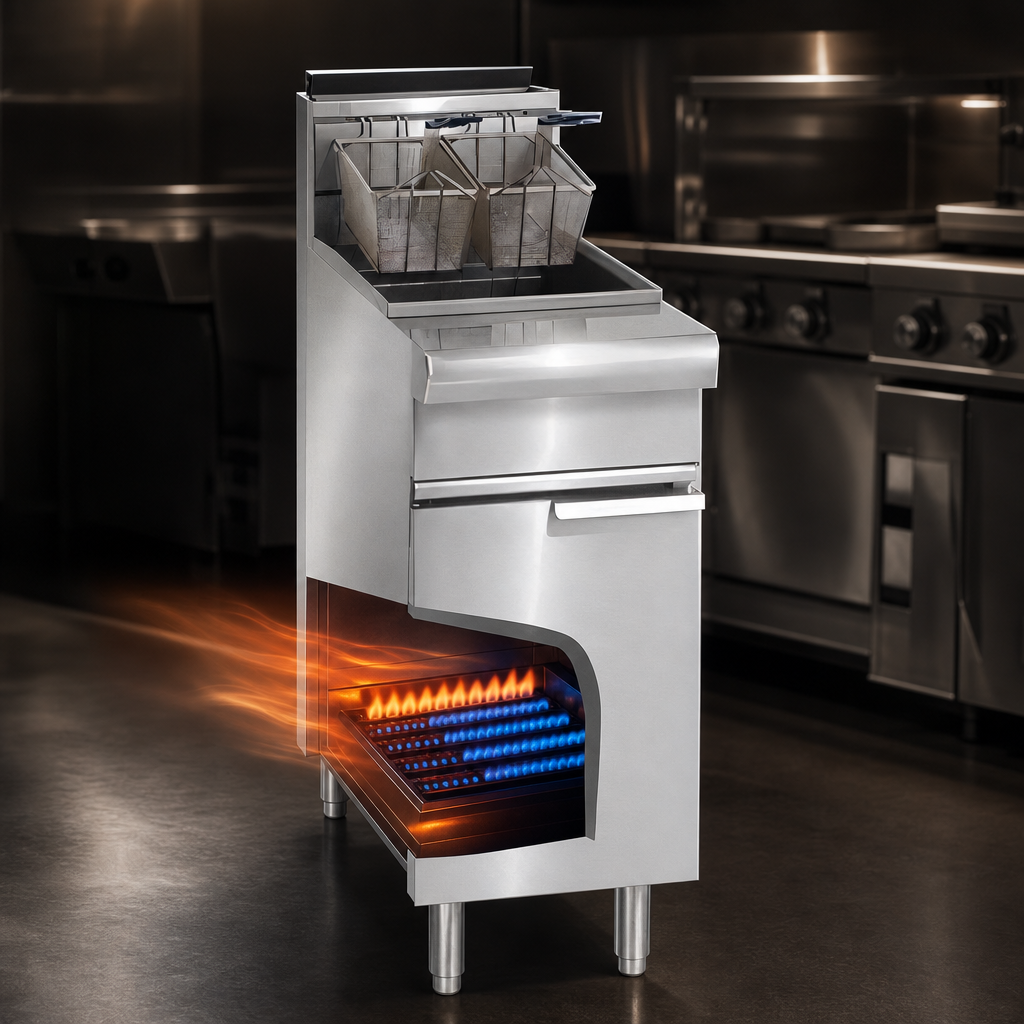

- Five heavy-gauge tube-fired stainless burners pump out 175,000 BTU for lightning-fast heat-up and recovery.
- Snap-action thermostat with a 200 °F–400 °F (93 °C–204 °C) range maintains precise temperatures.
- Millivolt control circuit means no electrical hookup required.
- Generous cold zone and included fine-mesh crumb screen trap debris to extend oil life and product quality.
- 100 % safety shut-off valve for worry-free operation.
Rugged, All-Stainless Construction
- Robotically-welded stainless steel frypot with 5-year pro-rated warranty.
- Stainless steel front, door, sides and basket hanger resist corrosion and daily wear.
- Full bottom chassis and plate-mounted 6" stainless steel legs provide exceptional stability.
- Large 3" stainless landing ledge aligns flush with Imperial ranges for an integrated workspace.
- Full heat shield protects the control panel from rising heat.
What’s in the Box?
- (2) nickel-plated fry baskets with vinyl-coated, heat-resistant handles
- Fine-mesh wire crumb screen
- Stainless steel basket hanger (factory-installed)
Specifications
| Oil Capacity | 75 lb (41 L) |
|---|---|
| Frying Area | 18" W × 18" D (457 × 457 mm) |
| Burners | 5 tube-fired stainless burners |
| Total Output | 175,000 BTU/hr (51 kW) |
| Thermostat Range | 200 °F–400 °F (93 °C–204 °C) |
| Gas Connection | 3/4" or 1-1/4" NPT rear manifold |
| Manifold Pressure | Natural 4.0" W.C. | Propane 11.0" W.C. |
| Overall Dimensions | 19 ½" W × 38" D × 44 ⅛" H (495 × 965 × 1120 mm) |
| Shipping Weight | Approx. 270 lb (122 kg) |
| Certifications | NSF, CE, CSA |
| Warranty | 1-year parts & labor; 5-year pro-rated frypot |
Installation Notice: This gas appliance must be installed, connected and vented by a qualified
technician in accordance with local codes. Legs or optional casters are required on non-combustible floors;
provide 6" (152 mm) clearance from combustible surfaces.
Need a budget-friendly way to upgrade? Ask about Middleby Equipment Financing for fast approvals and low monthly payments.
Features & Specs
Features & Specs
Manufacturer
Imperial (Middleby)
Certifications
NSF, CE, CSA
Height
44.13in
Width
19.5in
Depth
38.0in
Shipping Weight
270.0lbs
Controls
millivolt controls
Type
restaurant, range match
Basket Lifts
without basket lifts
Exterior Finish
stainless steel front & sides
Fat Capacity (approximate)
75 lb
Fry pot
stainless steel fry pot
Filter
no filter
Specifications
Restaurant Series Range Match Fryer, gas, floor model, 75 lb. capacity, tube fired burners, snap action thermostat, millivolt controls, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel fry pot, front, door, sides, & basket hangers, 6" legs, 175,000 BTU, NSF, CE, CSA
