Imperial (Middleby) IRF-40-OP Gas Fryers
Description

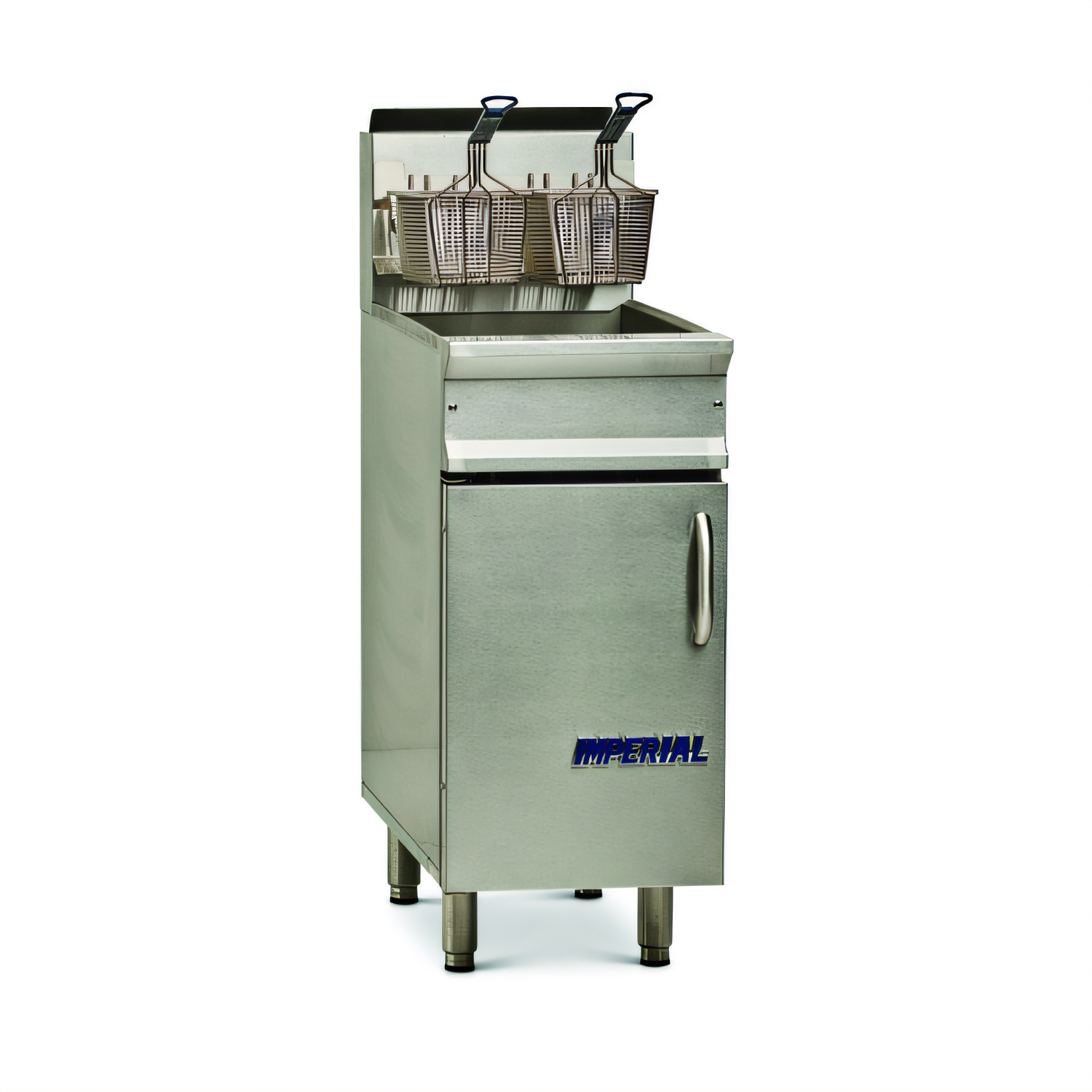

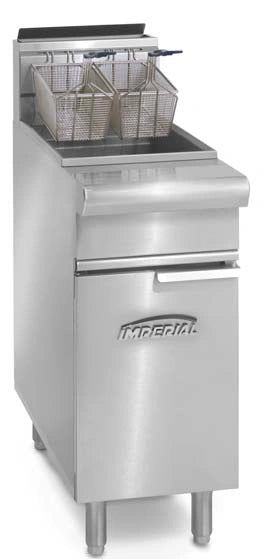

Imperial IRF-40-OP Range-Match Open-Pot Fryer
40 lb Gas Floor Fryer – 105,000 BTUBuilt to keep up with the fast pace of today’s commercial kitchens, the Imperial IRF-40-OP delivers consistent, high-volume frying while simplifying clean-up and maintenance. Its open-pot burner system, robotically-welded stainless steel frypot and generous 14" × 14" frying area give you the power, durability and efficiency you need – shift after shift.
Why You’ll Love It

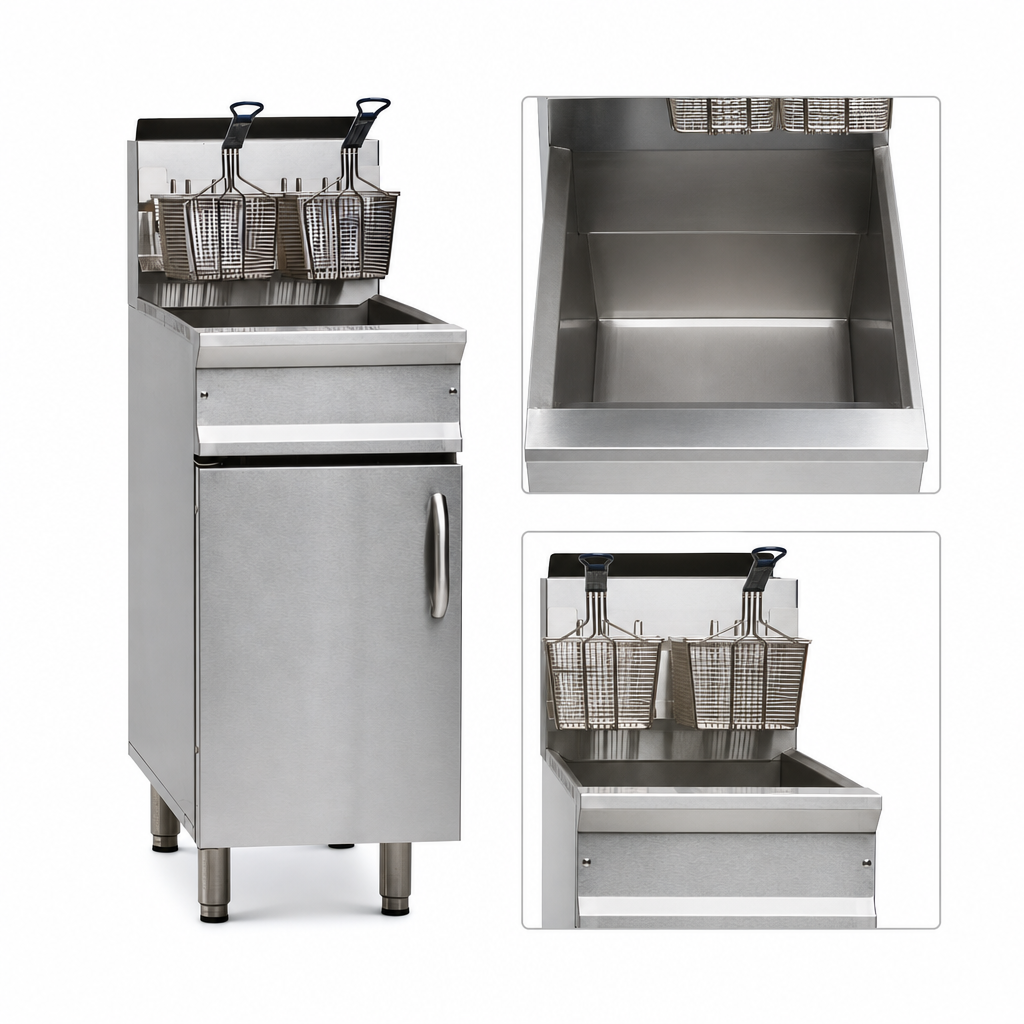

- Open-Pot Burner Design – External flame plates rapidly heat the pot without tube burners or air-shutter adjustments.

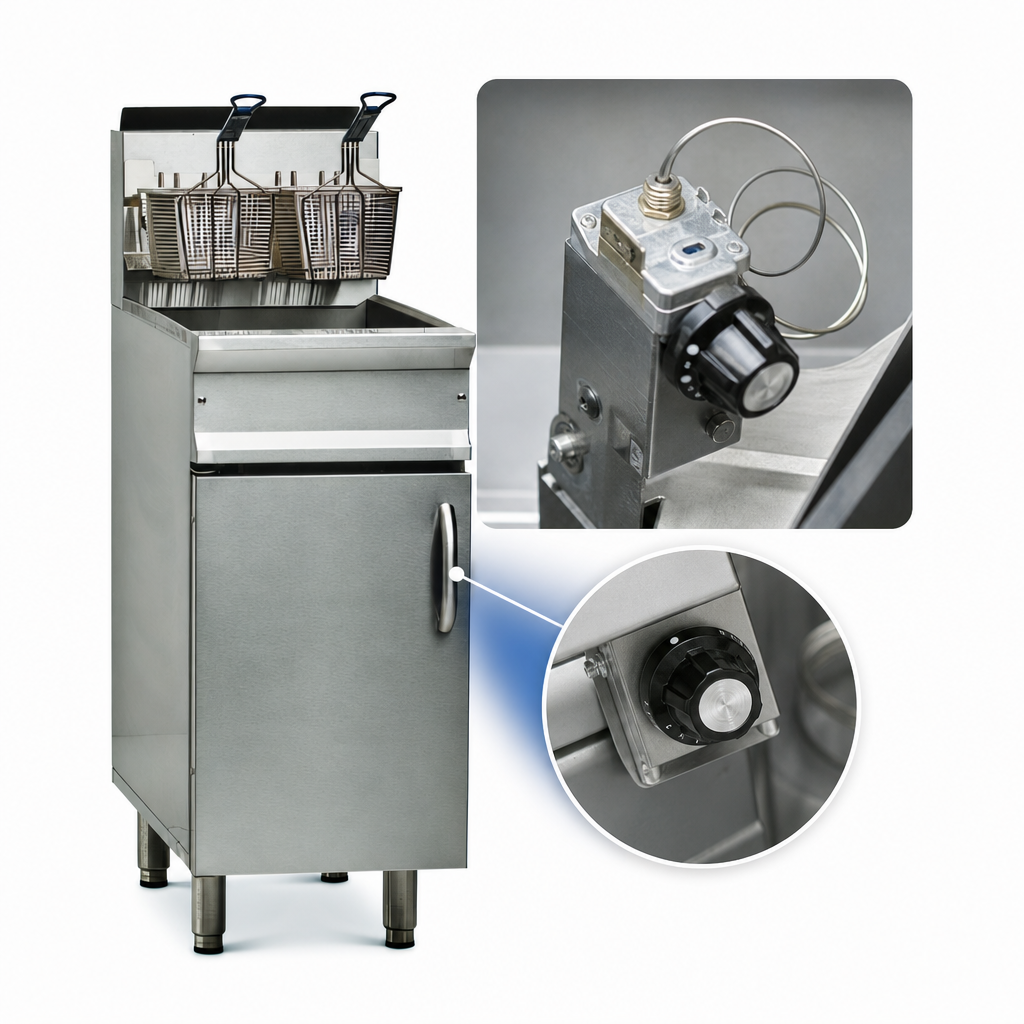

- Snap-Action Thermostat – 200 °F–400 °F (93 °C–204 °C) range with 100 % safety shut-off for precise control and longer oil life.
- Large Cold Zone – Keeps crumbs below the fry zone to reduce taste transfer and extend oil quality.
- Stainless Steel Construction – Frypot, front, door, sides and basket hanger are all heavy-gauge stainless steel.
- Fast, Safe Draining – Deep-drawn bottom slants toward a 1 ¼" full-port drain valve.
- Ready to Work – Includes wire-mesh crumb screen and two nickel-plated fry baskets with vinyl-coated, heat-protective handles.
- Rock-Solid Support – Plate-mounted 6" stainless steel legs for stability; optional casters available.
At-a-Glance Specs
| Oil Capacity | 40 lb (22 L) |
|---|---|
| Frying Area | 14" × 14" (356 × 356 mm) |
| Heat Output | 105,000 BTU/hr (31 kW) |
| Thermostat Range | 200 °F–400 °F (93 °C–204 °C) snap-action |
| Overall Dimensions | 15 ½" W × 34" D × 44 ⅛" H (394 × 864 × 1120 mm) |
| Gas Connection | 3/4" or 1 ¼" NPT manifold, 4.0" W.C. (Natural) / 11.0" W.C. (LP) |
| Drain Valve | 1 ¼" full-port |
| Legs | 6" stainless steel, adjustable |
| Shipping Weight | 221 lb (100 kg) |
| Certifications | NSF • CE • CSA |
Installation Notes
- For non-combustible floors only; legs or casters required.
- 0" clearance from non-combustible surfaces, 6" (152 mm) from combustible surfaces.
- Specify gas type and elevation (>2,000 ft) at time of order.
Warranty
1-year parts & labor warranty. Stainless steel frypot carries a 5-year pro-rated limited warranty.
