Imperial (Middleby)  |  SKU: IRF-40

Imperial (Middleby) IRF-40 Gas Fryers

$7,023.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Training video Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

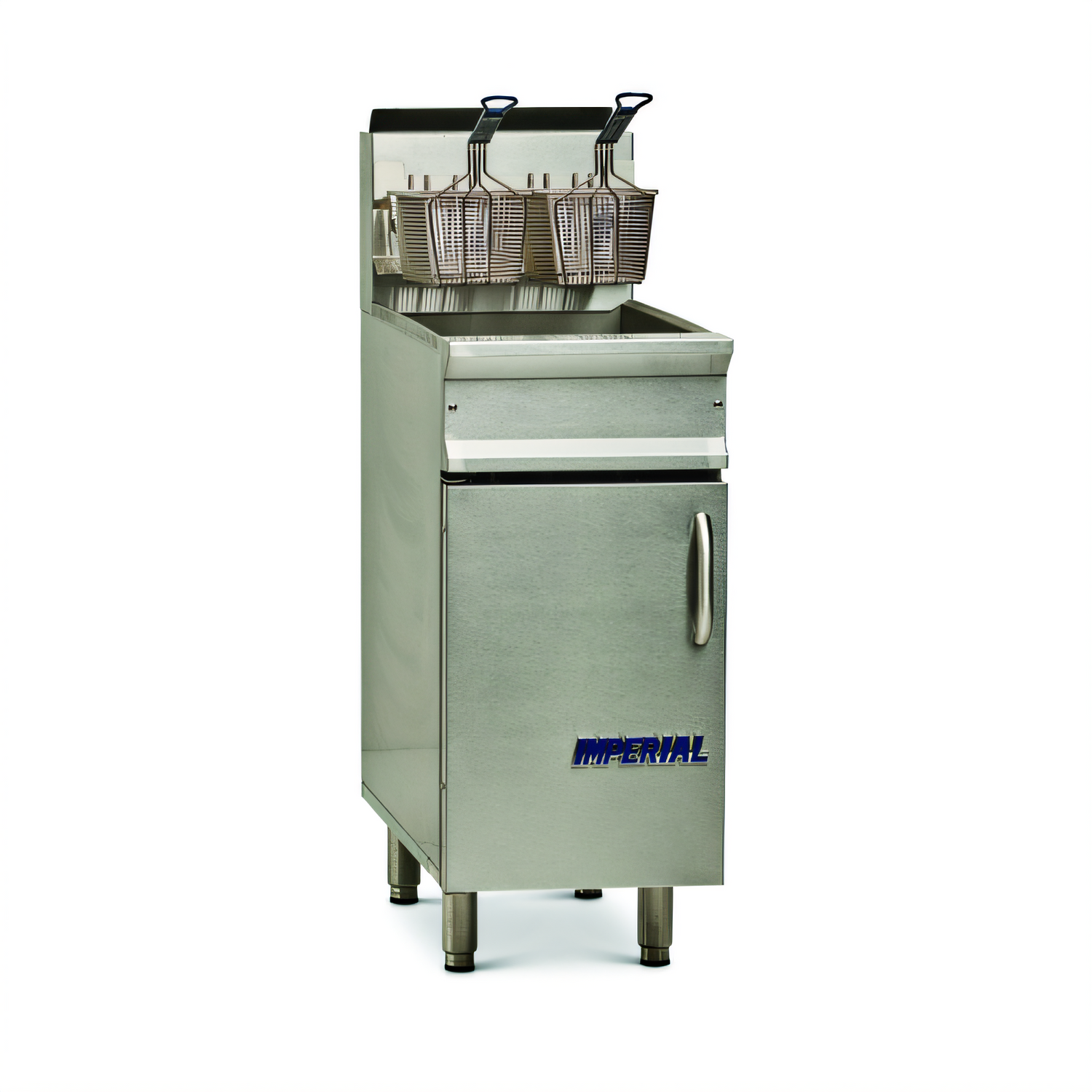

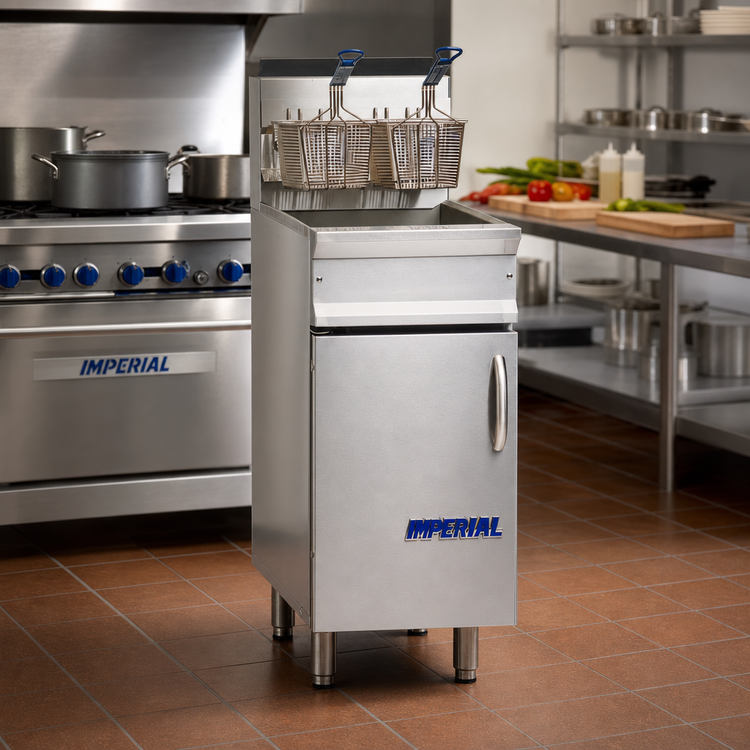

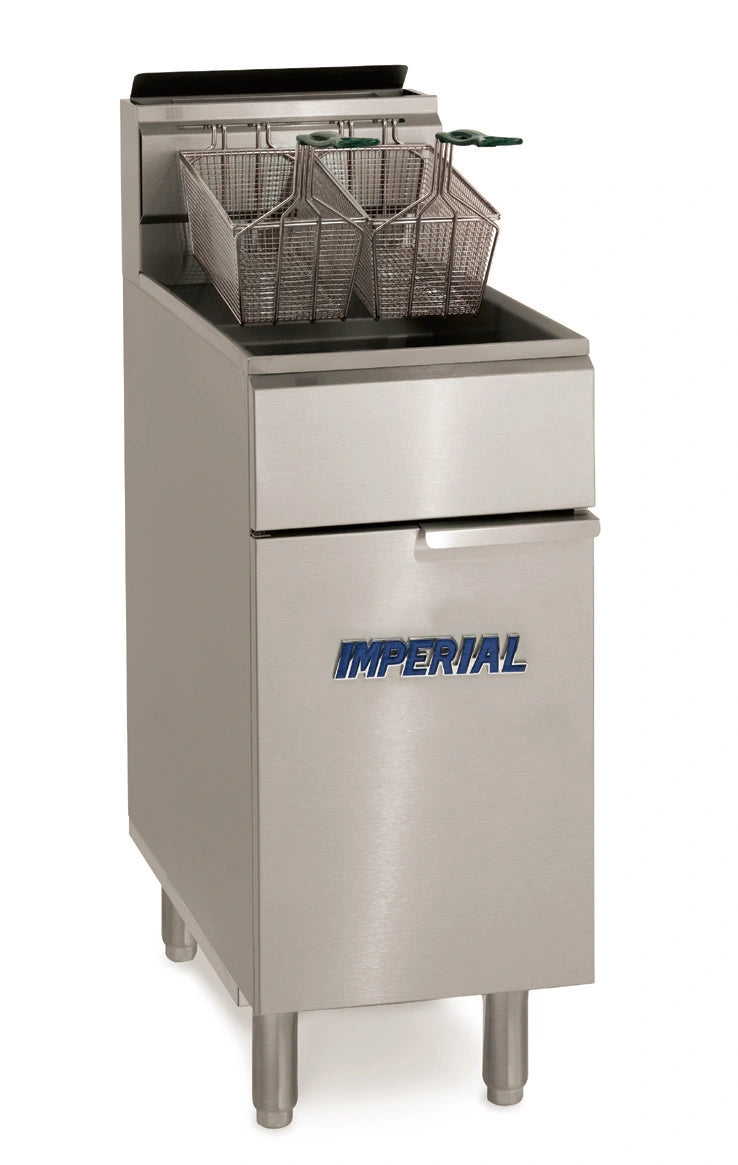

Imperial IRF-40 Restaurant Series Range Match Fryer – 40 lb.

Tube-Fired, Floor Model | 105,000 BTU | NSF • CE • CSA

Pair this fryer with your Imperial Restaurant Series range and keep up with the rush. The IRF-40’s high-efficiency tube burners drive rapid heat-up and lightning-fast recovery, while a welded stainless frypot and large cold zone protect oil quality for consistently crispy, great-tasting results.

Key Features

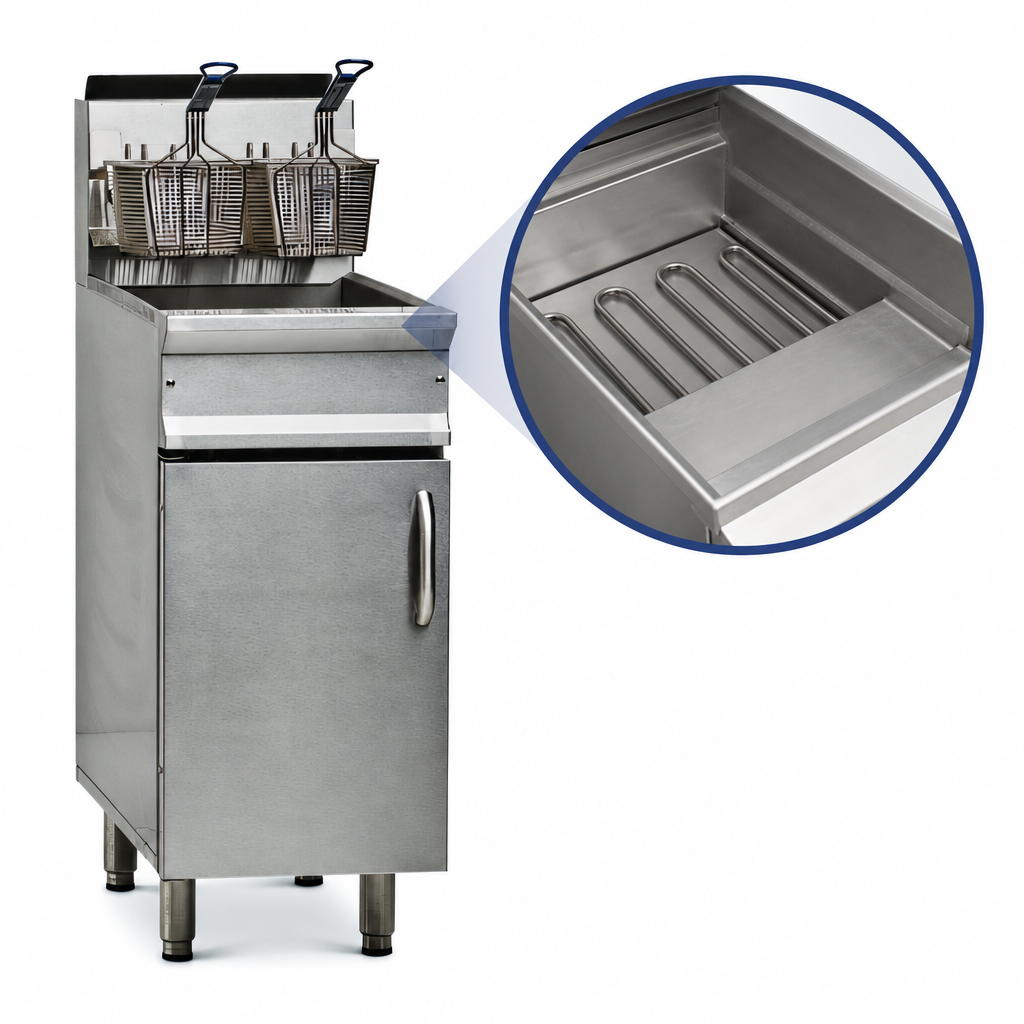

  • 40 lb. (22 L) stainless steel frypot – robotically welded, leak-proof construction

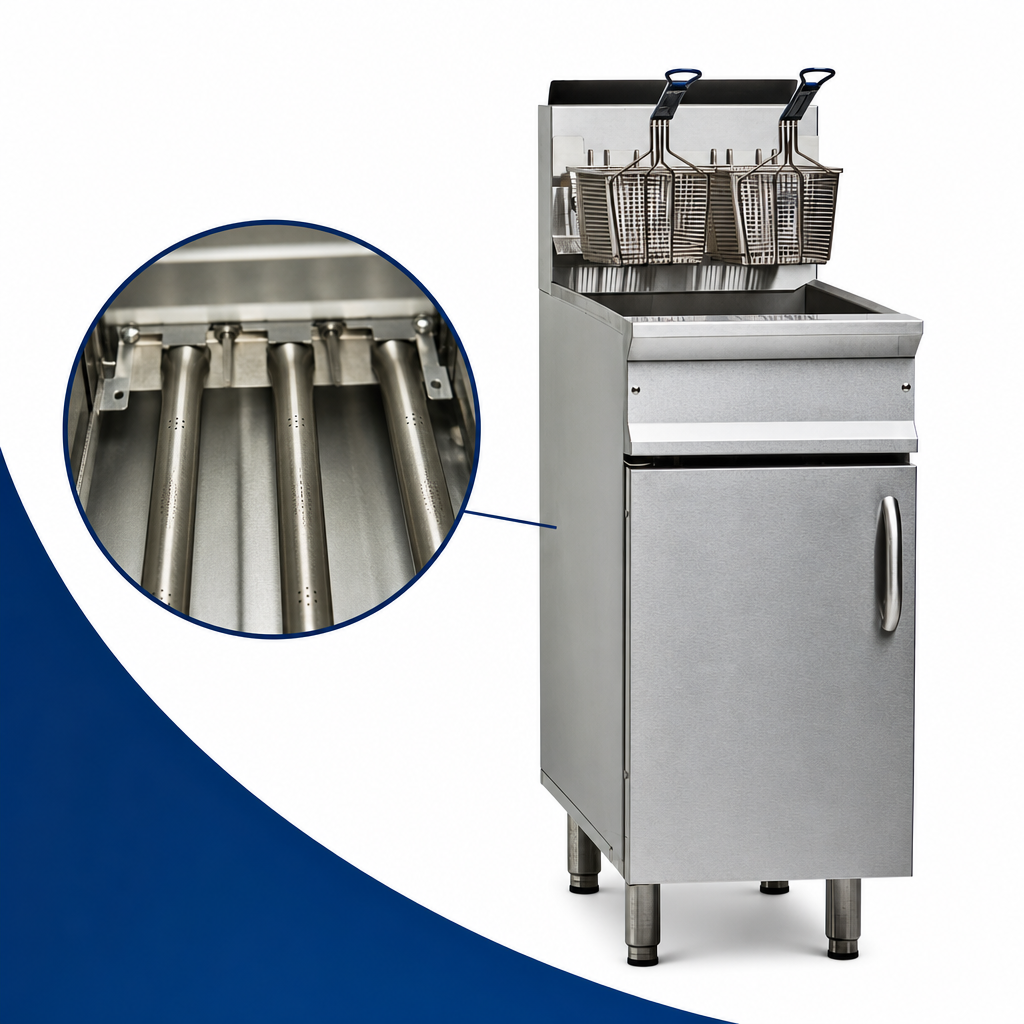

  • Three heavy-gauge tube-fired burners deliver 105,000 BTU/hr
  • Snap-action thermostat (200-400 °F / 93-204 °C) with millivolt controls – no power cord required
  • Large cold zone and recessed, sloped bottom extend oil life and simplify draining
  • 1 ¼ in. full-port drain valve for fast, safe oil evacuation
  • Includes fine wire mesh crumb screen + (2) nickel-plated fry baskets with vinyl-coated, heat-protected handles
  • All-stainless exterior: front, door, sides, frypot, basket hangers & 3 in. landing ledge
  • Plate-mounted 6 in. stainless steel legs (optional casters available)
  • 100 % safety shut-off gas valve and full heat shield for operator protection
  • One-year parts & labor warranty + five-year pro-rated frypot warranty

Specifications

Model IRF-40
Oil Capacity 40 lb. / 22 L
Frying Area 14" W × 14" D (356 × 356 mm)
Heat Output 105,000 BTU/hr (31 kW)
Burners 3 stainless steel tube burners
Thermostat Range 200 – 400 °F (93 – 204 °C)
Controls Millivolt (no electricity required)
Overall Dimensions 15 ½" W × 34" D × 44 ⅛" H (394 × 864 × 1 120 mm)
Gas Connection 3/4" NPT  •  4" W.C. Natural  •  11" W.C. Propane
Ship Weight 221 lb. (100 kg)
Certifications NSF, CE, CSA

Perfect For

  • Restaurants aligning equipment with Imperial ranges
  • Food trucks and concession stands needing compact, high-output frying
  • Pubs, bars, cafés and ghost kitchens turning out apps, fries, wings and more

Looking for extras? Ask about additional fry baskets, stainless backguards, quick-disconnect gas hoses, casters, tank covers and other accessories.

Installation Reminder: For use on non-combustible floors with legs or casters installed, or with a 2" curb when floor mounting. Provide 0" clearance to non-combustible surfaces and 6" (152 mm) to combustible surfaces. Gas connection must be made by a qualified professional in accordance with local codes.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA

Height

44.13in

Width

15.5in

Depth

34.0in

Shipping Weight

221.0lbs

Controls

millivolt controls

Type

restaurant, range match

Fat Capacity (approximate)

40 lb

Basket Lifts

without basket lifts

Exterior Finish

stainless steel front & sides

Fry pot

stainless steel fry pot

Filter

no filter

Specifications

Restaurant Series Range Match Fryer, gas, floor model, 40 lb. capacity, tube fired burners, snap action thermostat, millivolt controls, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel fry pot, front, door, sides, & basket hangers, 6" legs, 105,000 BTU, NSF, CE, CSA
