Imperial (Middleby)  |  SKU: IRF-25

Imperial (Middleby) IRF-25 Gas Fryers

$5,509.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Training video Warranty sheet
Related Searches
Fryers Gas Fryers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

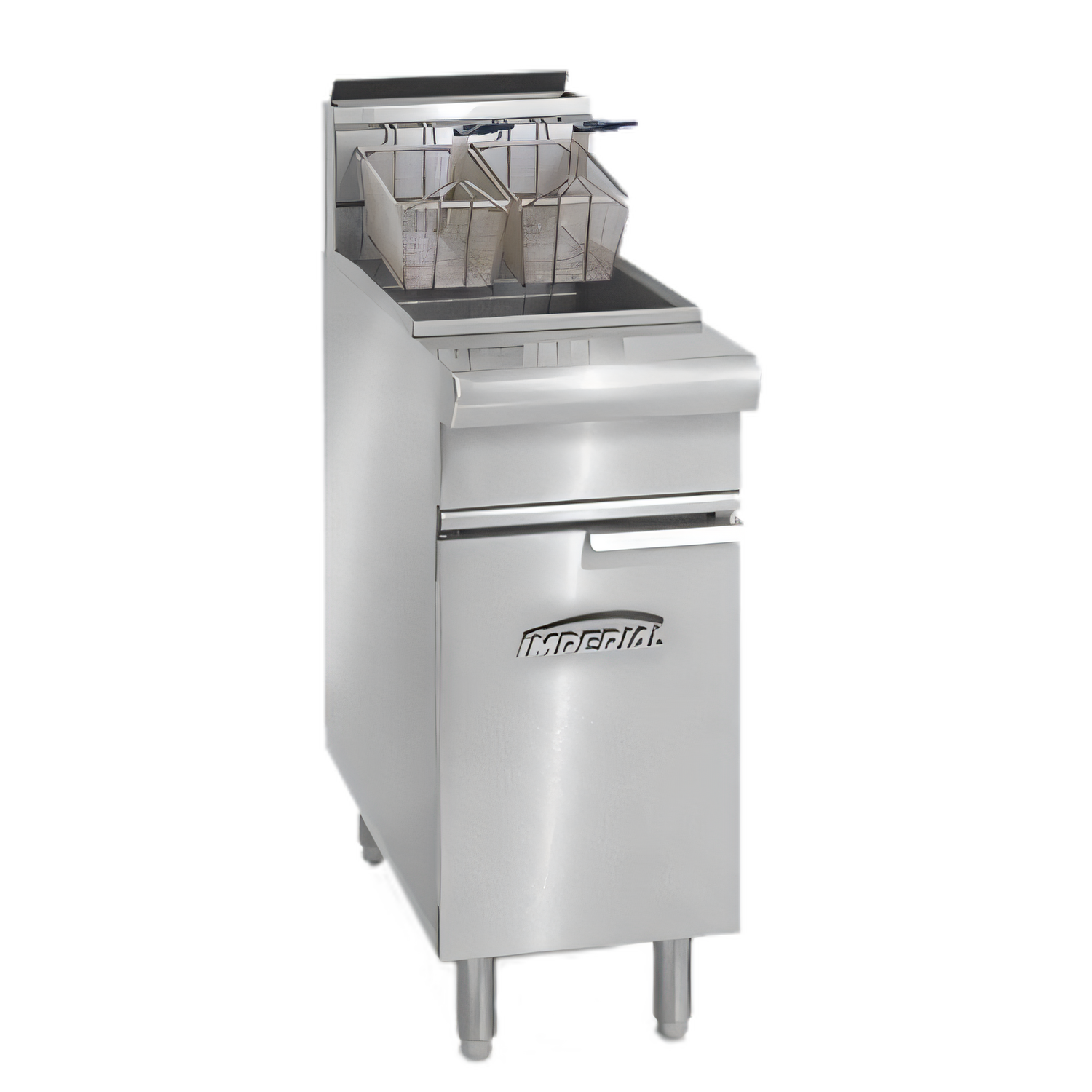

Imperial IRF-25 Restaurant Series Range-Match Gas Fryer – 25 lb

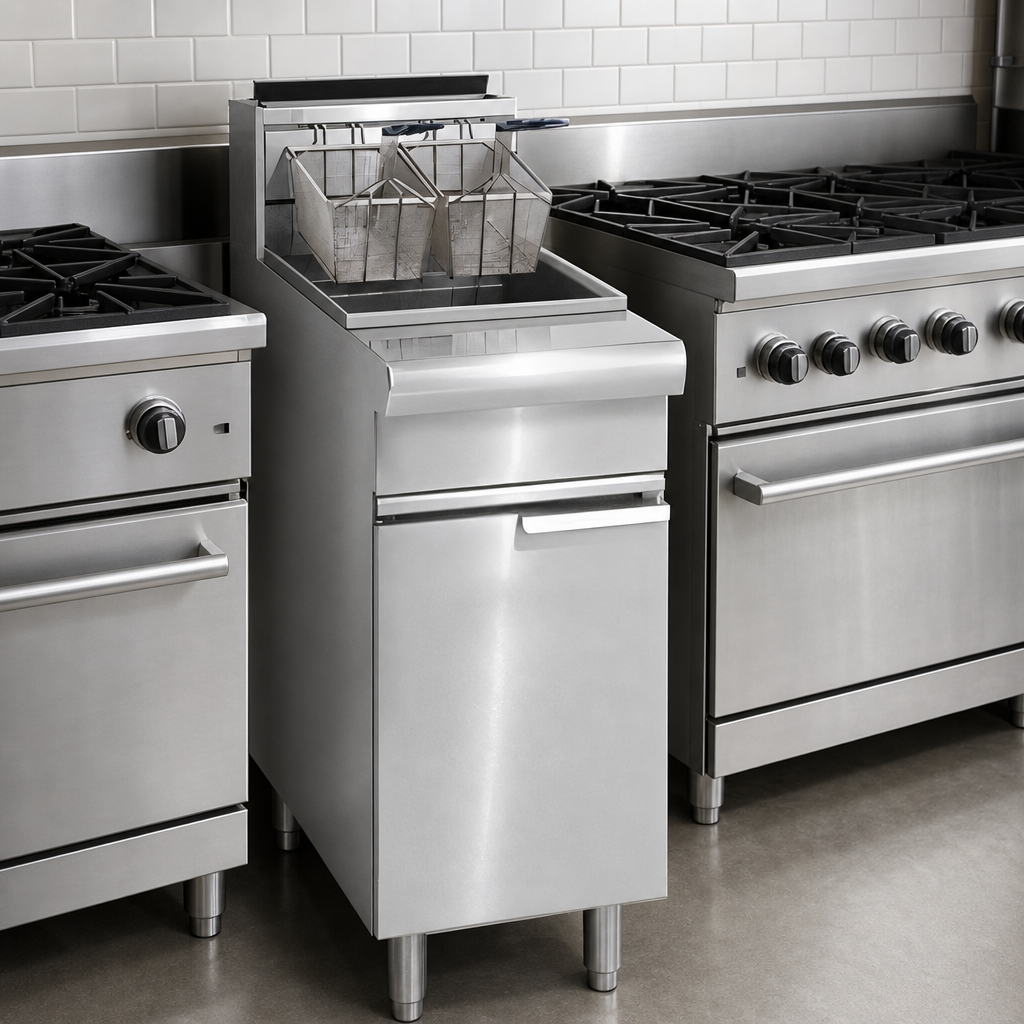

Compact tube-fired performance that lines up flush with your Imperial Restaurant Series range.

The IRF-25 brings full-size frying capability to space-conscious cook-lines. High-efficiency tube burners drive rapid heat-up and lightning-fast recovery, while a stainless steel frypot and large cold zone keep oil clean and profitable for longer. Built to the same working height as Imperial ranges, this floor model slips seamlessly into your existing line-up.

Key Features

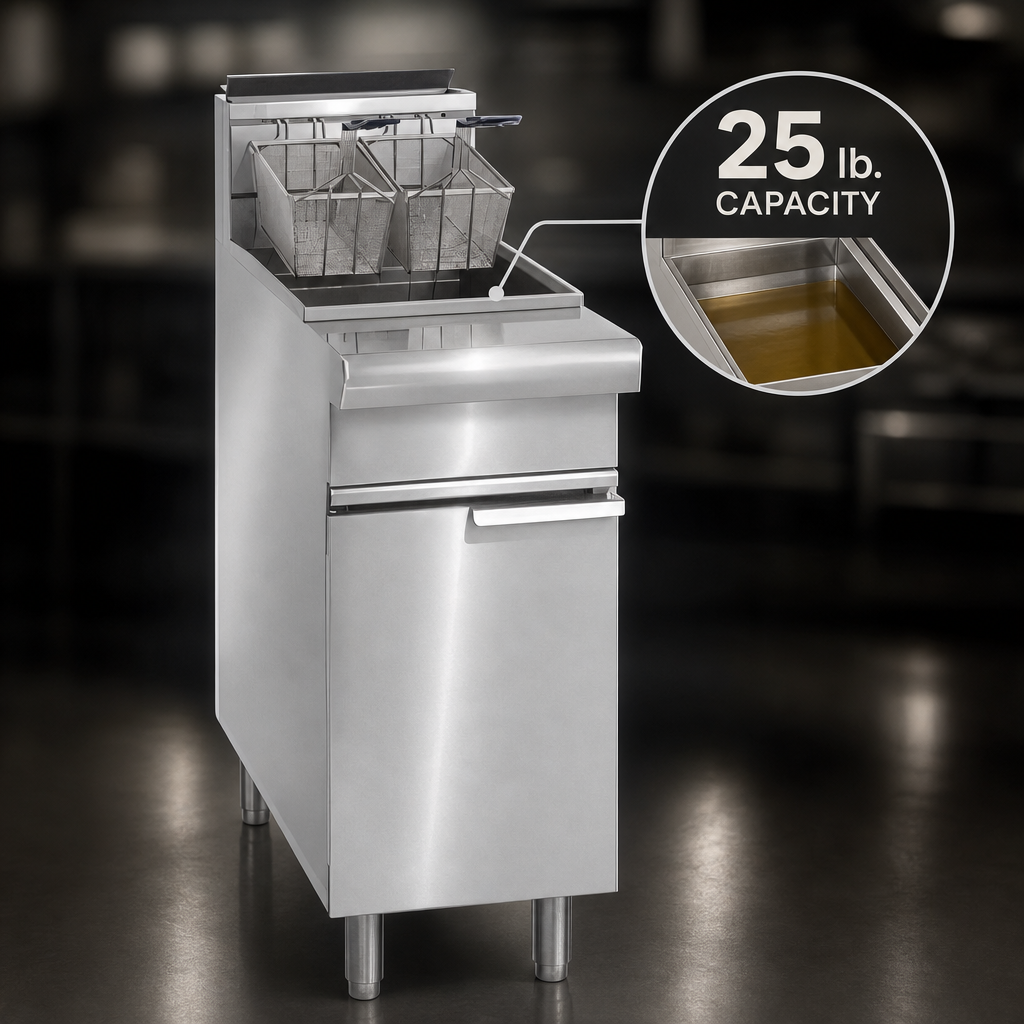

  • 25 lb (14 L) oil capacity – ideal for fresh-to-order frying and light-medium volume production
  • 70,000 BTU/hr total output from two heavy-gauge, tube-fired stainless burners
  • Snap-action thermostat with 200 – 400 °F (93 – 204 °C) range for precise temperature control
  • Millivolt control circuit — operates without an external power connection
  • Fine-mesh wire crumb screen & large cold zone extend oil life and protect flavor
  • Includes (2) nickel-plated fry baskets with vinyl-coated, heat-safe handles
  • 1 ¼″ full-port drain valve and recessed frypot bottom for safe, fast draining
  • All-stainless construction: frypot, front, door, sides & basket hanger
  • 6″ adjustable stainless steel legs for rock-solid support and easy sanitation access
  • 100 % automatic gas safety shut-off for operator peace of mind

Specifications

Oil Capacity 25 lb / 14 L
Heat Output 70,000 BTU/hr (21 kW)
Burners (2) stainless steel tube burners
Thermostat Snap-action, 200 – 400 °F (93 – 204 °C)
Controls Millivolt (no electrical hookup)
Frying Area 6 ¾″ W × 14″ D (171 × 356 mm)
Drain Valve 1 ¼″ full-port
Overall Dimensions* Approx. 15 ½″ W × 34″ D × 44 ⅛″ H
Ship Weight 117 lb (53 kg)
Gas Connection ¾″ NPT rear manifold
Certifications NSF, CE, CSA Flame
Warranty 1-year parts & labor; 5-year pro-rated frypot

*Consult the spec sheet for detailed installation drawings.

Optional Accessories

  • Extra fry baskets
  • ¾″ NPT gas shut-off valve
  • ¾″ NPT quick-disconnect & flexible hose kit
  • 6″ locking casters
  • 20 ½″ stainless steel backguard
  • Stainless steel tank cover, joiner strip or drain shelf
Installation Clearance: Use only on non-combustible floors. Provide 0″ clearance to non-combustible surfaces and 6″ (152 mm) to combustible surfaces, or maintain a 2″ overhang when curb-mounted.

Imperial reserves the right to change specifications or design without prior notice.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, CSA

Height

44.13in

Width

7.78in

Depth

34.0in

Shipping Weight

117.0lbs

Controls

millivolt controls

Type

restaurant, range match

Fat Capacity (approximate)

25 lb

Basket Lifts

without basket lifts

Exterior Finish

stainless steel front & sides

Fry pot

stainless steel fry pot

Filter

no filter

Specifications

Restaurant Series Range Match Fryer, gas, floor model, 25 lb. capacity, tube fired burners, snap action thermostat, millivolt controls, includes: wire mesh crumb screen & (2) nickel-plated baskets, stainless steel fry pot, front, door, sides, & basket hangers, 6" legs, 70,000 BTU, NSF, CE, CSA
