Description

Imperial IRB-72 Radiant Countertop Gas Charbroiler

72"-wide, 12-burner, 180,000 BTU powerhouse for high-volume grilling

Designed for demanding commercial kitchens, the Imperial IRB-72 delivers intense, even heat across a full six-foot cooking surface—perfect for steak houses, casual dining, catering venues and anywhere you need authentic charbroiled flavor with maximum productivity.

Key Features & Benefits

  • 12 individually controlled 15,000 BTU stainless steel burners—precision zone cooking every 5" (127 mm).
  • Removable cast-iron radiants prevent burner clogging and provide superior heat retention.

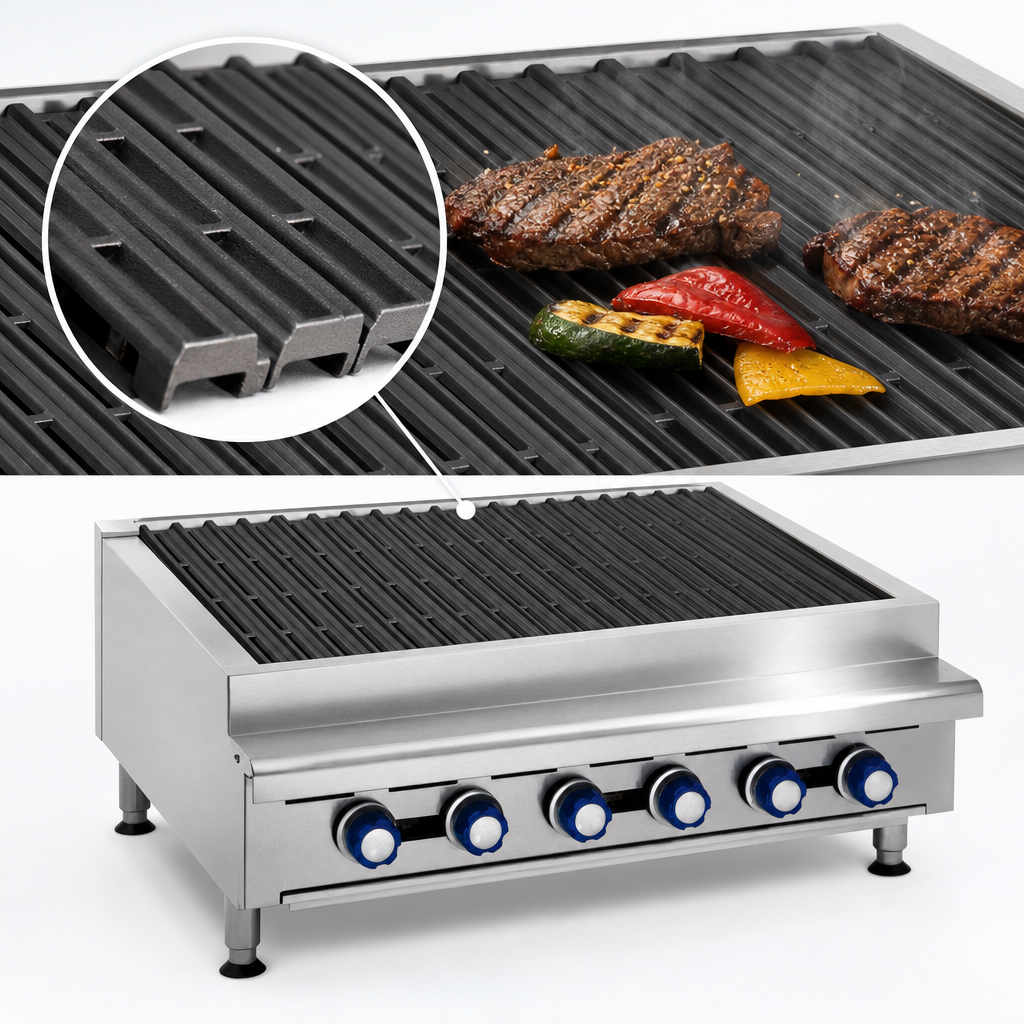

  • Heavy-duty cast-iron top grates (3" × 22") are slanted for perfect grill marks and easy grease flow.
  • Built-in cast-in grease trough on each grate channels excess fat toward the full-width grease gutter to reduce flare-ups.
  • Large-capacity removable drip pan makes cleanup fast and safe.
  • All-stainless exterior—front, sides and 5" (127 mm) landing ledge—for a professional, easy-to-clean finish.
  • 4" (102 mm) heavy-duty legs with adjustable feet level the unit on any countertop.
  • Factory-installed 3/4" NPT gas manifold; Natural or Propane ready (field convertible).
  • cETLus, NSF & CE listed—meets stringent safety and sanitation standards worldwide.
  • Backed by Imperial’s 1-year parts & labor warranty for peace of mind.

Specifications

Model IRB-72
Overall Width 72" / 1829 mm
Overall Depth 31 3⁄8" / 797 mm
Overall Height 13 3⁄4" / 349 mm (to grate)
Number of Burners 12 × 15,000 BTU stainless steel
Total Output 180,000 BTU/hr  |  53 kW
Gas Connection 3/4" NPT rear manifold
Manifold Pressure Natural Gas 5.0" W.C.  |  Propane 10.0" W.C.
Clearances 0" non-combustible  |  8" (203 mm) combustible
Shipping Weight 705 lb / 319 kg
Certifications cETLus, NSF, CE
Warranty 1 year parts & labor

Optional Accessories

  • Stainless steel radiants (in lieu of cast iron)
  • 6" (152 mm) casters for equipment stands
  • Quick-disconnect & flexible gas hose kit
  • Stainless steel equipment stand or refrigerated base
  • 3/4" (19 mm) gas shut-off valve & stainless flashing
Installation notice: For optimal performance and to maintain warranty coverage, this charbroiler must be installed and serviced by a qualified technician in accordance with local codes. A properly sized ventilation system is required.

Need a different size? Imperial radiant charbroilers are also available in 24", 30", 36", 48" and 60" widths.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, cETLus

Height

13.75in

Width

72.0in

Depth

31.38in

Shipping Weight

705.0lbs

Control Type

manual controls

Width (side - side) OA

67 - 72"

Heating Source

radiant

Specifications

Charbroiler, gas, countertop, 72"W, (12) radiant burners, cast iron slanted top grates, full width grease gutter, removable drip pan, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 180,000 BTU, 53kW, cETLus, NSF, CE
