Imperial (Middleby)  |  SKU: IRB-48

Imperial (Middleby) IRB-48 Gas Charbroilers

$8,431.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Parts list Warranty sheet
Related Searches
Charbroilers & Grills Gas Charbroilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

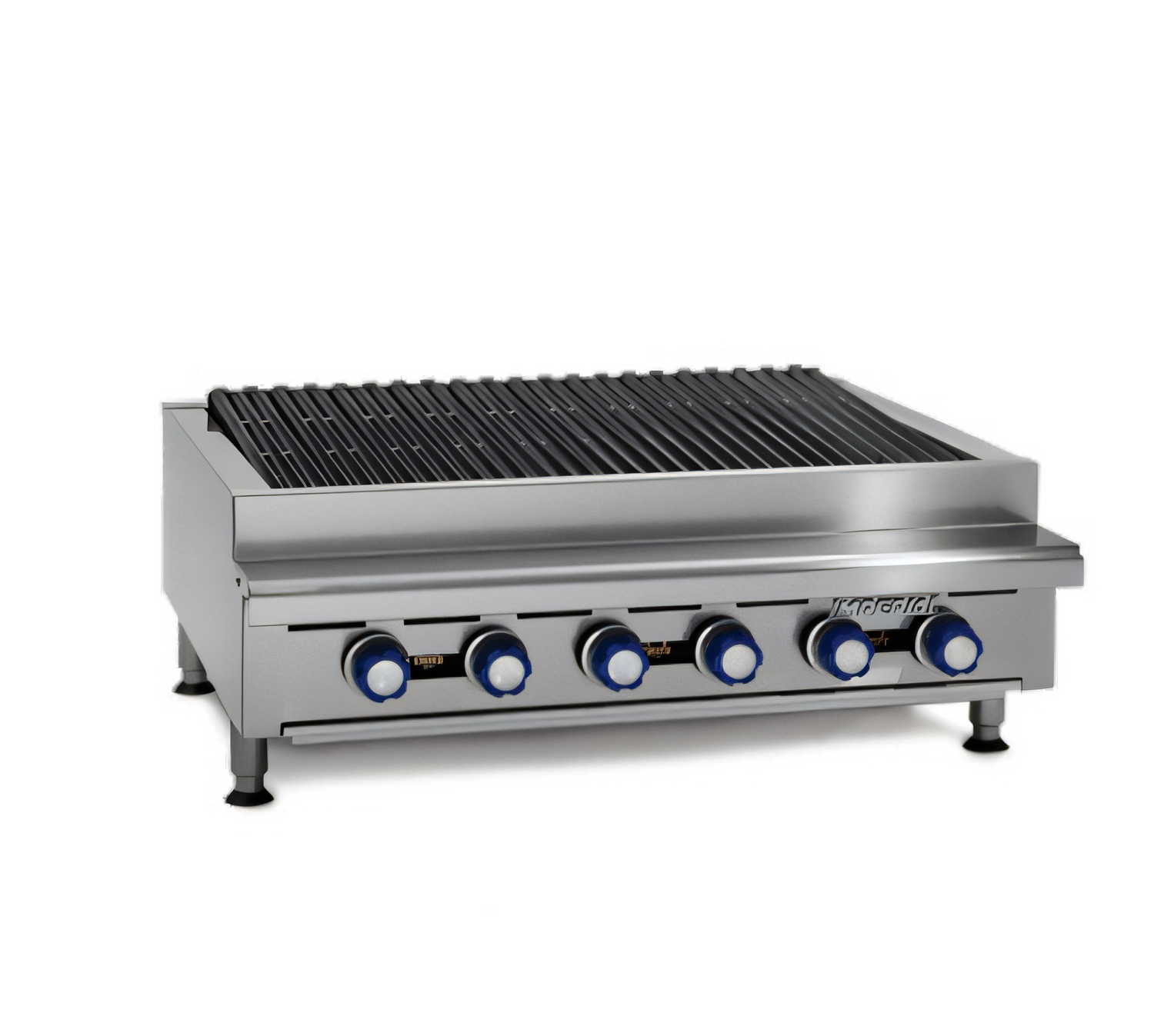

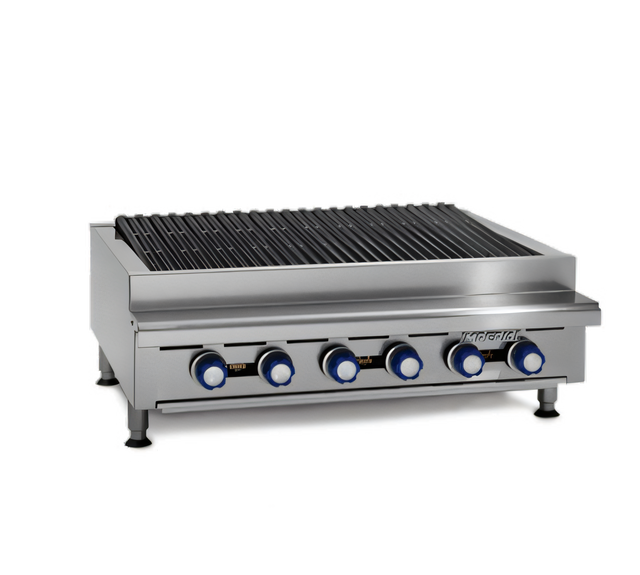

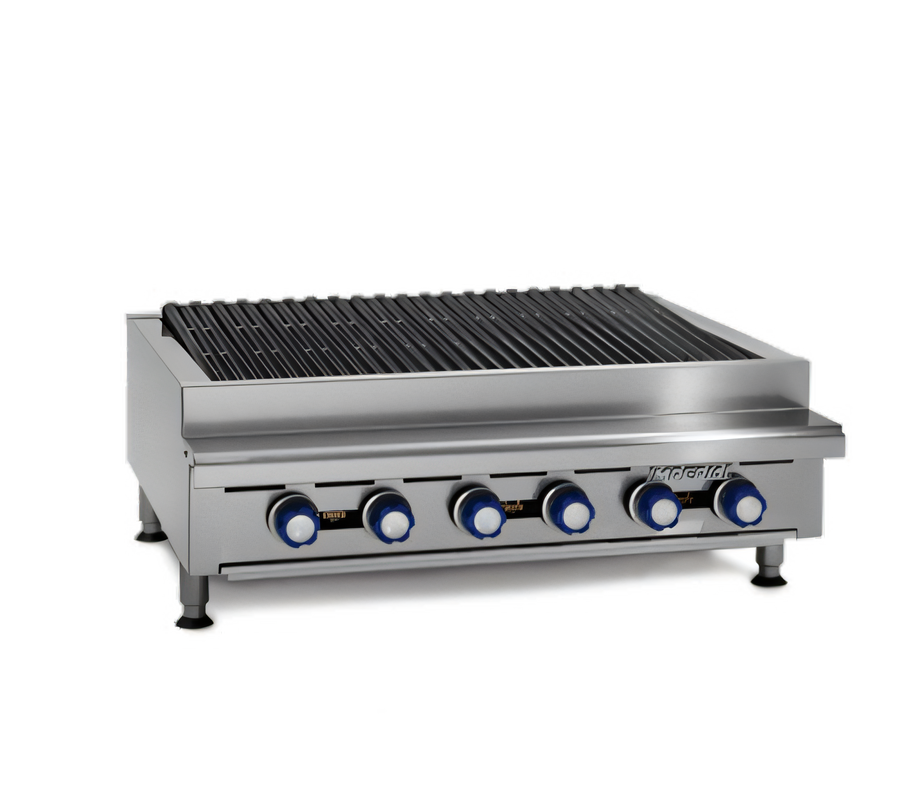

Imperial IRB-48 Countertop Gas Radiant Charbroiler – 48"

8 independently-controlled burners | 120,000 BTU (35 kW) | NSF, cETLus & CE

Engineered for high-volume kitchens, the Imperial IRB-48 delivers steak-house results from a space-saving countertop footprint. Eight powerful stainless-steel burners heat robust cast-iron radiants and slanted top grates, providing intense, even surface temperatures and unmistakable charbroiled flavor.

Why you’ll love it

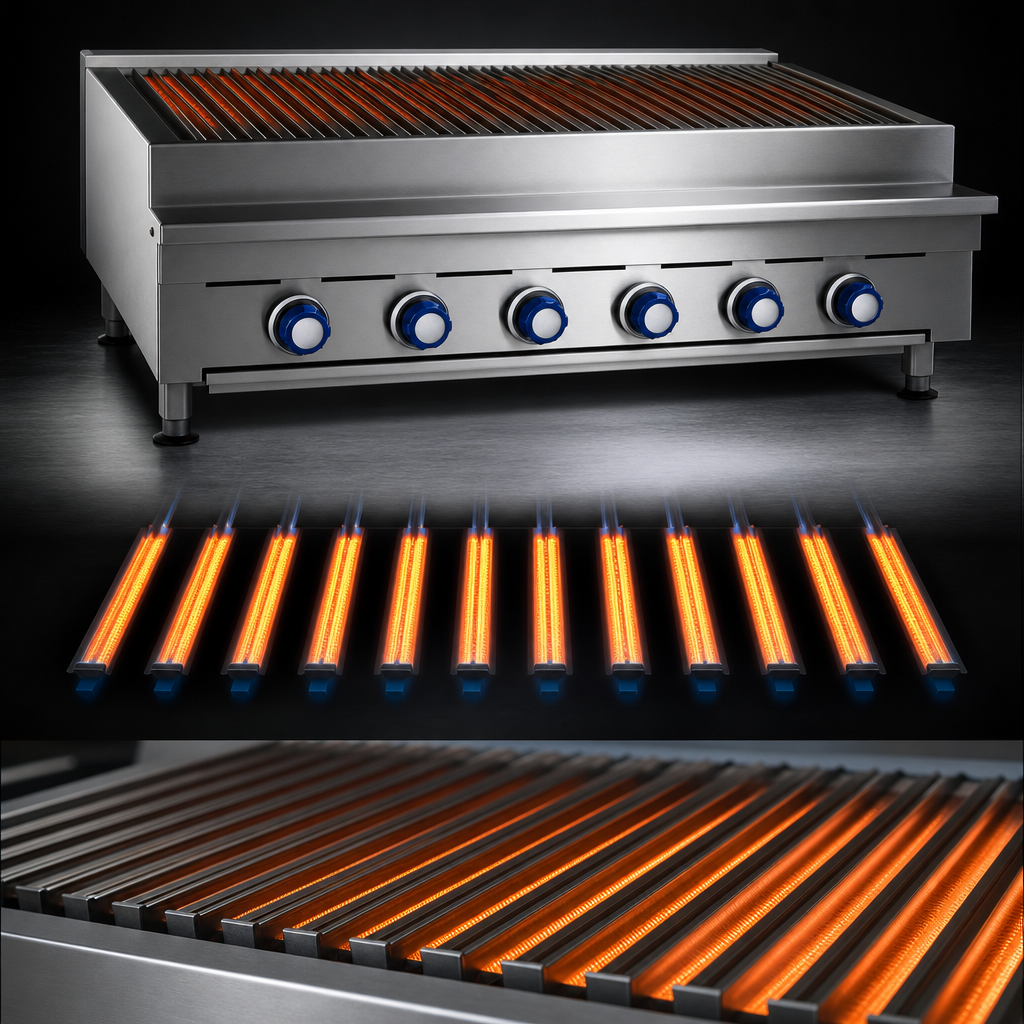

  • Serious fire-power – 8 burners at 15,000 BTU each (120,000 BTU total) spaced every 5" for uniform heat.

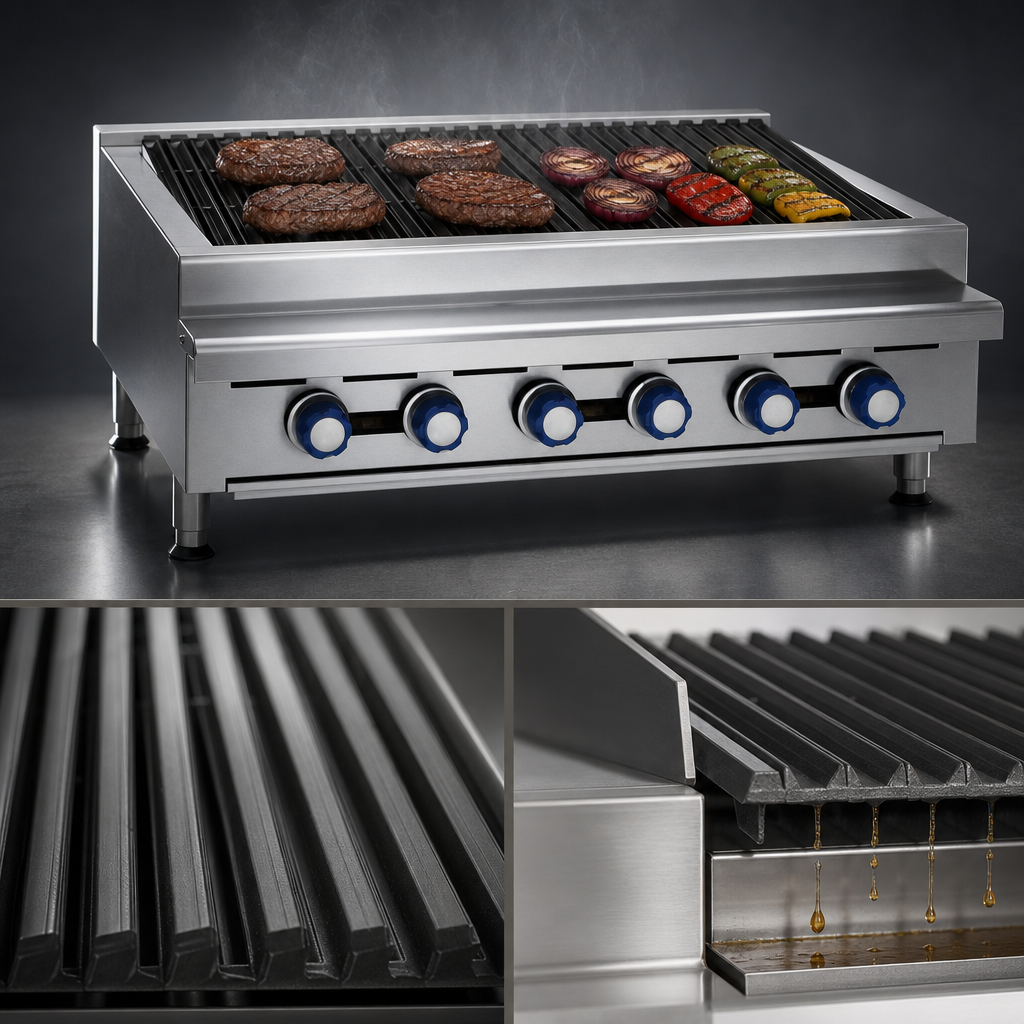

  • Cast-iron performance – Removable radiants & heavy-duty top grates retain heat, resist warping and give defined grill marks.
  • Slanted cooking surface offers a wide temperature range for simultaneously searing and holding.
  • Cleaner, safer operation – Each grate blade has a cast-in grease trough that channels fat to a full-width gutter and large removable drip pan, reducing flare-ups.
  • Built to last – Welded stainless-steel front, sides and a 5" deep landing ledge stand up to daily abuse and make wipe-downs fast.
  • Energy-saving insulation throughout the cooktop keeps heat where you need it.
  • Ready for your line – 4" heavy-duty legs with adjustable feet level the unit on any surface.
  • Range-match profile pairs perfectly with Imperial ranges, refrigerated bases or equipment stands to create a seamless cookline.

Specifications

Model IRB-48
Cooking surface width 48" (1219 mm)
Overall dimensions 48" W × 31 3⁄8" D × 13 3⁄4" H
(1219 × 797 × 286 mm)
Number of burners 8 radiant burners (individually controlled)
Heat output 120,000 BTU/hr (35 kW)
Gas type & connection Natural or Propane gas, 3⁄4" NPT rear manifold
Manifold pressure NG 5.0" W.C.  |  LPG 10.0" W.C.
Shipping weight ≈ 445 lb (202 kg)
Certifications cETLus, NSF, CE
Warranty 1-year parts & labor, factory-authorized service
Important: This unit is intended for commercial use only. Provide 0" clearance from non-combustible surfaces and at least 8" (203 mm) from combustible surfaces. All gas equipment must be installed by a licensed professional in accordance with local codes.

Need a matching equipment stand, stainless-steel radiants, quick-disconnect hose or other accessories? Chat with our team for custom options.

Features & Specs

Manufacturer

Imperial (Middleby)

Certifications

NSF, CE, cETLus

Height

13.75in

Width

48.0in

Depth

31.38in

Shipping Weight

445.0lbs

Width (side - side) OA

43 - 48"

Heating Source

radiant

Control Type

manual controls

Specifications

Charbroiler, gas, countertop, 48"W, (8) radiant burners, cast iron slanted top grates, full width grease gutter, removable drip pan, stainless steel front, sides & 5"D landing ledge, 4" legs with adjustable feet, 120,000 BTU, 35kW, cETLus, NSF, CE
