Imperial (Middleby) IRB-24 Gas Charbroilers
Description
Imperial IRB-24 Radiant Gas Countertop Charbroiler — 24" (Quick Ship)
60,000 BTU | 4 burners | Cast-iron gratesServe steak-house quality grill marks from a compact footprint. The Imperial IRB-24 delivers intense, even heat across a 24" wide cooking surface, giving you the performance of a full-size broiler in a convenient countertop design that ships fast and installs easily.
Why you’ll love it

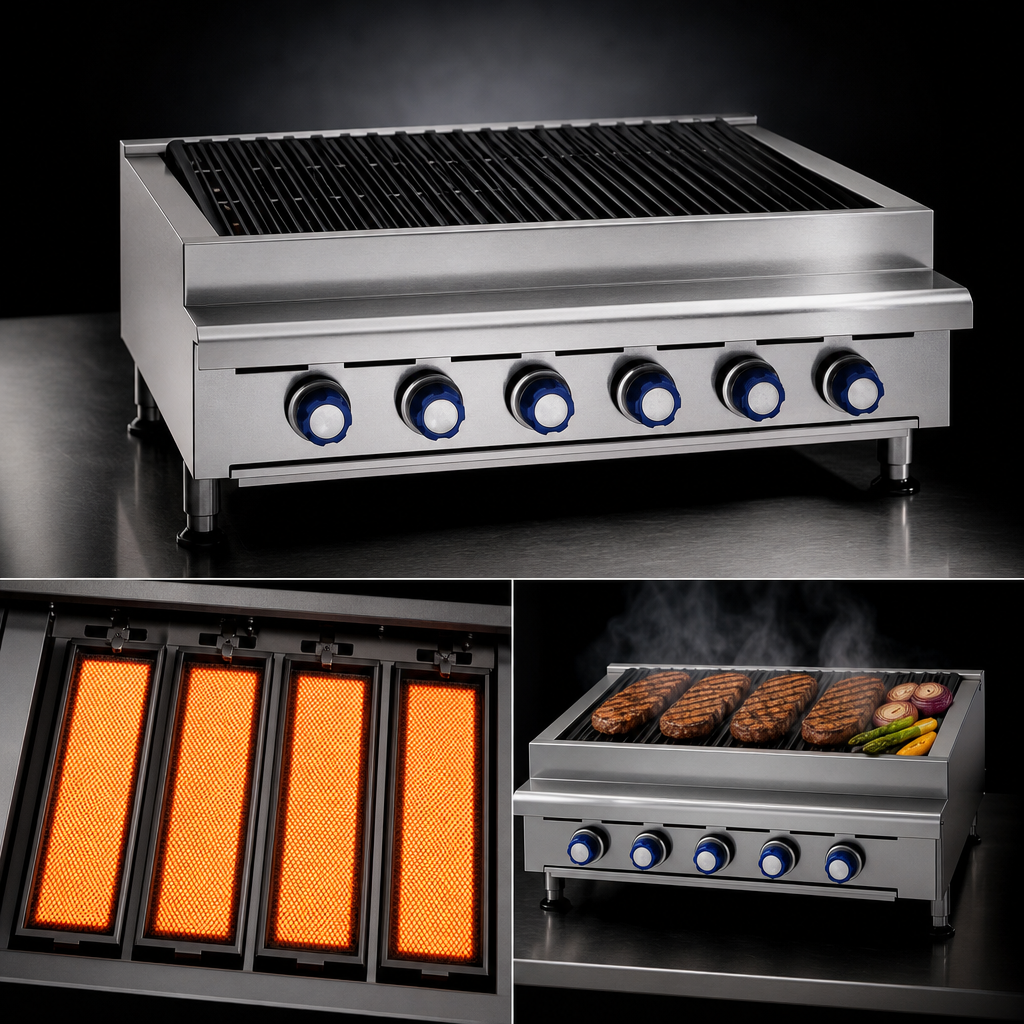

- Four individually controlled 15,000 BTU/hr stainless-steel burners (total 60,000 BTU) spaced every 5" for uniform heat.
- Removable, reinforced cast-iron radiants maximize heat retention and resist clogging for consistent results.

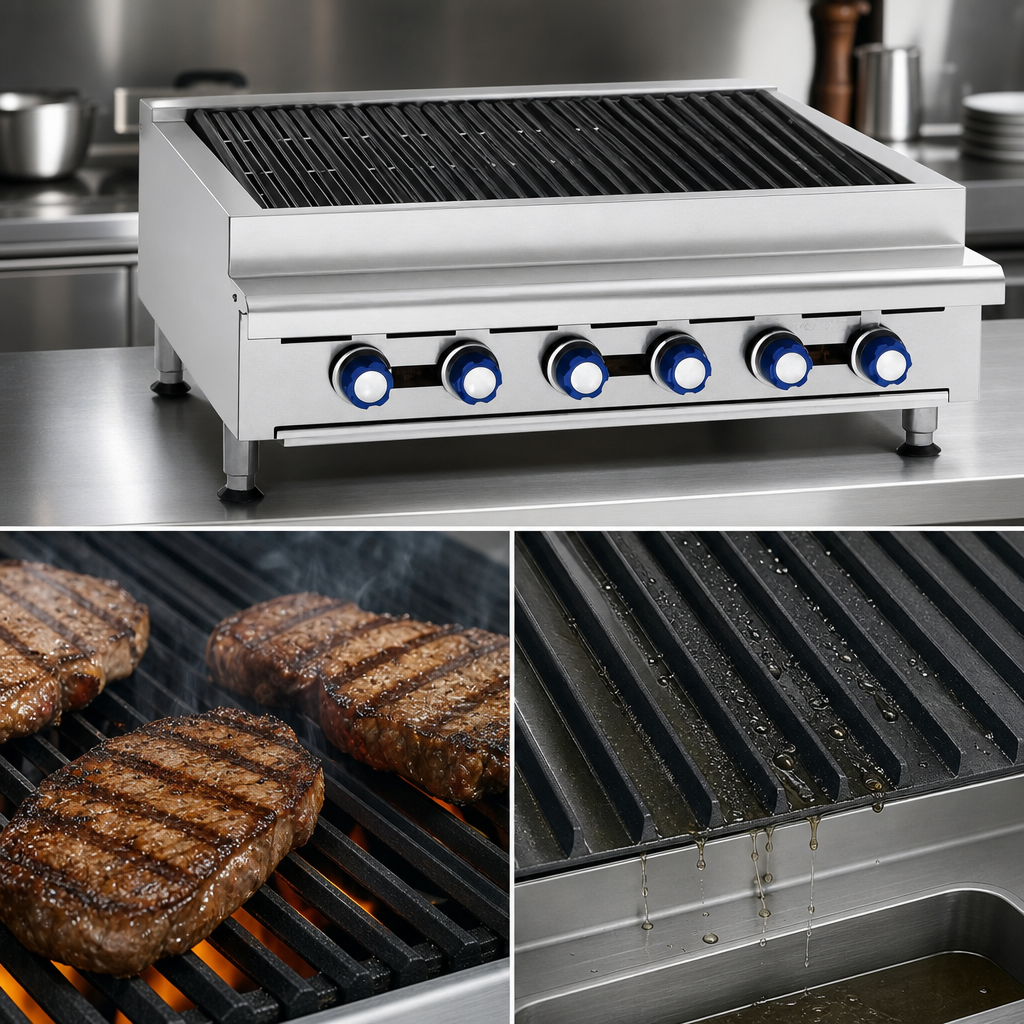

- Heavy-duty cast-iron grates are slanted to offer multiple temperature zones and feature a cast-in grease trough to reduce flare-ups.
- No tools required—grates, radiants and drip pan lift out for quick cleaning.
- Full-width grease gutter and large-capacity removable drip pan simplify daily maintenance.
- All-stainless exterior (front, sides & 5" landing ledge) with welded / polished seams for a professional, easy-to-sanitize finish.
- 4" heavy-duty legs with adjustable feet keep the broiler level on any surface.
- cETLus, NSF & CE listed and backed by a 1-year parts & labor warranty.
At-a-glance specifications
| Model | IRB-24 |
|---|---|
| Burners | 4 (stainless steel, individually controlled) |
| Total Output | 60,000 BTU / 18 kW |
| Cooking Surface | 24" W × 22" D (610 × 559 mm) |
| Overall Dimensions | 24" W × 31-3/8" D × 13-3/4" H (610 × 797 × 349 mm) |
| Landing Ledge | 5" (127 mm) deep, stainless steel |
| Gas Connection | 3/4" NPT (rear) |
| Manifold Pressure | Natural Gas 5.0" W.C. | Propane 10.0" W.C. |
| Clearances | 0" sides & rear (non-combustible); 8" sides & rear (combustible) |
| Shipping Weight | ≈ 260 lb (118 kg) |
| Certifications | cETLus, NSF, CE |
| Warranty | 1-year parts & labor (factory authorized service) |
Installation & available options
- Ships for countertop use—pair with an optional stainless-steel stand, equipment base or refrigerated base to suit your line-up.
- Field-convertible for natural or propane gas (conversion kit sold separately).
- Accessories: stainless-steel radiants, 6" casters (for stands), quick-disconnect hose & 3/4" gas shut-off valve.
Need peace of mind fast? This IRB-24 qualifies for Imperial’s Quick Ship program and arrives with a full 1-year parts & labor warranty serviced by Imperial’s nationwide authorized network.
