Imperial (Middleby)  |  Pro Series  |  SKU: IR-G72-XB

Imperial (Middleby) IR-G72-XB Pro Series Gas Ranges

$17,744.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Parts manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Imperial Pro Series 72" Gas Restaurant Range – Full-Width Griddle, Standard Oven & Cabinet Base

Model IR-G72-XB | 155,000 BTU

Pack more production into the same footprint. Imperial’s 72" Pro Series range brings you a restaurant-proven griddle, a full-size chef-depth oven, and a storage cabinet – all wrapped in durable stainless steel for years of high-volume service.

Why You’ll Love It

  • 72" highly polished ¾" steel griddle plate (21" cook depth) for unbeatable heat retention and quick recovery.
  • Dedicated 20,000 BTU burners every 12" with integrated heat deflectors ensure edge-to-edge even temperatures.
  • Front-mounted 3" grease trough, extra-large removable grease can and full-width crumb tray speed clean-up between shifts.

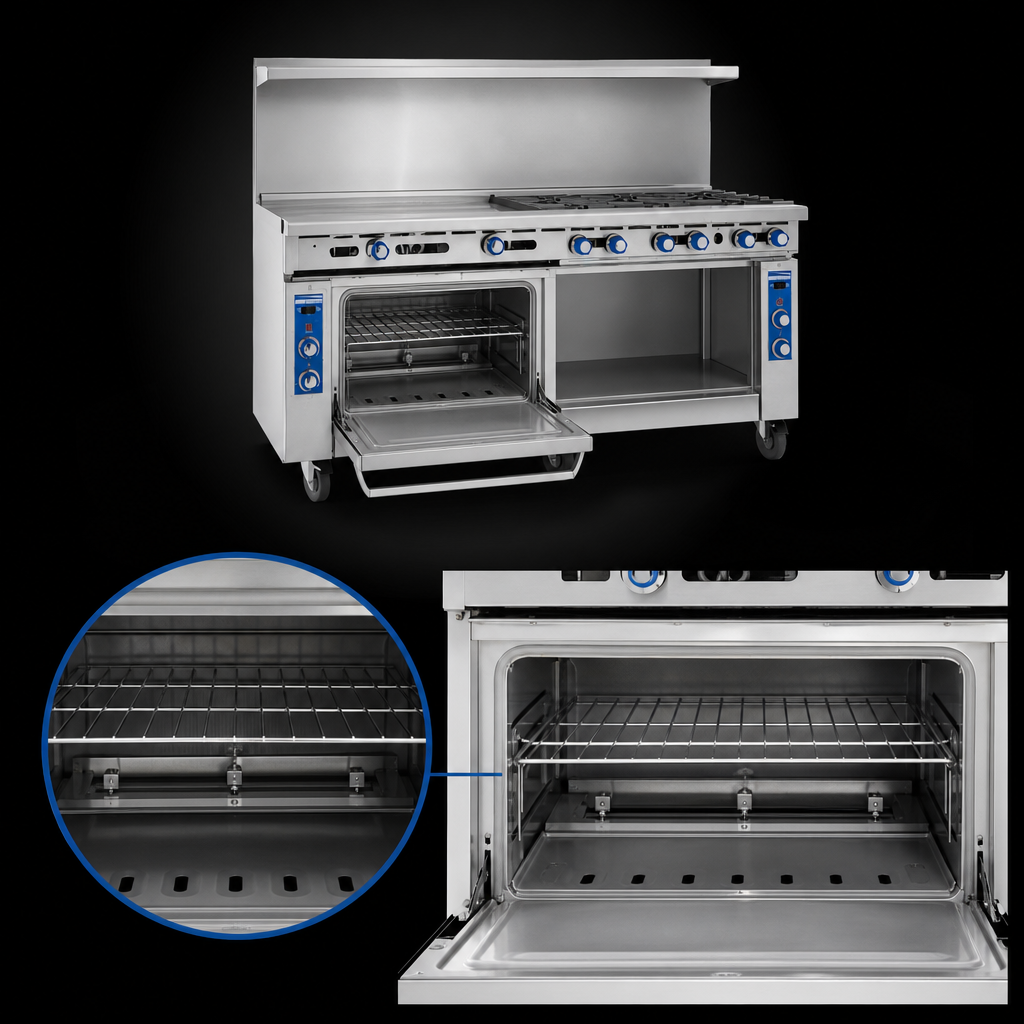

  • Left-side standard oven (35,000 BTU) accepts full-size 18" × 26" sheet pans front-to-back or left-to-right.
  • Right-side open cabinet base with reinforced bottom shelf keeps cookware and sheet pans close at hand.
  • All-stainless exterior – front, sides, 6" backguard, landing ledge, kick plate & shelf – with welded, polished seams.
  • Heavy-duty 6" legs with adjustable feet; field-install casters available for effortless mobility.
  • Rugged cast-aluminum knobs and a 3.5" landing ledge give chefs a safe staging area for plating & utensils.
  • Manual controls, ¾" rear gas connection; ships natural-gas–ready, easily field-convertible to LP.

Performance & Capacity

Total Input 155,000 BTU/hr (45 kW)
Griddle Plate 72" W × 21" D × ¾" thick steel
Griddle Burners Six burners @ 20,000 BTU each (one every 12")
Oven Interior 26½" W × 26" D × 14" H (Chef Depth)
Oven Rack(s) 1 chrome rack included, 3 positions
Storage Base 26½" cabinet with bottom shelf

Dimensions & Utilities

Overall Dimensions 72" W × 31½" D × 56½" H
Gas Connection ¾" NPT rear manifold
Manifold Pressure Natural 5" W.C.  |  LP 10" W.C.
Clearances 0" sides & rear (non-combustible) • 8" (203 mm) combustible
Shipping Weight 1,370 lb (620 kg)

Certifications

  • NSF Listed
  • CE Mark
  • CSA Flame
  • CSA Star

Popular Options (sold separately)

  • 6" or 11" stainless-steel backguard or stub-back
  • Heavy-duty swivel casters
  • Thermostatic or grooved griddle plate
  • Quick-disconnect gas hose & shut-off valve

Includes Imperial’s one-year parts & labor warranty. Extended protection available – ask your rep for details.

Installation Notice: A licensed gas professional must connect and test this appliance to maintain safety and warranty coverage.

Features & Specs

Manufacturer

Imperial (Middleby)

Brand_name

Pro Series

Certifications

NSF, CE, CSA Star, CSA Flame

Height

56.5in

Width

72.0in

Depth

31.25in

Shipping Weight

1370.0lbs

Top

(1) griddle

Vent

backriser with hi-shelf

Base

(1) standard oven, (1) cabinet

Exterior Finish

stainless steel front & sides

Plate Thickness

.750" = 3/4"

Specifications

Pro Series Restaurant Range, gas, 72", griddle, (1) standard oven, (1) open cabinet with bottom shelf, manual controls, 3" grease trough, removable grease can & crumb tray, stainless steel front, sides, backguard, shelf, landing ledge & kick plate, 6" legs, adjustable feet, 155,000 BTU, NSF, CE, CSA Flame, CSA Star
