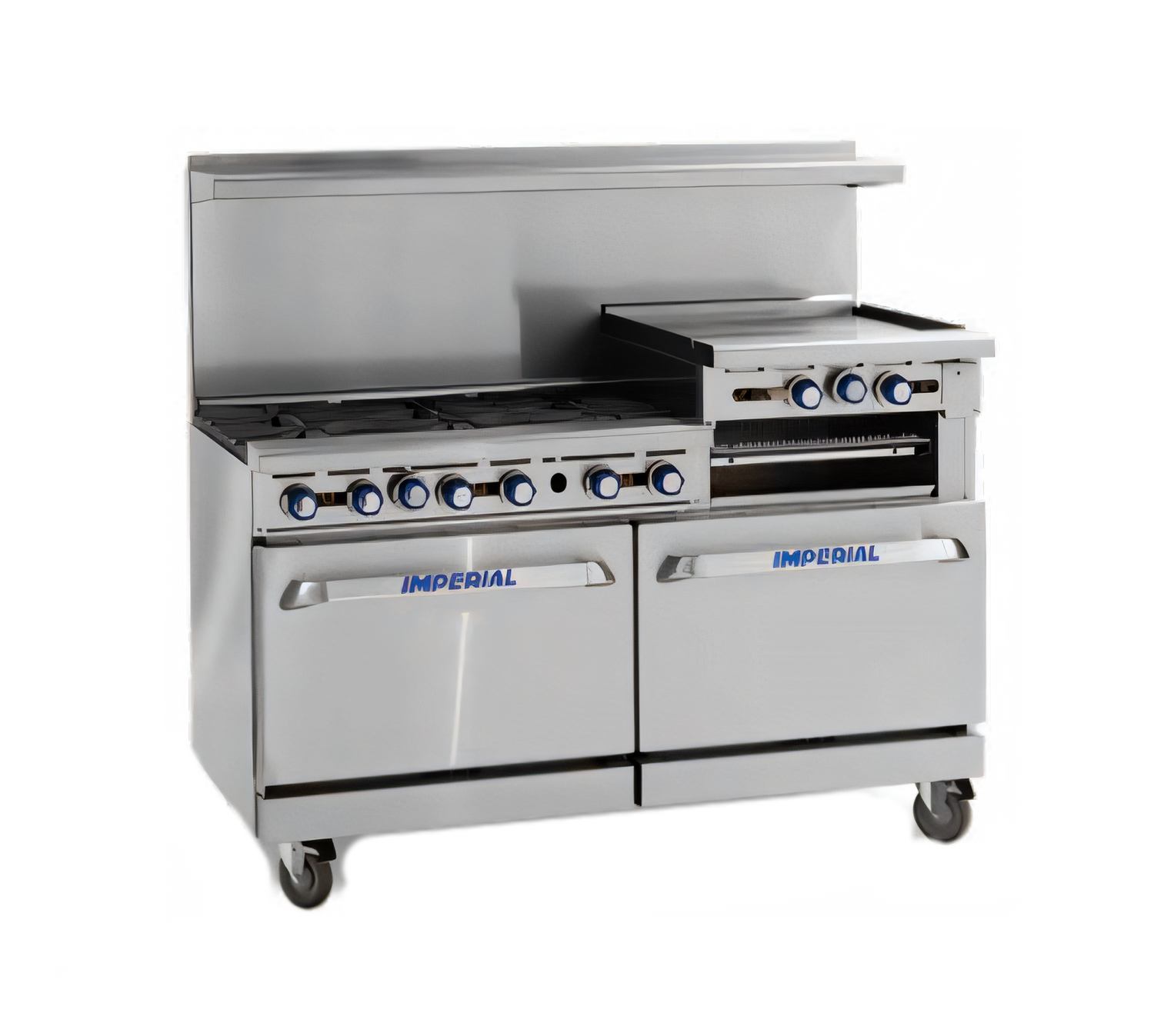

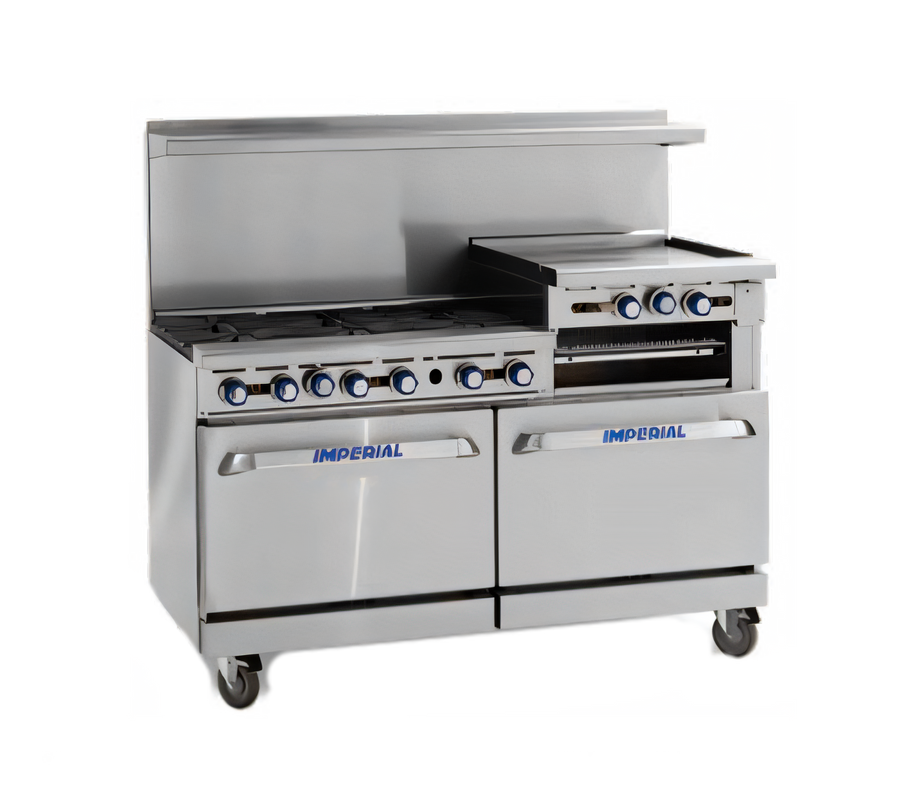

Imperial (Middleby) IR-G60-XB Pro Series Gas Ranges
$12,533.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Imperial (Middleby) IR-G60-XB Pro Series Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Imperial (Middleby) IR-G60-XB Pro Series Gas Ranges
$12,533.00
Unit price
/
Unavailable
Description
Imperial Pro Series 60″ Gas Griddle Range
Model IR-G60-XB | 135,000 BTU | 40 kWBuilt for high-output kitchens that refuse to compromise on durability or consistency, the Imperial Pro Series IR-G60-XB combines a full-width 60″ griddle, a chef-depth standard oven, and a convenient open cabinet base—all wrapped in heavy-gauge stainless steel. From all-day breakfast to late-night burgers, this powerhouse keeps your line moving and your cleanup quick.
Why You’ll Love It

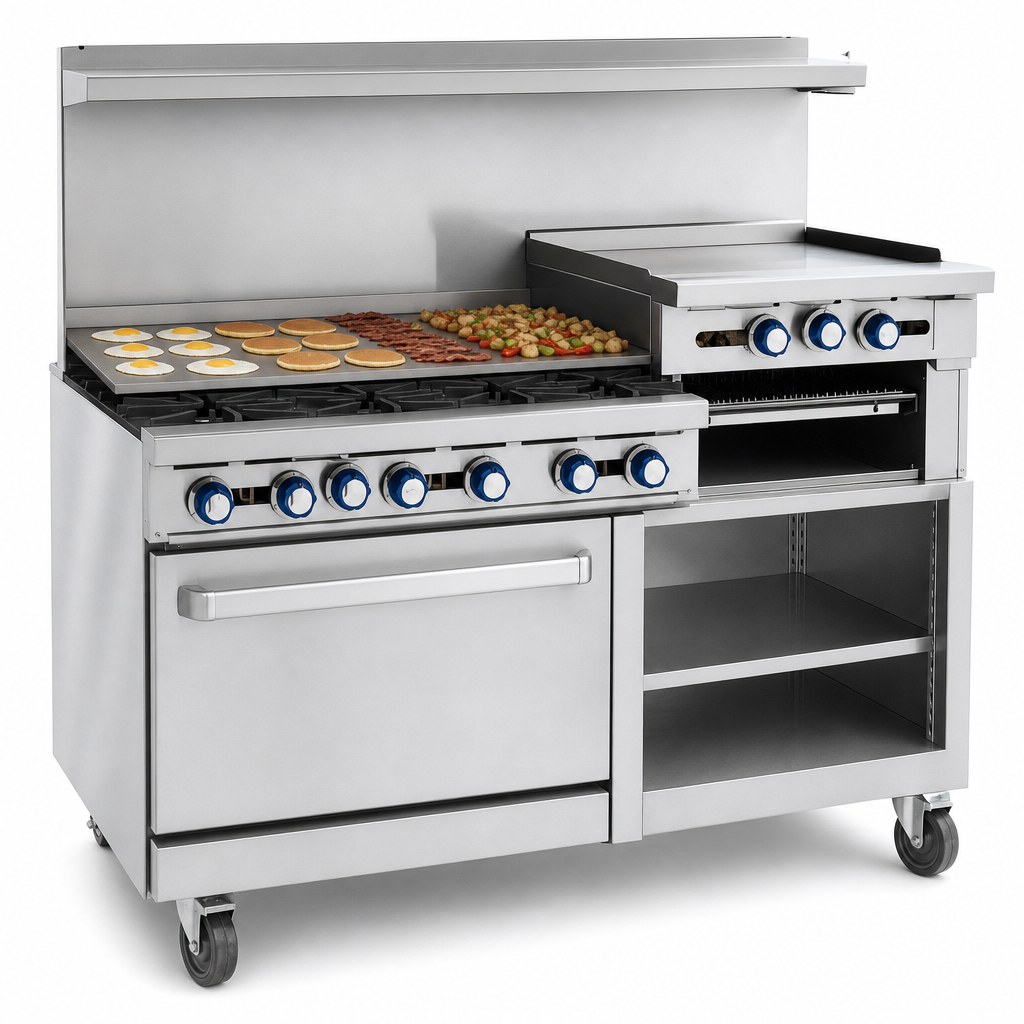

- Full 60″ cooking surface with a highly-polished 3/4″ steel plate for fast heat recovery and even caramelization.
- Integrated 3″ grease trough & large removable grease can for simplified sanitation and reduced downtime.
- Chef-depth standard oven (26-1/2″ W x 26″ D x 14″ H) fits 18″ x 26″ sheet pans left-to-right or front-to-back.
- Porcelain-coated oven interior and crumb tray wipe clean in minutes.
- Heavy-duty stainless steel construction—front, sides, backguard, shelf, 3-1/2″ landing ledge & kick plate.
- 6″ adjustable legs for a level cook line; optional casters available.
- Open cabinet base with bottom shelf keeps sheet pans, hotel pans, or smallwares at arm’s reach.
- Certified safe & sanitary: NSF, CE, CSA Flame, CSA Star.
Technical Specifications
| Gas Type | Natural or Propane (field specified) |
|---|---|
| Total Heat Output | 135,000 BTU / 40 kW |
| Griddle Plate | 60″ W x 21″ D, 3/4″ polished steel |
| Grease Management | 3″ trough, removable 4-qt grease can |
| Oven Interior (WxDxH) | 26-1/2″ x 26″ x 14″ (fits full-size sheet pans) |
| Oven Burner | 35,000 BTU linear burner with heat deflector |
| Rack(s) Included | 1 chrome rack, adjustable |
| Controls | Manual gas valves (griddle & oven) |
| Overall Dimensions | 60″ W x 31-1/2″ D x 56-1/2″ H |
| Clearance | 0″ sides/rear (non-combustible); 8″ combustible |
| Legs | 6″ stainless steel, adjustable feet |
| Shipping Weight | Approx. 1,065 lb / 483 kg |
| Certifications | NSF, CE, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor (factory authorized service) |
Popular Options & Accessories
- Thermostatic or grooved griddle plate upgrade
- 6″ or 11″ stainless steel backguard / stub-back
- Quick-disconnect hose & gas shut-off valve (3/4″)
- Heavy-duty caster set (front locking)
- Additional chrome oven racks
- Reinforcement channels for salamander or cheese melter
Imperial equipment is backed by a one-year parts & labor warranty when installed and serviced by an authorized technician. See full warranty for terms.
Installation Notice: This appliance must be installed on a non-combustible floor with legs or casters attached, or on a curb with a 2″ overhang. Follow all local gas and fire codes.
Features & Specs
Features & Specs
Manufacturer
Imperial (Middleby)
Brand_name
Pro Series
Certifications
NSF, CE, CSA Star, CSA Flame
Height
56.5in
Width
60.0in
Depth
31.5in
Shipping Weight
1065.0lbs
Vent
backriser with hi-shelf
Exterior Finish
stainless steel front & sides
Base
(1) standard oven, (1) cabinet
Plate Thickness
.750" = 3/4"
Control Type
manual controls
Top
(1) griddle
Specifications
Pro Series Restaurant Range, gas, 60"W, (1) 60"W griddle, 3/4" polished steel plate, 3"W grease trough, removable grease can & crumb tray, (1) standard oven, porcelain interior, (1) chrome rack, manual controls, (1) open cabinet, bottom shelf, stainless steel front, sides, backguard, shelf, 3-1/2"D landing ledge & kick plate, 6" legs with adjustable feet, 135,000 BTU, 40kW, NSF, CE, CSA Flame, CSA Star
